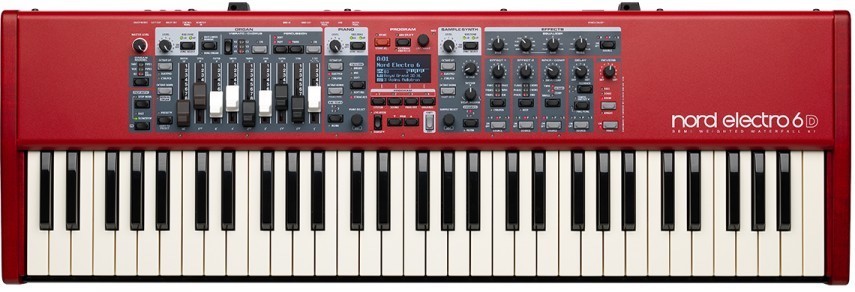

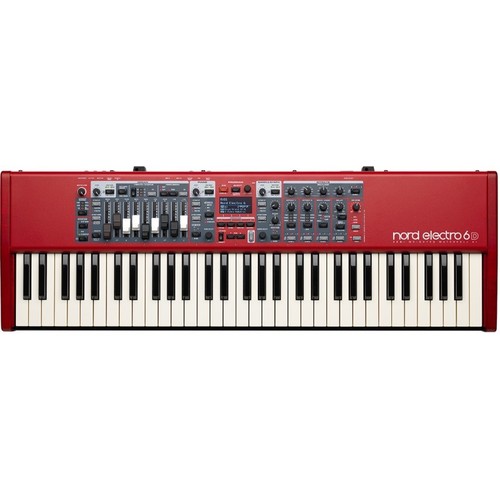

Nord Electro 6D 61

The Nord Electro 6D combines our award-winning emulations of vintage electro mechanical and acoustic instruments in an ultra-portable package.

With 3 independent sound sections, a new streamlined user interface and the addition of Seamless Transitions, we're proud to present the most powerful and flexible Electro ever - a refined modern classic.

FEATURES

• Seamless Transitions NEW

• 3 part multi-timbral NEW

• Split and Layer all 3 sections with optional Split Point Crossfades

• OLED Display for excellent overview

• Organize Mode for quickly rearranging programs, sounds and pages

PERFORMANCE

Seamless transitions
The Nord Electro 6 features automatically seamless transitions when changing sounds or programs while playing.

Layer and advanced Split functionality
The panel has three independent sound sections; Organ, Piano and Sample Synth that can be used simultaneously as a layer or a split. It features 6 Split Points and the new Split Point Crossfade functionality introduced with the Stage 3 for smooth transitions between two split zones. Choose from 3 different crossfade widths (Small, Large or Off) as indicated by different LED colors.

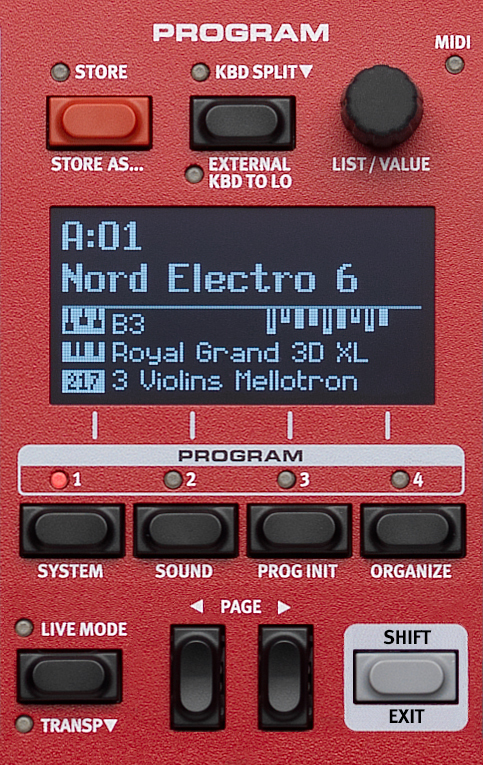

Refined Program Section
The new streamlined Program section features a handy Organize mode including Copy/Paste and Move functionality for quickly arranging your Programs to your desired order. A new Page View lets you easily sort and organize pages as a song list.

All Programs, Pianos and Synth Samples are easily navigated using the new List View that offers alphabetical, numerical and category sorting options.

ORGAN SECTION

The Nord Electro 6 features our award-winning Nord C2D Organ simulations of B3 Tonewheel, B3 Bass and Vintage Transistor Organs plus two Pipe Organ models.

B3 Tonewheel simulation
The Organ section features our acclaimed Nord C2D Organ engine including the extremely authentic B3 Tonewheel simulation with four different tone wheel settings, ranging from factory new clean to leaky old vintage.

An improved dedicated Bass mode simulating the Pedal Bass Tonewheels are available for either splitting with a Piano or Synth or with a B3 Upper Manual in Dual Organ Mode.

Classic Transistor Organs
Our impeccable simulations of the classic 1960’s Transistor Organs, Vox Continental and Farfisa Compact with all the classic settings, are also included in the Organ section.

Pipe Organs
The Organ section now contains two different Pipe Organ models. The new Pipe 1 is a pure Organ with few harmonics. The Pipe 2, introduced with the Electro 5, is a recreation of metal pipes that commonly make up the backbone of a pipe or church organ, and now includes a special new detune mode when enabling Vibrato/Chorus.

Vintage Rotary Speaker
The Nord Electro 6 has the latest generation of our vintage 122 Rotary Speaker simulation adding an essential character to a live organ performance and features Slow, Fast and Stop mode as well as a Drive control. The Electro 6D 61 and 73 support the Nord Half-moon Switch (optional accessory).

Dual Organ Mode
The dedicated new Dual Organ mode provides quick access to dual manual setups and offers great overview and control of the drawbar settings for both the Lower and Upper manual.

Physical Drawbars for Electro 6D 61/73
The Electro 6D 61 and 73 feature Physical Drawbars offering ultimate hands-on experience for the dedicated organ players.

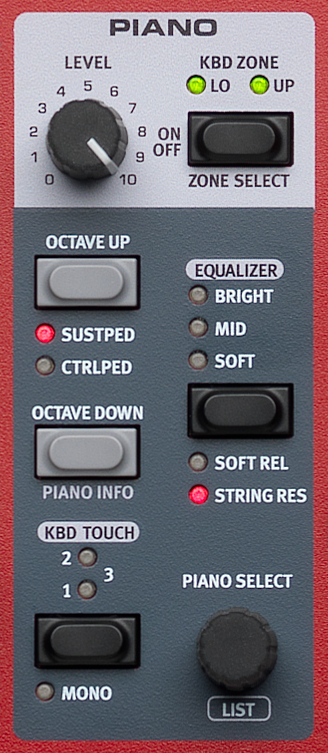

PIANO SECTION

The Piano section has a wide selection of acoustic, electric and digital pianos from the exclusive Nord Piano Library, extended voice polyphony and creative new Piano Filters.

Factory Bank
The Nord Electro 6 factory bank contains an extensive selection of our latest Grands, Uprights, Electric Pianos and Digital Pianos from the exclusive Nord Piano Library - all handpicked for their unique characters! The Piano section also features our new “Layer” category with rich dynamic layered patches.

The Nord Piano Experience
Nord’s state-of-the-art sampling techniques capture the extraordinary nuances and real character of the source instruments and unique ‘Advanced String Resonance’ delivers breathtaking realism and an unsurpassed level of expressiveness.

Replaceable sounds
The Factory Bank features a great selection from the Nord Piano Library but you can easily add or replace any of these sounds using the Nord Sound Manager. Our exclusive Nord Piano Library is constantly updated with new exclusive world class sounds, and always free of charge.

Piano Filters
Providing an additional level of sonic control, the Piano Section now features dedicated piano filters for accentuating softness, mid or brilliance.

Soft Release
A Soft Release-mode adds a slightly longer release, more suitable for legato playing, emulating a looser damper tension in an acoustic or an electromechanical instrument.

Dynamic Curves
4 dynamic curves are available to suit your playing style, from soft to hard.

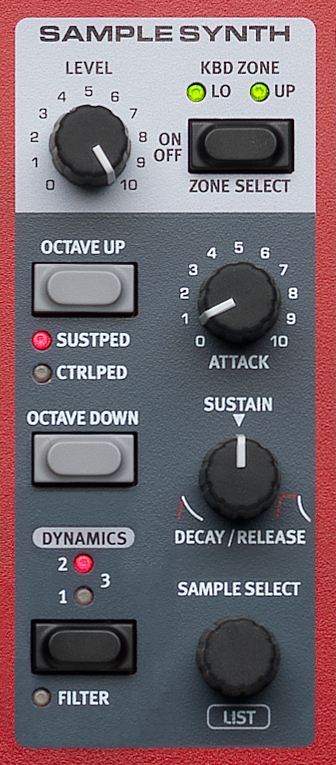

SAMPLE SYNTH SECTION

The enhanced Sample Synth Section features expanded memory for the Nord Sample Library 3.0 and extended polyphony.

The Sample Synth Section contains a broad selection of high quality sounds from the Nord Sample Library 3.0 including the exclusively licensed sounds of the legendary Mellotron and Chamberlin.

The Sample Synth is equipped with essential controls for attack, decay/release and dynamics (filter/velocity). A unique Nord feature allows you to create your own samples using the free Nord Sample Editor software for WIndows and Mac.

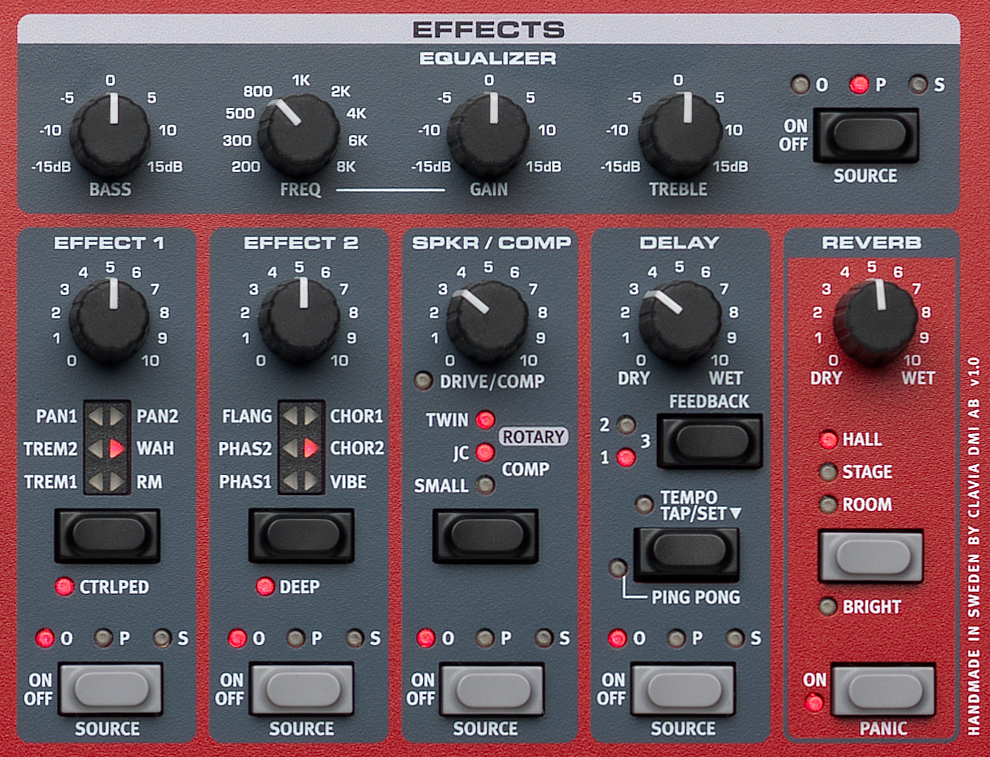

EFFECT SECTION

The powerful Effect section features a wide range of instantly tweakable high quality effects modelled after classic stomp boxes. All effects are stereo and can be assigned freely to the Organ, Piano or Synth sections.

Effect 1
Here you can choose from Tremolo, two Wahs, an Auto-Wah, and an AutoPan. Use the AutoWah with a Clavinet for raw funk licks, create a psychedelic vibe with an Electric Piano on AutoPan, or give a Wurlitzer some body using the Tremolo. There is also a Ring Modulator on board, an effect used by many experimental and electronic musicians.

Effect 2
The two Phasers, two Choruses, the Flanger and a Vibe effect are modeled from the classic analog stomp boxes that define the sound of popular music.

Amp Sim/Compressor/Rotary
Features authentic JC, Twin and Small speaker simulations with adjustable Drive, plus a separate Tube Drive simulation and a Compressor.

EQ
A 3-band Equalizer with sweepable mid.

Delay
The Delay effect features a Tap Tempo, Feedback and Mix (Dry/Wet), as well as controls for Ping-Pong mode and Tap Tempo.

Reverb
The Nord Electro 6 has three different Reverb types (Hall, Stage and Room) for adding some ambience to your sounds. All Reverb types also has a Bright mode.

SPECIFICATIONS

Performance Features

• Three independent sound sections Organ, Piano and Sample Synth that can be used simultaneously as a layer or a split

• 6 Keyboard Split points (C3-F5) with Split Point Crossfade functionality

• Organize/Page mode: Group sets of up to four Programs into Pages, and arrange these using the Organize mode

• 4 Live Slots

• External keyboard feature: Freely assign sound engines to be controlled by an external keyboard, while others are played from the Nord Electro 6.

Global Features

• Nord Electro 6D 61: 61-key (5 octaves, C-C) Velocity sensitive Semi Weighted Waterfall keyboard

Organ Section

• C2D B3 Tonewheel, B3 Bass, Vox, Farfisa and 2 Pipe organ models

• User adjustable percussion levels, percussion decays and key click level

• Vibrato / Chorus Control with separate functionality for each model (the classic C1, C2, C3, V1, V2, V3 options for the B3, Vibrato for the Farfisa, Chorus/Detune for Pipe organ models )

• 3 Tonewheel modes: select the level of "vintage" desired

• Dual Organ mode for control of two independent manuals

• Manual Organ mode

• Mount for Half-Moon Switch on Electro 6D 61/73

• Nord Electro 6D 61/73: 9 Physical drawbars

Piano Section

• 1 GB memory dedicated to the Nord Piano Library

• Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord

• Each category can contain several different models.

• All pianos can be replaced using the Nord Sound Manager application

• Advanced String Resonance-control (Gen 2)

• Soft Release

• EQ/Filter

• 4 Dynamic Curves

• Stereo pianos and samples can be played back in mono

• 120 Voices polyphony for Piano Library sounds.

Sample Synth Section

• 512 MB memory dedicated to the Nord Sample Library

• All samples can be replaced using the Nord Sound Manager application

• The Sample Synth section comes shipped with an extensive selection of one hundred samples from the Nord Sample Library

• Attack and Decay/Release control

• 4 levels of dynamic velocity control

• Velocity sensitive low pass filter

• 46 voice polyphony for Sample Library sounds.

Effects Section

All effects in Stereo
Effect 1

• Pan, Tremolo, Wah and Ring Modulator

• Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob

• Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal

Effect 2

• Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe

• Two selectable depths for each effect

Amp Simulations

• Comp/Amp - three amp/speaker simulations, compressor, C2D 122 rotary speaker, Tube Overdrive

• Drive/Compression amount controlled with the Drive knob

• Rotary speed controls - Slow, Fast and Stopped

• Close or Normal microphone placement for 122 Rotary Speaker simulation

• User adjustable rotary treble and bass rotor speeds and acceleration rates

• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation

Master Effects

• Dedicated Reverb with 3 modes - Room, Stage and Hall - all with optional Bright Mode and Dry/Wet control

• Dedicated Delay Effect - Rate, Amount, Tap-tempo and Stereo Ping Pong

Connections

• 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced

• 1 Monitor input - 1/8", 3,5 mm stereo jack

• 1 Headphone output - ¼", 6,35 mm stereo jack

• 1 Control pedal input - ¼", 6,35 mm TRS stereo jack, like Yamaha FC7, Roland EV-7, Roland EV-5, Korg EXP2 and Korg XVP10.

• 1 Sustain pedal input - ¼", 6,35 mm jack.

• 1 Rotary Speaker speed switch pedal input - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal

• MIDI In, MIDI Out - 5 pin DIN connectors

• USB - type B connector - for transferring sounds and USB MIDI

• IEC C14 power connector

Included Accessories

• User Manual

• Power cord

Dimensions

• 900 mm (35.4") x 97 mm (3.8") x 296 mm (11.7")

• 8.1 kg (17.85 lbs)
