Neutrik NTP3RC-B
Connector

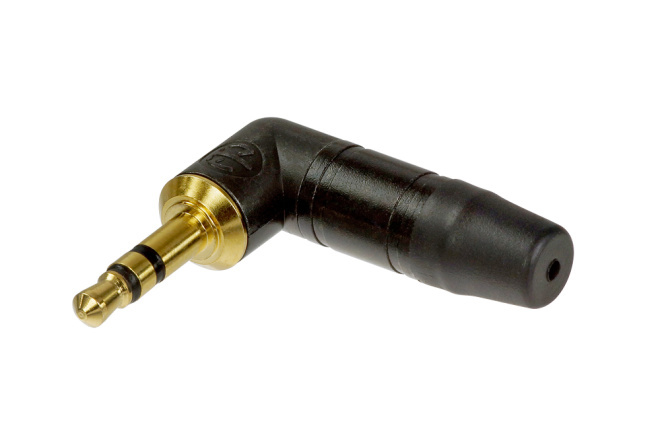

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, black housing, gold contacts
The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.
FEATURES
- All metal housing - robust and reliable
- Chuck type cable clamp and rubber gland - excellent cable protection
- Slim design - space saving
SPECIFICATIONS
Connection Type: Plug
Gender: Male
Contact resistance: depends on mating connector mΩ
Dielectric strength: 1 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated voltage: <50 V
Cable O.D.: 2 - 4.5 mm
Wiresize: 0,22 mm²
Wiresize: 24 AWG
Wiring: Solder contacts
Bushing: Brass (CuZn39Pb3) + PU, black Cr
Contact plating: 0.2 µm Au
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 15 % GR)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Strain relief: Polyacetal (POM)
Solderability: Complies with IEC 68-2-20
Temperature range: -20 °C to +65 °C
