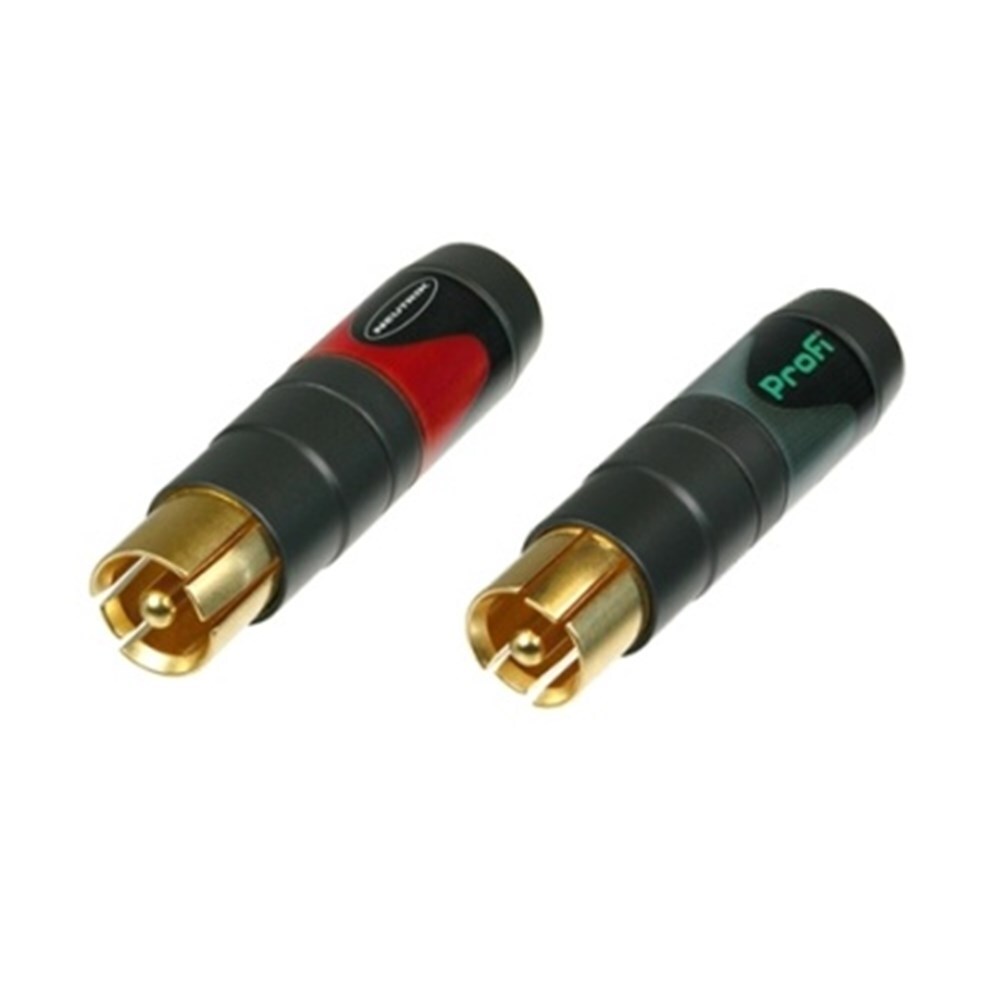

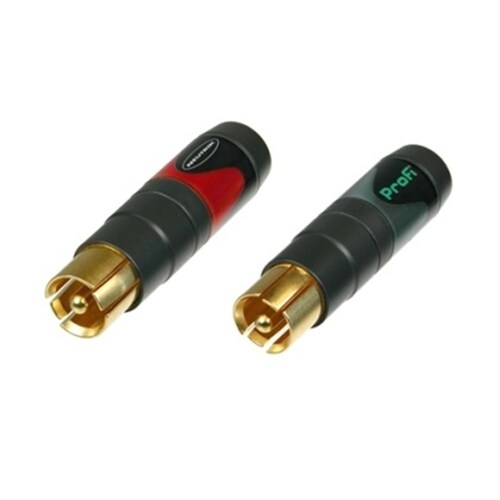

Neutrik NF2C-B/2 (Pair)

Pair of professional `Phono Plug` (`RCA`- or `CINCH`- type) - marked red and black.

Including 2 x 2 strain reliefs for cable O.D. 3.0 mm to 7.3 mm. Additional strain relief for cable O.D. up to 8.0 mm available as accessory.

FEATURES

• Makes ground before signal contact and breaks signal before ground

• No more disturbing noise and broken speaker cones

• Precisely machined to our demanding quality standards

• Neutrik unique chuck type strain relief

• Gold plated contacts

• Sleek barrel with soft touch surface and coloured shrink sleeve

• Improved ground solder lug for ease soldering

SPECIFICATIONS

Connection Type: Profi
Gender: Male
Capacitance between contacts: ≤ 7 pF
Contact resistance: >10G mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 5 GΩ
Rated current per contact: depends on mating connector / A
Rated voltage: < 50 V
Cable O.D.: 3.0 - 7.3 mm
Lifetime: > 2000 mating cycles
Wiresize: 1,5 mm²
Wiresize: 16 AWG
Wiring: Solder contacts
Contact plating: 5 µm Au over 5 µm Ni
Contacts: Brass (CuZn39Pb3)
Insert: PBTP 20 % GR
Shell: Brass (CuZn39Pb3)
Strain relief: Polyacetal (POM)
Flammability: UL 94 HB
Standard compliance: IEC 601-14
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
