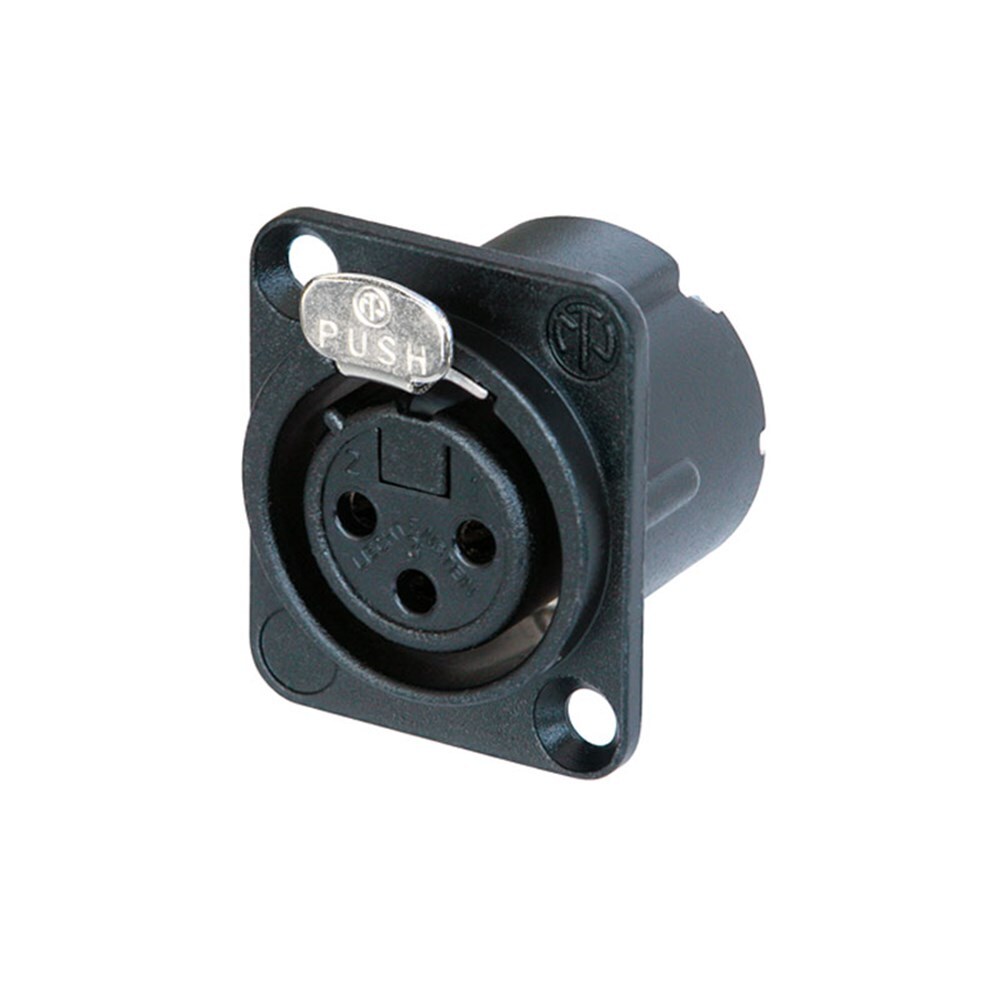

Neutrik NC3FD-LX-B

3 pole female receptacle, solder cups, black metal housing, gold contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

FEATURES

• All metal housing offers best overall RF protection and electromagnetic shielding

• Duplex ground contact for excellent contact integrity between chassis and cable connector

• Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact

• Female contact incorporates a solder barrier to prevent solder running into the contact mating area

• Larger solder contacts for easier termination

• Optional connection to easily join pin1 to chassis ground

• D-style housing provides installation compatibility with industry standard D mounting dimensions

SPECIFICATIONS

Connection Type: XLR
Gender: Female
Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1,5 kVdc
Insulation Resistance: > 10 GΩ (initial)
Rated Current Per Contact: 16 A
Rated Voltage: < 50 V
Insertion Force: ≤ 20 N
Withdrawal Force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 2.5 mm²
Wiresize: max. 14 AWG
Wiring: Solder contacts
Locking Device: Latch lock
Chassis Shape: D
Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6.6 30 % GR)
Locking Element: Steel Ck67
Shell: Zinc diecast (ZnAl4Cu1)
Shell Plating: Black chromium
Flammability: UL 94 HB
Standard Compliance: IEC 61076-2-103
Protection Class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature Range: -30 °C to +80 °C
