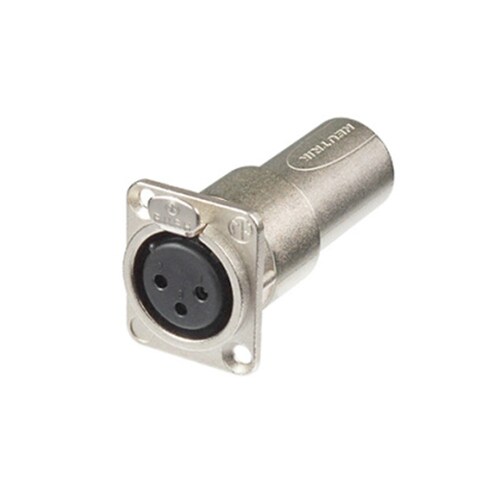

Neutrik NA3FDM

XLR female-male feedthrough adapter for panel mount.

SPECIFICATIONS

Connection Type: Adapter
Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 2.5 mm²
Wiresize: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock
Chassis shape: D
Contact plating: 2 µm Ag over 2 µm Ni
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature Range: -30 °C to +80 °C
