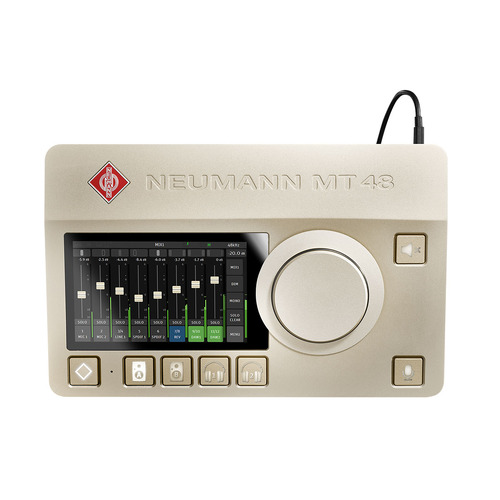

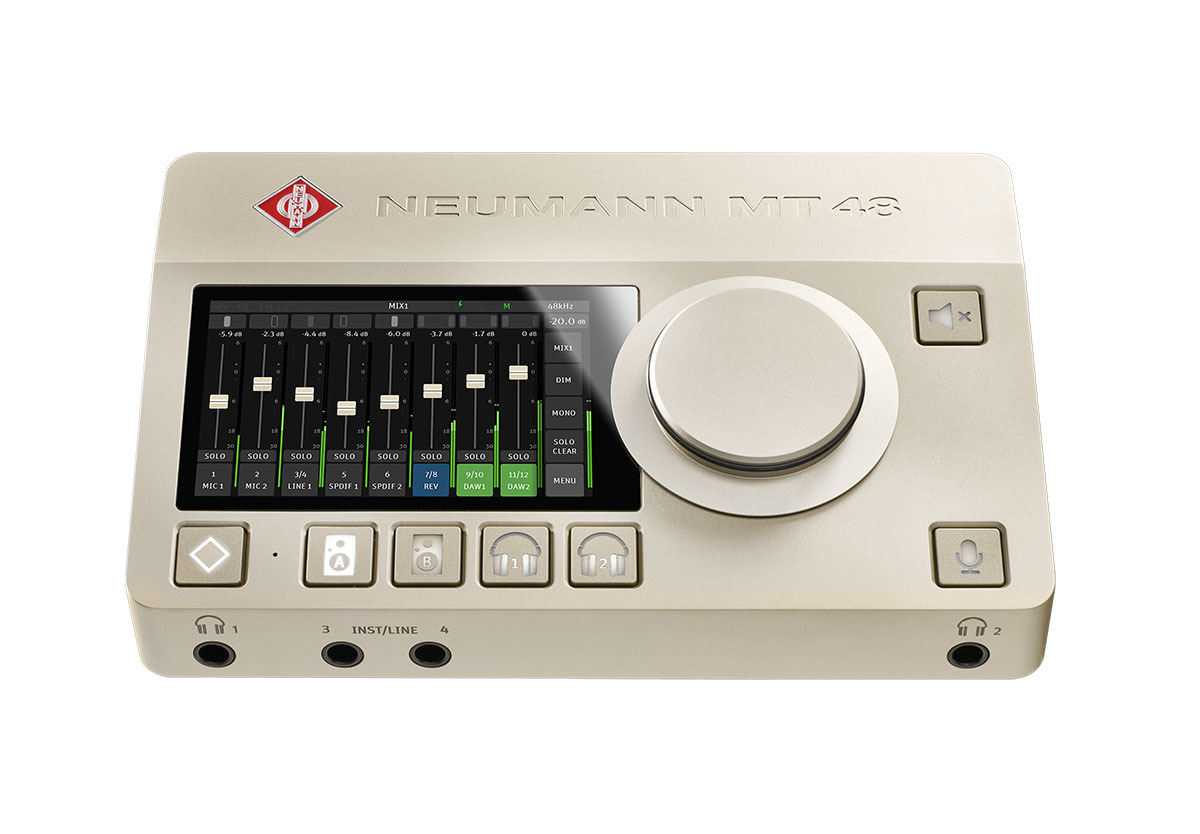

Neumann MT 48 U

Premium audio interface in Neumann quality with intuitive touchscreen control.

The New Benchmark
The MT 48 is an audio interface without compromise. With its huge dynamic range, superior converters, preamps and headphone amplifiers, it sets new standards in sound quality. Internal DSP power allows for monitor mixes with sophisticated EQ and dynamics processing – all intuitively controlled via touchscreen.

FEATURES

• Class-leading AD/DA converters with enormous dynamic range

• Intuitive touchscreen user interface

• DSP processing (EQ, dynamics, reverb)

• 4 independent mixers with integrated talkback

• USB, ADAT and AES67 connectivity

DANTE READY

As of December 12th, MT 48 is now delivered Dante Ready.
This makes it compatible with a world of over 4000 devices from more than 600 manufacturers. Dante is the leading Audio-over-IP protocol in the live and installation markets. Finally, the MT 48 can be easily integrated to act as a hub, monitor controller or mixer in Dante environments.

• Compatibility with more than 4000 Dante devices from 600 manufacturers

• New use cases e.g. in Live and installation markets

• MT 48 can become a hub and mixer in Dante networks

• Routing of Dante streams within MT 48

• USB Bridge for RAVENNA/AES67 and Dante streams, plus remote control

• Fully functional in standalone and class compliant operation

• Remote Control via App and Web Control support

• No additional cost for users who do not need Dante

The Perfect Link
The MT 48 brings Neumann quality to the digital workflow. It is the first audio interface in its class that is able to capture the full dynamic range of Neumann microphones and is optimally matched to the KH-Line of studio monitors and Neumann headphones. The result is an ideal signal chain without any bottlenecks: uncompromising sound quality from the microphone diaphragm to your ear.

Swiss Precision Inside

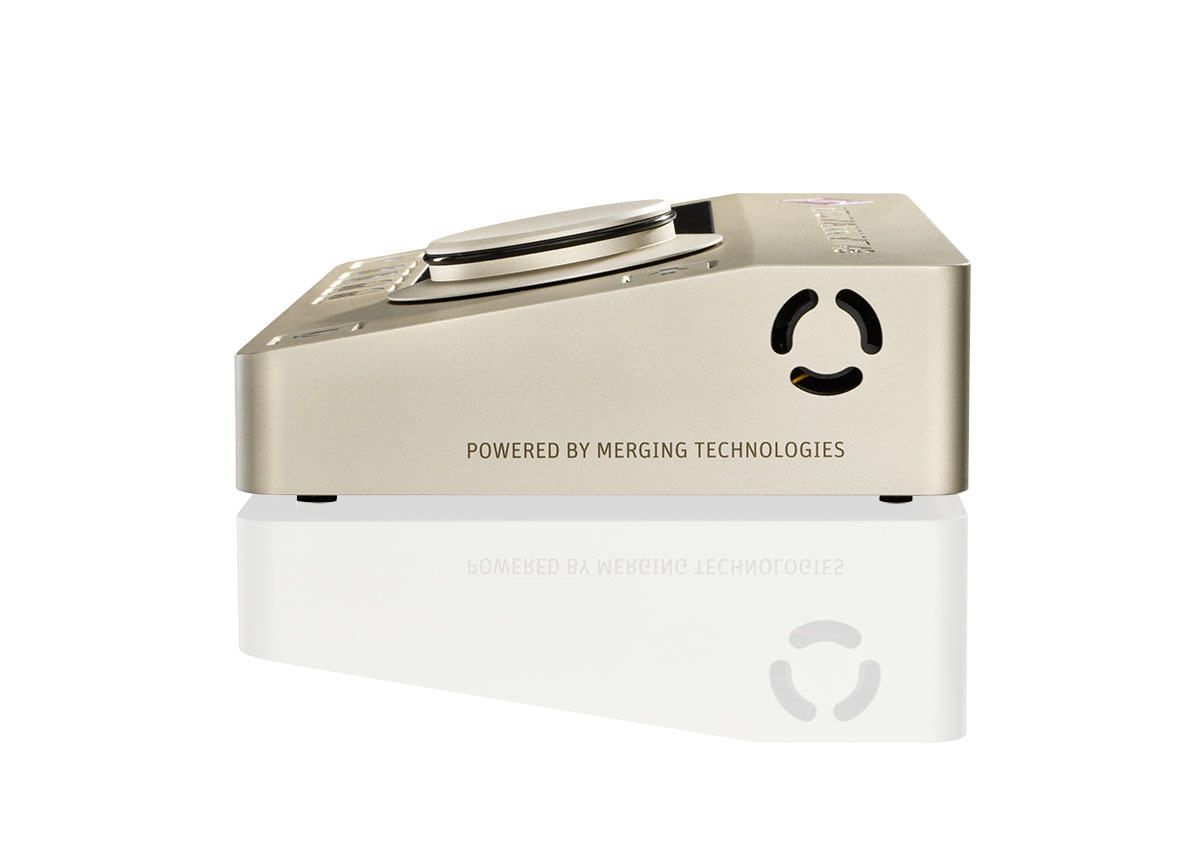

The MT 48 was developed in close cooperation with the Swiss manufacturer Merging Technologies, whose high-precision AD converters offer a staggering dynamic range of 136 dB. This gives the MT 48 four times the resolution of comparable audio interfaces.

The MT 48 comes fully equipped for the reference-class personal studio: two extremely low-noise mic/line preamps with up to 78 dB gain, two line/instrument inputs, four monitor/line outputs and two superb headphone outputs, each with state-of-the-art AD/DA converters. The MT 48’s connectivity may be expanded via ADAT / S/PDIF and AES67; a MIDI interface is also integrated. Four separate monitor mixes can be controlled directly on the unit via touchscreen. On-board processing includes a fully parametric 4-band EQ and a 3-way dynamics processor (gate/compressor/limiter) per channel as well as a high-quality reverb. So musicians get inspiring sound for top performances. And there is still plenty of DSP power for future developments.

Record With or Without Effects. Or Both!
The MT 48 is an audio interface and digital mixing desk in one. You can use its DSP processing for monitoring only, or you can print effects while recording. Or both at the same time! Thanks to the unique Dual Output Technology, wet and dry signals can be recorded simultaneously via separate driver channels. So, if necessary, you can fall back on an unprocessed backup.

A New User Experience

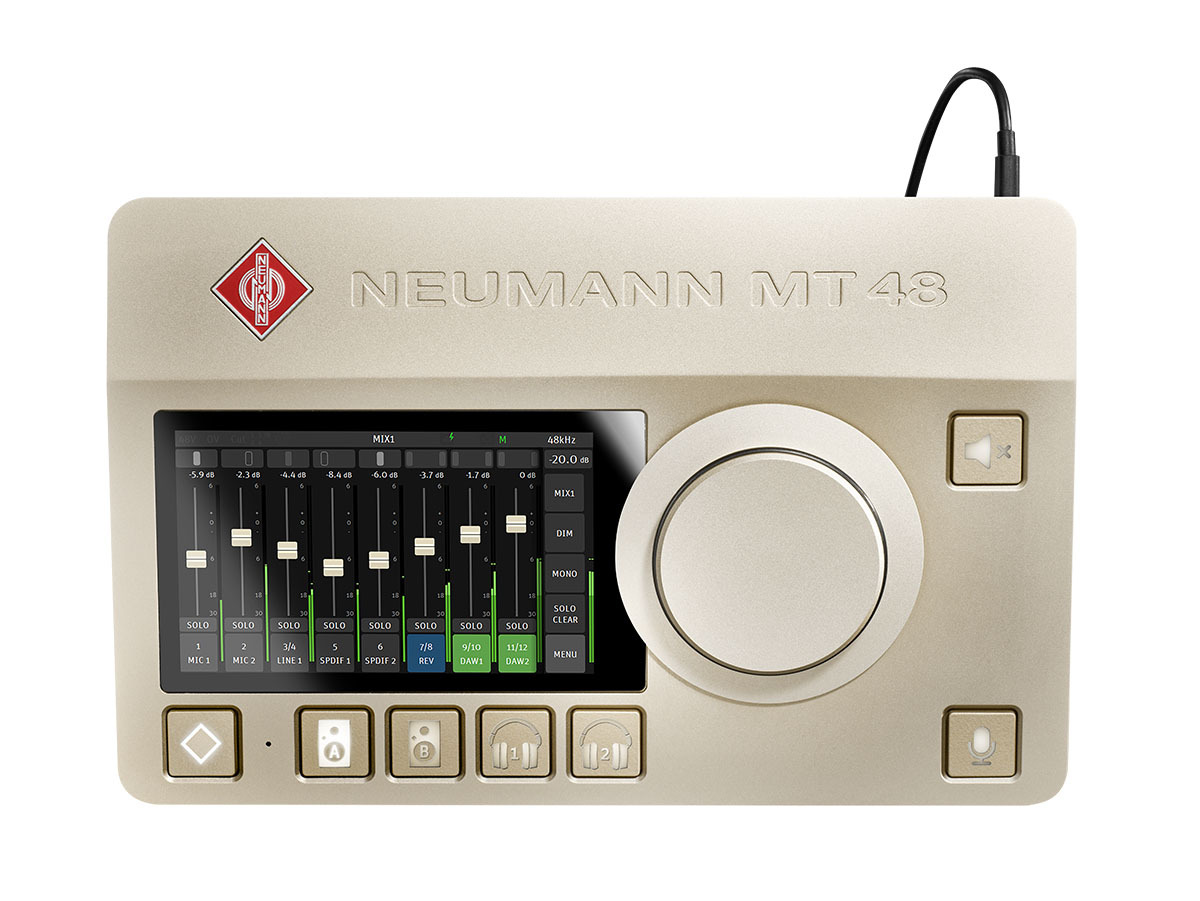

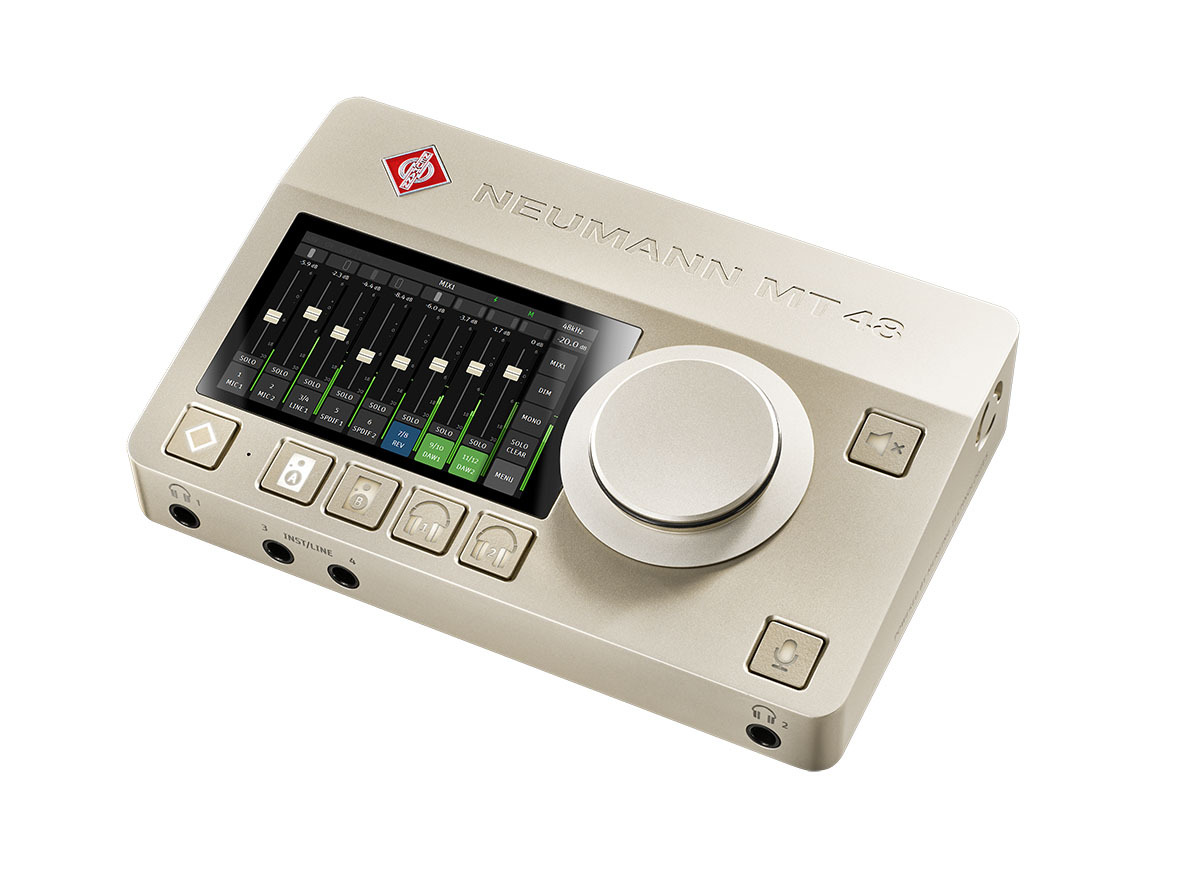

Despite its enormous scope of features, the MT 48 always remains easy to operate. All settings can be made on the device itself via the built-in touchscreen. The perfect monitor mix is just a touch away! Simply use your fingers to adjust pan pots, channel faders and much more, without having to switch to a mixer software on your computer. The MT 48 can even be operated stand-alone as a mixing console.

The MT 48 leaves nothing to be desired: audio quality at the highest level, built-in DSP processing, comprehensive expandability, and convenient operation via touchscreen. The MT 48 is the missing link in the Neumann universe, connecting microphones, loudspeakers and headphones to create the perfect studio.

• Unmatched AD-converter resolution with a dynamic range of 136 dB

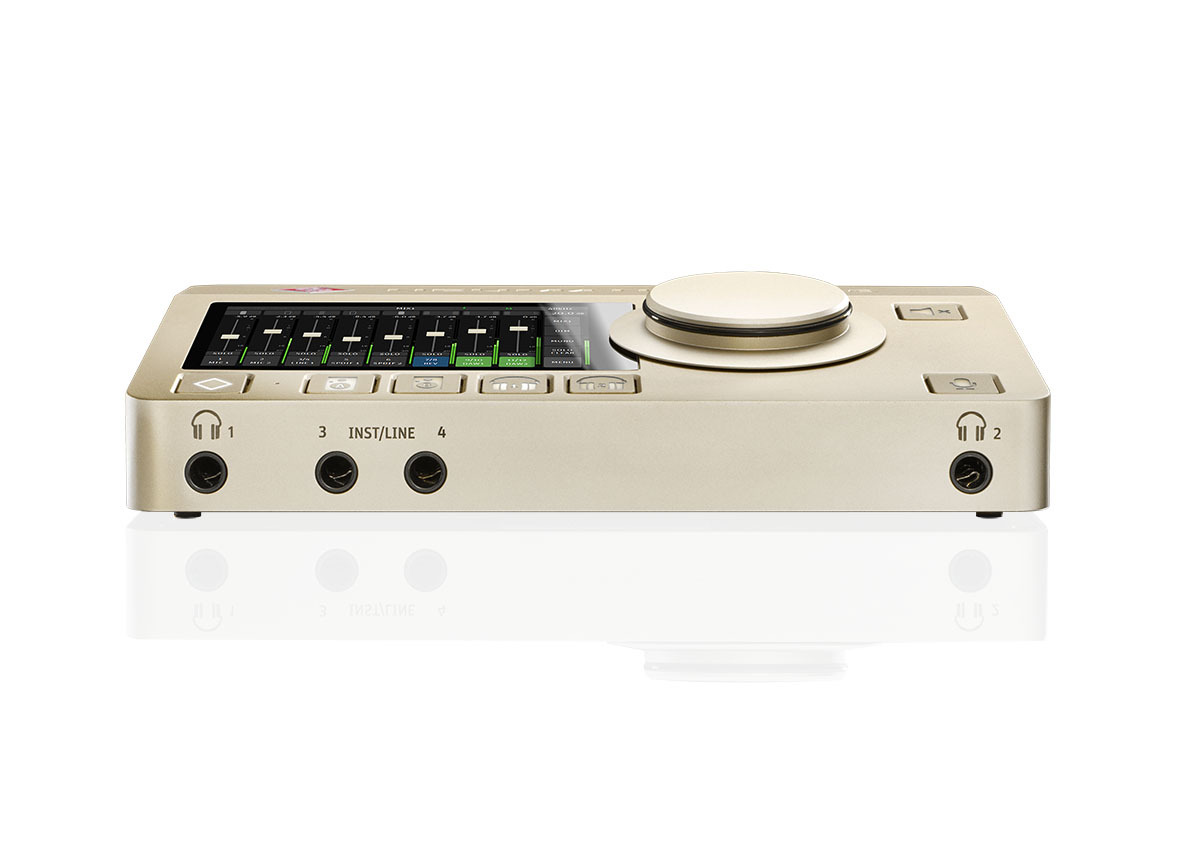

• 2 premium-quality mic/line preamps, 2 pristine line/instrument inputs

• 4 line/monitor outputs

• 2 ultra-low impedance headphone outputs with adjustable crossfeed

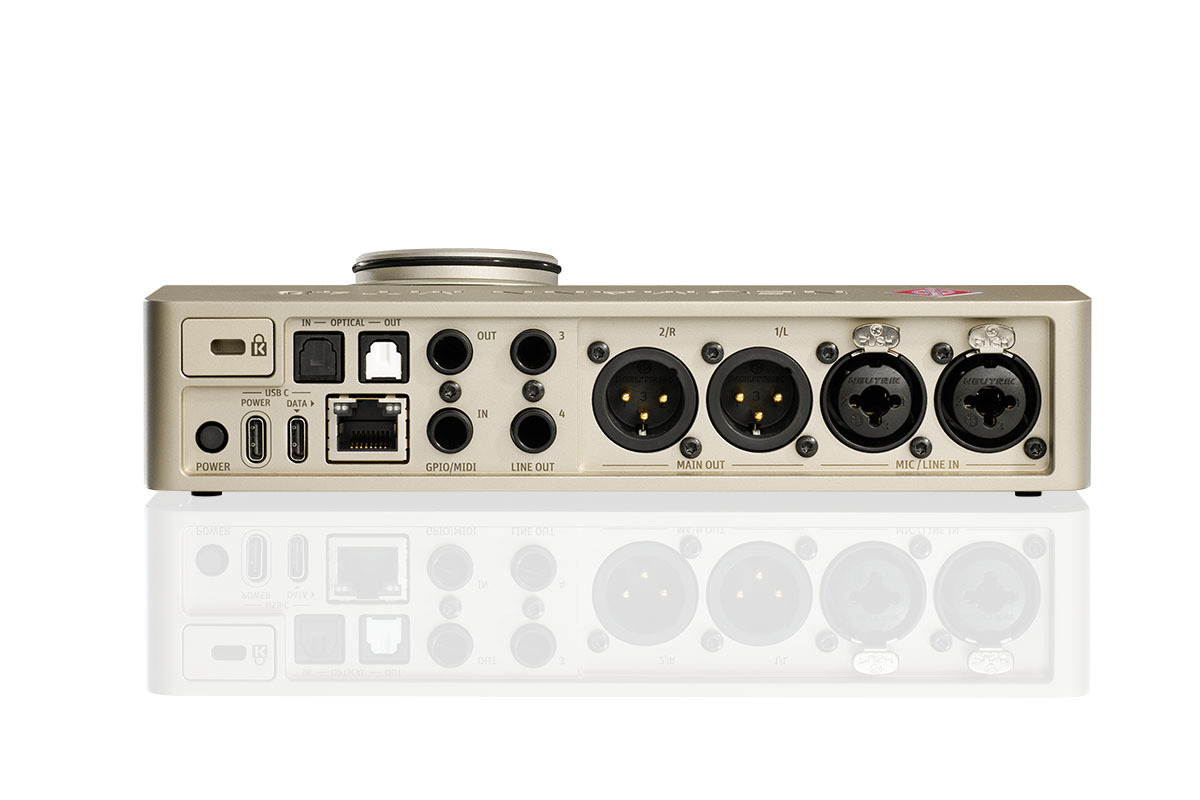

• ADAT / S/PDIF optical I/O, AES67, MIDI/GPIO

• Two driver outputs per input channel for pre-FX and/or post-FX recording

• Intuitive touchscreen user interface

What's in the box:

• MT 48 Audio Interface

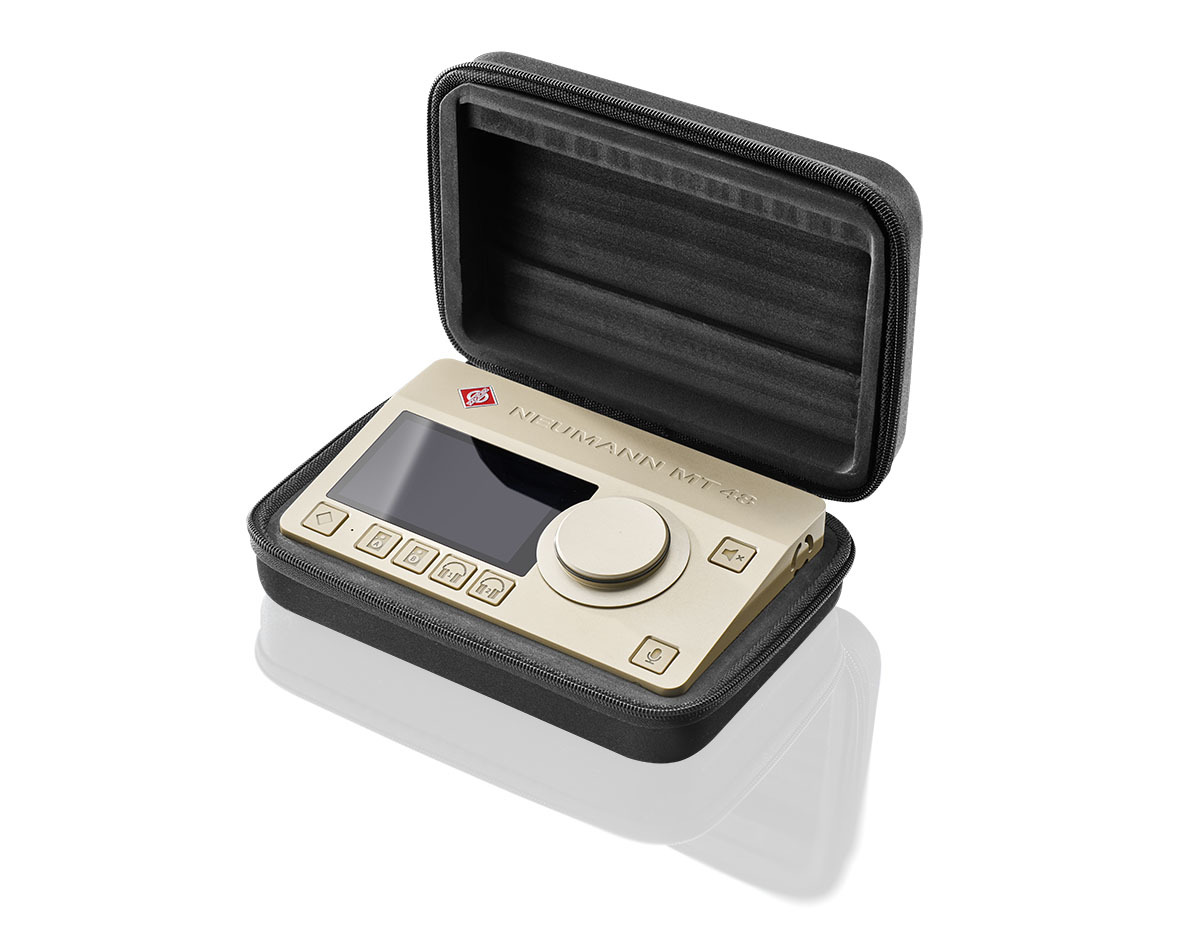

• Softcase

• Universal Power Supply incl. USB-C connection cable

• USB-A data cable

• USB-C data cable

• Quick Guide

• Safety Guide
