Midas Legend L6

The LEGEND L6 500 Series Portable Chassis lets you mix and match a wide range of audio processing modules to build the ideal signal chain for any application. With space for up to 6 single-width modules, advanced audio routing for simplified cabling, and a robust auto-ranging universal switch-mode power supply, you can take your favourite modules anywhere in the world with complete confidence. The included rackmount kit allows the L6 to be installed in standard 19" studio and touring racks. Designed to accommodate all 500 series-compatible modules and plug-in cards, the L6 is the perfect companion for your MICROPHONE PREAMPLIFIER 502, COMPRESSOR LIMITER 522, PARAMETRIC EQUALISER 512, and the many other modules currently under development – as well as those from 3rd party vendors.

6 Modules - Just 3U
The L6 chassis provides I/O connectivity and +48 V phantom power for up to 6 processing modules in a rugged steel cabinet that occupies only three 19" rackspaces (when fitted with the included rackmount kit).

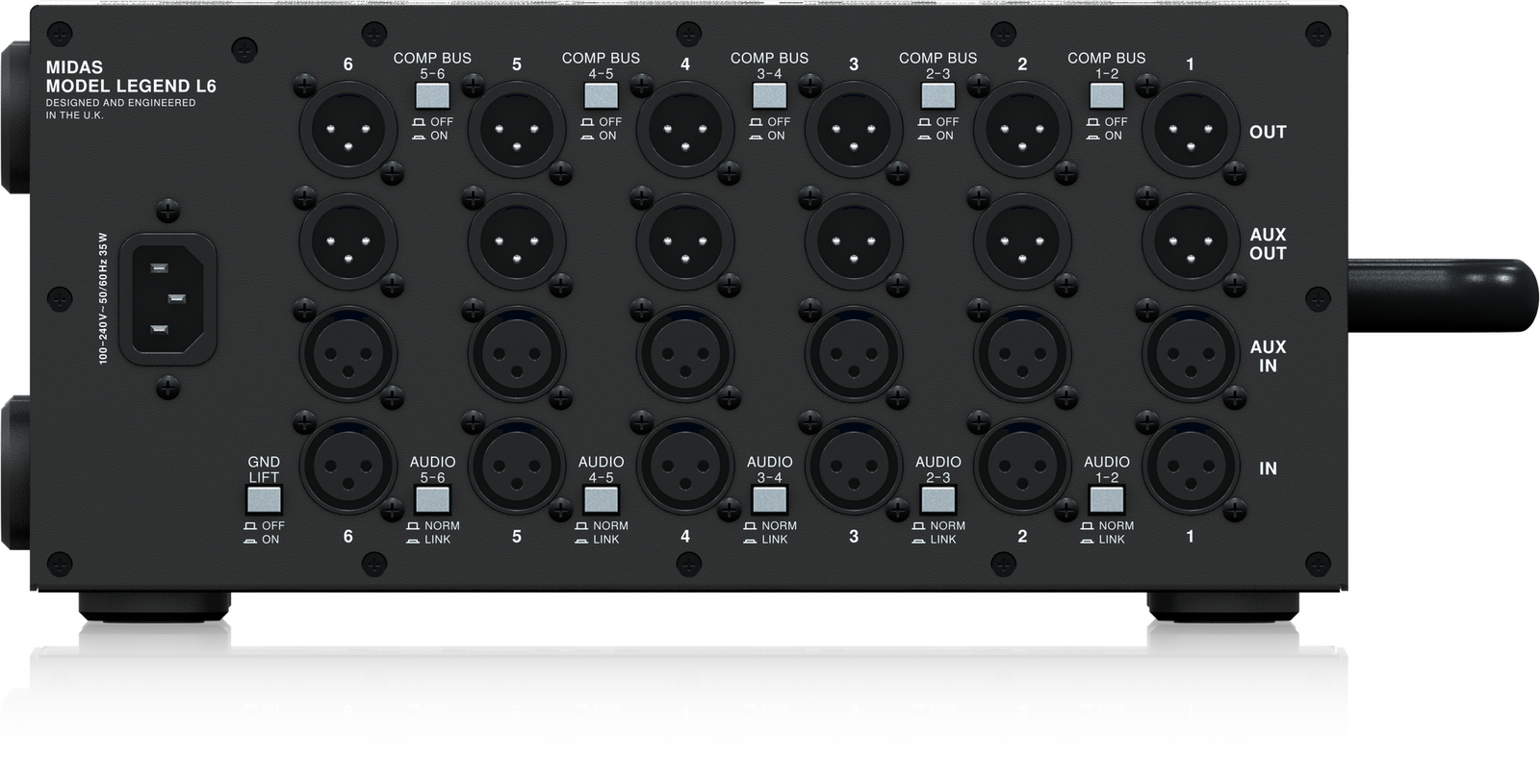

Advanced Audio Routing
Whether you are in the studio or on the road, signal chain cabling no longer need be an issue. L6's audio output link switches make it easy to rearrange and connect your modules without the need for complex cabling. Just install your modules in the order you wish and pass the signal along the chain free of any extraneous cables. This not only makes your rack much neater, it also helps you maintain the ultimate in signal integrity.

Compressor Bus Link
If your compressor modules are designed for it, our Comp Bus Link switches enable you to link them together for stereo or multi-channel dynamics sidechain linking without the need for insert cables.

Roadworthy Build Quality

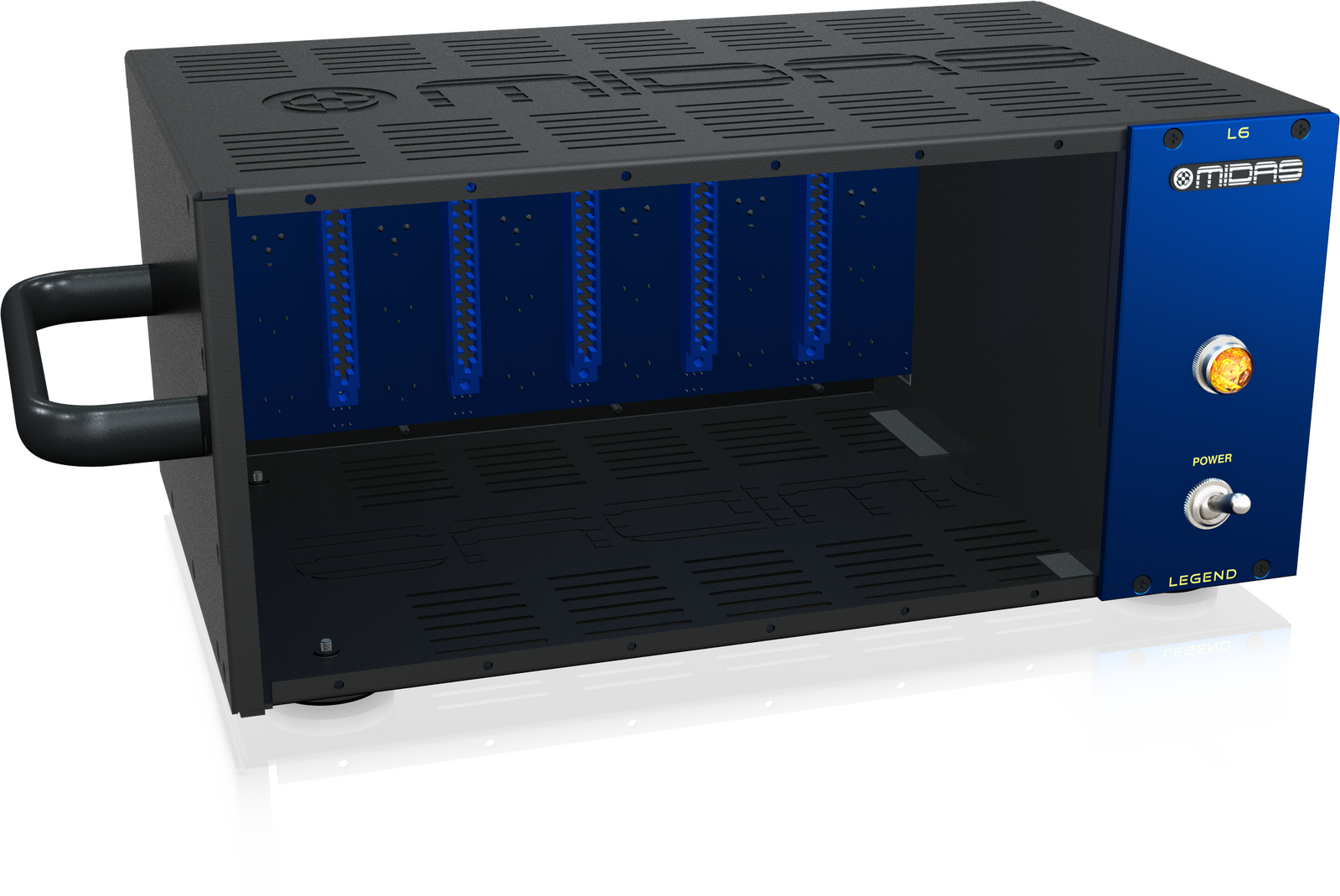

L6's rugged all steel chassis is over-engineered to withstand the rigours of constant touring and provide the utmost protection for your valuable processing gear. A convenient carry handle is provided for easy transport should your application call for a portable free-standing solution.

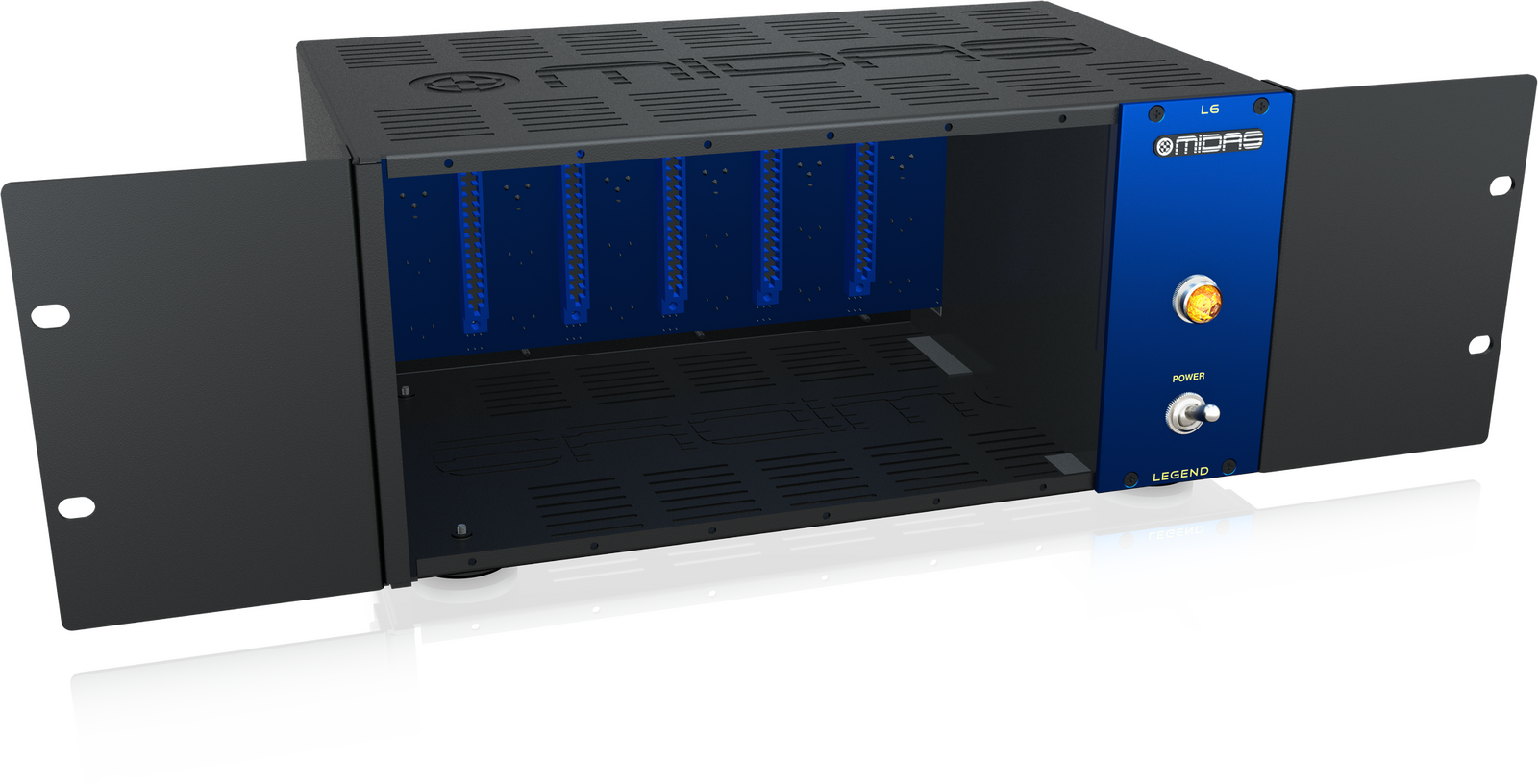

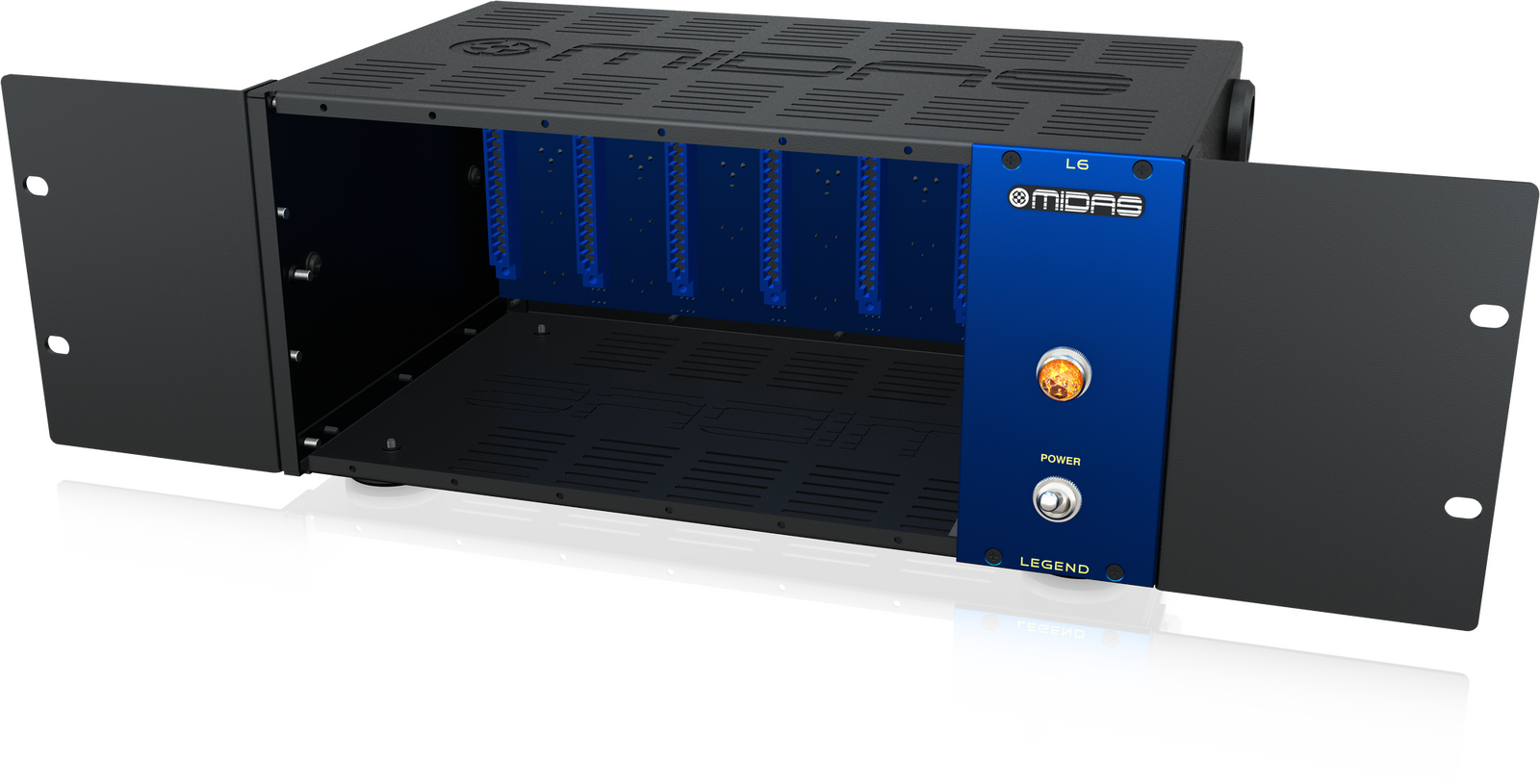

Rackmount Kit Included
Rack ears and all the necessary hardware are included for securely installing your LEGEND L6 in standard 19" recording studio and live touring racks.

Hum-Free Performance
Thanks to the onboard ground lift switch, you can easily lift the audio ground and eliminate annoying ground loop issues that might otherwise spoil a perfect performance.

Ready for the World
You need reliable power for spectacular audio; that's why the L6 utilises a state-of-the-industry universal auto-ranging switch-mode power supply that works anywhere in the world. And the L6's ultra low-noise power supply boasts an impressive 3.2 A @ ±16 V for your modules and 300 mA @ +48 V phantom power, so you can use a wide variety of microphones – even your favourite ribbon mic.

Premium Quality
Because maintaining a crystal-clear, audiophile-grade signal path is all that matters, the L6 uses only the highest quality components throughout including the Neutrik* XLR main and auxiliary input and output connectors provided per channel.

Audio Perfection
Whether your mission is the tracking or mastering of recording projects, or getting the perfect instrument or vocal sound in the concert hall, the LEGEND L6 puts your favourite processing gear right at your fingertips.
