Midas DL16

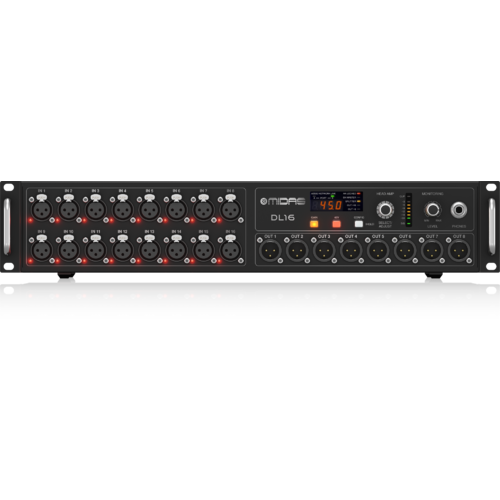

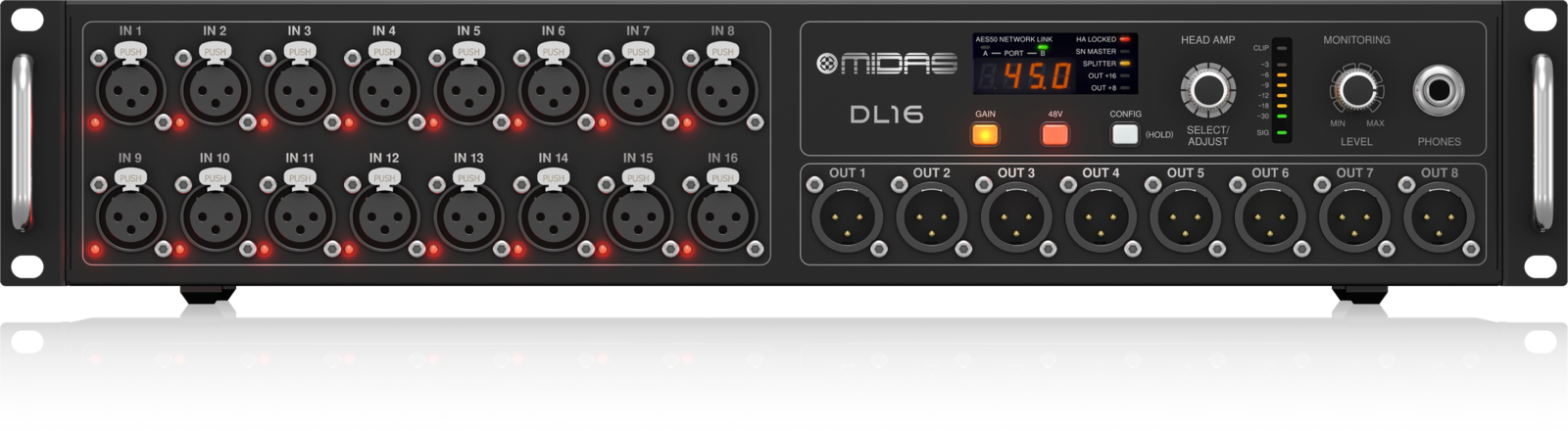

Digital mixing has revolutionized virtually everything in the live entertainment production work flow, and now that same cutting-edge technology brings live production signal distribution into the modern age. The DL16 Stage Box provides 16 of our award-winning microphone preamplifiers with switchable +48 V phantom power; 8 balanced analogue XLR returns at the stage end; an integrated ULTRANET output for connecting to BEHRINGER P16-M personal monitor mixers; plus connectivity for your ADAT-compatible outboard equipment.

If your application calls for more inputs, or just want to keep your cable runs short and tidy, putting a DL16 at stage front and another behind the drum riser provides an additional 16 inputs for drum and guitar/bass amp mic’ing. The best part – all it takes is a single CAT5 cable per stage box.

MIDAS - The Legend in Sound Quality

Ever since our formation in the 1970s, we have had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, our XL4 and Heritage H3000 consoles quickly became industry standards.

We have built an impeccable reputation for our no-compromise approach to audio and build quality, and in particular for our Award-winning Mic Preamps which are considered by industry experts as the industry's best sounding designs. Building on this legacy, the DL16 features 16 of the very same preamplifiers that are used in our highly-acclaimed PRO Series consoles.

ULTRANET – Seamless Integration

The world-renowned engineers at Klark Teknik, Midas, Turbosound and Behringer have all come together to create something truly innovative that will change live and studio workflow forever – ULTRANET. This revolutionary technology seamlessly transmits up to 16 independent channels of 24-bit digital audio and control data via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Advantages realized through ULTRANET digital networking, versus traditional analog methods: audio signals are impervious to Radio Frequency Interference (RFI); signal crosstalk is eliminated; and ease of setup translates directly into significant time saved during installation. ULTRANET effectuates a powerful digital eco-system that gives you unparalleled control over every element of your audio production environment from one convenient location.

• 16 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power

• 8 electronically balanced low impedance line level outputs

• ULTRANET personal monitoring system connectivity for in-ear applications

• Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability

• Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes-no merger or router required

• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors

• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length

• All settings programmable from front panel controls or console

• Status indicator LEDs on front panel

• Headphones output assignable to any of the inputs or outputs for on-stage monitoring

• MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices

• Features Neutrik etherCON* AES50 and ULTRANET network ports

• Rugged 2U rackmount chassis for durability in portable applications

• Auto-ranging universal switch-mode power supply

• 10-Year Warranty Program*

• Designed and engineered in the U.K.
