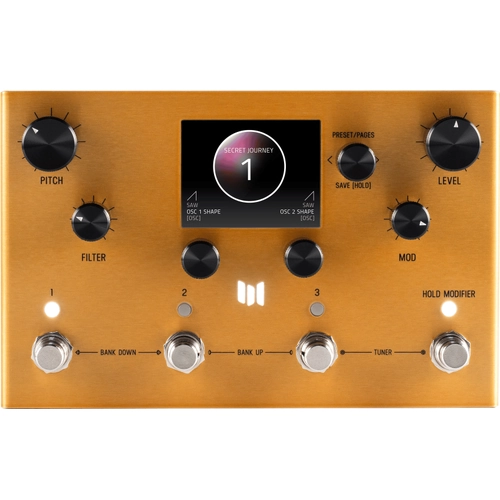

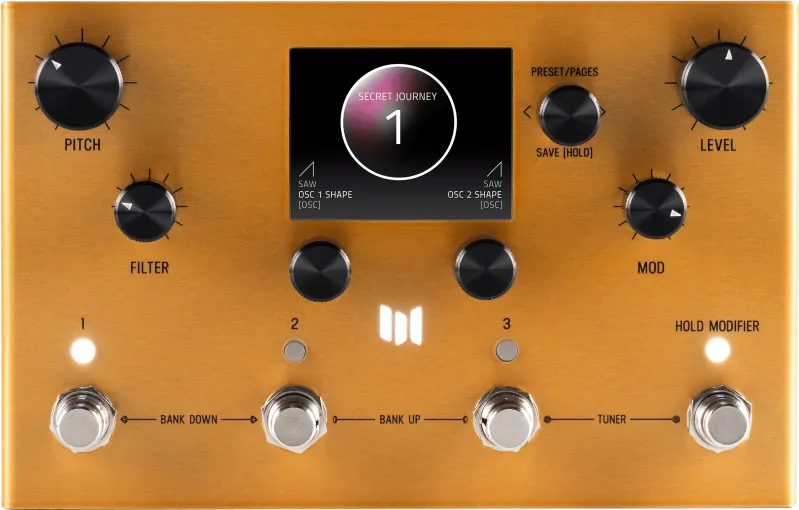

Meris Enzo X

Unveil the Universe Within

Modular Instrument Synthesizer with analog and digital synth heritage, advanced processing and high performance signal path.

Waves
Enzo X is a supernova expansion from the original Enzo into the highest quality and most flexible polyphonic synthesizer ever created in a pedal format (with no pickup installation required). We leveraged the simple and easy to use UI first developed for LVX. 5 synth modes including a 6 voice poly synth and modules including ambience, modulation, filters, drives and more will expand your creativity to the beyond.

Ruler of the House - “The mind of man is capable of anything..."
Enzo X combines 5 synth modes and incorporates those into a modular system UI/ architecture from both award winning LVX and MercuryX pedals. Including: 6 polyphonic voices (each voice includes a set of 2 oscillators, filter, filter envelope, amplifier envelope) + 3 reverbs are adapted from Mercury X (Prism algorithm) + 5 Drives (including Bitcrush) + full stereo 2.5 second Delay + 5 modulation types.

Flexibility - Ultimate Inward Voyage

• 5 Pin DIN MIDI I/O Jacks
• Line/Synth Level
• Expression Pedal Jack
• USB-C (for firmware updates only)
• True Stereo Processing
• 9VDC center-negative power (at least

FEATURES

• Modular Instrument Synthesizer architecture
• 5 Synthesizer modes including Mono, Polyphonic and Dry Processing modes
• Polyphonic Pitch Detection with no special pickup necessary
• Synthesizer playable via instrument input OR MIDI keyboard
• 6 Fully Polyphonic Voices available simultaneously
• ADSR Envelope Generators for both Amplitude and Filter
• Configurable Oscillator and Filter types
• SAW, TRIANGLE, and SQUARE Waveforms selectable per Oscillator w/ Cross Modulation
• Intuitive, Award Winning Color Screen based User Interface adapted from LVX and MercuryX
• Expressive Hold Modifier Switch for on the fly control
• 99 Preset Locations in 33 Banks
• Favorite Preset Bank for instant access to your 3 favorite presets
• Instant Access Tuner with configurable Reference and Output mode
• Deep Modifier Section lets you route control signals to processing parameters
• All New Processing Elements including Meris custom Flanger and Phaser
• Digitally controlled Analog mix bus
• Stereo input and output with separate jacks for each
• Switchable input/output headroom level for Instrument or Synthesizer / Line levels
• MIDI In and Out over standard MIDI Din Jacks
• Assignable Expression Pedal control for multiple parameters simultaneously
• Dedicated Expression Pedal Jack
• MIDI implementation for Continuous Control Parameters
• MIDI Preset Send and Receive
• MIDI beat clock synchronization
• Advanced ARM Processor
• Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
• Premium Analog Devices JFET input section
• Dimmable screen and logo light
• Color – Translucent Gold with Subtle Metallic Flake
• Designed and Built in California, U.S.A.

SPECIFICATIONS

• Conversion 24 bit A/D and D/A
• DSP 32 bit floating point
• Sample Rate 48000 Hz
• Input Impedance 1 Meg Ohm
• SNR 115 dB Typical
• Frequency Response 20Hz-20kHz
• Max Input Level +9 dBu (instrument level setting)
• +12.5 dBu (line/synth level setting)
• Power 9V DC center-negative, 300mA, 2.1mm jack
• Bypass Selectable True Bypass (Relay) or Analog Buffered Bypass
• Dimensions 7.25” wide, 4.5” long, 2” tall.  (Same depth and height as all other pedals.)
• Weight 24 ounces
