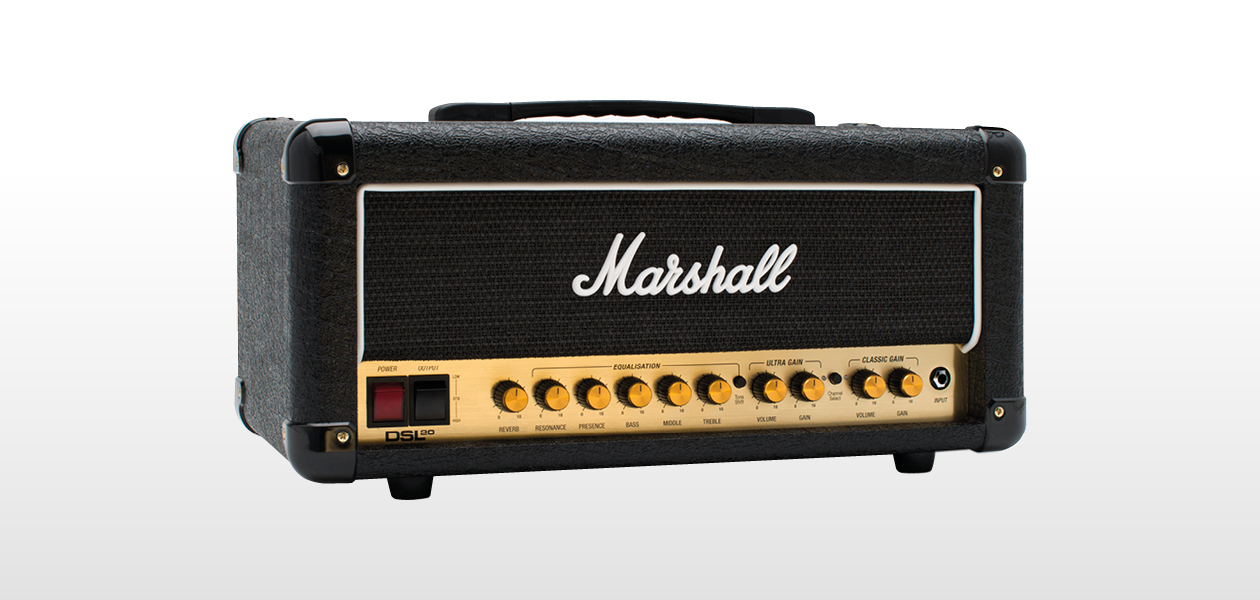

Marshall DSL20H

The DSL20H is for those who need the full rich tone of a valve amp in a compact and portable format. From the moment you plug in, the DSL provides you with the functionality you need to take your sound from rehearsal to the studio with confidence.

CHOOSE YOUR TONE

Using the multiple channels, reverb, FX loop and tone shift controls you can adapt the sound to suit you.

PICK YOUR ENVIRONMENT

You can reduce power from 20W to 10W which makes this amp ideal for playing small venues and in the studio.

VARY THE OUTPUT

The three speaker outlets give you plenty of options and the ability to record, including a standby function for silent recording. This means the DSL20 head is perfect for gigs and in the studio.

EMPHASISE YOUR EQ

Presence and resonance additional features can deliver more bite and depth to your sound.

GENERAL

Model

DSL20HR

Range

DSL

Technology

Valve

Channels

2 (Split) "Ultra gain" and "classic gain"

ELECTRONICS

Output wattage

20W (with power reduction option to 10W)

Outputs

Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), 1 x 3.5mm jack emulated line out

Inputs

1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in, footswitch

Controls

Reverb, resonance, presence, bass, middle, treble, tone shift switch, ultra gain channel (volume, gain), channel select switch, classic gain channel (volume, gain), power reduction option (on rear)

Effects

Digital reverb

Effects loop

Yes, series, send/return

VALVES

Preamp valves

3 x ECC83

Power amp valves

2 x EL34

ACCESSORIES

Footswitch

PEDL-90012 included

Cable

Detachable power cable included

Dust cover

M-COVR-00117 (sold separately)

DIMENSIONS (INCLUDING FEET AND HANDLE)

Weight

9.7 kg / 21 lbs

Width

500 mm / 19.7"

Height

250 mm / 9.8"

Depth

240 mm / 9.4"
