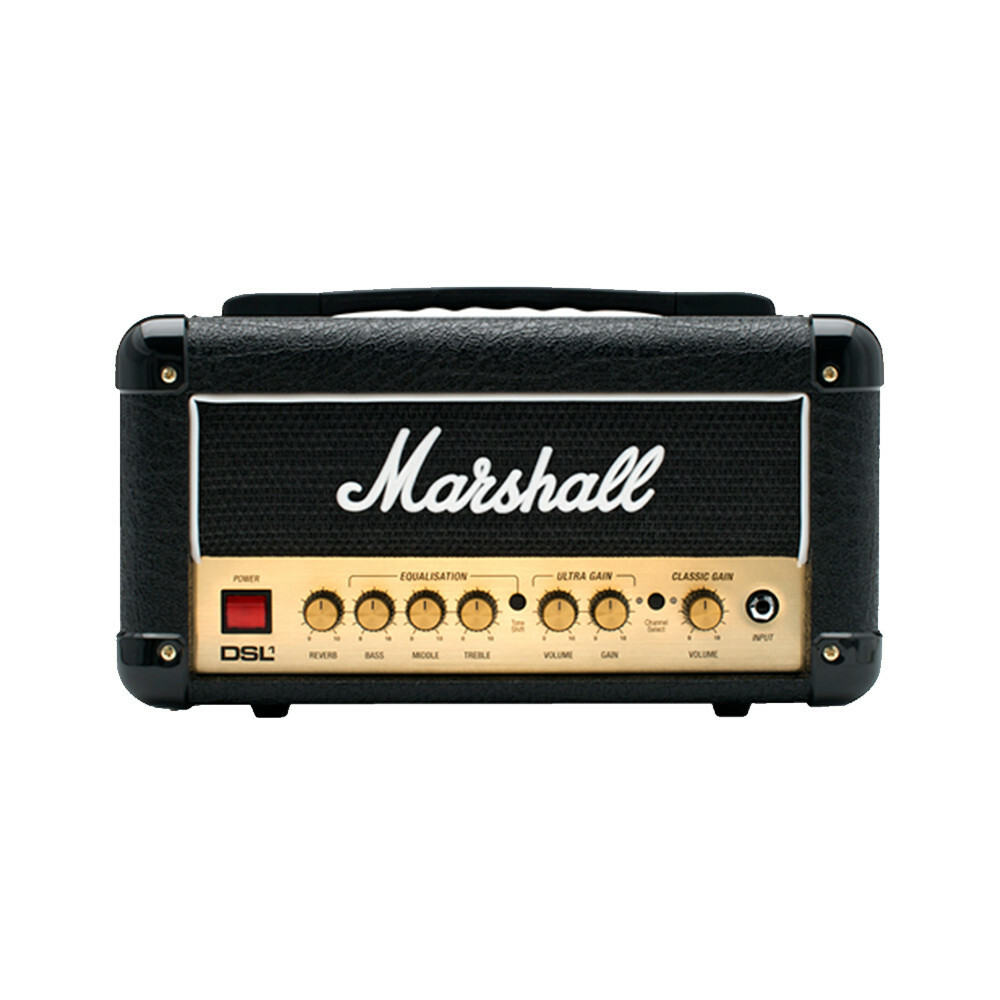

Marshall DSL1H

The DSL1H has the classic Marshall tone and features expected on a DSL but at a lower power to suit those who play at home. The sound has been perfectly crafted to suit those with eclectic tastes, looking for tonal experimentation.

PLAY AT HOME

There is the ability to reduce from 1W to 0.1W and use the emulated output for recording or headphones, we have specifically engineered the DSL1 for a great sound at low levels.

CHOOSE YOUR TONE

Using the two footswitchable gain channels you can go from clean, classic tones to those with added distortion and extra bite.

SELECT YOUR SOUND

Create the music you want using the studio quality reverb, tone shift and FX loop.

TECHNICAL SPECIFICATION

GENERAL

Model

DSL1HR

Range

DSL

Technology

Valve

Channels

2, ultra gain and classic gain

ELECTRONICS

Output wattage

1W with optional power reduction to 0.1W

Outputs

1 x 1/4" jack speaker output, 16Ω load only, 1 x 3.5mm jack emulated line out

Inputs

1 x 1/4" instrument jack, 1 x 3.5mm jack aux in, footswitch

Controls

Classic gain channel with volume, ultra gain channel with gain and volume control, channel select switch, tone shift switch, treble, middle, bass, reverb and power reduction option

Effects

Digital reverb

Effects loop

Yes, series, send/return

VALVES

Preamp valves

2 x ECC83

Power amp valves

1 x ECC82

ACCESSORIES

Footswitch

PEDL-90011 included

Cable

Detachable power cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)

Weight

5.6 kg / 12 lbs

Width

360 mm / 14.2"

Height

210 mm / 8.3"

Depth

215 mm / 8.5"

For more information, click here to visit the manufacturers website.
