Maestro Electronics Discoverer Delay

Discover Your New Favorite Analog Delay Pedal

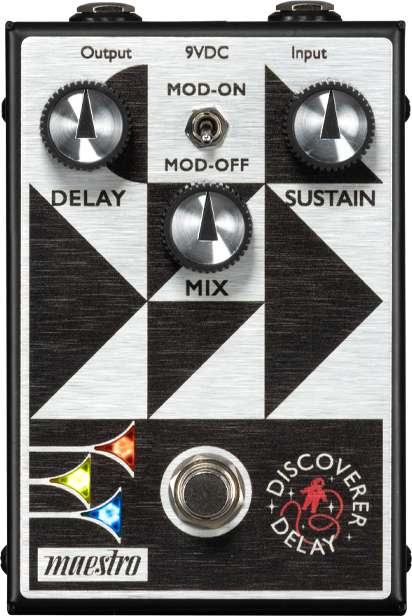

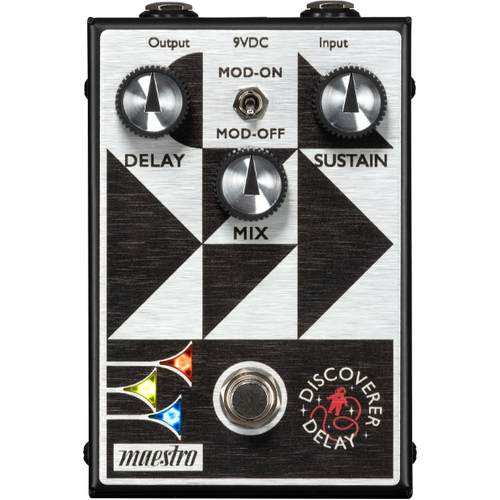

The Maestro Discoverer Delay is a modern analog delay pedal that proudly utilizes legendary analog bucket brigade device (BBD) technology to deliver classic, warm, and inviting delay sounds. The intuitive 3-knob control layout lets users quickly dial up the length of the Delay time (with a range from 20 ms to 600 ms), the amount of Sustain (delay repeats), and adjust the level of the delays in the Mix. A toggle switch engages built-in modulation that applies anything from a slightly saturated, tape-like wow and flutter effect to a heavily pitch-shifted modulation effect to the delayed signal. Two internal trim pots allow the user to adjust the Rate (speed) and Width (sweep range) of the modulation. The true bypass footswitch triggers the LED lights in the bugles in the Maestro logo when it’s on, so you’ll always know when the effect is active.

Name

Maestro Discoverer Delay

Controls

Delay, Mix, Sustain; internal Modulation Rate and Width trim pots

Switches

True Bypass footswitch, Mod On/Off Modulation Mode toggle switch

Led Indicators

Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active

Signal Processing

All-Analog

Delay Time Range

20 ms - 600 ms

Power Requirements

9V battery or regulated 9VDC power supply (5.5 x 2.1 mm plug, wired center-negative)

Current Draw

61.3 mA

Power On Switch

Incorporated into the input jack. Unplug the input when not in use to prevent battery drain. Remove the battery when the pedal is going to be stored for long periods to prevent leakage and damage.

Input Impedance

470 kOhms

Output Impedance

1 kOhms

Switching Type

True Bypass

Dimensions

5.04" x 3.45" x 2.5" (128.0 mm x 87.6 mm x 63.5 mm)

Weight

Net: 1.27 lb. (576.1 gm.) Gross: 1.64 lb. (743.9 gm.)

Internal Trim Pot

Two internal trim pots allow the user to adjust the Rate (speed) and Width (sweep range) of the modulation that operates when the Mode switch is in the up (MOD-ON) position. Using a small screwdriver, turn clockwise to increase, counterclockwise to decrease the modulation Rate and Width.
