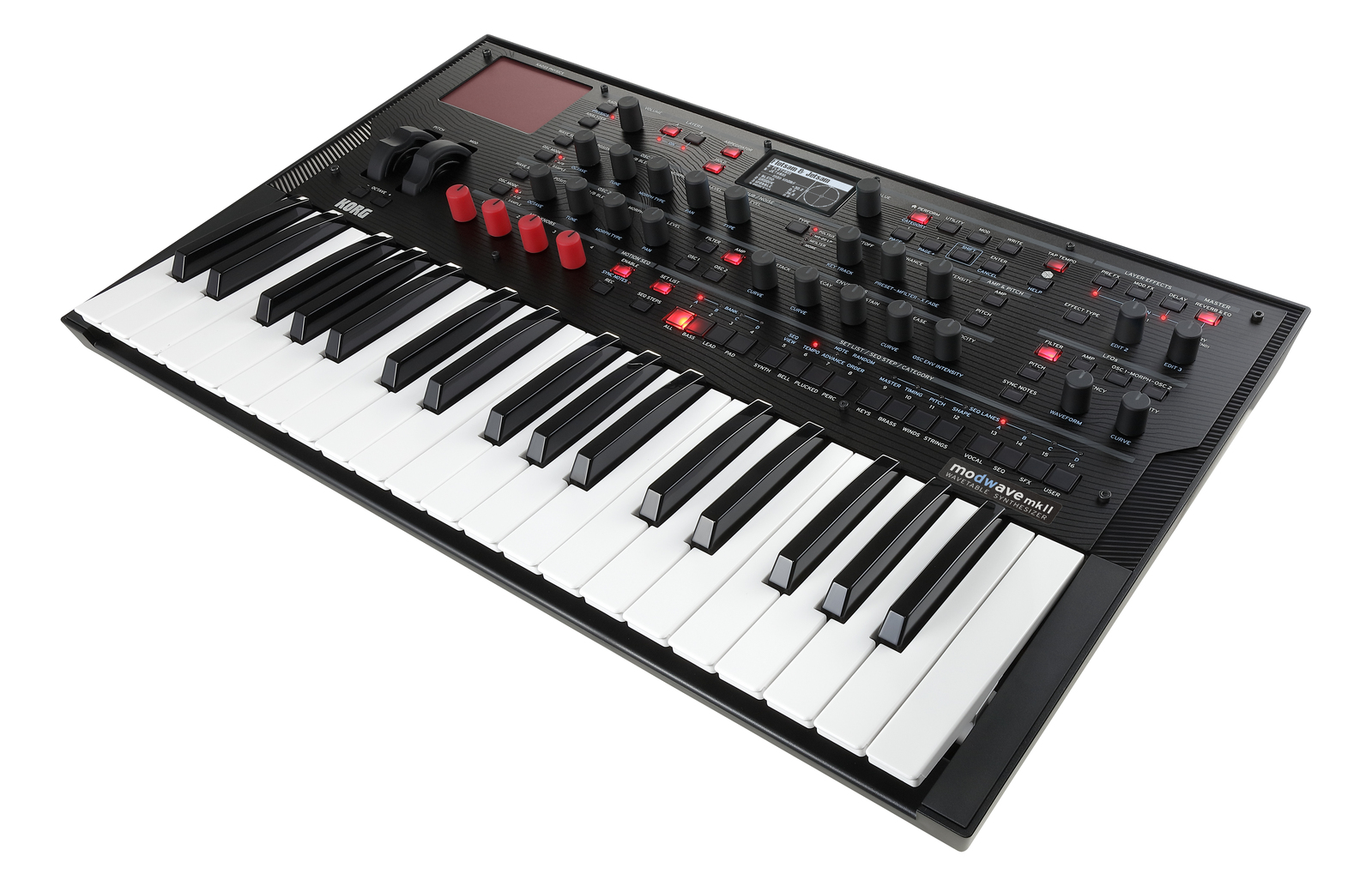

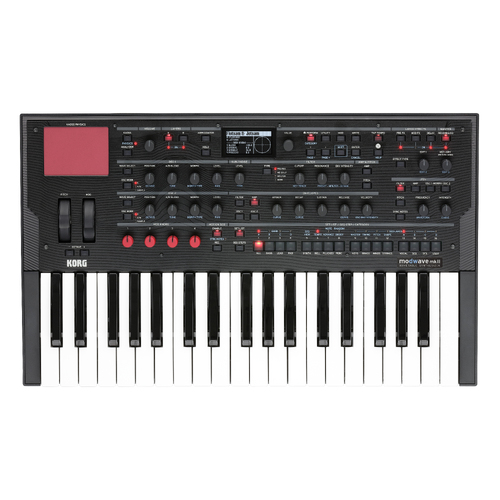

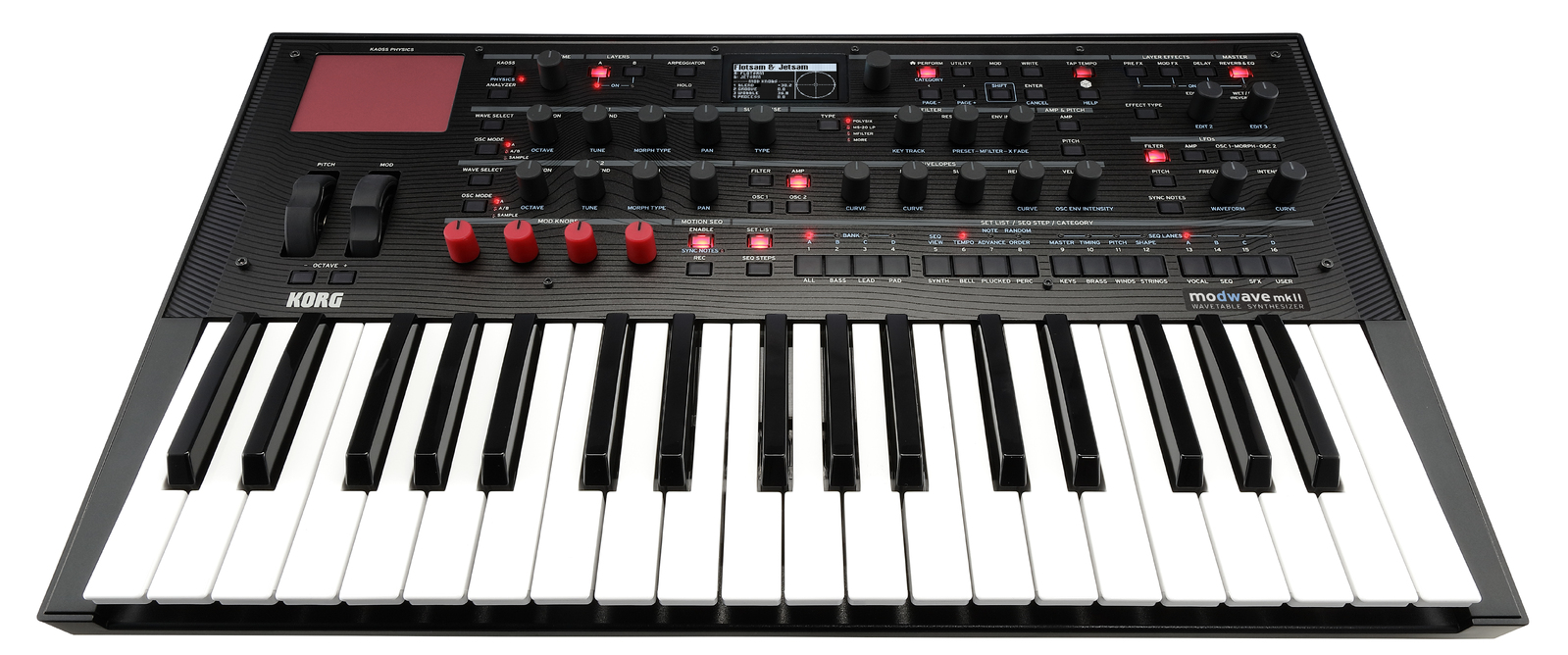

Korg modwave mk II

Synthesis powerhouse with distinctive wavetable timbres, Kaoss Physics, and Motion Sequencing 2.0.

Introducing modwave mkII - now with almost double the polyphony, expanded free-running LFOs, and more!

In 1985, KORG's DW-8000 combined digital wavetables with rich analog filters to give users sounds which were impossible to create with analog oscillators. It's still a cult favorite today.

modwave builds on the DW legacy and transforms it into a modern monster synth, featuring incredibly deep wavetable oscillators, gorgeous filters, wildly flexible modulation, unmatched polyphony, comprehensive pattern sequencing, and immediately satisfying hands-on control to deliver unique, powerful, and easily customizable sounds and phrases.

modwave also introduces two unique new tools for creating dynamic motion: Kaoss Physics and Motion Sequencing 2.0. Kaoss Physics combines an x/y Kaoss pad with modulatable game physics to create a responsive, interactive controller that is—besides being powerful— a lot of fun to explore. Motion Sequencing 2.0 brings the organic, continuously evolving patterns of the wavestate's Wave Sequencing 2.0 into the world of motion sequencing, including multiple lanes and real-time recording to help you create complex and evolving phrases that other step sequencers cannot.

Like Wave Sequencing 2.0 (wavestate) and altered FM (opsix), modwave’s evolved wavetable synthesis delivers its own brand of completely unique sounds and a knob-per-function layout that makes customizing those sounds fast and easy. There are hundreds of preset sounds empowered by this new architecture, organized by front-panel category buttons, and all instantly customizable via the four Mod Knobs. modwave's distinctive wavetable timbres start with aggressive basses & leads, and lush ambient pads which will add a new dimension to your tracks. But that is just the beginning.

Those who want to dig deeper will find an endless source of discovery; with the modwave’s unique synth architecture, you'll be finding new things for a long, long time. Save as many of your sounds as you like; there's room for thousands more. You can also load your own samples, import wavetables in standard formats, and create your own wavetables using the free WaveEdit software.

The new modwave mkII provides an astonishing 60 voices of polyphony - almost double the original modwave's 32, and an unprecedented number for a wavetable synth at any price. Responding to user requests, we've updated all LFOs with options for free running, delayed start, and retriggering. We've also added a pre/post switch for reverb sends, new modulation sources, and more.

modwave synthesis engine
When we call the wavetable oscillators "deep," we are not kidding. Start with over 200 wavetables, each containing up to 64 waveforms—from thousands of individual waves. Use the 30+ Modifiers to change their basic character, and the 13 Morph Types to process them in real-time. Create new hybrids from any two wavetables using the unique, realtime A/B Blend. Quick math: that's over 230 million wavetable variations out of the box, and that’s before you even add modulation.

No need to stop there, though! Expand your palette even more by importing new wavetables using the Editor/Librarian software. Try the many free and commercial wavetable libraries in the standard Serum format*, or create your own using the free, cross-platform WaveEdit, available in a custom version for the modwave. Layer wavetables with samples from the built-in, multi-gigabyte PCM library, or import up to 4 GB of your own samples using Korg’s Sample Builder software.

* If an imported wavetable has more than 64 waveforms, it is assumed to be a generated crossfade, and some of the intermediate waveforms are dropped to create a 64-waveform version.

Each Program has two full-featured wavetable oscillators, plus a sub oscillator/noise generator and any of a dozen stereo filter types, including the aggressive MS-20, sweet Polysix, and the newly enhanced Multi Filter. Animate almost any parameter using the massively flexible modulation system, with four triggerable envelopes, five LFOs, dual mod processors and two key-track generators–plus multi-lane Motion Sequencing and Kaoss Physics.

Even with all that synthesis power, playing up to four simultaneous wavetables per voice in a single Program, the modwave mkII achieves 60-voice polyphony, incredible for a wavetable synth. Layer two Programs together for double the possibilities.

STRUCTURE

Kaoss Physics
Kaoss Physics models a ball rolling on a surface and bouncing off of walls. The surface can tilt in any direction. A bump with variable height/depth and location attracts or repels the ball. Adjustable friction slows the ball's travel, and adjustable time controls the speed of the entire model. All of these characteristics are modulatable, so you can change them in real-time.

Start the ball by flicking a finger on the x/y pad, or launch the ball automatically using another modulation source. You can also directly control the ball by holding your finger on the pad. The position of the ball produces eight modulation signals, which can be used to control any modulation destination: the X and Y locations, the distance from the center, the angle relative to the X axis, and finally separate signals for +/- X and +/- Y.

Walls can slow down the ball, as if they were padded, or accelerate the ball, like bumpers in a pinball machine. The walls can also be removed entirely, so that the surface wraps around to the opposite edges like a vintage arcade game.

The modeled environment can create specific modulation effects. For instance, use a centered bump with negative height so that the modulation values always eventually return to 0. Or, position a bump with positive height on a side or a corner, to push modulation values away from that zone.

The result is an interactive controller that amplifies your physical gestures, transforming them into complex musical results. Did we mention that it's fun, too?

Motion Sequencing 2.0
Motion Sequencing 2.0 is evolved from the wavestate’s Wave Sequencing 2.0. Timing, Pitch, Shape, and four sets of Step Sequence values are separated into “Lanes,” each with their own loop start and loop end, adding a deeper, more customizable level of phrase and modulation recording.

Every time the sequence moves forward, the individual Lanes are combined to create the output. For instance, a step sequence value may be matched with a different duration, pitch, and shape every time that it plays. You can modulate each Lane’s loop points separately for every note, using velocity, LFOs, envelopes, Mod Knobs, or other controllers. Each note in a chord can be playing something different!

Lanes can also randomize the step order every time they play. Finally, individual steps can be randomly skipped, with a modulatable probability from 0 to 100%. The result is organic, ever-changing sounds that respond to your control. The dual onboard arpeggiators can interact with Motion Sequences for even more possibilities.

Deeper into the synth engine

What's a wavetable?
Wavetables are sets of single-cycle digital waveforms, arranged in a specific order. The wavetable's "position" determines which waveform is played. Moving the position with an envelope, LFO, or other modulation source creates subtle or dramatic changes in timbre. Some wavetable systems switch abruptly from one waveform to another; others crossfade smoothly between them. The modwave can do either one.

Modifiers
Use over 30 Modifiers to alter the character of any wavetable at load time. For instance, isolate the odd or even harmonics, add weight through anti-aliased quantization or saturation, or revisit the gritty character of old-school wavetable synths with the Vintage 8 & 12 options.

Morph
The 13 Morph Types let you stretch, squeeze, reflect, and otherwise alter the wavetables in real-time, changing their timbre and—when modulated—creating additional motion in the sound. Sync creates classic swept-sync timbres, using only a single oscillator. Three special Morph Types—FM, AM, and Ring Mod—modulate Osc 2 with Osc 1, and the last two even apply to samples.

A/B Blend
Using the unique A/B mode, oscillators can blend any two wavetables with phase-synchronous precision—different from simply layering voices—opening up a dimension of intermediate waveforms. Add body to otherwise "thin" waveforms, for instance, or a touch of sizzle to a mellow timbre. Even fade between two different "modifier" versions of the same wavetable. A/B Blend can be modulated in real-time, of course.

Gigabytes of samples
Wavetables also sound great when layered with samples, and the modwave oscillators handle that with aplomb. Totaling in the gigabytes, the modwave’s sample library includes new material from KORG, Airwave, and Francis Preve, plus a bank from Plugin Guru and a selection from the KRONOS and KROME libraries.

Filters for days
Add vintage character to your sounds with the aggressive MS-20 Lowpass or Highpass filters, or the strong, sweet Polysix Lowpass - all newly enhanced with gain controls to make it easier to dial in the resonance timbre. Shape and refine with a full collection of resonant 2-pole and 4-pole Lowpass, Highpass, Bandpass, and Band Reject filters. Or, step outside the box with KORG’s unique Multi Filter, which creates modulatable blends of multiple modes simultaneously - now with presets on a front panel knob, for easier exploration of its many possibilities.

Control and modulation galore

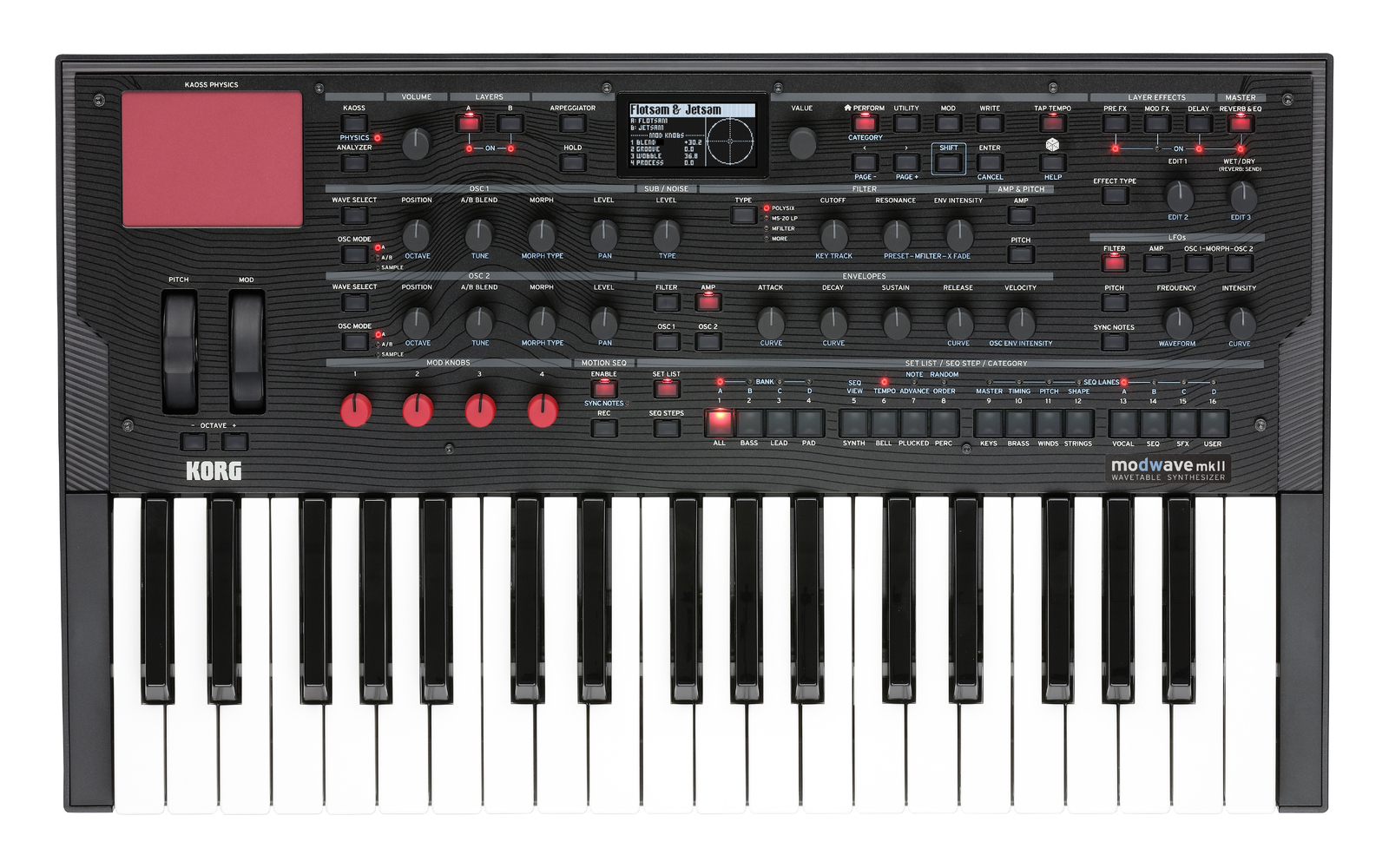

Bursting with knobs and controllers, the modwave invites you to explore. Oscillators, filter, envelopes, LFOs, and effects are all at your fingertips with dedicated front-panel controls. Four programmable Mod Knobs are customized to bring out the most in every sound. Use the knobs in realtime performance, and also save the results as new sounds. The Hold button lets you sustain notes or chords indefinitely, while you explore the front-panel controls or play other gear.

Add in Kaoss Physics and the Pitch Bend and Modulation Wheels, and you’ll always have multiple dimensions of realtime expression.

Want to dig deeper? Almost all front-panel knobs, and most on-screen parameters, can be modulated. You can even modulate settings for individual Motion Sequence Steps! Mod Processors let you transform modulation signals using quantization, smoothing, curvature, and more.

An arsenal of effects
The modwave’s superb effects deliver production-ready sounds. Each Layer has three dedicated effects, plus a send to the Performance's master reverb, followed by a master parametric EQ. Along with standards such as compressors, EQs, choruses, flangers, phasers, and stereo delays, you’ll find distinctive processors such as the Wave Shaper, Talking Modulator, Reverse Delay, Multiband Mod Delay, and Overb (from the OASYS and Kronos), plus modeled effects including VOX guitar amps, VOX wah, multi-head tape echo, and a collection of classic guitar pedals.

Randomization that inspires.
Looking for even more inspiration? A dedicated front-panel button, marked by a “dice” icon, generates new sounds via intelligent randomization. Randomize the entire sound or just a part of it, such as the oscillators, filter, or effects. Use the results directly, or as a jumping-off point for your own creations.

Editor/Librarian software
The modwave Editor/Librarian lets you edit and organize sounds via your macOS or Windows computer (including the latest Apple M1-based systems). Using USB networking for high-speed communication, it works like a second front panel for the instrument, so there's no need to synchronize or transfer data. Animations show the effects of modulation in real-time - a great help when programming.

Set Lists and Smooth Sound Transitions
Set Lists offer effortless organization of your wavestate Performances, and deliver instant access at the gig or in rehearsal. Smooth Sound Transitions allow previously-played voices and effects to continue to ring out naturally, even once a new sound has been selected.

Connections

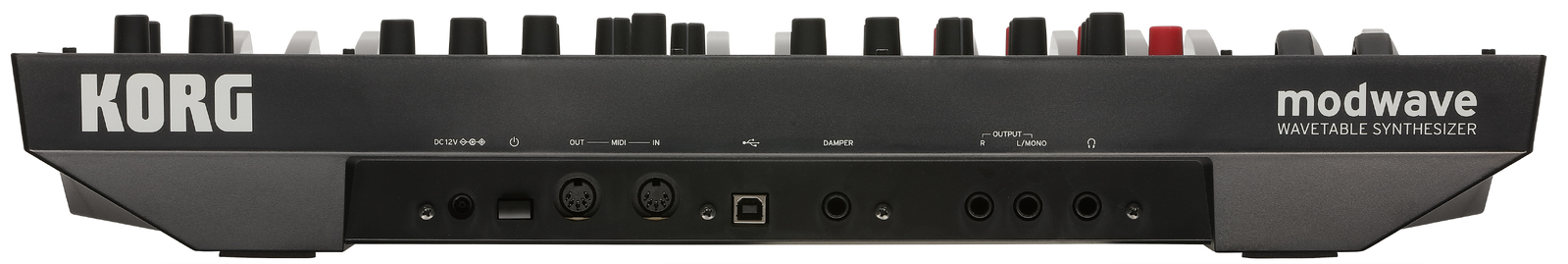

Balanced stereo outputs connect to any recording or monitoring system, and a stereo headphone output is provided for private playing or onstage cueing. Din-style MIDI jacks ensure connection to other MIDI-equipped instruments and audio gear, and the modwave supports class-compliant USB MIDI connections to Windows and macOS computers.

Designed by KORG R&D in California.
KORG R&D created the wavestate and the original Wavestation, co-created the OASYS and KRONOS, and has developed fundamental technologies behind many other KORG instruments. The modwave reflects their unique aesthetic, delivering stunning sound, deep flexibility, and immediate physical control via cutting-edge technologies. Key sound designers from the wavestate, Airwave and Peter “Ski” Schwartz, joined Francis Preve, Richard Devine, and the KORG voicing team to create the modwave’s incredible sound library.

Free bundle of music software
The modwave comes with a diverse collection of music software to help you take your music to the next level, including Izotope's Ozone Elements for AI-powered mastering, Skoove for improving your keyboard playing skills, and software synths from KORG and other brands.

Special crossgrade to modwave native (software)
Owners of the hardware modwave are eligible for a crossgrade license to modwave native at the special price of US $49.99, via a coupon code tied to the modwave hardware’s unique ID. Using the hardware and software versions together, you can have the best of both worlds: a physical instrument that responds to your touch, and complete DAW integration. To generate the coupon:

1. Download modwave system version 2.1 or later, Editor/Librarian 1.3 or later.
2. Update your modwave hardware, and Install the Editor/Librarian.
3. In the Editor/Librarian, open the File menu and select "Get Plug-in Coupon…"
4. A dialog will appear, with the coupon code; follow the on-screen instructions to use the coupon in the KORG Shop.

modwave native
In 1985, KORG’s DW-8000 combined digital wavetables with rich analog filters to give users sounds which were impossible to create with analog oscillators. It’s still a cult favorite today.

The modwave, released in 2021, builds on the DW legacy and transforms it into a modern monster synth, featuring incredibly deep wavetable oscillators, gorgeous filters, wildly flexible modulation, sophisticated pattern sequencing, and macro controls to deliver unique, powerful, and easily customizable sounds and phrases.

Now, KORG is pleased to announce modwave native, the fully-compatible software counterpart to the hardware modwave synthesizer. modwave native is available in VST3, AAX, and standalone formats on both macOS and Windows, as well as AU on macOS. You can seamlessly exchange sounds between hardware and software. Produce in your DAW with modwave native, and then play the same sounds on stage using the modwave hardware. Create sounds with the hardware’s hands-on interface, and then share them with a computer-based collaborator. Plus, you can use any of the many third-party sound libraries available for the hardware modwave, as well as sample libraries designed for either the modwave or wavestate.

SPECIFICATIONS

System
Keyboard: 37 keys (velocity and release-velocity sensitive)
Maximum Polyphony: 60 stereo voices
Sound generating system: modwave synthesis engine

Modulation
Controllers: Mod Wheel, Pitch Wheel, Kaoss Physics, 4x Mod Knobs
Other Sources: 4x Envelopes, 5x LFOs, 2x Mod Processors, 2x Key Track, Seq Lanes A-D, Step Pulse, Tempo, Program/Performance Note Count, Program/Performance Voice Count, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate, Gate+Damper, Note-On Trigger, Note-On Trigger+Damper, Note Number, Aftertouch and Poly Aftertouch (external MIDI only), MIDI CCs +/-, MIDI CCs +
Destinations: Most parameters can be modulated, including parameters of individual Motion Sequence Steps. Depending on Motion Sequence length, there can be more than 1,000 potential modulation targets per Program.

Effects
Pre FX: Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper
Mod FX: Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah
Delay: L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo
Master Reverb: Early Reflections, Overb
Master EQ: 4-band parametric EQ

General
Inputs/outputs: Headphone (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks), DAMPER (6.3 mm phone jack, half-damper not supported), MIDI IN and OUT connectors, USB B port
Power supply: AC adapter (DC12V, 2500mA)
Power consumption: 5 W
Dimensions (W × D × H): 565 × 338 × 92 mm/22.24” × 13.31” × 3.62”
Weight: 2.9 kg/6.93 lbs.
Included items: AC adapter, Precautions, Quick Start Guide
Accessories (sold separately): DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch

*Specifications and appearance are subject to change without notice.
*All product names and company names are the trademarks or registered trademarks of their respective owners.
