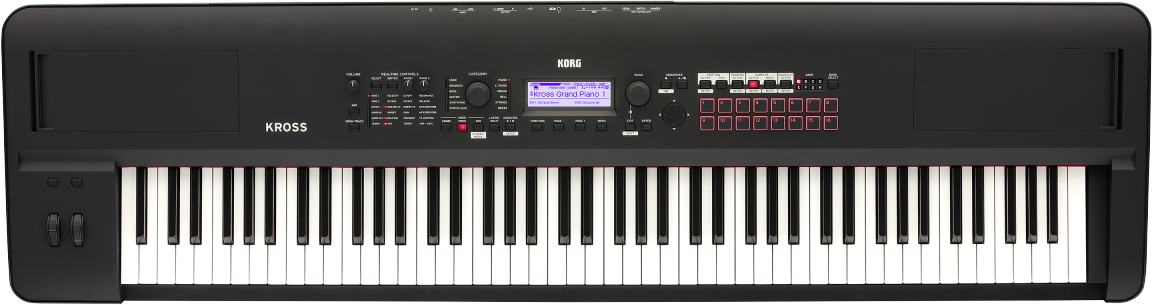

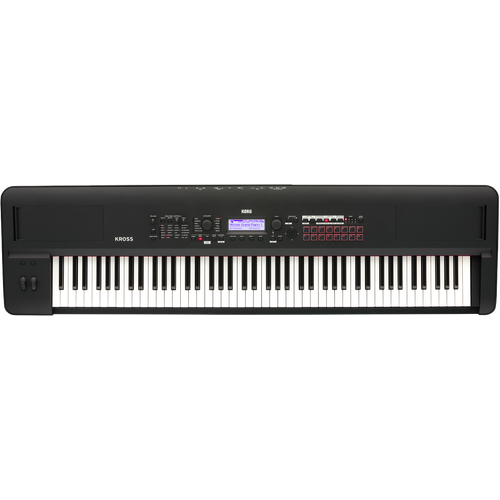

Korg Kross 2 88

More features, more sounds, more possibilities.

A state-of-the-art platform with ever greater functionality. The mobile synthesizer workstation that does everything

KROSS 2, the long-awaited successor of the KROSS, is a compact, portable workstation with a huge range of sounds. While maintaining its identity as ultra-lightweight, compact, and capable of running on batteries, this new model dramatically enhances KROSS’s sounds and functionality. In addition to a total of more than a thousand preset sounds, expansion PCM memory has been newly added. Also new is a pad sampler that allows full-fledged sampling, and USB audio/MIDI interface functionality. The color scheme is even more stylish, and the user interface allows intuitive operation even by beginners.

Effortlessly select the sound that you want to play, shape it to match your imagination, sample a sound, create phrases and rhythms, record your vocal or guitar, bring KROSS 2 on stage, and perform. Whatever you artistic vision, you can make it happen. KROSS 2 is a versatile synthesizer platform made with creative freedom in mind.

FEATURES

• Even more powerful preset sounds, with specialized optional expansion sounds

• 128MB of expansion PCM memory is built-in, and option libraries are supported

• The rich expressive power of the EDS-i sound engine, and a rich selection of effects with 134 types

• Superb sampling functionality and 16 sampler pads

• A panel layout that lets you access functions without confusion

• Realtime control section for quick parameter editing

• Favorite function lets you register and instantly recall up to 128 frequently-used sounds

• Quick layer/split can be specified by a single button

• Ultra-lightweight compact body; the 61-key model weighs only 3.8 kg, the lightest in its class

• Long operating life, with six AA batteries allowing up to seven hours of use

• A color lineup with a peerless finish that exceeds its class

• Audio player/recorder that can be easily triggered by the pads

• Sequencer, drum track, and arpeggiator to support your song production

• A rich array of input jacks for singer-instrumentalists or vocoder performance without requiring additional equipment

• Also functions as a USB audio interface

A rich variety of more than 1,000 preset sounds
The sound quality of KORG synthesizers is endorsed by top-ranking musicians around the world. The evolved KROSS 2 expands polyphony from 80 to 120 voices, and dramatically powers-up the number of internal programs from 809 to 1,075 programs. Including multi-layered pianos and electric pianos, thick strings and other new sounds that will work well with any band, as well as the latest drum kits to cover current styles such as EDM. The wide selection of programs covers your needs from live performance to studio production.

Built-in expansion PCM memory, and support for optional libraries
The KROSS 2 now provides 128 MB of built-in expansion PCM memory. By selecting from optional libraries that will be released following KROSS 2, you can expand KROSS 2’s internal sounds to meet the needs of your performing style or situation.

The rich expressive power of the EDS-i sound engine, with a full complement of effects
The high-quality EDS-i Enhanced Definition Synthesis-integrated sound engine is inherited from KORG’s professional synthesizers. You can use a total of seven effects units simultaneously: five insert and two master. Rich expressive power is available from the selection of 134 high-quality effects, including standard effects such as delay and reverb as well as amp modeling, vintage effect units, and even a vocoder.

Superb sampling function and a pad sampler
As a first in its class, the KROSS 2 is newly equipped with a unique sampling function that provides 16 playable pads. You can record the input from the LINE IN jack and assign a stereo sample of up to 14 seconds to each pad. Up to four pads can be triggered simultaneously. You can edit the sample waveform using functions such as start/end loop point settings and normalize, and even resample within the KROSS 2, allowing you to perform extensive sampling without requiring any additional equipment. Long audio files from an SD card can also be assigned to these pads.

Straightforward access to the sounds and functions you need
It's easy to get around on KROSS 2, thanks to a user-friendly layout. The panel of the KROSS 2 has been further improved since the first KROSS, ensuring that anyone can quickly access desired sounds and functions from the enormous range of choices.

Realtime control section
The new realtime control section lets you directly control KROSS 2’s main parameters without having to navigate through a menu hierarchy. In addition to realtime control of the sounds and effects, and simple editing of programs, you can use the knobs to easily control the vocoder settings or adjust the tempo of the arpeggiator and sequencer.

Favorites function
The favorite function lets you register frequently-used programs and combinations and recall them at a single touch, and has even been expanded to allow 128 favorite locations, twice the number of the first generation of KROSS. This function is ideal for live players that need quick access to a specialized set of sounds on stage.

Quick layer/split
The layer/split function, which lets you layer two sounds or assign separate sounds to the left and right regions of the keyboard, is now easier to set up, thanks to a dedicated quick layer/split button.

Category dial
A category dial is provided, allowing you to immediately find the sounds you're looking for amid the vast range of choices. Just choose the general type of sound, such as piano or organ, and then make your selection quickly and efficiently.

Ultra-lightweight and compact body, with support for battery operation
The amazing mobility of the KROSS series is better than ever. The 61-key model features a new and stylish design, and its weight has been further reduced from the 4.3 kg of the previous model to an even more lightweight 3.8 kg. Additional improvements in power efficiency allow up to seven hours of battery-powered operation from six AA batteries. The 88-key model newly provides an accessory compartment that can hold spare batteries or cables, as well as an easily accessible front-located battery panel. On both models, the rear panel KORG logo is fully illuminated, letting you stand out on stage.

The ultimate body finish that exceeds its class
The evolved KROSS 2 also features high quality in its body finish. First, KROSS 2 uses a “super matte black” color with a high-quality rubberized finish that is durable and feels great to the touch. Lavish use of this sophisticated rubberized finish gives the instrument a highly professional appearance.

SPECIFICATIONS

Keyboard: 88 keys NH (Natural weighted hammer action) keyboard (no aftertouch) Normally A0–C8 (adjustable in the range [-A-1…C7]–[A1…C9])
* The NH keyboard delivers a playing feel similar to that of an acoustic piano, with low notes being heavier and high notes being lighter.
System: EDS-i（Enhanced Definition Synthesis - integrated）

Sound Engine
Maximum Polyphony: 120 voices (120 oscillators), single mode, 60 voices (60 oscillators), single mode
* The actual maximum polyphony will vary depending on oscillator settings such as stereo multisamples and velocity crossfading.
Preset PCM Memory: Approximately 128 MB (calculated as 48 kHz / 16-bit linear PCM data equivalent)
496 multisamples (including seven stereo), 1014 drumsamples (including 49 stereo)
Expansion PCM Memory: Approximately 128MB (*when converted to 48 kHz 16-bit linear PCM
* Used when loading option PCM
Program:

• Oscillator: OSC1 (Single), OSC1+2 (Double): Stereo multisamples are supported 4 velocity zones per oscillator, with switching, crossfades and layers.

• Filters: Four types of filter routing (single, serial, parallel, 24 dB)

• Two multi-mode filters per voice (low pass, high pass, band pass, band reject)

• Modulation: For each voice, two envelope generators (Filter & Amp), two LFOs, two key tracking generators (Filter & Amp), and two AMS mixers. In addition, pitch EG, common LFO, and two common key tracking generators

Combination:

• Timbres: Up to 16 timbres, switchable via key zone or velocity zone, layer and crossfade supported, Tone Adjust function allows program settings to be offset

• Master Keyboard functionality: These allow you to control external MIDI devices

Drumkits: Stereo and mono drumsamples. 4-way velocity switches with crossfades and adjustable crossfade shapes (Linear, Power, Layer).
The Number of Combinations/Programs/Drum Kits:

• User Combinations: 896 Combinations (384 Preload)

• User Programs: 1280 Programs (768 Preload)

• User Drum Kits: 58 Drum Kits (42 Preload)

• Preset Programs: 265 Programs (256 GM2 Programs + 9 GM2 Drum Programs)*

• Total number of preload programs and preset programs: 1,075 (810 preload programs, 265 preset programs

Favorites
Number of memories: 128 (16 favorites × 8 banks)

Effects
Insert effects: 5 Insert Effects In-line processing; stereo in - stereo out.
Master effects: 2 Master Effects Two effects sends; stereo in - stereo out.
Effects types: Total of 134 types (select from 74 types for insert effects, 101 types of master effect 1, and 120 types for master effect 2)
Modulation: Dynamic Modulation
Effects Control Bus: Stereo side-chaining for limiter, gates, vocoders, etc.

Polyphonic arpeggiators
Program mode: One arpeggiator
Combination mode: Two arpeggiators
Sequencer modes: Two arpeggiators
Preset arpeggio patterns: UP, DOWN, ALT1, ALT2, RANDOM
User arpeggio patterns:

• Number of arpeggio patterns: 1280 (1024 preload)

• Number of tones: 12 tones,

• Number of steps: up to 64 steps

Step sequencer
Program/Combination/Sequencer mode:

• One unit

• Number of tones: 12 tones + 1 accent tone

• Number of steps: up to 64 steps
  * Can be created for each program, combination, and song.

Drum Track
Preset Patterns: 772 patterns (Held in common with sequencer patterns.)
Other: Trigger Mode / Sync / Zone settings can be specified

Sequencer
Tracks: 16MIDI Tracks
Number of Songs: Up to 128 songs
Resolution: 1/480
Tempo: 40.00–300.00 (1/100 BPM resolution)
Maximum Memory: Up to 210,000 MIDI events
Counter: Measure/Beat/Tick
Template Song: 16 preset/16 user template songs
Preset Patterns: 772 patterns (shared with Drum Track patterns)
Format: KORG (KROSS) format, SMF format 0 and 1

Pad sampler
Specifications: 16 pads × 8 banks, Automatically saved on the SD card, and automatically loaded. Up to four pads can play simultaneously.
Recording format: PCM audio format 48 kHz/16-bit
Recording time: Up to approximately 14 seconds of stereo sample for each pad
Import: WAVE format, file name extension: .wav, 44.1 kHz/16-bit, 48 kHz/16-bit, stereo * 44.1 kHz is automatically converted to 48 kHz/i>
Edit: Waveform display editing functionality, start address and looping settings etc., normalize and other editing operations.

Audio Recorder
Recording Format: PCM audio format 48kHz/16bit
Import: WAVE format (file name extension: wav ) 44.1kHz/16bit, 48kHz/16bit stereo * 44.1 kHz is automatically converted to 48 kHz
Export: WAVE format (file name extension: .wav) 48kHz/16bit, stereo
Recording Time: Maximum continuous recording time: 3 hours. Depends on the SD card used; approximately 90 minutes per 1 GB
Number of Songs: Up to 200 songs
Number of overdub recordings: Depends on the remaining capacity of the SD card
Counter: Hour/Min/Sec
Pad audio play:

• 16 pads × 8 banks

• Directly play back data from SD card

• Multiple pads cannot be played simultaneously

Media: File, Utility, Information, additional PCM data management functionality

Controllers:
General Control: Pitch bend wheel, Modulation wheel, SW1, SW2
Realtime Control: SELECT button, SWITCH button, KNOB1 knob, KNOB2 knob
Step Sequencer/Favorite/Pad Sampler/Pad Audio Play:

• Pads 1–16

• STEP SEQ ACTIVE button, Run button

• FAVORITES ACTIVE button

• SAMPLER ACTIVE button, HOLD button

• AUDIO PLAY ACTIVE button

• BANK LEDA/B/C/D/E/F/G/H (also used by Step sequencer, Favorite, Pad Sampler, and Pad Audio Play)

Drum Track: DRUM TRACK button
Arpeggiator: ARP button
Audio Recorder: AUDIO REC button

User Interface
Display: 240 × 64 pixel LCD backlight, Adjustable contrast (hold the EXIT button and turn the VALUE dial)
Category: CATEGORY dial, VALUE dial
MODE: COMBI button, PROG button, SEQ (GLOBAL/MEDIA) button
Value Controllers: Cursor buttons, EXIT,ENTER, FUNCTION, PAGE-, PAGE+, MENU buttons
Sequencer: REC button, START/STOP button
Quick Layer Split: LAYER/SPLIT button
Other: VOLUME knob
Control Input: DAMPER (Supports piano-style half-damper pedals as well as standard foot switches), ASSIGNABLE SWITCH, ASSIGNABLE PEDAL

Audio Outputs (Analog)
AUDIO OUTPUT L/MONO, R:

• Connectors: 6.3 mm (1/4") phone jacks(TS unbalanced)

• Output Impedance: 1.1k ohm stereo, 550 ohm mono (L/Mono only)

• Maximum Level: +10.0 dBu

• Load Impedance: 10k ohm or greater

• Controllable by the VOLUME knob

HEADPHONE OUTPUT:

• Connectors: 3.5mm (1/8") stereo mini phone jack

• Output Impedance: 33 ohnm

• Maximum Level: 40 + 40 mW

• Controllable by the VOLUME knob

Audio Inputs (Analog)
LINE IN:

• Connectors: 3.5 mm (1/8") stereo mini phone jack

• Input Impedance: 1.1k ohm

• Maximum Input Level: -42 to 0 dBu

MIC IN:

• Connectors: 6.3 mm (1/4") phone jacks(TS unbalanced)

• Input Impedance: 33 ohm

• Maximum Input Level: -48 to -6dBu

• Phantom power or plug-in power is not supported.

Others
MIDI: IN, OUT
USB: USB connector TYPE B x 1, USB-MIDI interface, USB audio interface
SD Card Slot: One card slat * Capacity recognized: SD memory cards up to 2 Gigabytes (GB). SDHC memory cards up to 32 Gigabytes (GB). SDXC memory cards are not supported.

Power
Power: AC adaptor power supply DC 9V, AA alkaline batteries x 6, or nickel-metal hydride batteries x 6
Battery Life: AA alkaline batteries x 6: Approximately 6 hours, AA nickel-metal hydride batteries (1900mAh) x 6: Approximately 7 hours. Varies depending on the batteries used and the conditions of use.

Power Consumption: 5 W
Dimensions (W x D x H): 1,448 mm × 383 mm × 136 mm / 57.01" × 15.08" × 5.35"
Weight: 12.3 kg / 27.12 lbs (excluding batteries)
Included Items: AC adapter, Quick Start Guide

Accessories (sold separately)
Keyboard stand: Standard-L-SV88​​​​​​​
Soft case: SC-KROSS 2 88 / KROME 88
Expression/Volume Pedal: XVP-20, XVP-10
Foot Controller: EXP-2
Damper Pedal: DS-1H
Pedal Switch: PS-1, PS-3

*    All products names and specification names are trademarks or registered trademarks of their respective owners.
*    Appearance and specifications of products are subject to change without notice.
