Jackson X Series Dinky DK10 Illuminati

Distinctive and affordable, Jackson’s X Series Dinky® models are built for speed and comfort! The Jackson® X Series Dinky® DK1A DX is a venerable double-cutaway workhorse that offers many fine features desired by today’s shredders.

This Dinky model features an ergonomically curved nyatoh body and bolt-on maple neck with graphite reinforcement for rock-solid stability and tilt-back scarf joint headstock. Hosting 24 jumbo frets, its 12”-16” compound radius amaranth fingerboard curves more dramatically at the nut for easy chording and flattens out as it approaches the neck joint for low-action bends without fretting out.

Jackson high-output humbucking pickup power this metal beast with full-bodied tone ideal for brazen lead work or assertive rhythms runs. A Floyd Rose® Special double-locking tremolo bridge system provides superior string stability and dynamic tremolo action.

FEATURES

• 25.5” scale length

• Nyatoh body

• Bolt-on maple neck with graphite reinforcement and scarf joint

• 12”-16” compound radius amaranth fingerboard with 24 jumbo frets and black sharkfin inlays

• Jackson high-output humbucking bridge pickup

• single volume control

• Floyd Rose® Special double-locking tremolo bridge system

• Jackson sealed die-cast tuners and standard strap buttons

12"-16" Compound Radius Amaranth Fingerboard
Jackson pioneered the use of the innovative 12"-16" compound radius design, in which the amaranth fingerboard gradually flattens toward the heel from its more rounded profile at the nut. This makes for comfortable and natural-feeling chording and riffing near the nut, with optimal shred articulation and bending nearer the heel.

Floyd Rose® Special Double-Locking Tremolo Bridge System
Recessed for picking-hand comfort, the Floyd Rose Special double-locking tremolo features zinc alloy saddles and a zinc alloy sustain block. The double-locking design allows you to lock your guitar in tune at the nut and at the bridge, resulting in excellent tuning stability and sustain throughout your most aggressive pull-ups and dive bombs.

SPECIFICATIONS

General
Series: X Series
Orientation: Right-Hand
Color: Illuminati
Country Of Origin: ID

Neck

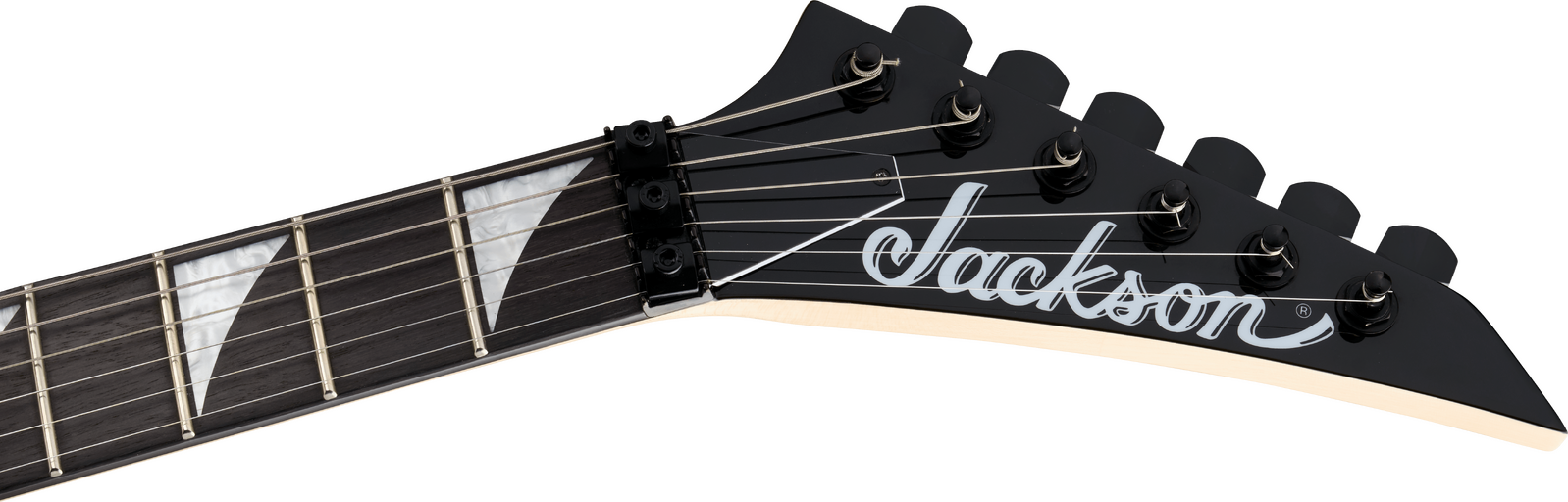

Headstock: Jackson® Pointed 6-In-Line
Headstock Binding: None
Neck Material: Maple
Neck Finish: Satin
Neck Construction: Bolt-On with Graphite Reinforcement and Scarf Joint
Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Amaranth
Position Inlays: Pearloid Sharkfin
Side Dots: White
Number of Frets: 24
Truss Rod: Dual-Action Head Adjust
String Nut: Floyd Rose® Special Locking
Nut Width: 1.6875"
Nut Material: Floyd Rose® Special Locking

Body
Body: Nyatoh
Body Finish: Gloss
Body Shape: Dinky®
Body Material: Nyatoh

Hardware
Bridge: Floyd Rose® Special Double-Locking Tremolo (Recessed)
Pickup Covers: Black
Control Knobs: Dome-Style
Hardware Finish: Black

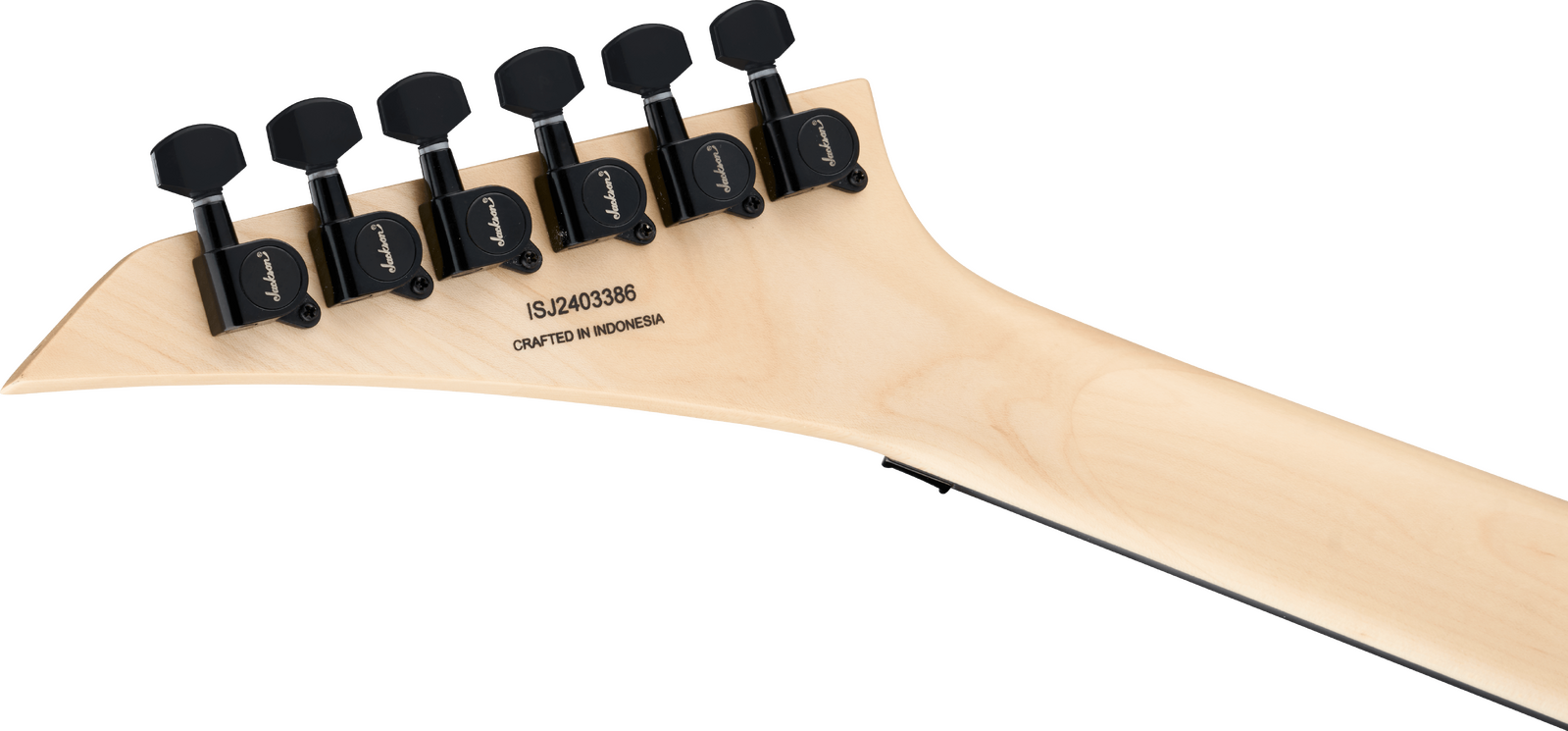

Tuning Machines: Jackson® Sealed Die-Cast
Strings: Nickel Plated Steel (.009-.042 Gauges)
Strap Buttons: Standard

Electronics
Bridge Pickup: Jackson® High-Output Humbucking
Pickup Configuration: H
Controls: Volume
Switching: None

Measurements
Dimensions: 4.00x20.00x44.00 IN
Shipping Weight: 15.00 LB
Fret Size: Jumbo
Scale Length: 25.5" (64.77 cm)
Shipping Length: 44.00 IN
Shipping Height: 4.00 IN
Shipping Width: 20.00 IN
