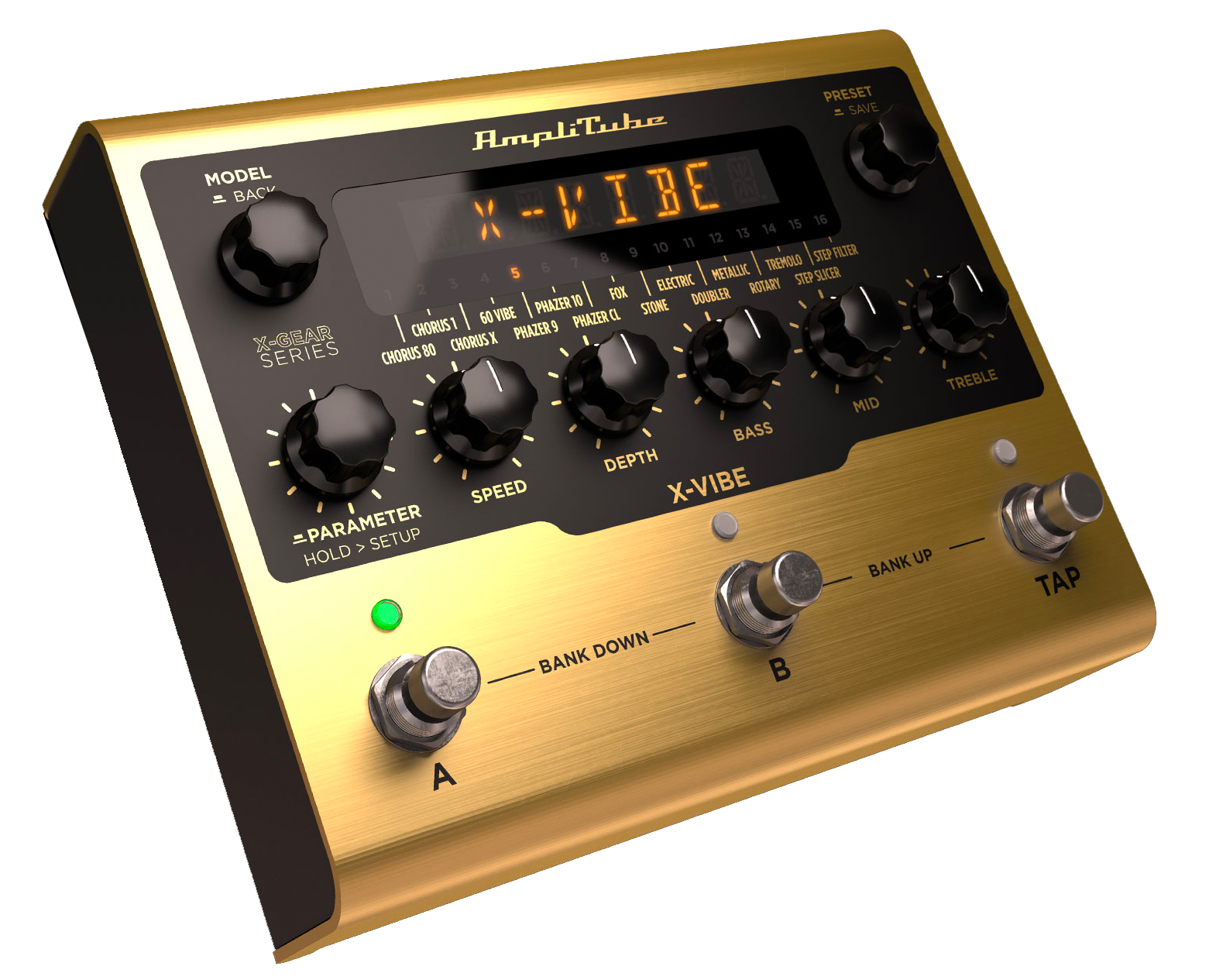

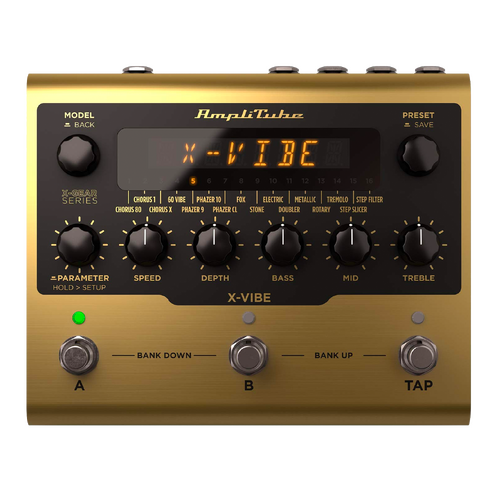

IK Multimedia AmpliTube X-VIBE

Bring your perfect studio guitar sound onstage with the new AmpliTube X-VIBE modulation pedal. This boutique, true stereo pedal features 16 all-new delay effects leveraging IK’s latest AmpliTube technologies, accompanied by an exclusive virtual X-GEAR version of the exact same effects. Use the virtual version with AmpliTube 5 (SE version included) to record and tweak settings and save as presets on your X-TIME pedal for world-class tone anywhere.

FEATURES

• Breakthrough software and hardware integration for guitarists

• State-of-the-art DSP in a road-worthy anodized aluminum chassis

• 16 different algorithms, 50 factory presets (300 storable presets)

• Chorus, flanger, rotary and more + Tap Tempo and BPM sync

• Includes exclusive virtual X-VIBE version for use in AmpliTube 5

• USB port for preset management and use as a recording interface

• Full MIDI implementation including control over AmpliTube 5

• Designed and made in Italy for a lifetime of playing and gigging

Best-in-show DSP
AmpliTube X-VIBE leverages IK’s latest technologies for hyper-realistic emulations of real-world gear. The state-of-the-art DSP onboard offers 16 high-end algorithms, while a special X-MODE opens additional hyper-modulation effects. All combined, X-VIBE delivers amazing clarity to the stage with the realism and response that users love about AmpliTube 5.

16 high-end algorithms

• 80-CHORUS
  This model is inspired by the different attempted versions that came out in the ‘80s to recreate complex stereo chorus effects. This gives you the wideness and magic of the ‘80s rock sound.

• CHORUS-1 - Based on Solina String Ensemble Keyboard Chorus effect.
  This vintage chorus is inspired by the widening chorus effect found in the Solina String Ensemble Keyboard that can fit perfectly also in guitar tones.

• CHORUS-X - Based on Roland RS Series.
  This is a very versatile model based on the chorus effect of the RS series of synthesizers by Roland that also became one of the preferred choruses for guitarists all over the world.

• 60-VIBE - Based on Univox™ Uni-Vibe™.
  This model offers two working modes: chorus and vibrato. Its legendary chorus mode is a chorus/rotating-speaker simulator that was introduced in 1969. This created a swirling effect quite similar to a rotary speaker cabinet, but with the addition of a continuous speed control.

• PHAZER-9 - Based on MXR® Phase 90.
  This effect is one of the most popular phase pedals of all times. Used by a wide range of first-class guitarists, this unit can add a little bit of shimmer to your solos or generate a smooth, watery effect while playing chords and muted strumming.

• PHAZER-10 - Based on MXR® Phaser 100.
  A model of a classic analog phaser that offers 4 different modes characterized by their different intensity and shape.

• PHAZER-CL
  This model is inspired by one of the most iconic and classic analog phase shift effects heard throughout the 1970s.

• FOX - Based on fOXX® Foot Phaser.
  An early vintage phaser with a unique and distinctive sound. In addition to the standard controls for a phaser, it offers a feedback parameter that lets you change the sound from a smooth phazy to an edgy modulated effect.

• STONE - Based on Electro-Harmonix® Small Stone.
  This effect is a model of a classic analog phase shifter, capable of a range of phaser effects from gentle to outlandish swirling effects. You may wonder why it is called "small" when you hear it.

• ELECTRIC - Based on Electro-Harmonix® Electric Mistress.
  This stomp box is a model of a vintage flanger/filter matrix used by many well-known guitarists to achieve classic sounds. While it has amazing warmth, it is also capable of very versatile chorus and ring modulation type sounds.

• DOUBLER - Based on the doubler mode of the MXR® Flanger Doubler.
  Primarily used to thicken in the overall tone of the instrument. Very popular in ‘90s power metal.

• METALLIC - Based on MXR® Flanger 117.
  A classic flanger reminiscent of the '80s flavor. Still, no flanger is more recognizable, making this perfect for hard-rock and psychedelic clean tones.

• ROTARY
  This effect is a model of a rotary speaker cabinet. Rotary speaker cabinets create a lush vibrato/chorus effect that adds vibe and a tremendous third dimension to the sound.

• TREMOLO
  A fully customizable tremolo effect that offers controls over the envelope and wave shape of the modulation allowing you to set it from a smooth swell flavor to a percussive effect.

• STEP-SLICER
  Add programmed rhythmic parts to your power chords and phrases with this powerful and creative beat synced slicing stomp effect. It can be setup to create anything from the most amazing tremolos to the most complex rhythm effects that always stay in perfect sync with the beat.

• STEP-FILTER
  A powerful and deep beat-synced filter stomp effect. You can apply Low / High and Band pass analog modeled filtering on freely customizable patterns to add groove and rhythmic pulsing to your parts. This will make your guitar and bass parts sound like a rhythmic synth, if you want it!

Hardware that stands out
For AmpliTube X-VIBE we went all out to guarantee your tone stays as pure and pristine as possible, no matter how simple or sophisticated your signal chain becomes.

• Ultra-low noise, 24-bit/192kHz converters for class-leading sound quality

• 5 Hz–24 kHz frequency response to capture the full scope of your guitar’s sound

• 112 dB dynamic range provides whisper-quiet operation at any gain setting

• Selectable true or soft bypass for maximum control

Industry-leading integration
AmpliTube X-VIBE includes a matching virtual version for Mac/PC and a copy of AmpliTube 5 SE. Open any version of AmpliTube 5 and you’ll find your virtual X-VIBE pedal available as a stomp for use within the program. Adjust any of your pedal settings with the convenience of AmpliTube’s award-winning workflow and save them as presets. The X-GEAR Librarian lets you move presets between X-GEAR pedals and AmpliTube and easily reorganize them on the hardware pedal. You can store up to 300 presets per pedal.

All-in-one recording
With AmpliTube X-VIBE there’s no need for any other gear when it comes to recording guitar. We’ve put a USB audio interface and some must-have recording features right onboard.

• 5Hz to 24kHz frequency response to record the full range of your guitar or bass

• Versatile routing options let you send the wet and/or dry signals to your DAW

• Stereo out for monitoring sound between the X-VIBE pedal and your computer

• Full MIDI implementation to map control of AmpliTube and/or any compatible DAW

From soundcheck to final encore
When it’s time to play out, AmpliTube X-VIBE holds everything you need to perform at your best. In fact, you can even leave your amp and cab at home, if you want to.

• Fast, intuitive interface and control knobs to tweak your sound on the fly

• High-contrast LED display keeps you informed on everything, indoors and out

• Expression pedal input adds additional control over any parameter you choose

• True stereo inputs and outputs on all algorithms for incredible signal chains

• Full MIDI implementation is built-in for even the most complex setups

• 5 cabinet impulse responses let you connect directly to a powered cab or PA

With great tone comes great portability
With its open architecture for future updates, AmpliTube X-VIBE will empower you no matter where you are and for years to come. Experience the freedom of moving between the studio and stage seamlessly, confident that you and the audience hear your sound exactly as you created it to be.

SPECIFICATIONS

• Breakthrough software and hardware integration for guitarists

• State-of-the-art DSP in a road-worthy anodized aluminum chassis

• 16 different algorithms, 50 factory presets (300 storable presets)

• Chorus, flanger, rotary and more + Tap Tempo and BPM sync

• Includes exclusive virtual X-VIBE version for use in AmpliTube 5

• USB port for preset management and use as a recording interface

• Full MIDI implementation including control over AmpliTube 5

• Designed and made in Italy for a lifetime of playing and gigging

• Ultra-low noise, 24-bit/192kHz converters for class-leading sound quality

• 5 Hz–24 kHz frequency response to capture the full scope of your guitar’s sound

• 112 dB dynamic range provides whisper-quiet operation at any gain setting

• Selectable true or soft bypass for maximum control

• 5Hz to 24kHz frequency response to record the full range of your guitar or bass

• Versatile routing options let you send the wet or dry signal to your DAW

• Stereo out for monitoring sound between the X-VIBE pedal and your computer

• Full MIDI implementation to map control of AmpliTube and/or any compatible DAW

• Fast, intuitive interface and control knobs to tweak your sound on the fly

• High-contrast LED display keeps you informed on everything, indoors and out

• Expression pedal input adds additional control over any parameter you choose

• True stereo inputs and outputs on all algorithms for incredible signal chains

• Full MIDI implementation is built-in for even the most complex setups

• 5 cabinet impulse responses let you connect directly to a powered cab or PA

Package includes

• X-VIBE pedal

• USB A-Type to USB B-Type connection cable (1.5m/4.32ft)

• Power Supply Unit

• Plug-in and Preset Librarian serial number

Dimensions

Size: 17.5cm/6.88" x 14.5cm/5.7" x 5.8cm/2.28"
Weight: 906g/31.96oz

System Requirements
AmpliTube 5
AmpliTube is a 64-bit application and requires a 64 bit CPU and Operating System.

Mac® (64-bits)

• Minimal: Intel® Core™ 2 Duo (Intel Core i5 suggested), 4 GB of RAM (8 GB suggested), macOS 10.10 or later. 3 GB of hard drive space.

• Requires an OpenGL 2 compatible graphics adapter.

• Supported Plug-in formats (64-bit): Audio Units, VST 2, VST 3, AAX.

Windows® (64-bits)

• Minimal: Intel® Core™ 2 Duo or AMD Athlon™ 64 X2 (Intel Core i5 suggested), 4 GB of RAM (8 GB suggested). Windows® 7 or later. 3 GB of hard drive space.

• Requires an ASIO compatible sound card.

• Requires an OpenGL 2 compatible graphics adapter.

• Supported Plug-in formats (64-bit): VST 2, VST 3, AAX.

Internet connection is required as all of the Custom Shop operations are web based.
