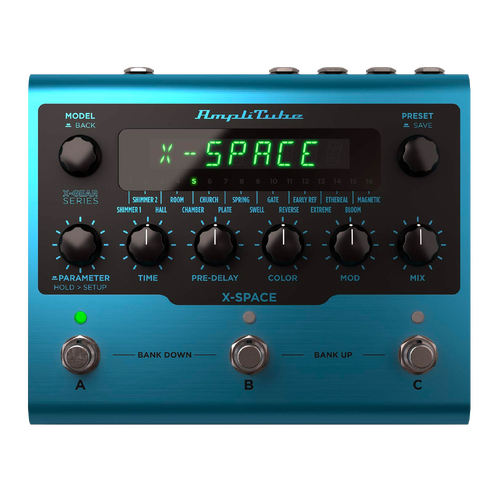

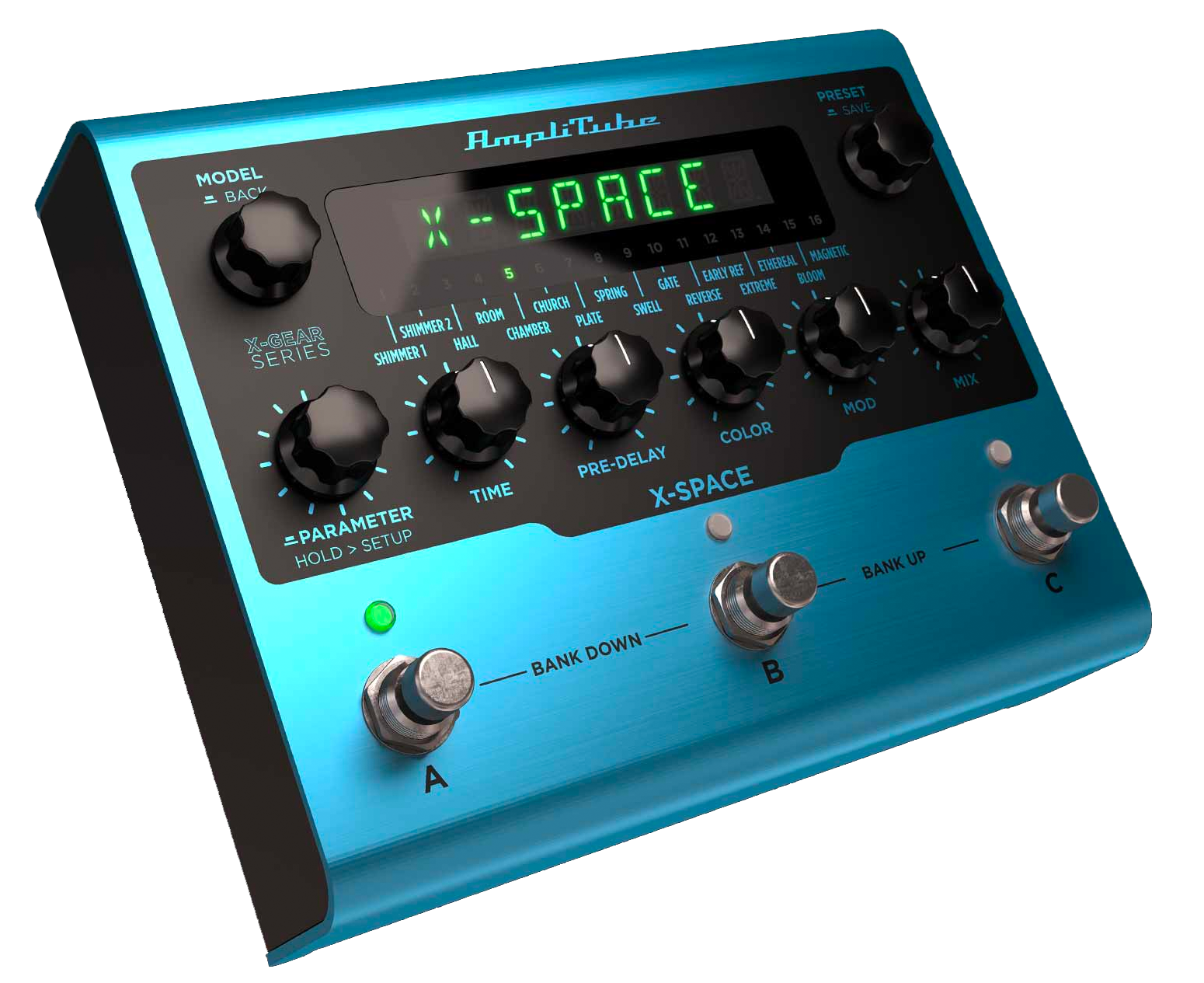

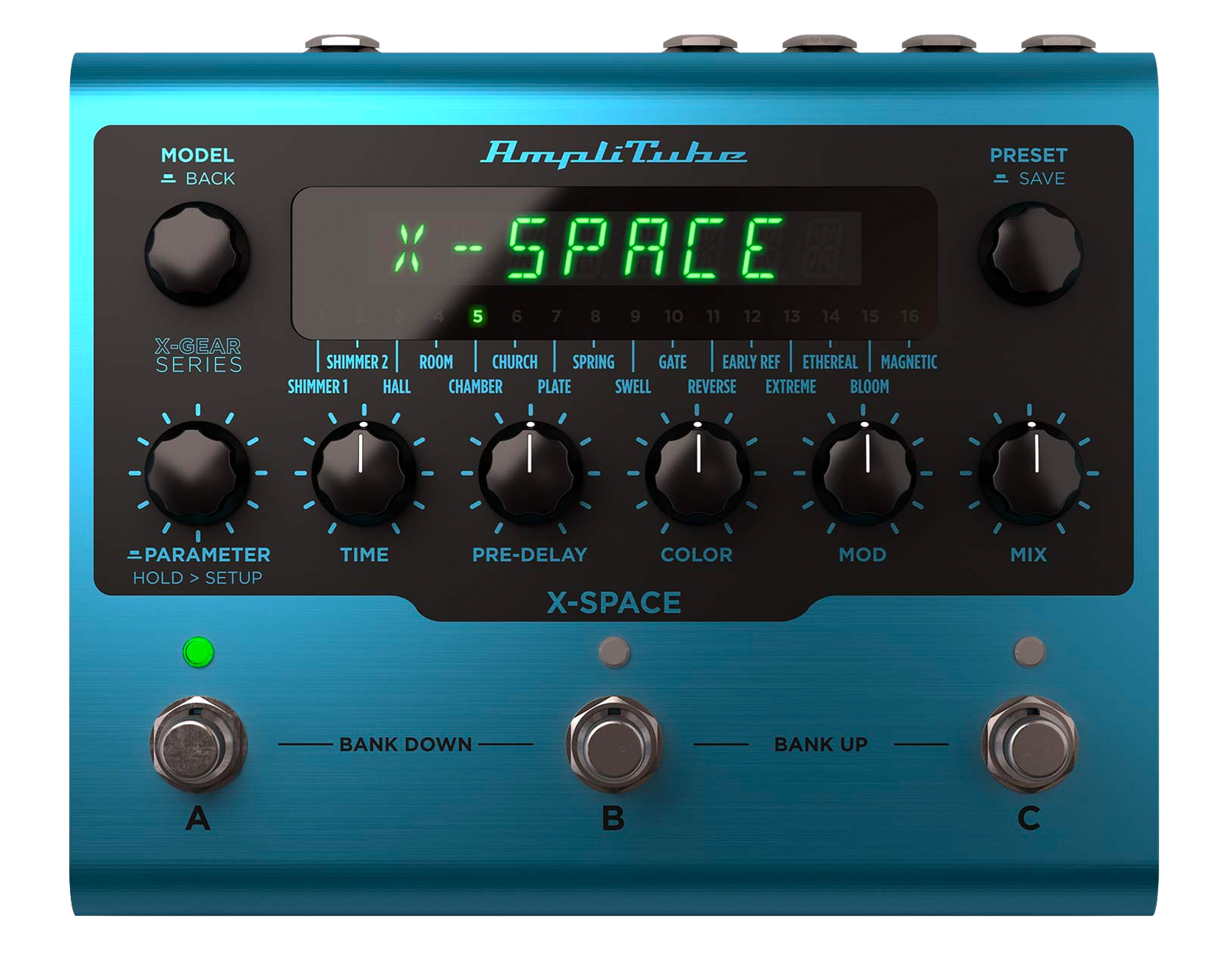

IK Multimedia AmpliTube X-SPACE

Bring your perfect studio guitar sound onstage with the new AmpliTube X-SPACE reverb pedal. This boutique, true stereo pedal features 16 all-new reverb effects leveraging IK’s latest AmpliTube technologies, accompanied by an exclusive virtual X-GEAR version of the exact same effects. Use the virtual version with AmpliTube 5 (SE version included) to record and tweak settings and save as presets on your X-SPACE pedal for world-class tone anywhere

FEATURES

• Breakthrough software and hardware integration for guitarists

• State-of-the-art DSP in a road-worthy anodized aluminum chassis

• 16 different algorithms, 50 factory presets (300 storable presets)

• Iconic sounds to pristine, modern reverbs + Spillover/Trails function

• Includes exclusive virtual X-SPACE version for use in AmpliTube 5

• USB port for preset management and use as a recording interface

• Full MIDI implementation including control over AmpliTube 5

• Designed and made in Italy for a lifetime of playing and gigging

Best-In-Show DSP
AmpliTube X-SPACE leverages IK’s latest technologies for hyper-realistic emulations of real-world gear. The state-of-the-art DSP onboard offers 16 high-end algorithms, while a special X-MODE opens additional infinite-feedback effects. All combined, X-SPACE delivers amazing clarity to the stage with the realism and response that users love about AmpliTube 5.

16 High-End Algorithms

• SHIMMER-1
  A complex shimmer that offers increasing feedback. The pitch can go from 1/4 semitone up to an octave creating many different customizable shifting voicings.

• SHIMMER-2
  Shimmer 2 differs from the first one because there is no build up in the feedback and the two different pitched voices can be set in parallel to create custom harmonizations.

• HALL
  This model recreates the ambience of a live concert hall with controlled decay and a reverb time range from 1 to 9 seconds to replicate from smaller venues up to larger clubs. With an advanced parameter set that features a 3-band decay trimmer, the sound of the hall can be highly tweaked to always find the perfect tail in which to place the instrument.

• ROOM
  This model adds the third dimension of a room to the direct sound in order to place it in a physical space and obtain a more natural sounding performance. Thanks to the 3-band decay trimmer any room can be recreated giving infinite possibilities. Its time range goes from 0.5 to 3 seconds offering a great option for a reverb that adds character without noticing the reverb itself.

• CHAMBER
  This model offers the typical chamber sound found in many professional recording studios and provides a highly reflected and bright tail that’s perfect for aggressive reverb tones. Its time range goes from 1 to 9 seconds like the hall model, but the chamber has way more character and vibe.

• CHURCH
  This model has the longest tail in order to reproduce the typical reverb sound found in churches. Its reverb time has a range from 8 to 20 seconds to replicate from the smallest chapel to the biggest cathedrals.

• PLATE
  This model can recreate different iconic plate reverbs. Its time has a range from 0.5 to 5 seconds and the flavor is highly customizable through custom parameters, which let you emulate different types of plates by emphasizing the decay of certain frequencies and dampening others.

• SPRING
  This is a customizable spring reverb model, which emulates the vintage spring modules typically installed on guitar amplifiers.

• SWELL
  This is a swell processor that can automatically create fantastic fading swell effects followed by a customizable reverb trail to create dreaming pads or string-like sounds.

• GATE
  This is a customizable gated reverb that cuts off the reverb trail as desired in order to add textured groove to your playing.

• REVERSE
  This model is perfect to create reverse delay trails that fade in while you are playing. The reverse envelope can be set to 3 different modes to better fit the part.

• EARLY-REF
  This model emulates the typical short reflections that can be heard in a small room or space. It’s fully customizable to bring it from a sort of traditional delay to a buzzing early reflection sound.

• EXTREME
  This is a combination of two processors in one model. One is a plate reverb that gets modulated by the second one, which is a vintage phaser to add extreme modulated tails.

• ETHEREAL
  This is a highly modulated plate that recreates moving airy trails and adds magic to your lines.

• BLOOM
  This reverb makes your simple lead parts bloom up and become very rich and noticeable. It is a swell like effect to give movement and vibe to your parts.

• MAGNETIC
  This is a spatial reverb that has an airy tone with an accentuated modulation effect, which at low rates creates an effect of space floating.

Hardware That Stands Out
For AmpliTube X-SPACE we went all out to guarantee your tone stays as pure and pristine as possible, no matter how simple or sophisticated your signal chain becomes.

• Ultra-low noise, 24-bit/192kHz converters for class-leading sound quality

• 5 Hz–24 kHz frequency response to capture the full scope of your guitar’s sound

• 112 dB dynamic range provides whisper-quiet operation at any gain setting

• A pure analog dry path and selectable true or soft bypass for maximum control

Industry-Leading Integration
AmpliTube X-SPACE includes a matching virtual version for Mac/PC and a copy of AmpliTube 5 SE. Open any version of AmpliTube 5 and you’ll find your virtual X-SPACE pedal available as a stomp for use within the program. Adjust any of your pedal settings with the convenience of AmpliTube’s award-winning workflow and save them as presets. The X-GEAR Librarian lets you move presets between X-GEAR pedals and AmpliTube and easily reorganize them on the hardware pedal. You can store up to 300 presets per pedal.

All-In-One Recording
With AmpliTube X-SPACE there’s no need for any other gear when it comes to recording guitar. We’ve put a USB audio interface and some must-have recording features right onboard.

• 5Hz to 24kHz frequency response to record the full range of your guitar or bass

• Versatile routing options let you send the wet and/or dry signals to your DAW

• Stereo out for monitoring sound between the X-SPACE pedal and your computer

• Full MIDI implementation to map control of AmpliTube and/or any compatible DAW

From Soundcheck To Final Encore
When it’s time to play out, AmpliTube X-SPACE holds everything you need to perform at your best. In fact, you can even leave your amp and cab at home, if you want to.

• Fast, intuitive interface and control knobs to tweak your sound on the fly

• High-contrast LED display keeps you informed on everything, indoors and out

• Expression pedal input adds additional control over any parameter you choose

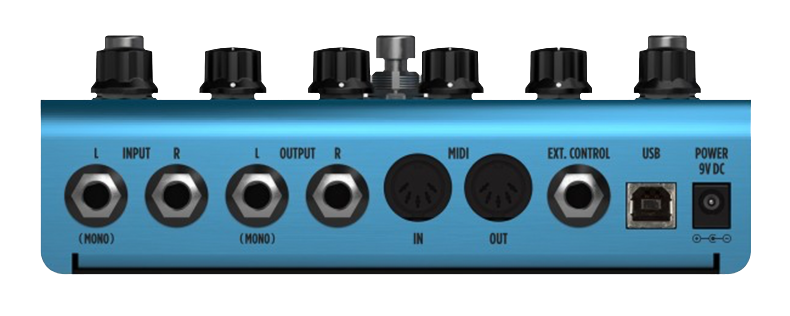

• True stereo inputs and outputs on all algorithms for incredible signal chains

• Full MIDI implementation is built-in for even the most complex setups

• 5 cabinet impulse responses and a CAB SIM out to connect directly to the PA

With Great Tone Comes Great Portability
With its open architecture for future updates, AmpliTube X-SPACE will empower you no matter where you are and for years to come. Experience the freedom of moving between the studio and stage seamlessly, confident that you and the audience hear your sound exactly as you created it to be.

SPECIFICATIONS

• Breakthrough software and hardware integration for guitarists

• State-of-the-art DSP in a road-worthy anodized aluminum chassis

• 16 different algorithms, 50 factory presets (300 storable presets)

• Iconic sounds to pristine, modern reverbs + Spillover/Trails function

• Includes exclusive virtual X-SPACE version for use in AmpliTube 5

• USB port for preset management and use as a recording interface

• Full MIDI implementation including control over AmpliTube 5

• Designed and made in Italy for a lifetime of playing and gigging

• Ultra-low noise, 24-bit/192kHz converters for class-leading sound quality

• 5 Hz–24 kHz frequency response to capture the full scope of your guitar’s sound

• 112 dB dynamic range provides whisper-quiet operation at any gain setting

• A pure analog dry path and selectable true or soft bypass for maximum control

• 5Hz to 24kHz frequency response to record the full range of your guitar or bass

• Versatile routing options let you send the wet or dry signal to your DAW

• Stereo out for monitoring sound between the X-SPACE pedal and your computer

• Full MIDI implementation to map control of AmpliTube and/or any compatible DAW

• Fast, intuitive interface and control knobs to tweak your sound on the fly

• High-contrast LED display keeps you informed on everything, indoors and out

• Expression pedal input adds additional control over any parameter you choose

• True stereo inputs and outputs on all algorithms for incredible signal chains

• Full MIDI implementation is built-in for even the most complex setups

• 5 cabinet impulse responses let you connect directly to a powered cab or PA

What's Included

• X-SPACE pedal

• USB A-Type to USB B-Type connection cable (1.5m/4.32ft)

• Power Supply Unit

• Plug-in and Preset Librarian serial number

Dimensions
Size: 17.5cm/6.88″ x 14.5cm/5.7″ x 5.8cm/2.28″
Weight: 906g/31.96oz

System Requirements
AMPLITUBE 5
AmpliTube is a 64-bit application and requires a 64 bit CPU and Operating System.

Mac (64-BITS)

• Minimal: Intel® Core™ 2 Duo (Intel Core i5 suggested), 4 GB of RAM (8 GB suggested), macOS 10.10 or later. 3 GB of hard drive space.

• Requires an OpenGL 2 compatible graphics adapter.

• Supported Plug-in formats (64-bit): Audio Units, VST 2, VST 3, AAX.

Windows (64-BITS)

• Minimal: Intel® Core™ 2 Duo or AMD Athlon™ 64 X2 (Intel Core i5 suggested), 4 GB of RAM (8 GB suggested). Windows® 7 or later. 3 GB of hard drive space.

• Requires an ASIO-compatible sound card.

• Requires an OpenGL 2 compatible graphics adapter.

Supported Plug-in formats (64-bit): VST 2, VST 3, AAX.

Internet connection is required as all of the Custom Shop operations are web-based.
