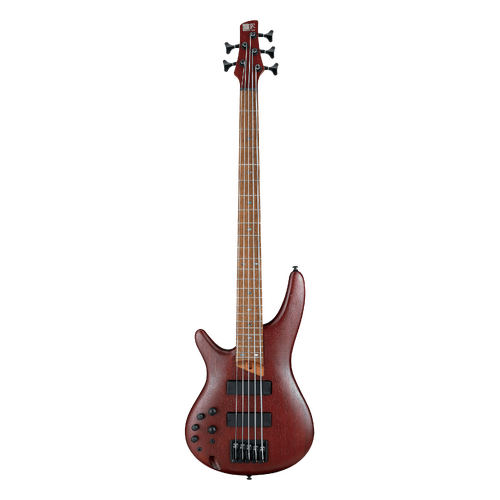

Ibanez SR505EL BM Brown Mahogany

The SR505E features an Okoume body which offers a warm and fat low end. The thin, sturdy and stable Jatoba / Walnut neck offers superior playability when combined with the extended neck joint, making the upper frets easily accessible. This SR505E is equipped with Bartolini® BH2 pickups in a dual-coil style configuration with a lower resonant frequency, providing a balanced, warm response with a tighter bottom end and a fuller midrange. The Ibanez Custom Electronics 3-band EQ features a 3-way mid-frequency switch, allowing for precise tonal control (250 Hz, 450 Hz, and 700 Hz) and an EQ bypass switch for passive-only operation. When the EQ bypass is activated, the treble tone control knob becomes the global tone control for the passive circuit. The B505 bridge has adjustable saddles for string spacing adjustments, answering every bassist’s individual string spacing demands, no matter what playing style. The saddles can be adjusted + / -1.5mm. The neck-end adjustment allows you to tweak the neck easily without loosening the strings. The SR Series continues to satisfy the vast needs of bass players, exciting them with the SR’s smooth and fast neck, lightweight body and perfectly matched electronics.

FEATURES

Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

Accu-cast B500 bridge
The Accu-cast B500 bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist’s specific string spacing needs.

Bartolini® BH2 pickups
The Bartolini® BH2 pickups provide a tight bottom-end, punchy mid-range, and smooth response. The dual-coil style configuration maximizes articulation and a long blade pole piece widens the magnetic field, providing balanced string-to-string pickup response.

Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.

Precision tonal control, including a switch to choose passive-only operation. When the EQ bypasses activated, the treble tone control knob becomes the global tone control for the passive circuit.

SPECIFICATIONS

Neck Type: SR5 / 5pc Jatoba/Walnut neck
Top/Back/Body: Okoume body
Fretboard: Rosewood fretboard / Abalone oval inlay
Fret: Medium frets
Number of Frets: 24
Bridge: Accu-cast B505 bridge
String Space: 16.5mm
Neck Pickup: Bartolini® BH2 neck pickup (Passive)
Bridge Pickup: Bartolini® BH2 bridge pickup (Passive)
Equaliser: Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot), 3-way Mid frequency switch
Factory Tuning: 1G,2D,3A,4E,5B
Strings: D'Addario® EXL165 + .130
String Gauge: .045/.065/.085/.105/.130
Hardware Color: Black
Neck Scale: 864mm
Neck Width at NUT: 45mm
Neck Width at 24F: 68mm
Neck Thickness at 1F: 19.5mm
Neck Thickness at 12F: 21.5mm
Neck Radius: 305mmR
