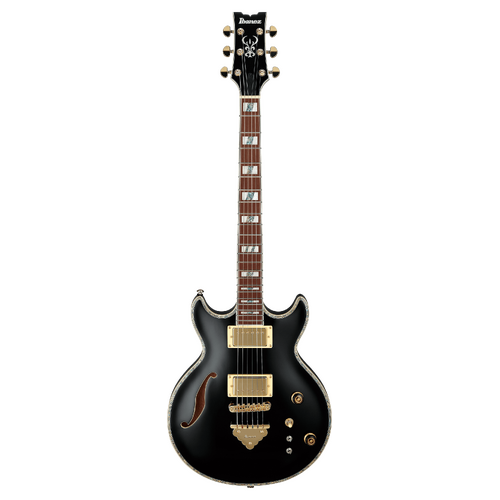

Ibanez AR520H BK Black

AR520H
The AR is a classic among Ibanez guitars. It was one of the first original designs the company produced and continues to be a sought after instrument today. The AR series continues that legacy with the AR325QA and AR420.

FEATURES

3pc Maple neck
A strong 3pc Maple neck provides an enriched resonance.

Jatoba fretboard
Jatoba has a reddish brown color and produces a rich mid range with a crisp high end.

Medium frets
Medium sized frets enhance the accuracy of your notes.

Maple top / Maple / Okoume body
Maple top sonically enriches the response for picking. Combining Maple and Okoume in the body provides a rich response and bright attack with a solid sound.

Super 58 pickups
Super 58 pickups feature moderate output and vintage tone.

Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.

Quik Change Classic tailpiece
The Quik Change Classic tailpiece enables faster and easier string changing.

2 Tri-sound switches
By giving each humbucker 3 different sounds, Tri-Sound switches expand your guitar's versatility.

Special Features
Hollow Body Construction

SPECIFICATIONS

Neck Type: AR / 3pc Maple / Set-in (smooth heel) neck
Top/Back/Body: Maple top / Okoume back / Maple body
Fretboard: Bound Jatoba fretboard / Acrylic & Abalone block inlay
Fret: Medium frets
Number of Frets: 22
Bridge: Gibraltar Performer bridge
String Space: 10.5mm
Tailpiece: Quik Change Classic tailpiece
Neck Pickup: Super 58 (H) neck pickup (Passive/Alnico)
Bridge Pickup: Super 58 (H) bridge pickup (Passive/Alnico)
Factory Tuning: 1E,2B,3G,4D,5A,6E
Strings: D'Addario® EXL110
String Gauge: .010/.013/.017/.026/.036/.046
Hardware Color: Gold
Neck Scale: 628mm/24.75"
Neck Width at NUT: 43mm
Neck Width at 22F: 56mm
Neck Thickness at 1F: 20mm
Neck Thickness at 12F: 22mm
Neck Radius: 305mmR
