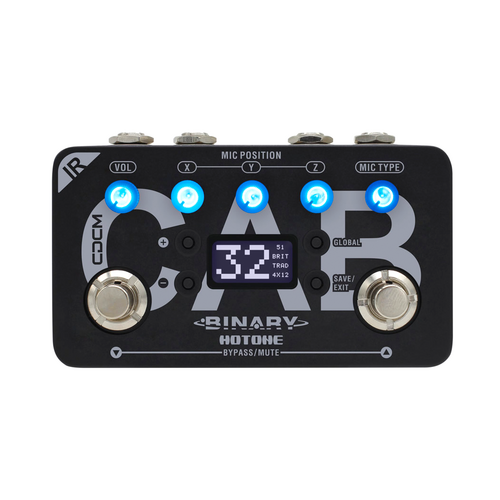

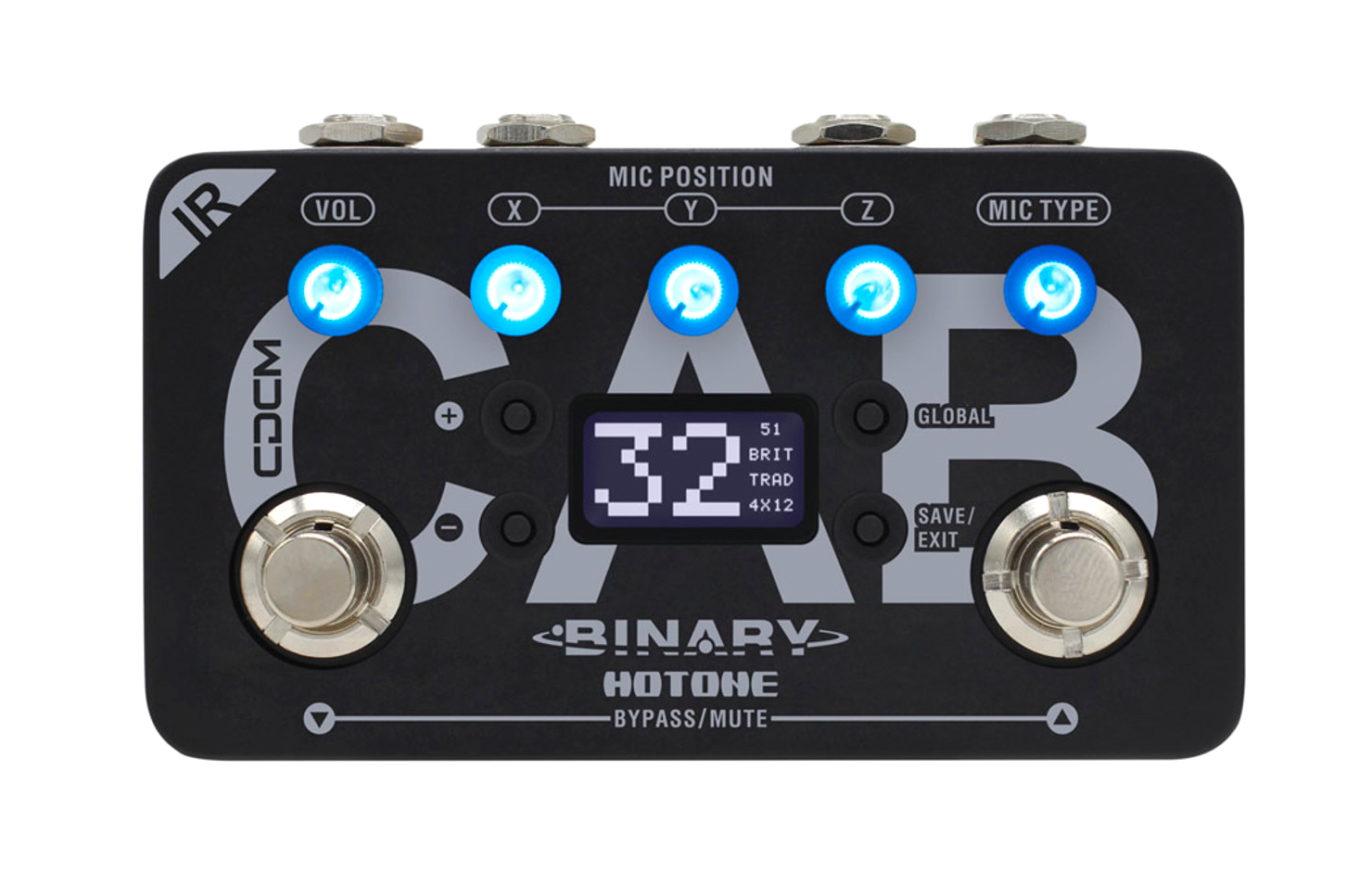

Hotone Binary IR Cab

Grown out of next-generation XTOMP technology, the Hotone Binary Series lets loose versatile pro-level effects in compact cases. Based on the same modeling/original effect library that amazed XTOMP users worldwide, Binary Series are dedicated to gather a bunch of high quality effects in a box with more affordable, competitive price. They feature compact casing, dual-footswitch design, versatile inputs/outputs and bright, clear OLED display, which blur the line between "classic pedals" and multi-effects.

At the core of all Binary Series pedals, a powerful dual-DSP platform and CDCM (Comprehensive Dynamic Circuit Modeling) modeling system ensure a realistic playing experience. The CDCM system is built on an extremely complex dynamic variation matrix, able to realistically express every detailed change that occurs during the operational process of actual circuitry: Everything is ALIVE and performs like its original.

The Hotone IR Cab is an impulse response-based cabinet simulator effects pedal that delivers 100 authentic legendary (vintage and modern) guitar and bass cab models. In addition, the IR Cab features CDCM-based legendary studio microphone and power amp models, as well as a variety of detailed mic position (X, Y, Z) and room simulations.

FEATURES

• Grown out of next-gen XTOMP technology

• Compact, easy-to-use dual footswitch IR cabinet simulator pedal

• Advanced CDCM modeling system ensures realistic playing experience

• Dual DSP-powered platform ensures high sound quality

• 24-bit A/D/A conversion, up to 110dB S/N ratio

• 100 legendary cab models

• 10 CDCM based legendary studio microphone simulations

• Detailed mic position (X, Y, Z) and room simulations

• 8 CDCM based power amp simulations with presence control

• Supports 3rd party IR files

• USB jack for firmware upgrading, loading/managing IRs with free PC/Mac software

• Aux in and headphone output for practicing and jamming

• 100 Presets

• Built-in OLED screen with clear display

• 5 transparent knobs with LEDs

• 9V DC power supply

SPECIFICATIONS

Number of Patches: 100

Number of Effects: 100 cabs, 8 power amp types, 10 mic types

Digital Processing: 24-bit A/D/A conversion, 48 kHz sample rate

Supported IR file format: 24-bit, 48kHz

Max Truncation Time: 20ms

Frequency Response: 20 Hz-20 kHz

S/N Ratio: Up to 110dB

Input Impedance: 1M Ohms

Output Impedance: 100 Ohms

Power Requirement: DC 9V, center negative

Current Consumption: 200mA minimum

Dimensions: 121mm (W) x 72mm (D) x 47mm (H)

Weight: 340g
