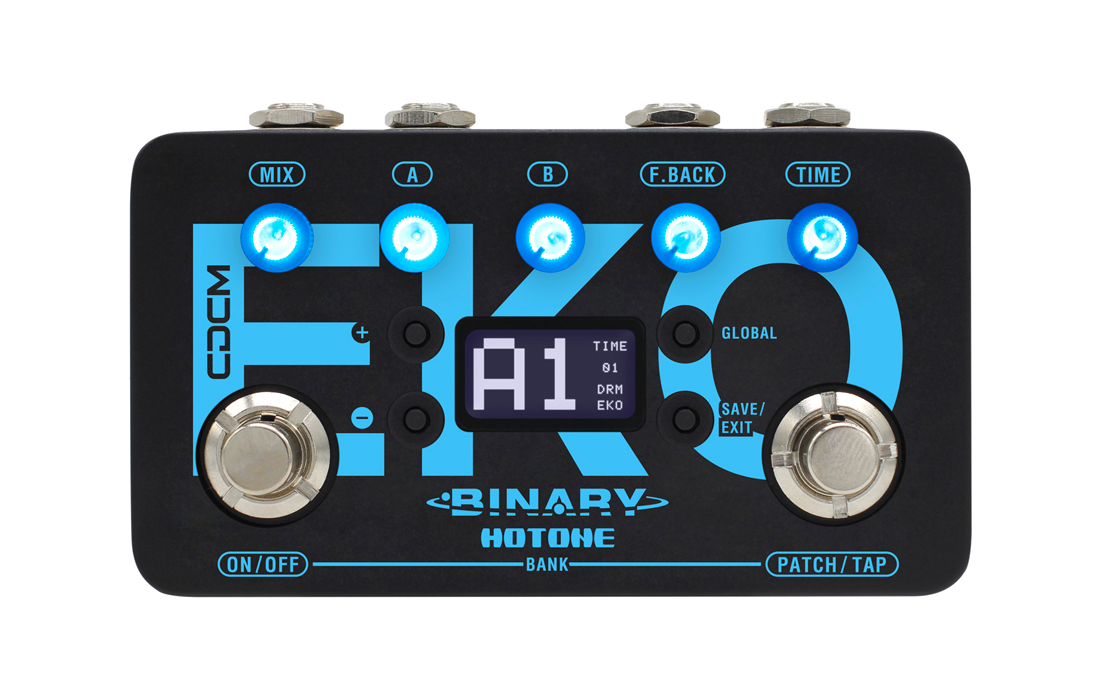

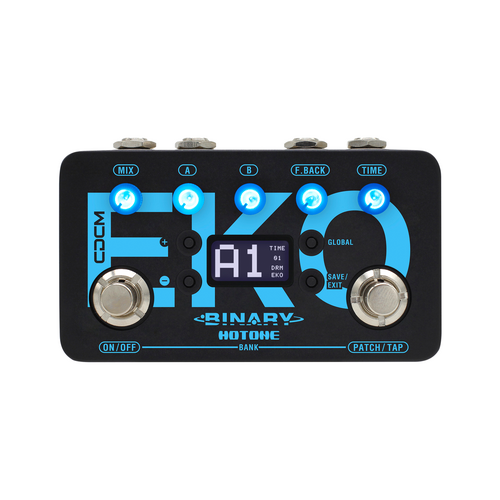

Hotone Binary Eko

Grown out of next-generation XTOMP technology, the Hotone Binary Series lets loose versatile pro-level effects in compact cases. Based on the same modeling/original effect library that amazed XTOMP users worldwide, Binary Series are dedicated to gather a bunch of high quality effects in a box with more affordable, competitive price. They feature compact casing, dual-footswitch design, versatile inputs/outputs and bright, clear OLED display, which blur the line between "classic pedals" and multi-effects.

At the core of all Binary Series pedals, a powerful dual-DSP platform and CDCM (Comprehensive Dynamic Circuit Modeling) modeling system ensure a realistic playing experience. The CDCM system is built on an extremely complex dynamic variation matrix, able to realistically express every detailed change that occurs during the operational process of actual circuitry: Everything is ALIVE and performs like its original.

The Binary Eko is a delay effects pedal with stereo I/O and expression pedal support for delivering authentic classic, as well as a new and inspiring Hotone original delay sounds. 17 high-quality delay effects types include analog, digital, tape, dual, ping pong, filtered, modulated, slap back and more.

FEATURES

• Grown out of next-gen XTOMP technology

• Compact, easy-to-use dual footswitch delay pedal with tap tempo

• Advanced CDCM modeling system ensures realistic playing experience

• Dual DSP-powered platform ensures high sound quality

• 24-bit A/D/A conversion, up to 110dB S/N ratio

• 17 high quality delay effects including CDCM-based classics and Hotone originals

• Variable maximum delay time ranging from 1000ms to 4000ms

• Tap Tempo function with Tap Divide

• Stereo I/Os

• EXP jack for expression pedal control

• USB jack for firmware upgrading, loading/managing effects with free PC/Mac software

• 10 Presets (2 banks x 5 patches)

• Built-in OLED screen with clear display

• 5 transparent knobs with LEDs

• 9V DC power supply

SPECIFICATIONS

Number of Patches: 10 (2 banks x 5 patches)

Number of Effects: 17

Max Delay Time: 4000ms

Digital Processing: 24-bit A/D/A conversion, 44.1 kHz sample rate

Frequency Response: 20 Hz-20 kHz

S/N Ratio: Up to 110dB

Input Impedance: 1M Ohms

Output Impedance: 100 Ohms

Power Requirement: DC 9V, center negative

Current Consumption: 200mA minimum

Dimensions: 121mm (W) x 72mm (D) x 47mm (H)

Weight: 340g
