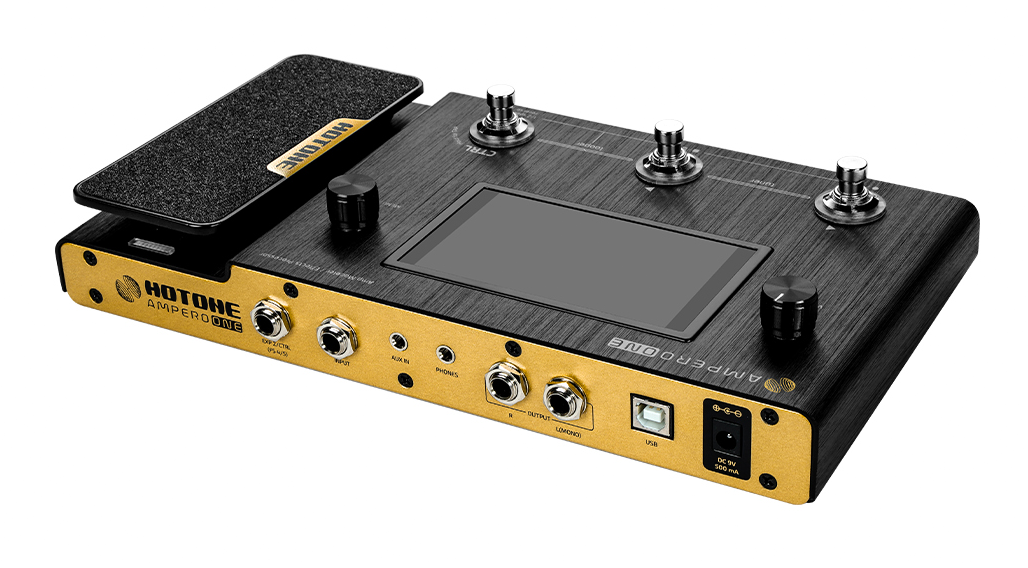

Hotone Ampero One

Ampero One represents the uncompromised, widely praised Ampero sound in a smaller case. Powered by the new-gen CDCM HD (Comprehensive Dynamic Circuit Modeling High Definition) and F.I.R.E. (Field Impulse Response Enhancement) system, Ampero One offers you all the real sounds of rock past and present. The 4-inch hi-def color touch screen and optimized UI provide you with a smoother, smarter experience.

Advanced CDCM HD and F.I.R.E. Modeling System
Driving Ampero is Hotone’s innovative CDCM HD (Comprehensive Dynamic Circuit Modeling High Definition) and F.I.R.E. (Field Impulse Response Enhancement) system. Built on Hotone’s powerful XTOMP platform, acclaimed Binary series, and breakthrough VStomp Amp virtual plugin, the new-gen CDCM HD & F.I.R.E. system showcases Hotone’s new high-shelf circuit modeling methods.

Mainstream modeling methods are generally based on static state circuitry modeling or “black box” theory, which just “come close” to the modeled sound. CDCM HD & F.I.R.E. employs a complex system based on dynamic feature modeling. In this matrix, the technology “rebuilds” the entire circuitry using modeled electronic components, resulting in a tone that is vivid, accurate and expressive. More than that, the new system enhances the relationship between amps and PA systems, delivering a realistic feel and response you’ve never before experienced on digital gear.

Core*-Dual-DSP Platform
Ampero One is powered by the same dual-DSP platform with uncompromised high performance, running Hotone’s proprietary CDCM HD & F.I.R.E. modeling system.

Main Processor - Analog Devices® SHARC®* series
A powerful Analog Devices® 4th gen SHARC®* series DSP is dedicated to the audio engine. Compared to XTOMP, this processor features increased performance and hardware-based audio processing accelerator modules, which makes it easy to handle multiple XTOMP-grade high quality effect algorithms.

Co-processor - NXP® RT series
The NXP® RT series crossover co-processor runs on the ARM® Cortex®-M7 core. The co-processor not only helps processing audio streams, but also powers the touch screen display, USB I/O, and other functions.

*The manufacturer and product names mentioned in this catalog are trademarks or registered trademarks of their respective owners.

Armory
Ampero One can handle up to 9 effect modules simultaneously with its flexible FX1, FX2, FX3 effect modules and editable effect chain for the best effect combination possibilities. Ampero One shares the same effects library with authentic stereo signal processing:

• 242 effects

• CDCM HD & F.I.R.E. modeling effects including:64 amp models/60 cab models/100+ legendary pedal models/Next-gen mic position and microphone type simulations

• User custom IR loader with 3rd party IR support

• 50+ Hotone original effects (incl. high quality drive/dynamic/filter/mod/delay/reverb models and more)

Authentic Acoustic Sound
No need to carry an extra acoustic anymore! Ampero One comes with advanced acoustic simulation algorithms. Used along with built-in acoustic IRs and acoustic simulation presets, you can easily transform your electric instruments into miked up acoustic masterpieces: steel string, nylon string, even double basses!

Touch Screen Interface

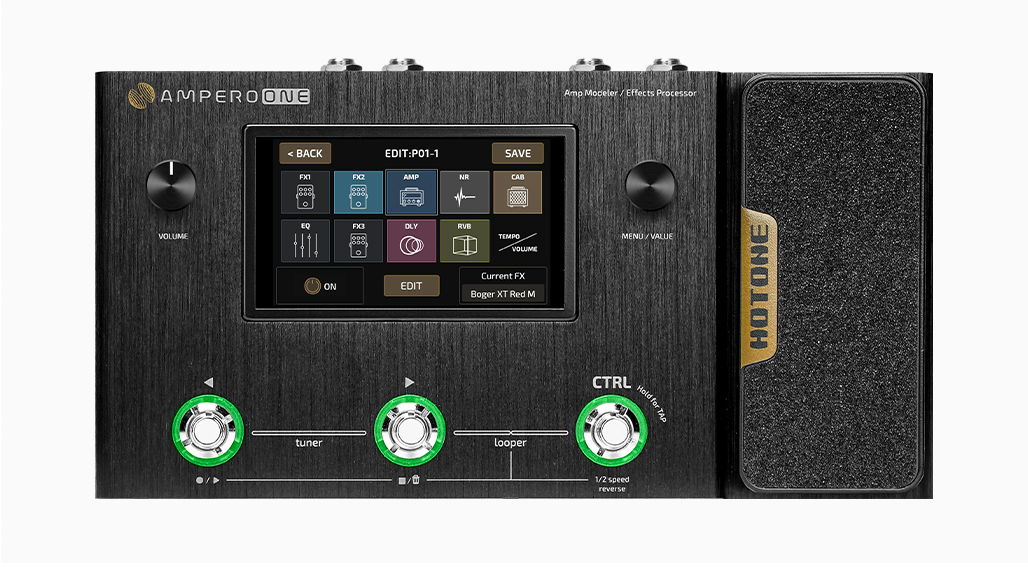

Ampero One employs the same straight-forward user interface with one more step forward. Featuring a 4-inch 800 x 480 touch screen with dynamic color display and optimized UI activity, Ampero One is incredibly easy to set up and program within a few tapping and sliding.

FEATURES

• The popular amp modeler & effects processor in a smaller case

• New-gen CDCM & F.I.R.E. modeling system ensures high end tonal expressiveness and realistic playing experience

• Powerful dual DSP-powered platform ensures excellent sound quality

• 24-bit signal processing, up to 120dB S/N ratio

• 4-inch 800 x 480 sharp color touch screen with instant control

• Internal voltage boost circuitry for great dynamic range

• USB port for firmware upgrading, loading/editing/managing effects/IRs via free Mac/PC software or for use as an USB audio interface

• Advanced acoustic simulation effects

• Dedicated acoustic effects and presets - a one-stop solution for acoustic players

• 242 effects based on stunning XTOMP effects library

• CDCM HD & F.I.R.E. modeling effects including:

  • 64 amp models

  • 60 cab models

  • 100+ legendary pedal models

  • Next-gen mic position and microphone type simulations

• 50+ Hotone original effects (incl. high quality drive/dynamic/filter/mod/delay/reverb models and more)

• User custom IR loader with 3rd party IR support

• 198 presets

• Built-in drum machine with 100 patterns

• Built-in looper with max. 100 seconds recording time

• 3 assignable footswitches with halo LEDs

• Built-in expression pedal

• Authentic stereo output processing

• Essential I/O for most connection needs

• External controller jack for connecting external footswitches/pedals

• Customizable main display modes, theme colors and UI language

• Road-ready, light-weight aluminum casing

• 9V DC power supply

SPECIFICATIONS

Digital Audio Signal Processing: 24-bit depth, 44.1kHz sample rate
SNR: 120dB
Effects: 242
Effects Modules: Total of 9 simultaneous
Patches: 198 (99 user patches, 99 factory patches)
Looper Time: Mono 100 seconds, Stereo 50 seconds
Internal Drum Machine: 100 Rhythm Patterns

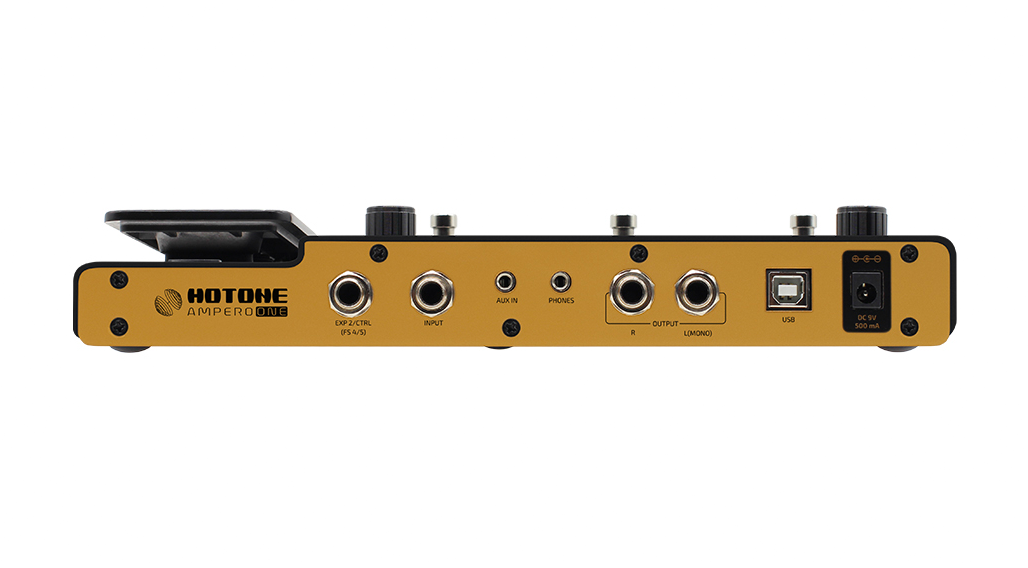

Inputs: One 1/4” Tip Sleeve (TS) Instrument jack, One 1/8” Stereo Auxiliary In (Aux In) jack, One 1/4” Tip Ring Sleeve (TRS) Expression Pedal input jack
Outputs: Two 1/4” Tip Sleeve (TS) Unbalanced Stereo output jacks, One 1/8” Stereo headphones output jack
Input Impedance: 4.7MΩ
Aux In Impedance: 10kΩ
Output Impedance: 3.2kΩ
Headphones Impedance: 66Ω
Screen: 4"800 x 480 Color Dynamic Display Touch Screen
USB Port: USB Type-B port with USB Audio support
Impulse Response/IR processing: Supports 24-bit/44.1kHz Mono WAV files, 1024 points
Power Requirements: 9V DC Center Negative
Current Consumption: 500mA Max
Dimensions: 273mm (W) x 143mm (D) x 51mm (H)
Weight: 1202g
