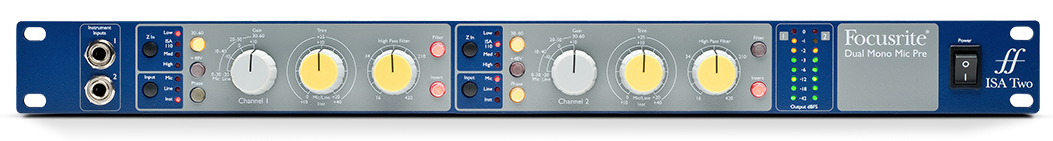

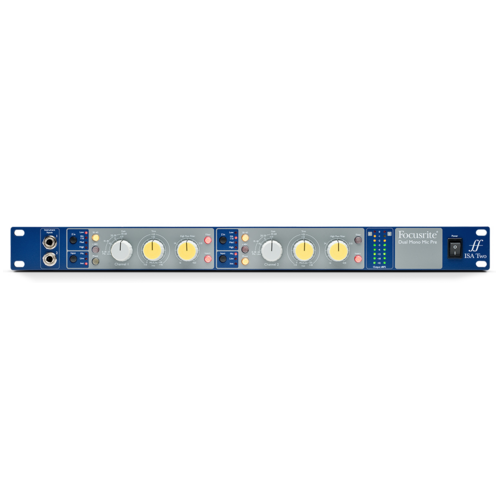

Focusrite ISA Two
Rackmount Mic Pre
Two Channels Of Classic Focusrite Mic Pres
Focusrite's ISA Two brings together a totally independent pair of classic ISA microphone preamps from the original ISA 110 module, combining the best of traditional solid-state electronics with the original input transformer specified by Rupert Neve – the Lundahl LL1538.
Each mic pre has the option of mic, line or the front-panel instrument input, with variable input impedance to ensure you are getting the best performance from the source. Up to 60dB of gain is available on the first four-position rotary and gain range switches, with a further +20dB of continuously variable trim, meaning a huge 80dB of gain is available should it be required. The high-pass filter features variable cut-off frequency between 16 and 420Hz. A pair of 8-segment LED meters show peak signal level in dBFS, while a rear-panel pot allows calibration to suit your A-D converters. Rear-panel insert points allow the use of inline processors such as compression.
- Classic ISA mic preamp design featuring Lundahl LL1538 input transformer
- Front-panel instrument inputs
- Dedicated TRS line input socket with front-panel switch
- Switchable input impedance including classic ISA 110 setting
- Dedicated insert points
- User-calibrated peak-level meters
- Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.
MIC INPUT RESPONSE
Gain Range (Mic)
0 dB to 60 dB in 10 dB steps, plus 0 dB to 20 dB continuously variable trim
EIN (Mic)
Measured at 60 dB of gain with 150 O source impedance and 22 Hz-22 kHz band pass filter -127 dB
Noise (Mic)
Noise at output with unity gain (0 dB) and 22 Hz-22 kHz band pass filter -97 dBu
Frequency Response (Mic)
At minimum gain (0 dB)-0.5 dB at 10 Hz,?-1 dB at 135 kHz, relative to 1 kHz
At 60 DB Gain (Mic)
-6 dB at 10 Hz, -1 dB at 115 kHz, relative to 1 kHz
Crosstalk Channel To Channel (Mic)
Mic input, with I/P = 0 dBu, gain = 0 dB @ 1 kHz input to channel A, channel B output = -85 dB
LINE INPUT RESPONSE
Gain Range (Line)
-20 dB to 10 dB in 10 dB steps, plus 0 dB to 20 dB continuously variable trim
Input Impedance (Line)
10 kO from 10 Hz to 200 kHz
Frequency Response (Line)
At minimum gain (0 dB)-0.3 dB at 10 Hz, -1 dB at 80 kHz, relative to 1 kHz
Crosstalk Channel To Channel (Line)
Line input, with I/P = 0 dBu, gain = 0dB @ 1 kHz input to channel AChannel B output?= -91 dB
INSTRUMENT INPUT RESPONSE
Gain Range (Instrument)
10 dB to 40 dB continuously variable trim
Input Impedance (Instrument)
2 MO
Noise (Instrument)
Measured with 22 Hz-22 kHz band pass filterMinimum gain ( 10 dB) = -95 dBu
Frequency Response (Instrument)
At minimum gain ( 10 dB)-0.1 dB at 10 Hz,?-1 dB at 115 kHz, relative to 1 kHz
At Maximum Gain ( 40 DB) (Instrument)
-2.5 dB at 10 Hz, ?-1 dB at 110 kHz, relative to 1 kHz
HIGH-PASS FILTER
Roll-Off
18 dB per octave (3 pole filter)
Frequency Range
Continuously variable from 16 Hz to 420 Hz (-3 dB)
WEIGHT AND DIMENSIONS
W X D X H
480 mm x 280 mm x 44 mm
Weight
3.7 kg
