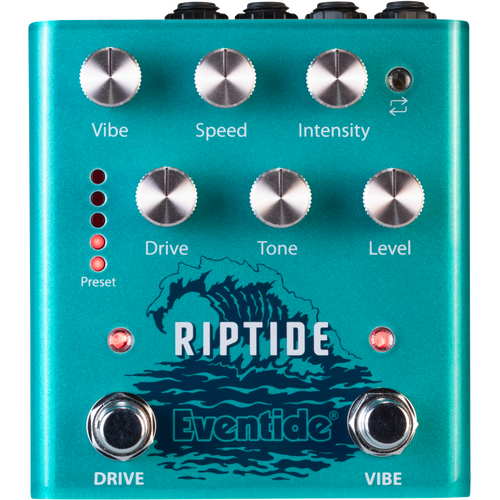

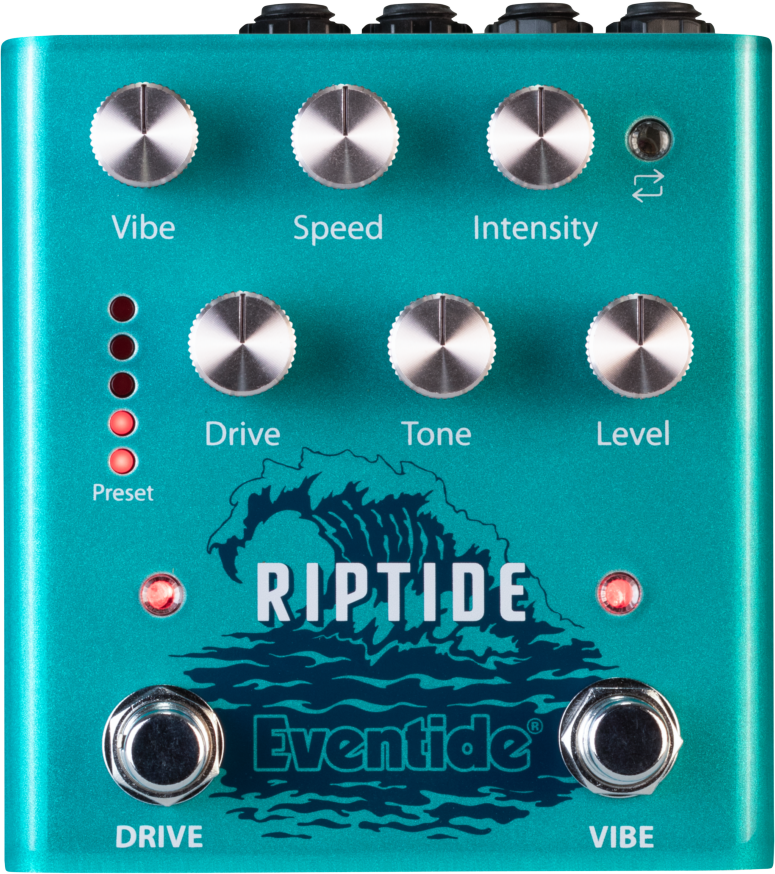

Eventide Riptide
Ripping Distortion and Swirling Modulation
Drive ⇆ Vibe
Ready to be swept away? Introducing Riptide, the result of extensive research into the iconic Uni-Vibe and legendary overdrives. Whether you’re looking to ride the slow, vibey waves of lush modulation or dive headfirst into the pulsing depths of overdrive, Riptide invites you to play with power and attitude that’s unapologetically bold.
Riptide features not one, but two distinct voicings for each effect, all delivered in glorious stereo. Plus, you can effortlessly transition from Drive into Vibe or Vibe into Drive. Let ‘er rip.
FEATURES
-
Four Effects: 2 Overdrives, 2 Uni-Vibes
-
Drive ⇆ Vibe at the press of a button
-
No Deep Dives: 3 Drive Knobs, 3 Vibe Knobs
-
Five presets at your feet — more available with Eventide Device Manager (EDM) software
-
Dual-action Active Footswitch is latching or momentary
-
Rear panel Guitar/Line Level switch for matching impedances with guitar, synths, FX loop or DAW interface
-
Map any combination of parameters to an Expression Pedal
-
Use a single Aux switch for Tap Tempo or a triple Aux switch for easy preset changing
-
MIDI capability over TRS (use with a MIDI to TRS cable Type A or converter box) or USB
-
Multiple Bypass options: Buffered, Relay, DSP+FX or Kill dry
-
Catch-up mode to dial in your sound when toggling between presets/parameters
-
Eventide Device Manager PC or Mac application for software updates, system settings and creating/saving presets
SPECIFICATIONS

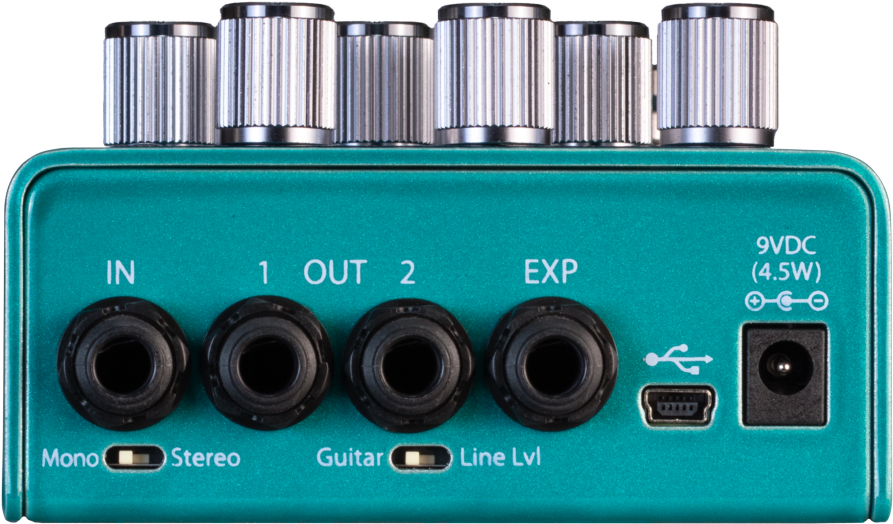

Connectors
Input: 1/4″ TRS / Mono = Tip, Stereo = Tip & Ring
Out 1: 1/4″ TS Mono / Mono Output
Out 2: 1/4″ TS Mono / Stereo Output
EXP: 1/4″ TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch: Optimizes internal gain structure
Mini USB: Software updates, MIDI I/O
DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)
Analog I/O
Input Impedance: 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar: +8dBu
Max Input, Line: +14dBu
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms
Specifications
Power: 9V DC @ 300mA / Center Negative (-), 5.5mm/2.1mm jack (BOSS standard)
Dimensions (Product): 4″ W x 4.25″ D x 1.68″ H / 102 mm x 108 mm x 43 mm
Weight (Product): 1.06 lb / 0.48 kg
Dimensions (Package): 7.7″ W x 4.75″ D x 2.8″ H / 178 mm x 121 mm x 71 mm
Weight (Package): 1.68 lb / .77 kg
