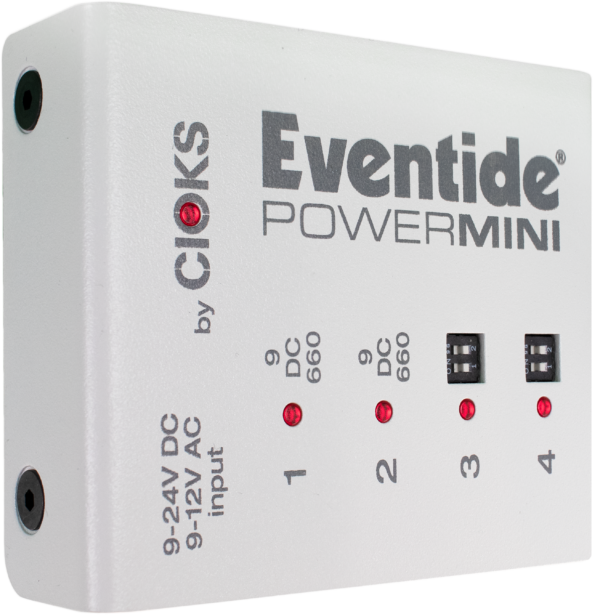

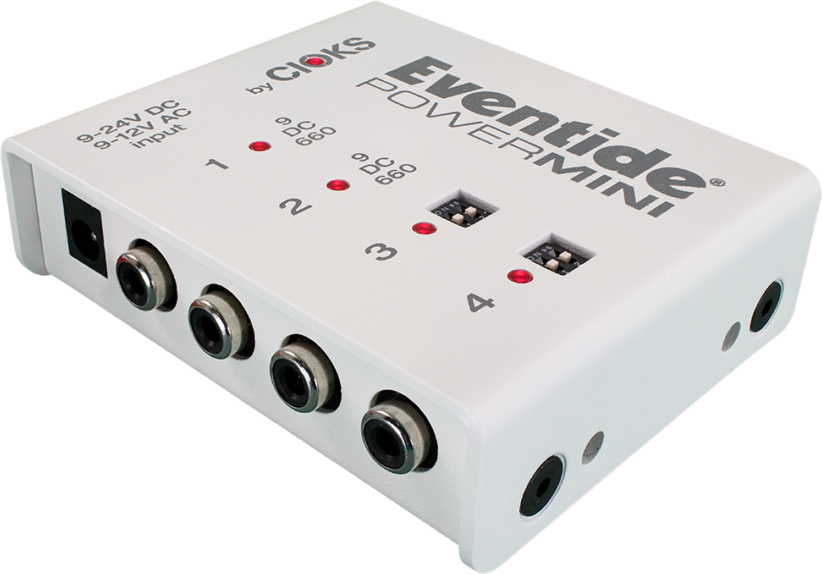

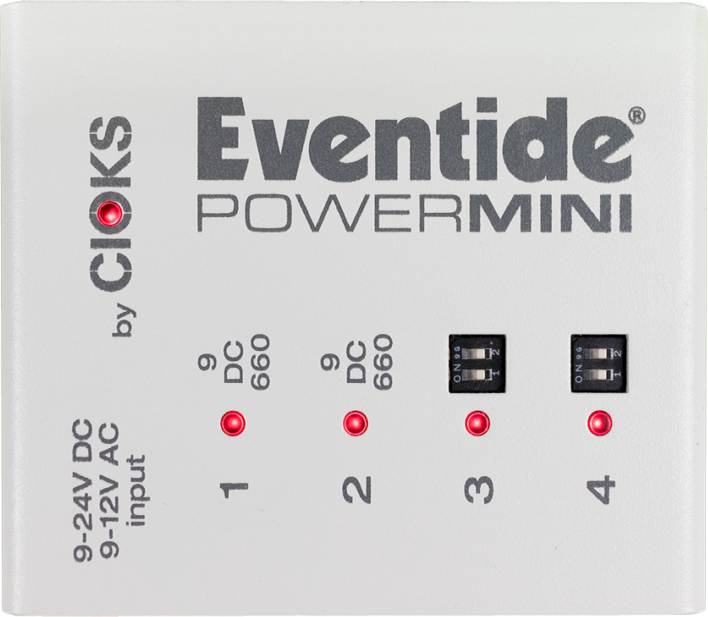

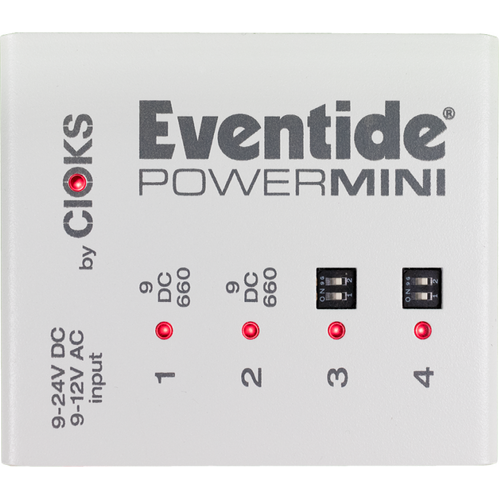

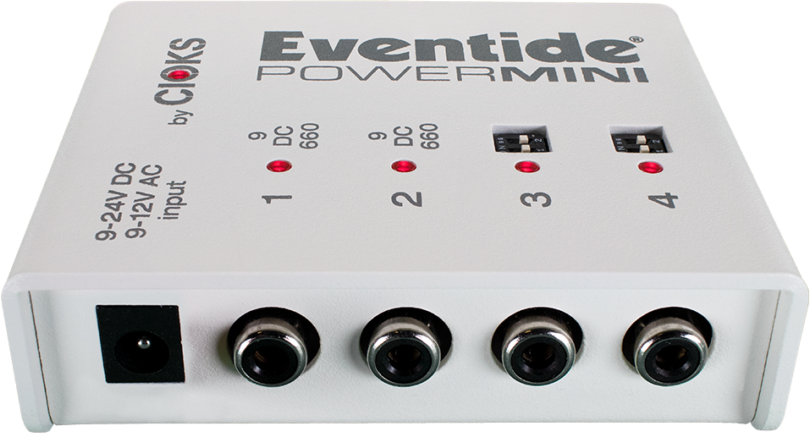

Eventide PowerMini EXP
PowerMax Power Supply Expansion
Powerful & Compact Pedalboard Power Expansion Solution
PowerMini EXP is the perfect companion to PowerMax. Simply connect PowerMini EXP to your PowerMax via the courtesy 24V outlet and you are good to go. Each PowerMini comes with 7 flex cables compatible with most pedal brands.
FEATURES
-
Comes with 24V DC Link cable, black, 50cm (EIAJ to red 5.5/2.1mm center positive DC plug)
-
Mounting hardware (2 screws and a hex-key)
-
Product sheet (drill guide)
-
Flex & DC Link cable guide
7 Flex Cables:
-
2 x 1030 – black, 30cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
-
2 x 1050 – black, 50cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
-
2 x 4050 – green, 50cm, center positive, type 4 (Eventide all H9s, TimeFactor, ModFactor, PitchFactor & Space)
-
1 x 1533 – 3-way daisy chain, black, 50-30-30cm, center negative, type 1 (BOSS type)
SPECIFICATIONS
Connectors
Mains Input: 9-24V DC, 9-12V AC
Outlets 1-2: 9V DC / 660mA
Outlets 3-4: 9, 12, 15, 18V DC / 660mA
Physical
Size: 2.9” x 3.5” x 1.0”
Weight: 0.507 lbs / 220.9g
Warranty: 5 years worldwide
