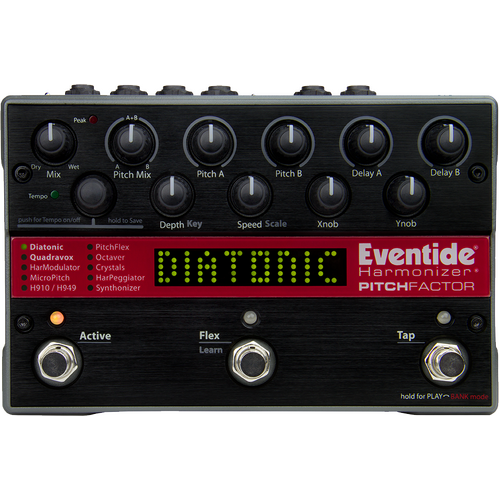

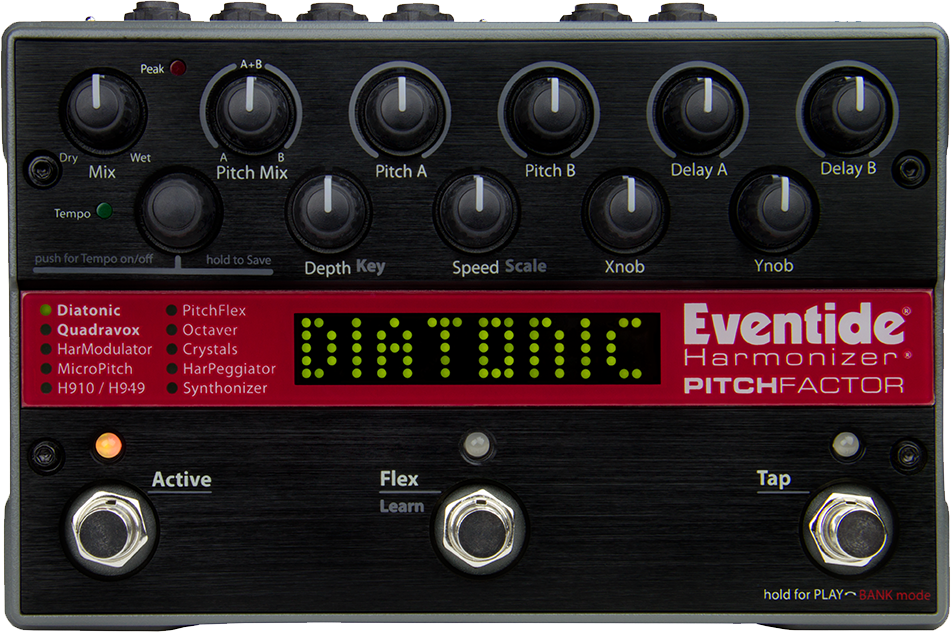

Eventide PitchFactor

Harmonize and Synthonize

Multi-Voice Intelligent Pitch Shifting from the company that invented it! Ten Pitch and Harmonizer algorithms that cover all the bases. All the way from the original H910 to Quadravox 4-voice harmonizer to Octave and PitchFlex effects. Also included is Harpeggiator which creates arpeggios with selectable rhythm patterns and fuzz effects. Synthonizer for unique synth FX for any instrument. And, of course, MicroPitch and Crystals — go-to sounds for inspiration.

FEATURES

• Up to 4 voices of diatonic pitch shifting and up to 1.5 seconds of stereo delay.

• 100 Presets, unlimited through MIDI

• Studio–Quality Sound

• Instant Program Change

• Built-in tuner

• Real-time control with 10 knobs, MIDI or expression pedal

• Tap Tempo and MIDI Clock Sync/Generate

• True Analog Bypass

• Rugged cast metal construction

• Metal footswitches for instant Preset access

• Mono or Stereo operation

• Guitar or Line Level Inputs and Outputs

Signature Pitch + Delay Effects
PitchFactor features 10 of Eventide’s signature stereo or mono pitch + delay effects:

• Diatonic

• PitchFlex™

• Quadravox™

• Octaver™

• HarModulator™

• Crystals™

• MicroPitch

• HarPeggiator™

• H910/H949

• Synthonizer™

SPECIFICATIONS

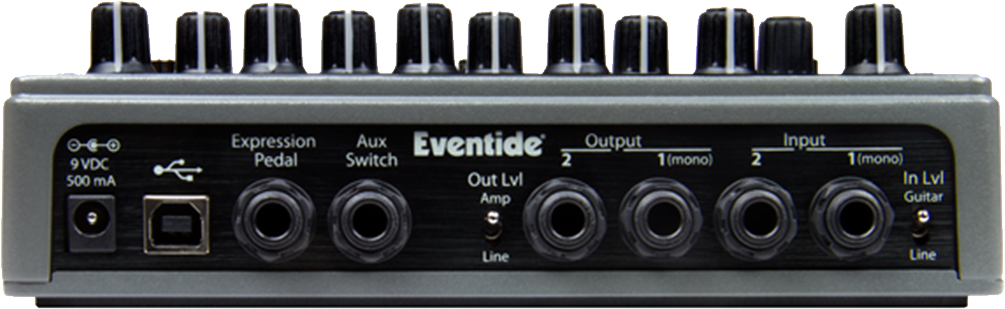

Connectors
Input 1 (mono): ¼ inch mono phone jack
Input 2: ¼ inch mono phone jack
Output 1 (mono): ¼ inch mono phone jack
Output 2: ¼ inch mono phone jack
Expression Pedal: ¼ inch mono phone jack
Aux Switch: ¼ inch mono phone jack
USB: Type B Socket. Use 2.0 cables only
MIDI In: Five pin DIN (Female)
MIDI Out/Thru: Five pin DIN (Female)
AC Adapter Jack: US Power Supply included

Analog I/O
Input Impedance: 500K ohms
Output Impedance: 470 ohms
Recommended Load Impedance: 10K ohms or greater

Specifications
Power: 9V DC 500mA, Center positive (+), 5.5mm/2.5mm jack
Dimensions: English: 4.8″ (H) x 7.5″ (W) x 2.12″ (D) / Metric: 122 (H) x 190 (W) x 54 (D) mm
Weight: 2.15 lbs, 1kg
