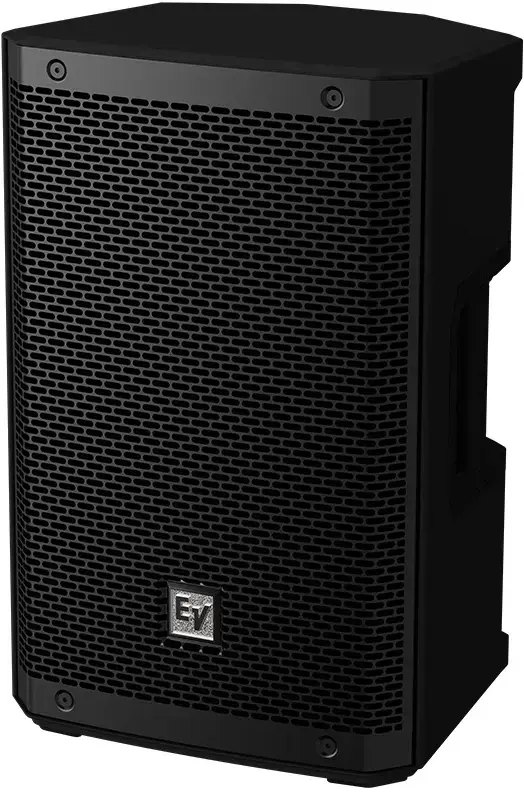

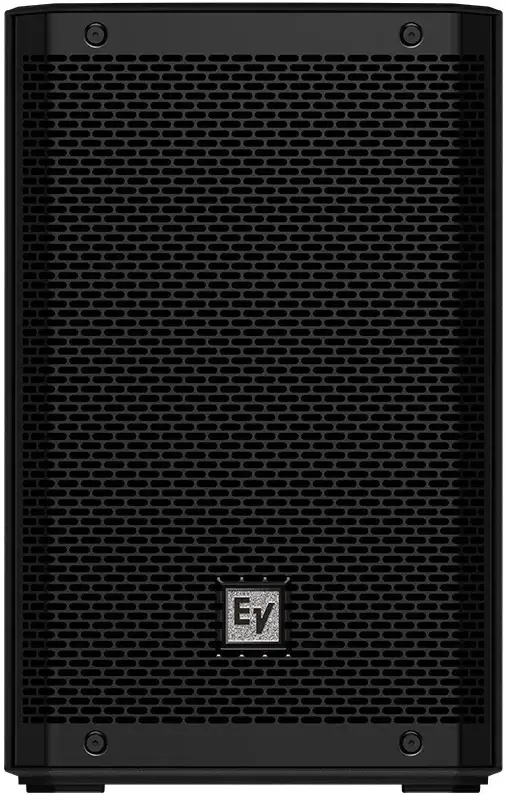

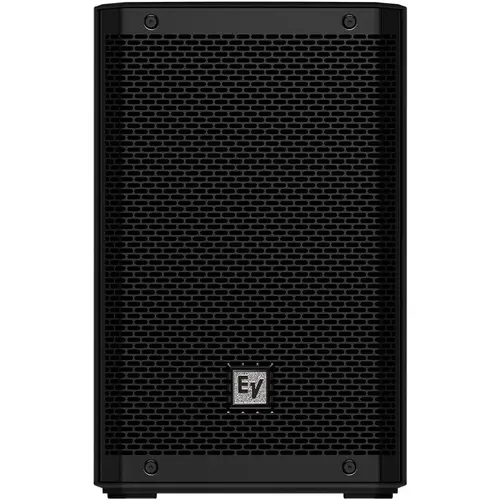

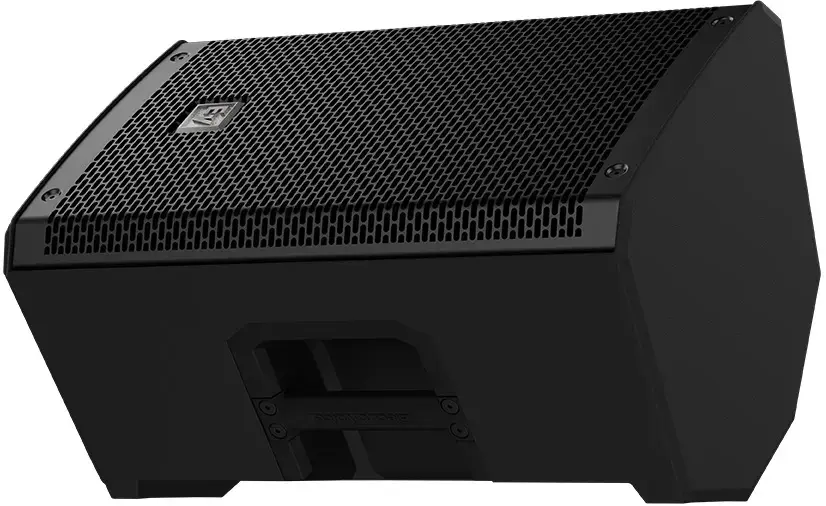

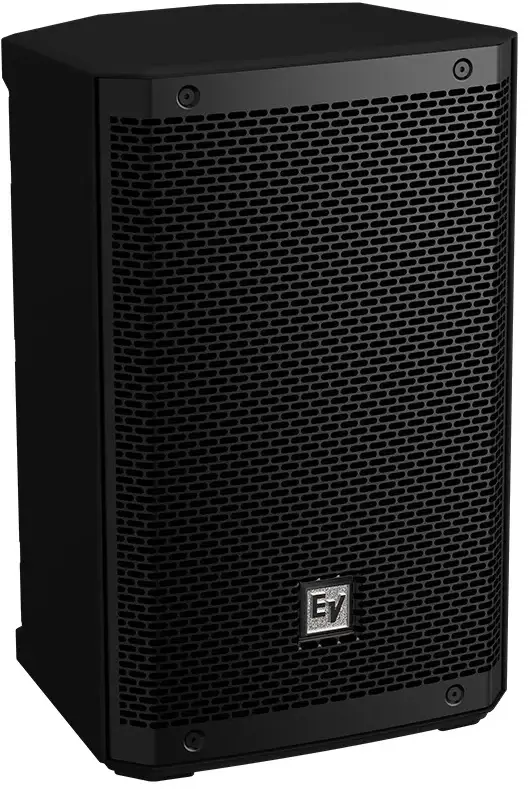

Electro-Voice ZLX G2 Passive 8"

ZLX G2 Packs a sonic Punch that’s worthy of the Electro-Voice name. Building on the best of what made the original ZLX series an industry icon, the ZLX G2 lineup offers a range of next-level features and functionality and includes 8” (new for the series), 12” and 15” twoway models in both powered and passive versions.

FEATURES

• ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice

• Increased maximum SPL output and extended frequency response

• Robust and ergonomic design for day-to-day durability and portability

• Recommended to use with Dynacord DSP power amplifiers

• SONICUE integration - optimized speaker settings for best performance

The next generation of the world’s #1 pro-audio loudspeaker – With more than a million units delivered, satisfied users worldwide positioned the original ZLX series as the industry standard for providing real professional performance at an accessible price point.

Stepping up – ZLX G2 builds on its predecessor’s winning formula with increased output, frequency range, durability and connectivity – along with new features including remote control/mixing and stereo streaming.

Refined with key users in mind – While maintaining ZLX’s broad appeal with a super-portable, ergonomically optimized design and a best-in-class feature set, ZLX G2 offers enhancements for specific user groups – DJs, musicians, rental companies, fitness/activity instructors and more.

ZLX G2 is the second generation of the phenomenally successful ZLX series of portable loudspeakers. Building on the best of what made the original ZLX series an industry icon, the ZLX G2 lineup offers a range of next-level features and functionality and includes 8” (new for the series), 12” and 15” two-way models in both powered and passive versions.

The Sonic Sequel
When Electro-Voice introduced the first-generation ZLX series in 2013, the goal was to bring real pro-audio performance to a more accessible price point than ever before, combining superior Electro-Voice sound quality with lightweight-yet-robust construction and breakthrough configuration and control. Users around the world soon took notice, and ZLX’s proven performance and day-to-day reliability quickly positioned it as the undisputed industry benchmark – the first and best in the product class it created.

Now, adding to the momentum of well over one million ZLX units delivered globally, ZLX G2 steps up as the sequel to that success story. The point of entry into the Electro-Voice portable loudspeaker portfolio, ZLX G2 builds on its predecessor’s winning formula with increased maximum SPL, frequency range, durability and connectivity, along with a range of ergonomic refinements.

Superior Engineering, Superior Sound
The standout audio quality that made ZLX the go-to choice for both musical performance/playback and spoken-word applications has been leveled-up with ZLX G2. Maximum SPL has increased to 129 dB (ZLX-15P-G2), and premium components behind the grille ensure ZLX G2 offers stunning acoustic performance for everyday use. The woofer and compression driver in each ZLX G2 model are coupled to a patented SST (Signal Synchronized Transducers) ported waveguide, enhancing low-frequency extension and delivering even vertical and horizontal coverage across all frequencies – all while allowing a more compact form factor. ZLX G2 packs a sonic punch that’s worthy of the Electro-Voice name.

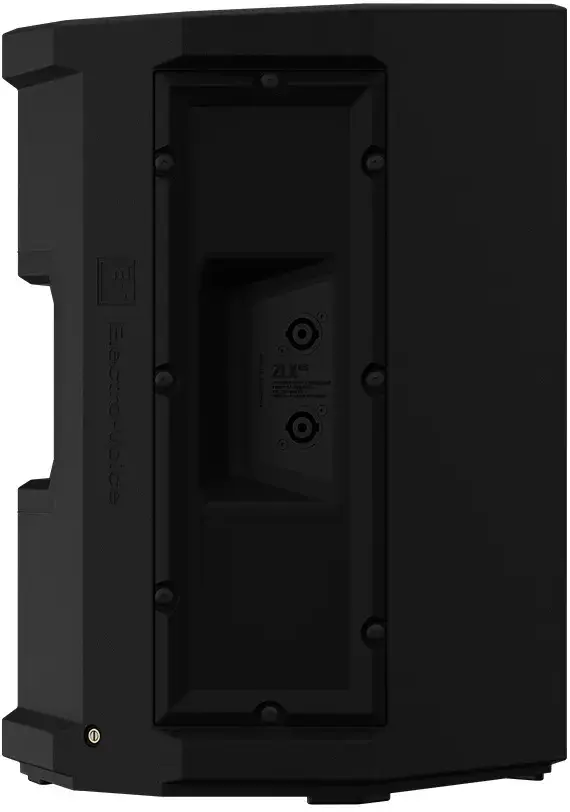

Passive ZLX G2 models use industry standard NL4 connections – the two NL4 connectors are in parallel and pass through all pins. For optimal acoustics and performance, ZLX G2 is recommended for use with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE Sound System Software.

Perfect for a wide range of installations and applications
In addition to portable sound for live performances and events, compact size with big performance and a range of user-friendly mounting options make ZLX G2 a great fit for installation in bars, restaurants, clubs, houses of worship, and many more applications

SPECIFICATIONS

Frequency response (-3 dB) (Hz): 67 Hz – 20,000 Hz
Frequency range (-10 dB) (Hz): 55 Hz – 20,000 Hz
Axial sensitivity (dB SPL 1W/1m): 90 dB SPL 1W/1m
Maximum sound pressure level at a distance of 1 m (dB): 124 dB
High pass frequency (Hz): 60 Hz
Crossover frequency (kHz): 2 kHz
Coverage angle HxV (°): 90° x 60°
Power handling (continuous) (W): 250 W
Power handling (peak): 1000 W
Nominal impedance (Ω): 8 Ω
LF transducer: WECA2088
LF transducer size (in): 8 in
LF transducer magnet material: Ferrite
HF transducer: DH-1K
HF transducer type: Compression driver
HF transducer size (in): 1.4 in
HF transducer diaphragm material: Titanium
Dimensions (H x W x D) (mm): 459.6 mm x 289.9 mm x 280.5 mm
Dimensions (H x W x D) (in): 18.09 in x 11.41 in x 11.04 in
Weight (kg): 10.15 kg
Weight (lb): 22.38 lb
