Electro-Harmonix MOP-D10

Isolated Power Supply

$699.00


See more from Electro-Harmonix

SKU: 690MOP-D10


Contact Us for Availability
This item is currently out of stock, click below to request an ETA, and we will be in touch soon.

More info.

Make 4 payments of $174.75 over 8 weeks and get it now!


Calculate Shipping

Enter post code to calculate shipping


Power up to ten 9V pedals with noise-free operation!

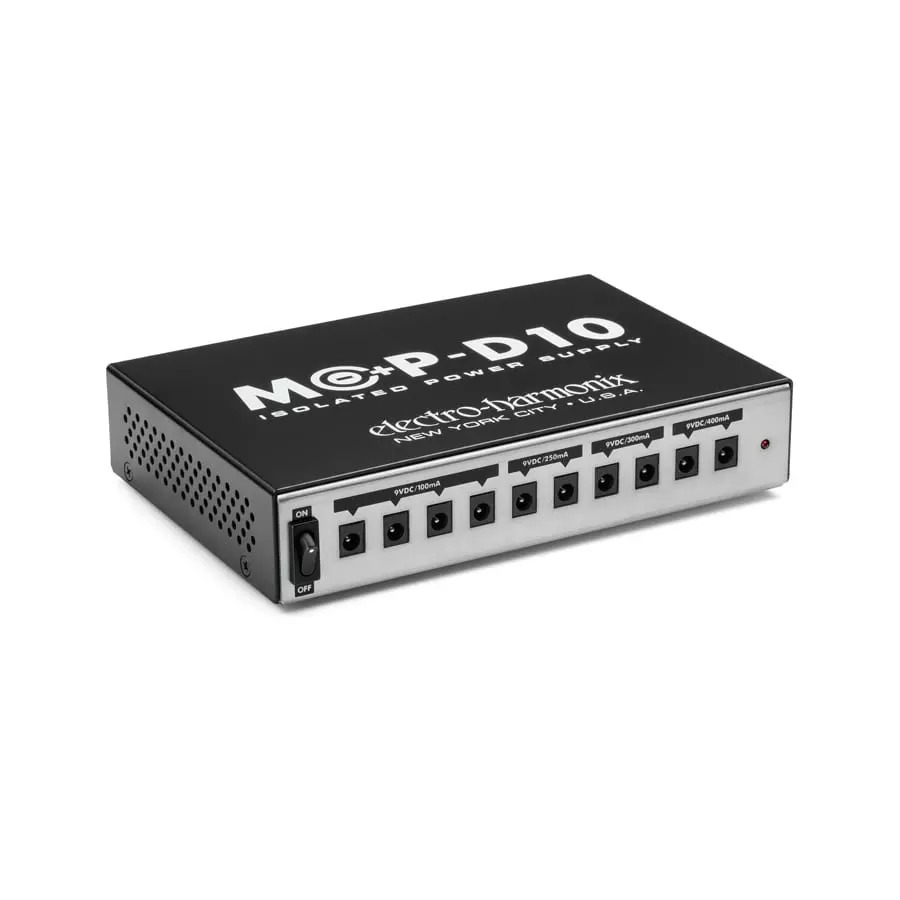

The MOP-D10 is a multi-output power source that was developed by EHX engineers to provide a player with noise-free pedal operation. It features ten isolated 9VDC outputs that handle the most popular power requirements: 4x100mA, 2x250mA, 2x300mA and 2x400mA.

From its premium analog power path featuring low-noise linear regulators to its custom-wound toroidal transformer, the MOP-D10 is designed to let a pedal user achieve a sonically pure signal path. Unlike many other multi-output power supplies which rely on switching power conversion, the MOP-D10’s transformer-based power conversion is significantly less susceptible to spurious noises leaking into the audio path. An AC Voltage Selector Switch also ensures the MOP-D10 can be used with a range of voltages commonly found around the world.

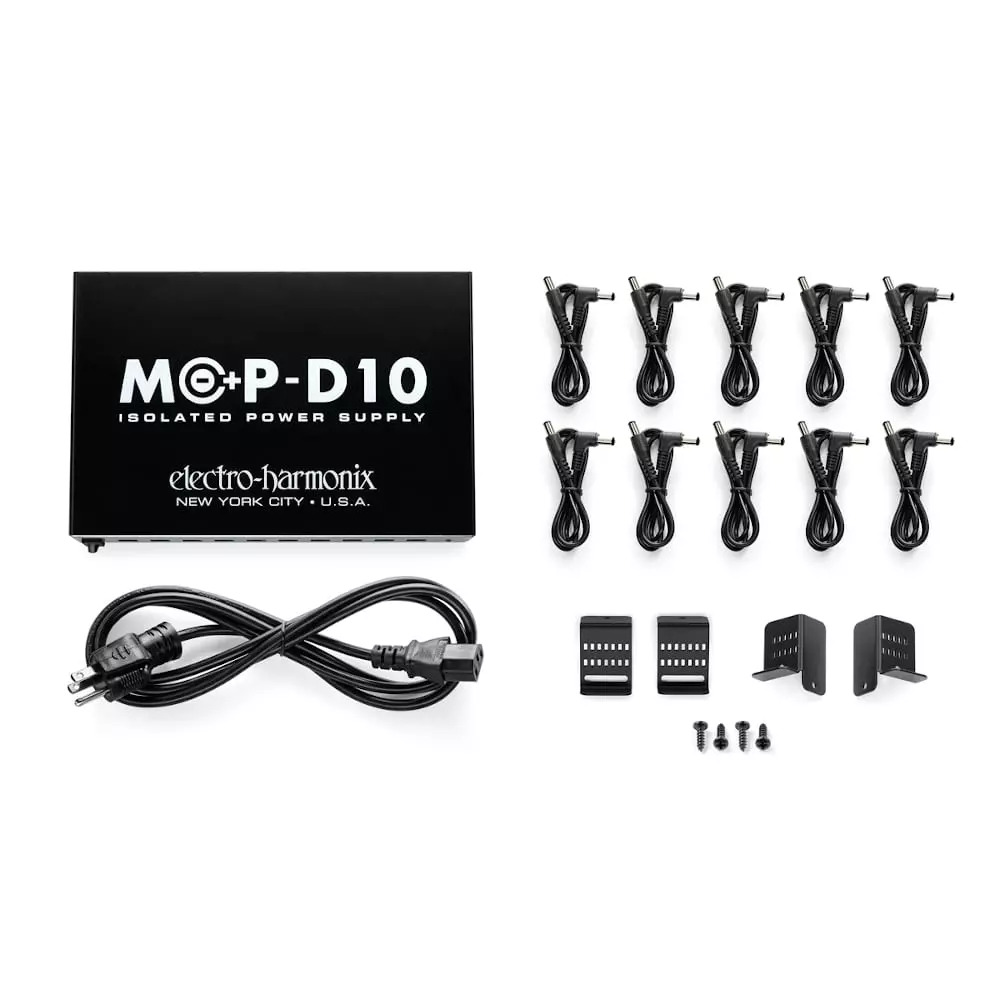

Each of the MOP-D10’s outputs is center-negative and all output power jacks are isolated from each other. The dimensions of each output connector are 5.5mm x 2.1mm. The unit is supplied with a 6′ detachable power cord and ten 24″ long DC power cables equipped with one straight and one right-angle end. It also includes hardware for pedalboard mounting.

  • Professional pedalboard power solution with ten isolated 9VDC outputs: 4x100mA, 2x250mA, 2x300mA and 2x400mA
  • Provides a premium analog power path with low-noise linear regulators
  • Custom-wound toroidal transformer delivers exceptional isolation and clean power
  • Relies on transformer-based power conversion which is superior to switching power conversion
  • AC Voltage Selector Switch allows the MOP-D10 to be used with a range of voltages commonly found around the world
  • All output power jacks are isolated from each other for noise-free operation
  • Comes with ten 24″ long DC power cables equipped with one straight and one right-angle end

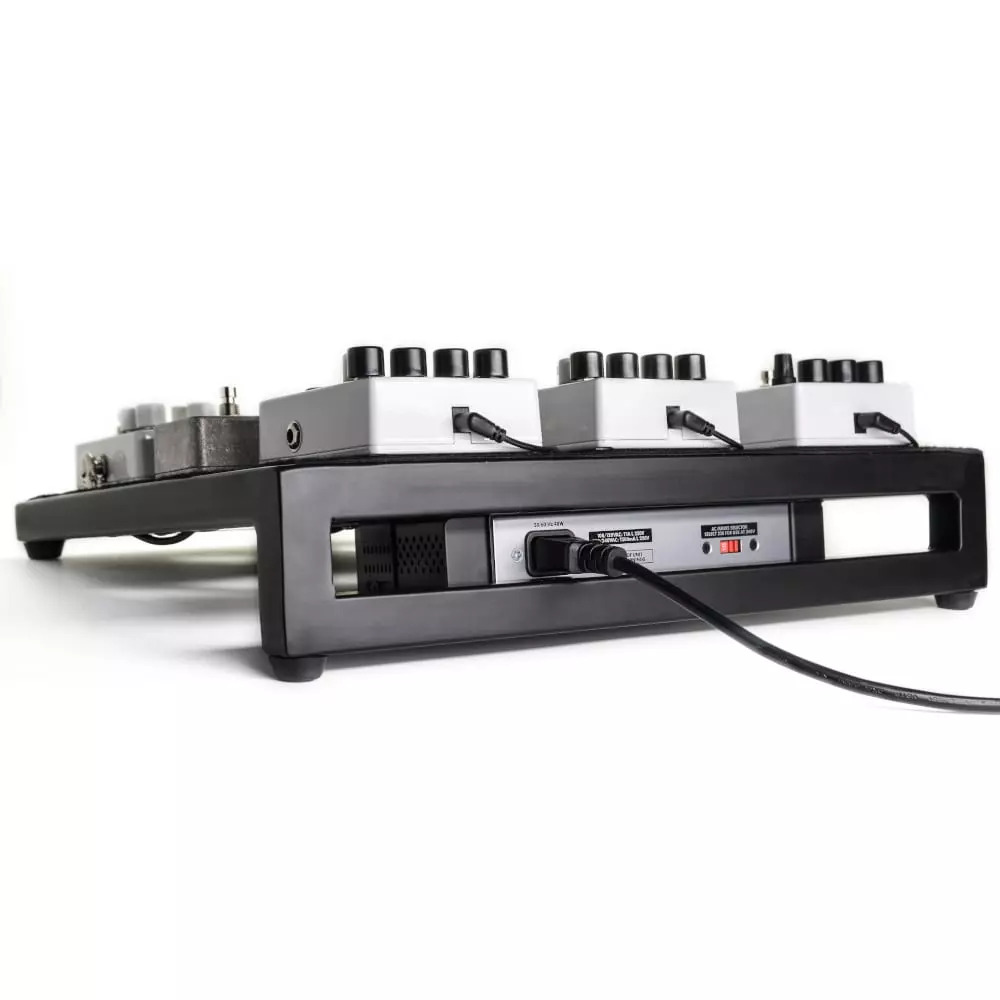

  • Includes hardware for pedalboard mounting

For more information, click here to visit the manufacturers website.
