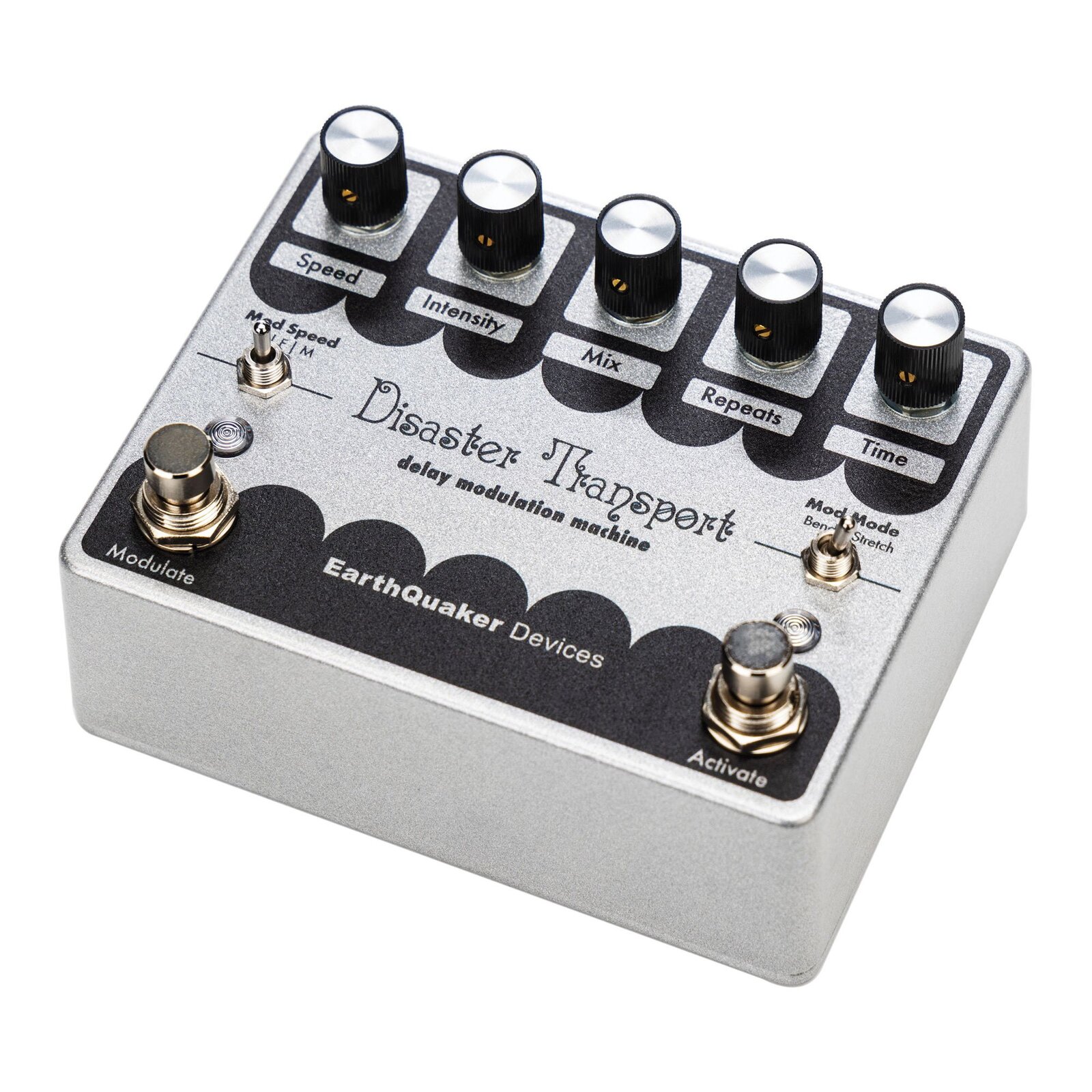

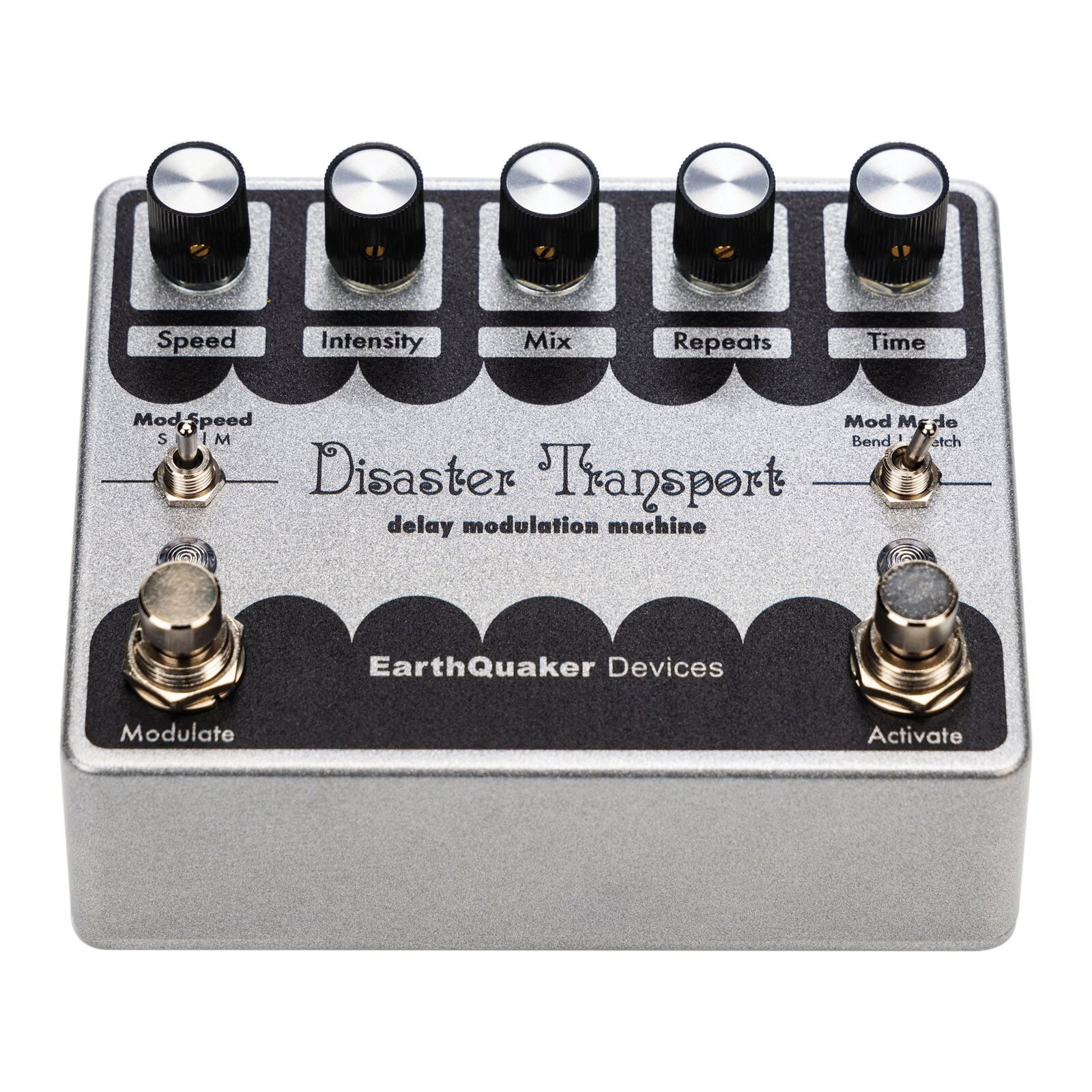

Earthquaker Devices Disaster Transport Legacy Reissue

Limited to 3,500 units worldwide.

Behold! The newest incarnation of one of our most beloved pedals ever, the Disaster Transport. For those of you well versed in the pedal’s celebrated history, you might notice some differences on this beautifully sparkly box. A new Mod Mode switch allows you to bend or stretch the modulation wave. The new Mod Speed switch offers three rates of modulation, from bizarrely animated gradual climbs and steep drop offs to rapid chorus and intense vibrato.

The delay line has been redesigned to reduce the noise floor and improve the quality of the delay. Plus, it’s now filtered to sound more like an analog delay than any of the previous versions. With knobs to control the Speed, Intensity, Mix, Repeats, and Time; this analog-voiced digital delay sits perfectly in the background with an evolved ambiance, but can also be dialed in for the dramatic effect of your choosing.

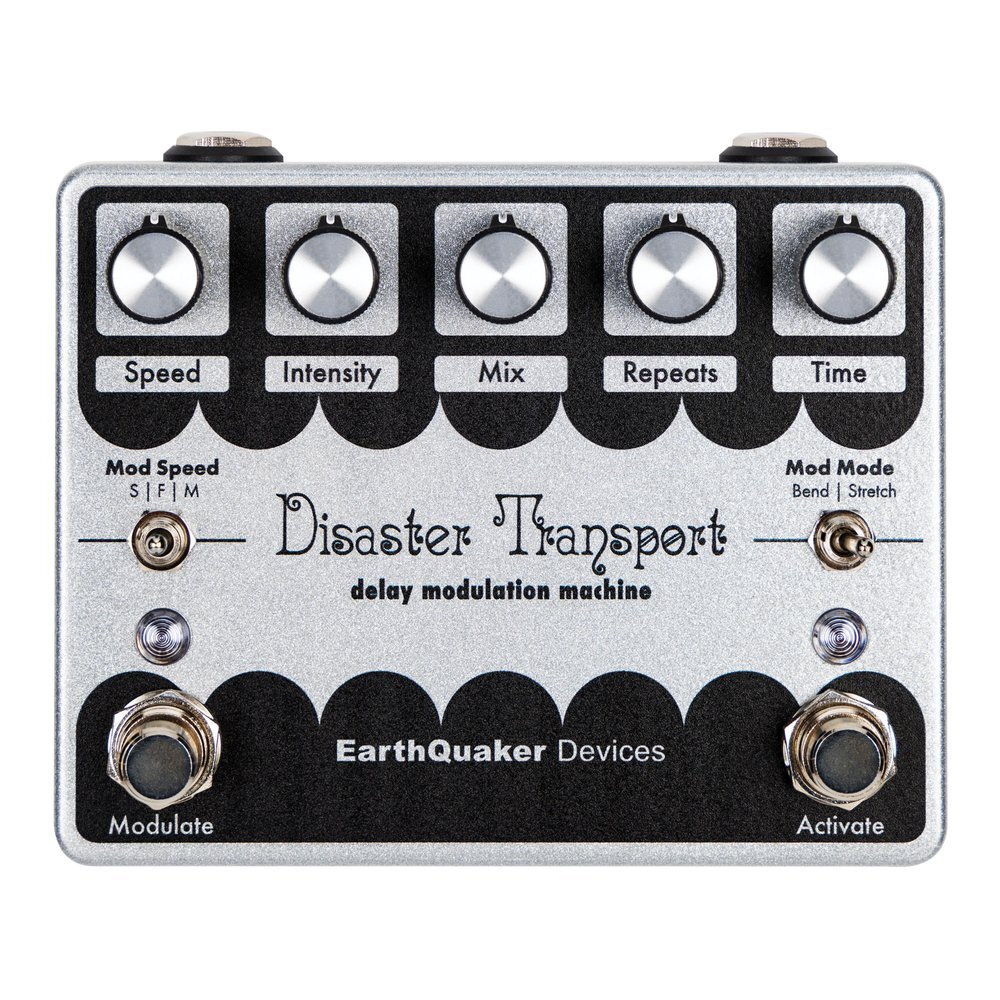

CONTROLS

1. Speed: Controls the speed of the modulation. The Speed operates in three ranges (Slow/Fast/Medium) selected by the Mod Speed toggle switch. The Disaster Transport uses a Ramp wave for the modulation. You’ll find this to be much more intense than most modulated delays. Think of it as a traditional Triangle wave that falls off a cliff in mid-cycle, creating a drastic pitch bend in its wake. Or don’t and just think about whatever you want.

2. Intensity: Controls how much the LFO modulates the delay time. More subtle chorus type effects are achieved with less intensity and more intensity will yield wild pitch stretching and bending. The overall modulation style can be made more or less subtle by using the Mod Mode toggle switch to select Bend or Stretch.

3. Mix: Sets the volume level for the delay signal. Hear more of what you just played 30-600ms ago by turning this up.

4. Repeats: Controls the intensity of delay feedback from no repeats at zero to self-oscillation at max. Let the past pile up on you until it implodes.

5. Time: Sets the delay time from around 30ms at zero to 600ms at max. Everyone needs more time; all we can offer you is about 600ms worth.

6. Mod Speed: Three position toggle switch that sets the range in which the Speed operates.

7. Mod Mode: Two position toggle switch to choose the modulation style. Bend is more of a traditional chorus type modulation and Stretch is a wilder pitch stretching modulation.

8. Modulate: This foot-operated switch features Flexi-Switch® Technology and turns the modulation on and off.

9. Activate: This foot-operated switch features Flexi-Switch® Technology and turns the effect on and off.

SPECIFICATIONS

Dimensions: 3.65 x 4.65 x 2.25 in. (93 x 118 x 57 mm) with knobs
Current Draw: 35 mA
Input Impedance: 1 MΩ
Output Impedance: 1 kΩ

Flexi-Switch® Technology
This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

• For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
• For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
