DOD Chthonic Fuzz

Embrace Your Darker Side with the Chthonic Fuzz

DigiTech ®/DOD® invites guitarists to embrace their darker side with the release of the Chthonic Fuzz, a deceptively minimalist, vintage-inspired pedal with impressive versatility and a distinctive voice. The Chthonic Fuzz (pronounced “thaw-nick” and meaning “of or relating to the underworld”) is capable of sludgy, tight-grain fuzz tones and is impactful with guitars outfitted with any types of pickups, though specifically designed for “brighter” single-coil, P90, DeArmond, or gold-foil equipped instruments.

Expanding upon an initial ‘70s informed, single-knob (Output) fuzz circuit, DOD engineers added functionality via a separate gain control (Fuzz) and a gentle passive tone control (Lustre) that ensures audible pick attack throughout the entire frequency range, making for a still easy-to-use, but more flexible pedal, capable of the darkest, most potent fuzz to subtle touches of sonic grit and everywhere in between. A pair of 2N2222 transistors allow for traditional transistor clipping that can be dramatically reined in by dialing back the guitar volume-knob. As a two-transistor pedal, the Chthonic Fuzz – like many vintage-style fuzz boxes – works best when place first in the signal chain.

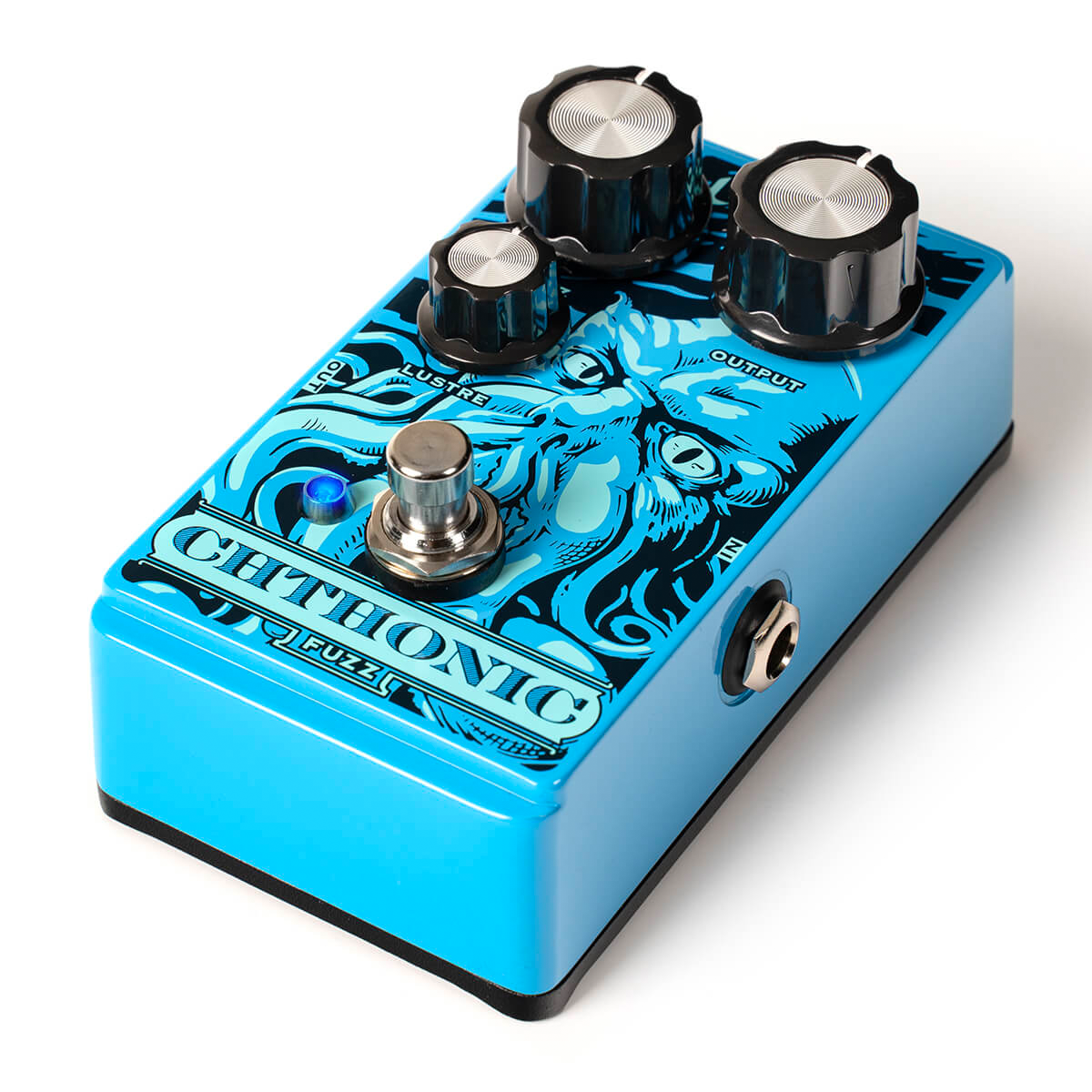

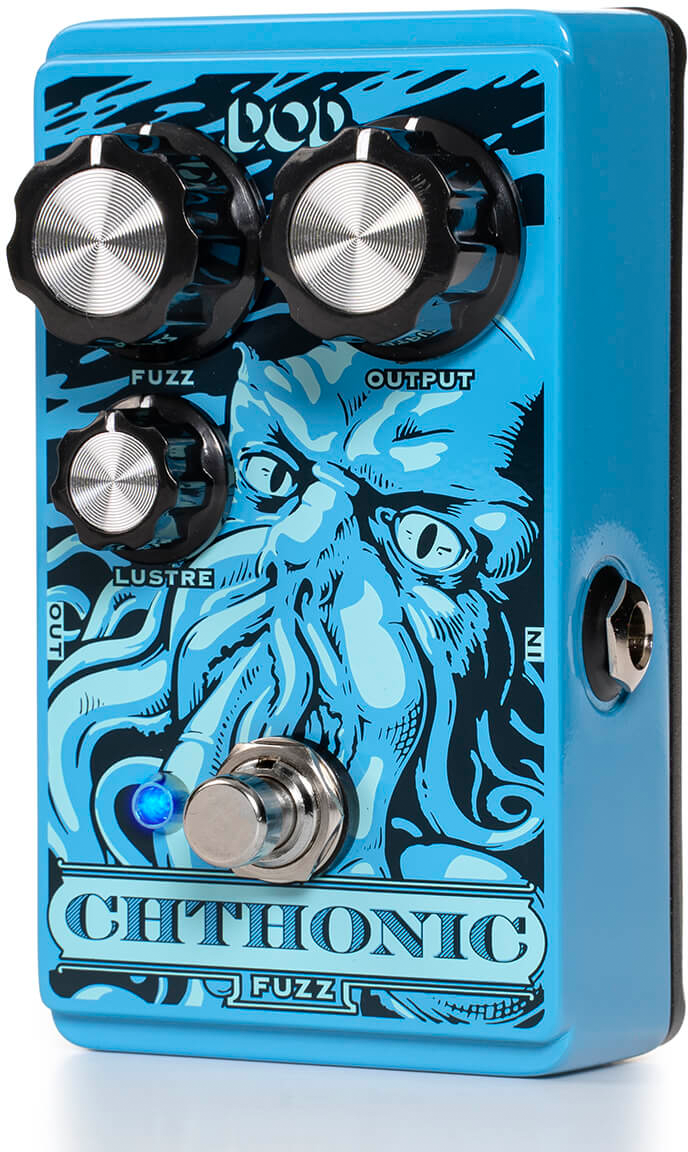

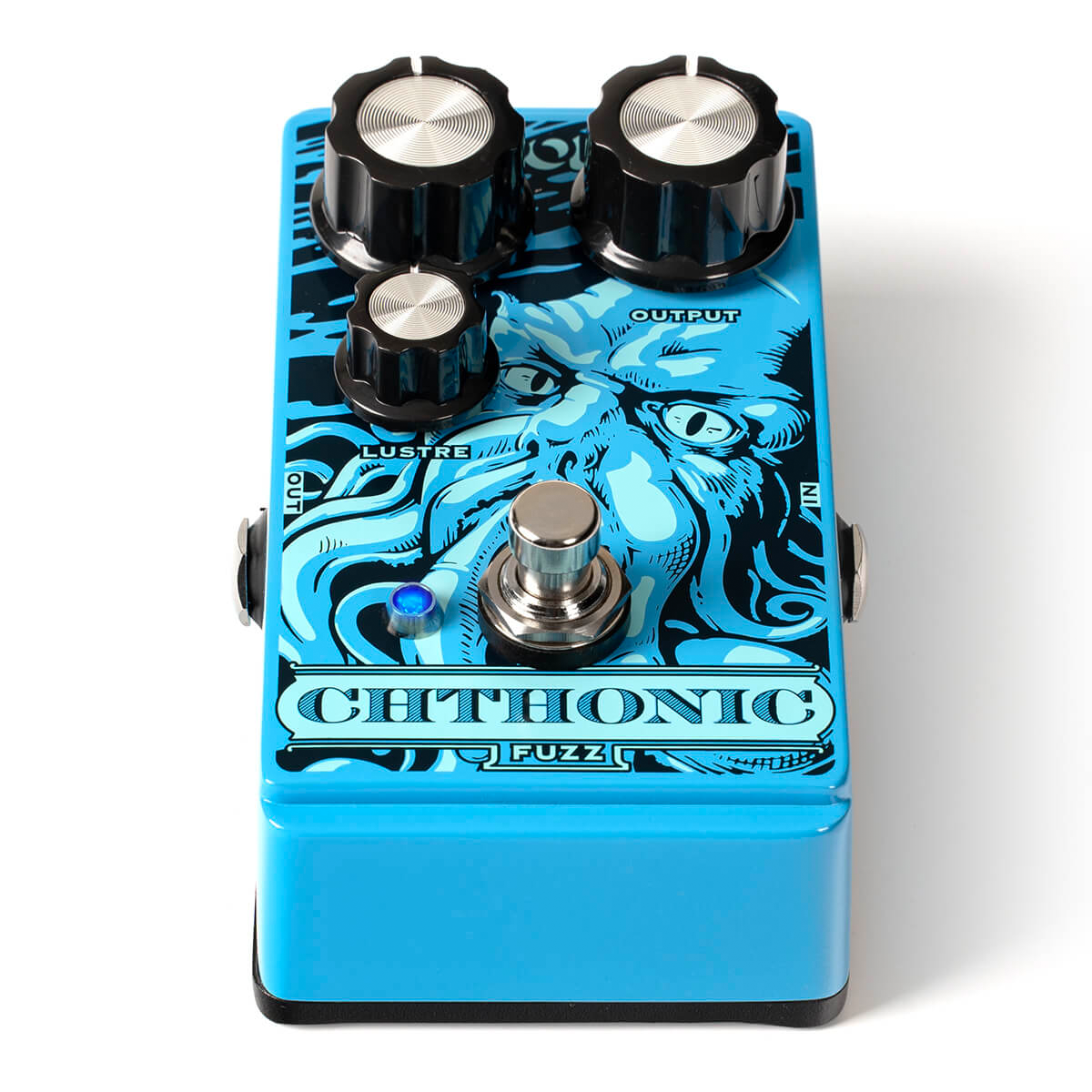

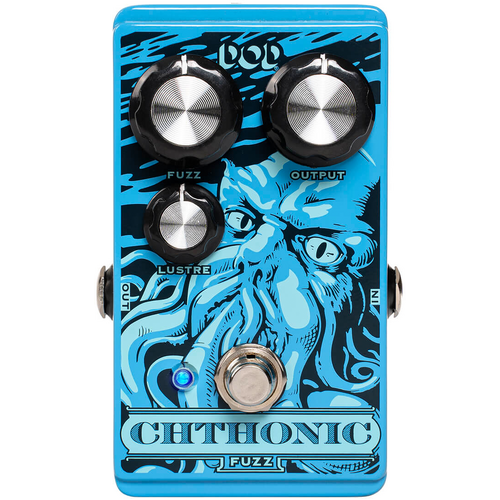

The Fuzz and Output dials are most prominent on the pedal, side by side at the top of the housing, with the smaller Lustre knob sitting just beneath the Fuzz control at the upper-left of the pedal. The Chthonic’s eye-catching visual presentation is rounded out by a sturdy footswitch, crisp blue LED power indicator, and a unique “Kraken/Cthulhu ” graphic by the same individual responsible for the artwork of the DOD Carcosa Fuzz, conceptually considered a “bright twin” to the darker Chthonic Fuzz.

The Chthonic Fuzz includes true bypass and accepts a linear 9vDC adapter or 9V Alkaline Dry Battery.

Guitarists seeking fat, meaty fuzz and singular overdrive textures need look no further than the Chthonic Fuzz.

FEATURES

• Darker fuzz designed for brighter guitars and amps

• Subtle tone control retains pick attack throughout entire range

• Excellent clean-up with guitar volume knob

SPECIFICATIONS

Input: 1¼” Instrument
Output: 1¼” Instrument
Chassis Material: All Metal
Power Supply: 9V Alkaline Dry Battery, PS0913DC power supply
Height: 2.25” (5.71 cm)
Width: 2.63” (6.68 cm)
Length: 4.68” (11.88 cm)
Weight: ~1.0 lbs. (~ 0.453 kg)
