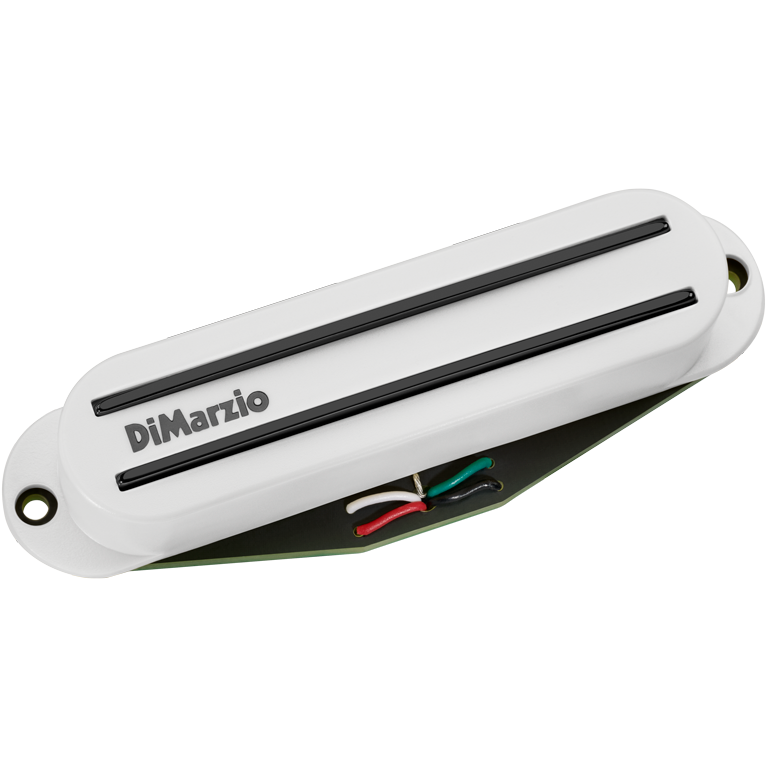

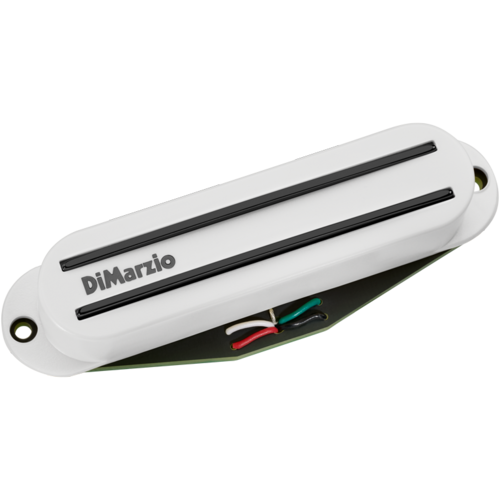

DiMarzio DP189W The Tone Zone® S - White

The Tone Zone® S brings the famous performance of The Tone Zone® to a humbucking Strat® replacement pickup.

"We’ve built in the tremendous mid-range and bass response of the original Tone Zone®, and the same patented dual-resonance design produces great harmonics."

If you compare the specs of the full-size Tone Zone® with those of The Tone Zone® S, you will notice they don't match - That's because the trick in building a single-coil size pickup to sound like its big brother is to go for the sound rather than the numbers.

It has 4-conductor wiring for parallel humbucking and split-coil modes, and makes a great bridge position combination with the Pro Track™, The Chopper™, and Fast Track 1™.



Bass: 8.0 Mid: 8.5 Treble: 4.5


Recommended For: Bridge position, solid body guitars. Neck position when a very warm jazz guitar sound is required; Dimarzio® also took into account the likelihood that The Tone Zone® S will be installed in the classic slanted Strat bridge position, so they've warmed up the higher frequencies and brightened the low notes a little to compensate.


Quick Connect: No

Wiring: 4 Conductor

Magnet: Ceramic

Resistance: 12.39 Kohm

Below are the tone, volume and cap values that Dimarzio® recommend with this Pickup:
