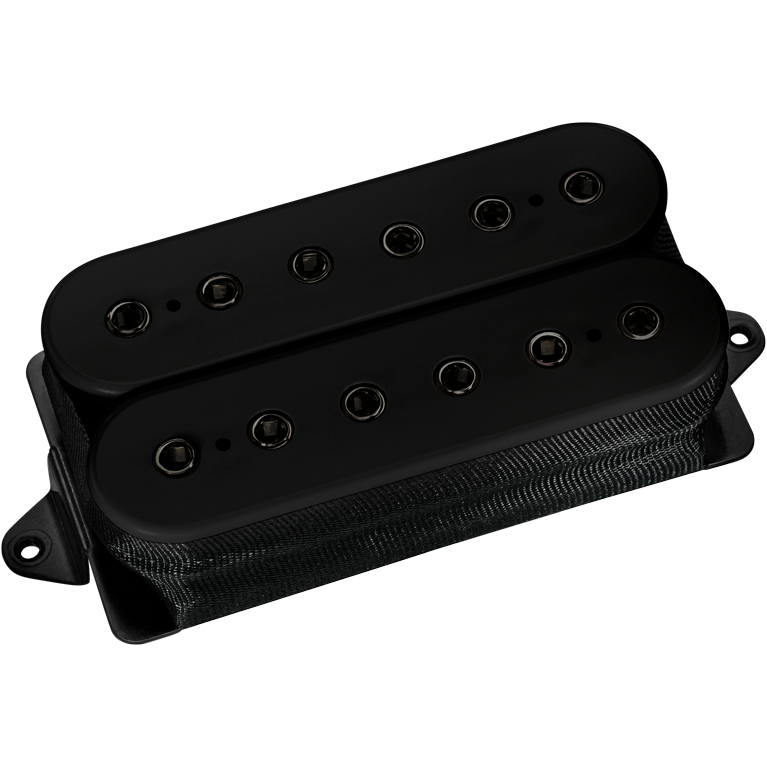

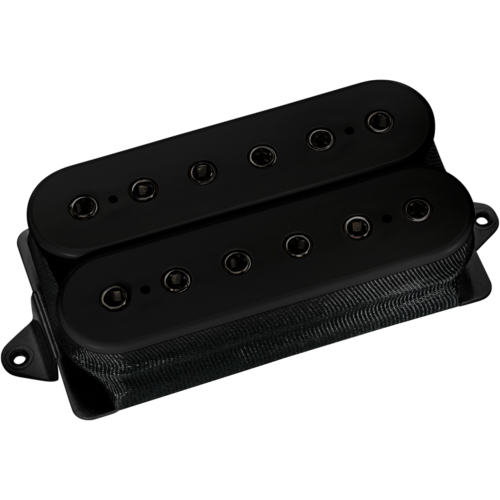

DiMarzio DP159FB Evolution® Bridge F-Spaced - Black

The Evolution® Neck and Bridge humbuckers are the result of two years of research to come up with the right sound for a very demanding player: Steve Vai and his Ibanez® Jems.

Both pickups are designed for maximum impact and power; The neck pickup is fat, punchy and loud. The bridge pickup is tight, aggressive and louder. Both pickups have our patented dual-resonance configuration to reproduce more harmonic overtones than conventional humbuckers.

Evolution® pickups are not polite-sounding, and they’re not for the inexperienced, but – if you’ve got the chops and a hot amp – your sound will burn.

The Evolution® pickups were originally designed with live gigs in mind, but they have so much presence and definition that they’re great recording pickups, too; they slice right through even the densest mix.

Output: 404

Bass: 6.0 Mid: 7.0 Treble: 6.5

Recommended For: Bridge position in solid body guitars; The Evolution® Bridge pickup works best for soloing where the sound must cut through. Low notes are very tight, and the highs have a lot of presence, enabling the pickup to be heard in almost any situation.

Obviously, the Evolution® was designed for Steve's Ibanez® Jems, but it can add a lot of punch and definition to Gibson® Les Pauls® and similar set-neck guitars - even the lowest bass notes really jump out of the amp, and feedback occurs easily with a wide range of harmonic overtones.

Quick Connect: No
Wiring: 4 Conductor
Magnet: Ceramic
Resistance: 13.84 Kohm

Below are the tone, volume and cap values that Dimarzio® recommend with this Pickup:
