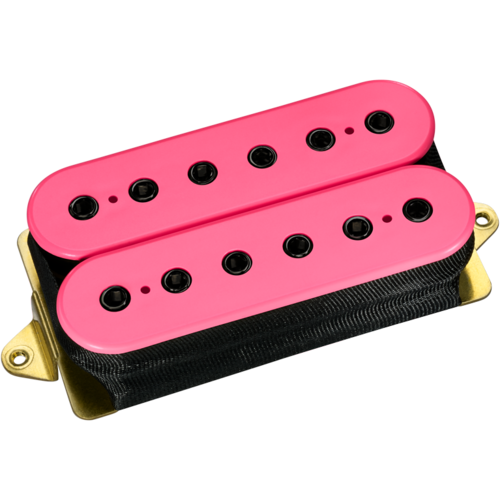

DiMarzio DP151FPK PAF Pro® F-Spaced - Pink

The PAF Pro® was created when chops-intensive playing was first starting to happen, and high-gain amps and rack systems were becoming popular.

A pickup was needed that combined a lot of presence and “cut” with an open-sounding PAF® vibe. The transparency of its sound lets the PAF Pro® slice through heavy processing, where darker-sounding pickups get lost in the mud of the effects chain.

Low notes have both snap and chunk, and there is a spike in the mid-range that gives the pickup a subtle “aw” vowel sound, like a wah-wah pedal stopped in the middle. Treble response is tweaked to produce highs that stand out without getting brittle.

The PAF Pro® makes an outstanding neck pickup in almost any guitar, and it’s an exceptional bridge pickup when high output isn’t required.

Output: 300

Bass: 5.0 Mid: 5.0 Treble: 6.0

Recommended For: This is a great building block pickup, because it's effective in many different situations. Try it in the neck position with a hotter bridge pickup — anything from a Norton® to an X2N® will create a good two-humbucker match.

As a bridge pickup, it's really effective with single-coils, because it won't drown them out with too much power, and it's bright enough to blend in tone-wise.

Quick Connect: No
Wiring: 4 Conductor
Magnet: Alnico 5
Resistance: 8.4 Kohm

Below are the tone, volume and cap values that Dimarzio® recommend with this Pickup:
