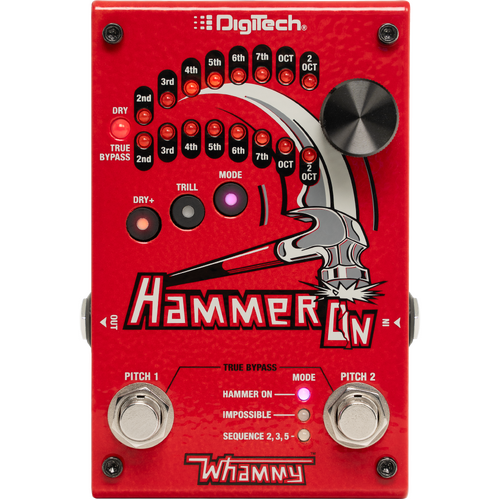

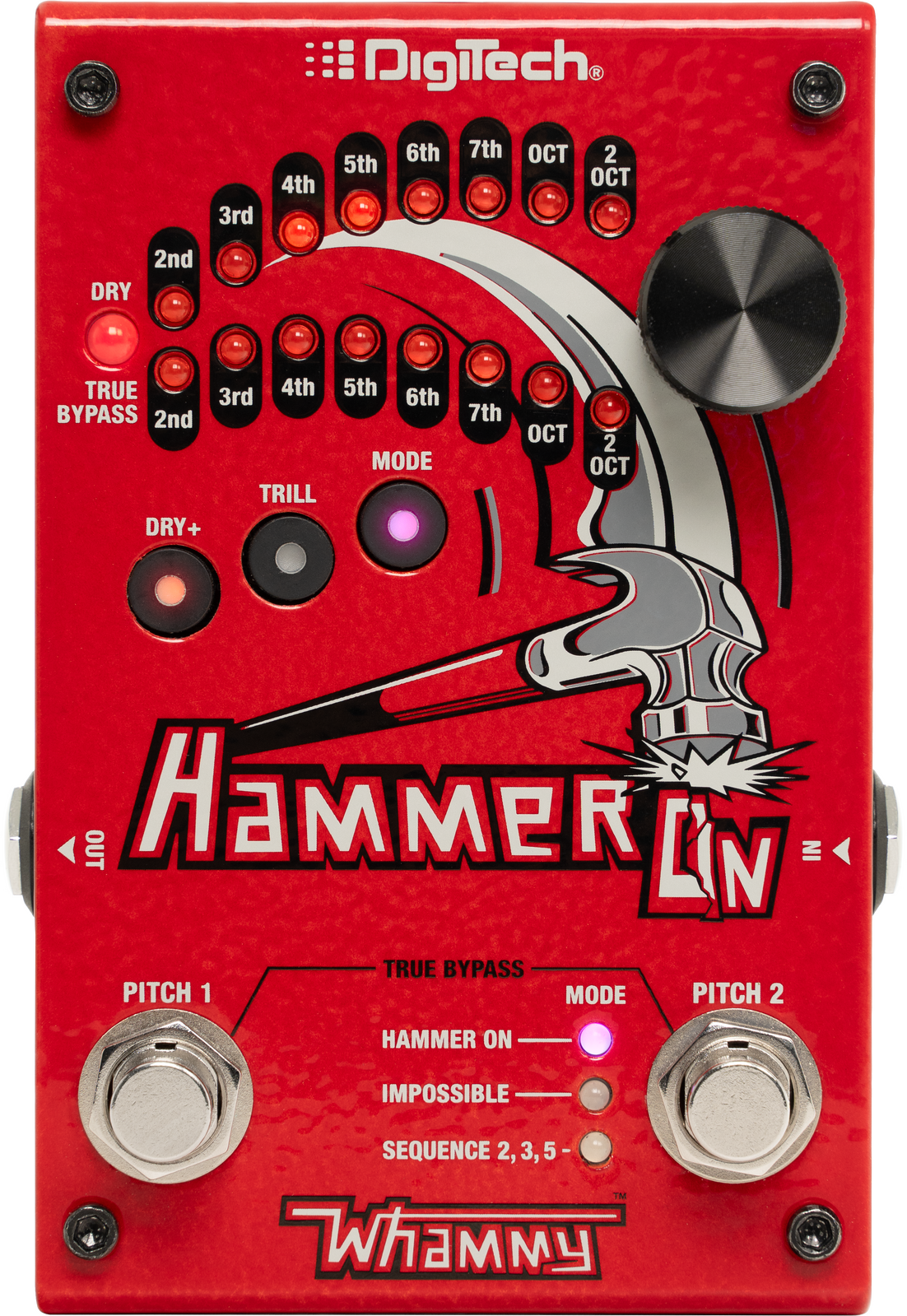

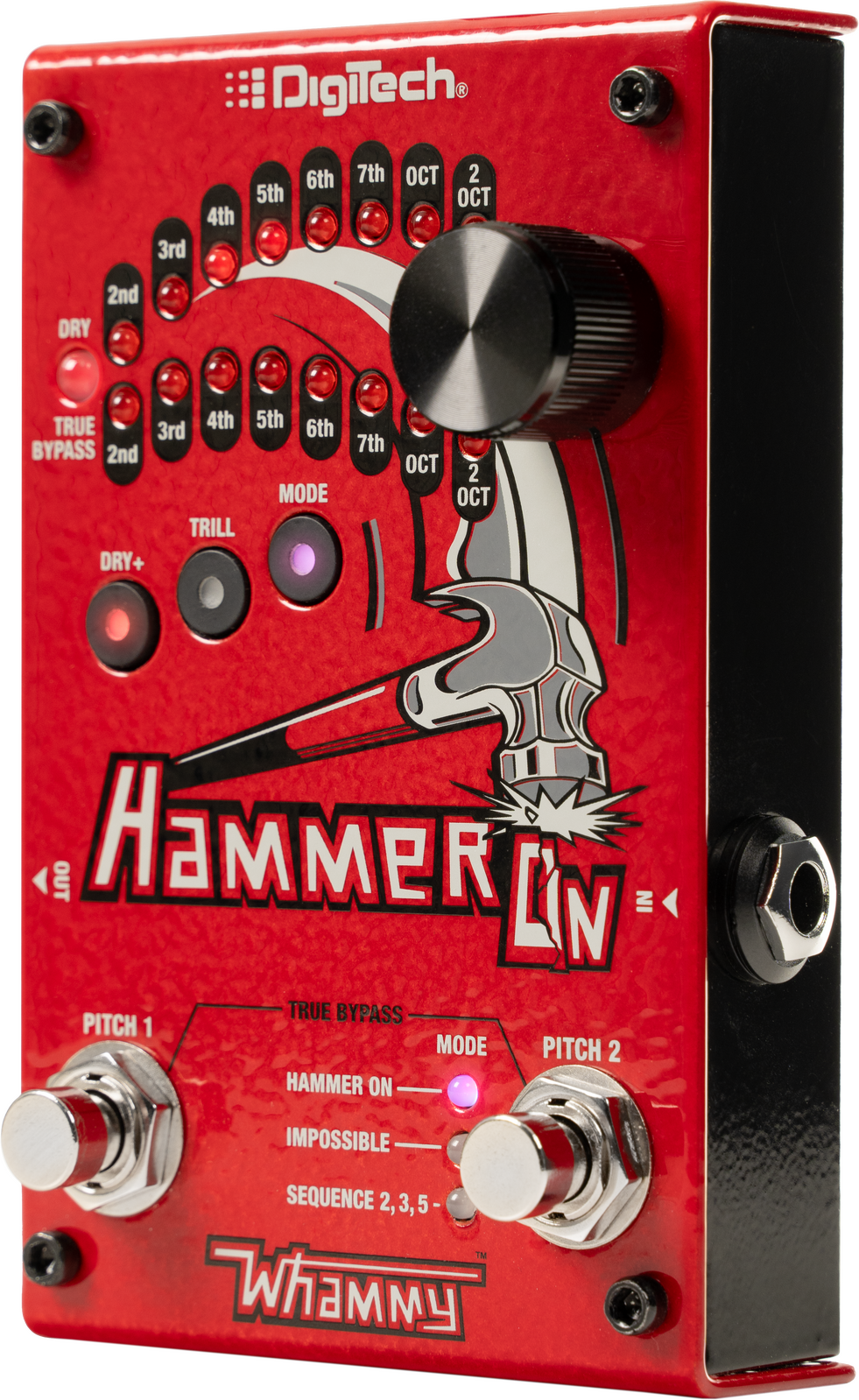

Digitech HammerOn

HammerOn™ gives guitar players instantaneous pitch jumps over a 4-octave range, adding sonic complexity to your guitar riffs and chord progressions. Like a natural extension of your guitar neck, you can now use your feet to hammer-on notes in conjunction with your hands to play faster, more intricate phrases beyond your fingers’ reach. And with two independently programable footswitches, rapid-fire TRILL, and DRY+ to add harmony, the possiblites are limitless.

In IMPOSSIBLE mode, you get hammer-on pitch shifts that alternate between two different programable pitches that will push your creativity, Play the Impossible!

In SEQUENCE mode, guitarists can step through fully chromatic Drop and Capo transpositions.

When TRILL is engaged, HammerOn™ creates an almost techno type guitar note sequence and with the available 2, 3, and 5-note options, and Tap Tempo this effect can open-up new worlds of automatic pitch shifting phrases.

Hands free hammer ons
Hammer-on notes in conjunction with your hands to create never-before-heard licks and riffs — the only limit is your imagination.

Independent programmable footswitches
Instantly jump to a new pitch, engage the sequential pitch sequencer, and much more.

7 pedals in 1
Seven modes range from pitch jumps and harmony effects to pitch sequences and drop/capo tunings — HammerOn is like seven pedals in one.

Next level pitch effects
Based on DigiTech's acclaimed Whammy technology to deliver next level creative pitch effects

SPECIFICATIONS

Electronics
Sample Rate: 44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response: 20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1kHz; ref= 1 dBu w/ unity gain
A/D/A Conversion: 24-bit

Input / Output
Input Type: 1/4” Unblanaced TS
Max Input Level: +5 dBu
Input Inpedance: 1MΩ
Output Type: 1/4” Unblanaced TS
Max Output Level: +10 dBu
Output Impendance: 1kΩ (Effect enabled or effect bypassed), True Bypass

Physical
Dimensions: 13.00cm x 9.06cm x 4.67cm (L x W x H)
Weight: 1.12 lbs. (508g)

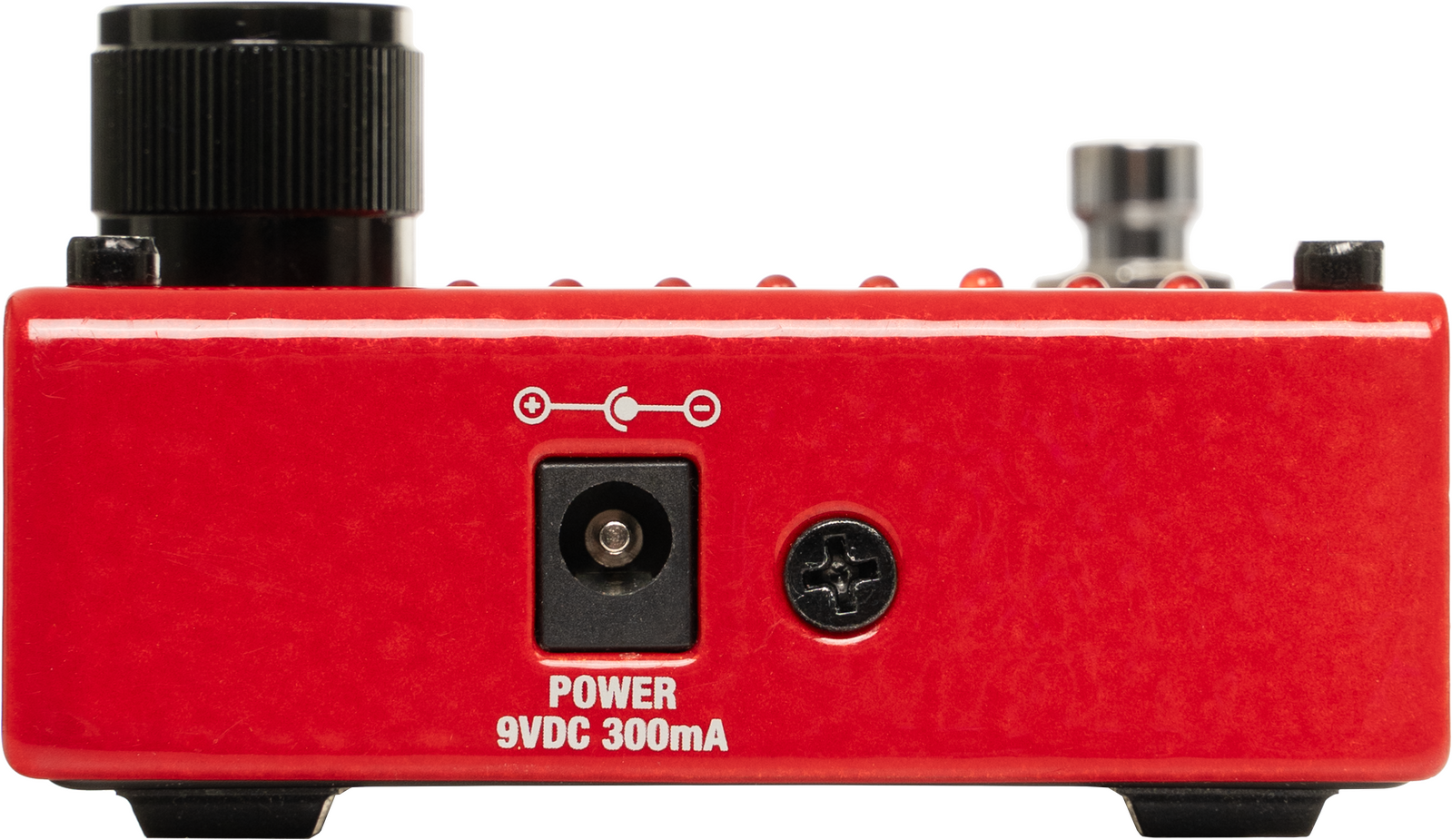

Power
Power Consumption: 2.3 Watts (258 mA @ 9VDC) typical
Power Requirements: External Adapter (included), 9 VDC 1300 mA
