Darkglass Electronics NSG

The Darkglass NSG comes as a response to these annoyances. Utilizing an adjustable threshold level to filter out sounds below a certain threshold, allowing for only the desired audio to be seized. With a simplistic approach and ease to use, while being highly versatile, the NSG can be utilized with a variety of audio equipment such as bass guitars, guitars, or any kind of instruments. Additionally, it boasts a compact size, making it a convenient addition to your pedal setup.

Crisp, clear output with minimal background noise, thus enhancing the overall quality of your audio. This innovative product is a must-have for any professional or enthusiast musician looking to take their pedalboard to the next level.

FEATURES

• Simplistic approach and ease to use

• Adjustable threshold level to filter

• Crisp, clear output with minimal background noise

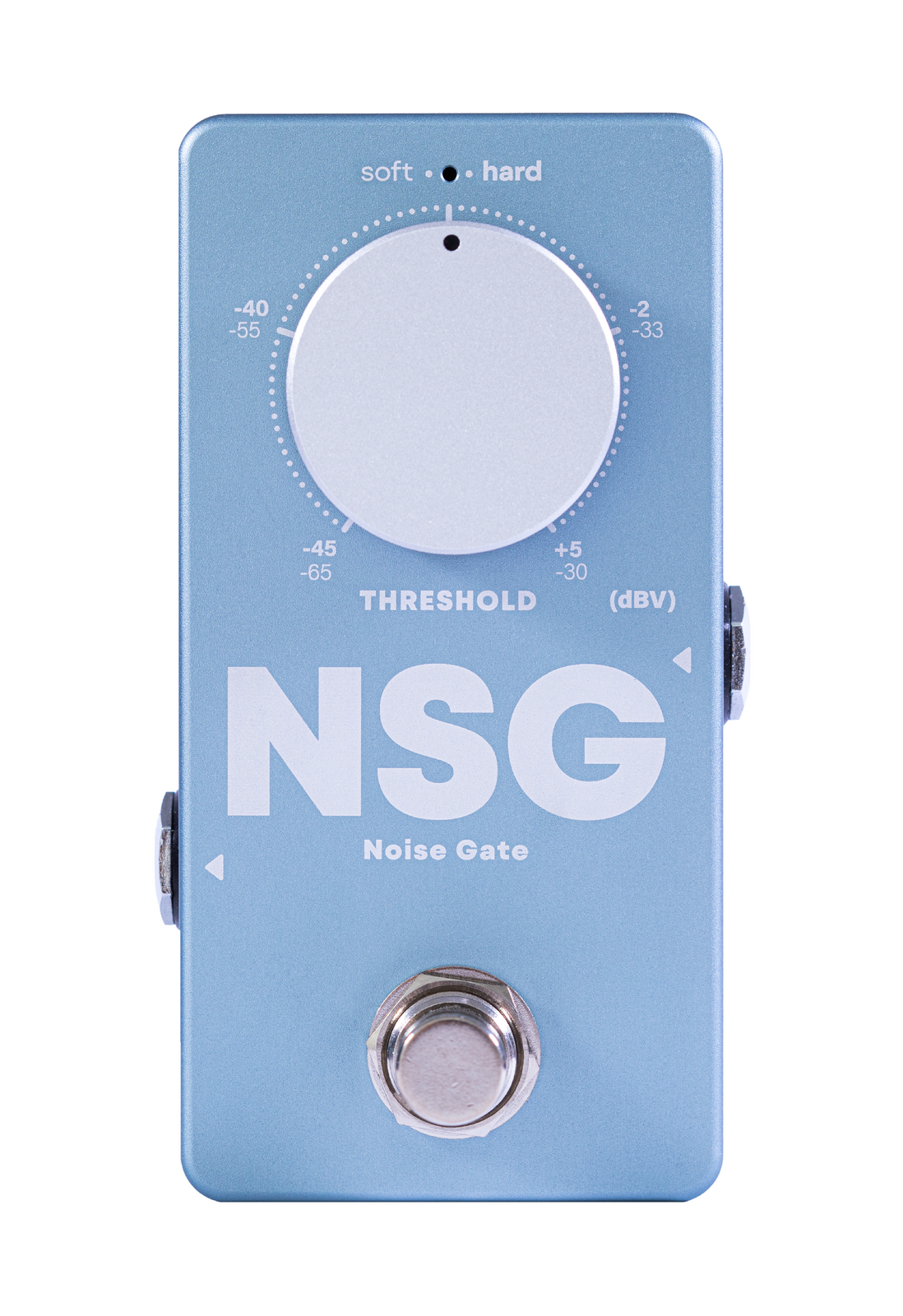

Threshold
Use this push knob to control the threshold of the noise gate. Press the knob to switch between the “Soft” mode (Blue LED color) for softer gain reduction and “Hard” (Red LED color) for the more aggressive gate operation.

Threshold range
From -65 dBV to -30 dBV in “Soft” mode.
From -45 dBV to +5dBV in “Hard” mode.

SPECIFICATIONS

Input Impedance: 1 MΩ
Output Impedance: 100 kΩ
Current Consumption: ~60 mA
Voltage: 9V DC (Center Negative)
Width: 50 mm /2″
Length: 36,5 mm/ 1 ½″
Height: 100 mm / 4″
Weight: 205 g / 0,45 lb

Warning
The NSG Noise Gate has a current draw of 60 mA. Only use a regulated 9V DC adapter with a center-negative plug.

Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
