Cioks 8 Expander
Expansion Kit for DC7

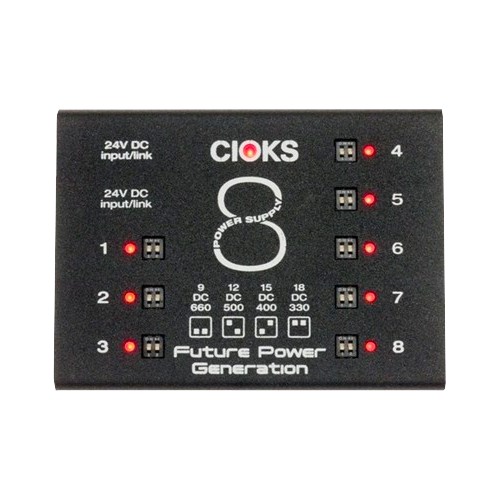

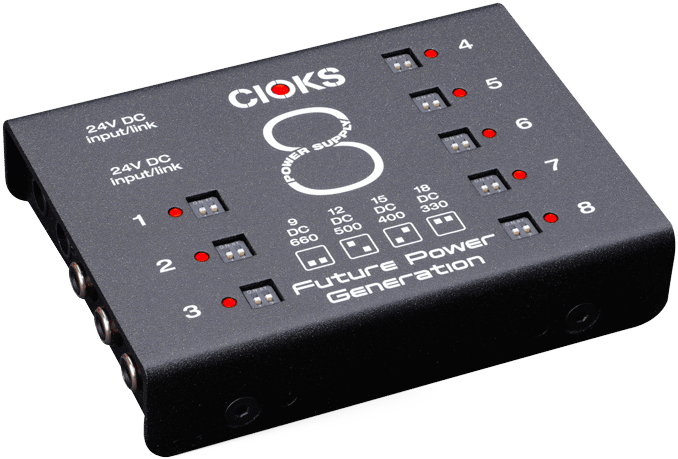

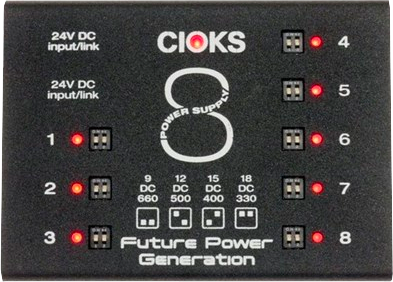

CIOKS 8 is our largest switch-mode power supply expander and it features 8 isolated outlets which each deliver 9V DC at 660mA. All outlets offer four selectable voltages (9, 12, 15 or 18V).
CIOKS 8 was mainly designed to be used as a large extension to the DC7 power supply in case you need more outlets. If you want to use CIOKS 8 as an extension to the DC7, simply connect CIOKS 8 to the courtesy 24V outlet on your DC7 with the included 24V DC Link cable and you are good to go.
If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of CIOKS DC7 and CIOKS 8 will definitely be an awesome solution where this combo will give you 15 isolated outlets in total plus a 5V USB outlet to charge your smartphone or tablet.
FEATURES
-
CIOKS 8 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
-
Ultra-low noise achieved by multistage filtering
-
8 isolated DC-outlets, 6W each
-
660mA at 9V DC on each outlet
-
4 selectable voltages on each outlet
-
Global overload status LED
-
Total maximum output power 48W
-
Mounting hardware for Pedaltrain and Templeaudio boards included
-
Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards**
-
12 Flex cables included
-
24V DC Link cable included
-
Designed in Denmark, assembled in Poland
-
5-year worldwide warranty
* DC7 and C8e is also available as a combo called the CIOKS Superpower Bundle
** Sold separately
SPECIFICATIONS
Outlet 1-8:
9V DC / 660mA or
12V DC / 500mA or
15V DC / 400mA or
18V DC / 330mA each
What's in the Box
-
CIOKS 8 power supply
-
12 Flex cables
-
50cm DC Link cable (to connect to CIOKS DC7)
-
Mounting hardware (2 screws and a hex-key)
-
Product sheet (drill guide)
-
Flex and DC Link cable selection guide
-
Sticker (sheet with 2pcs.)
-
Manual
For more information, click here to visit the manufacturers website.
