Cioks 1035 Split Flex - 30cm & 50cm

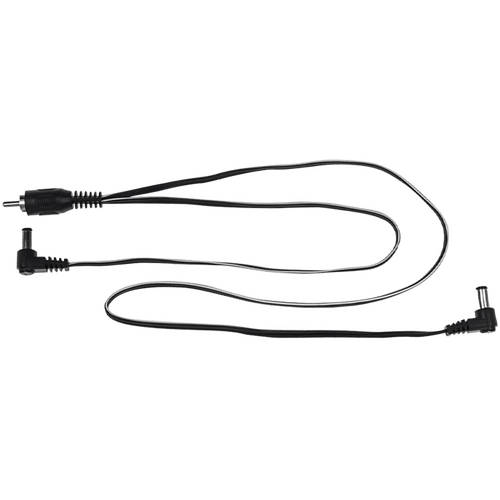

The Split Flex cable makes it possible to connect two pedals to the power supply using one outlet only. Two cables in lengths 30 and 50cm are connected to the plug on the power supply side. On the other end they are terminated with 5,5/2,1mm center negative angled DC plugs which is the most common type (also called the BOSS standard). Both pedals connected to the power supply will be powered with the same voltage and will not be isolated from each other.

Split Flex is like a 2-way daisy chain. Make sure that the sum of currents drawn by the two pedals doesn’t exceed the rating of the outlet used. We mainly recommend using the Split Flex with two analog low current draw pedals and 100mA outlets. Using Split Flex with two digital pedal or one analog and one digital might generate unwanted noise in your signal. If you wish to power three pedals with the same voltage of one outlet have a look at CIOKS 3-Way Daisy Chain Flex.

1035: CIOKS Split Flex – two 5,5/2,1mm center negative DC plugs, 30 & 50cm / 12″ & 20″ (black)
