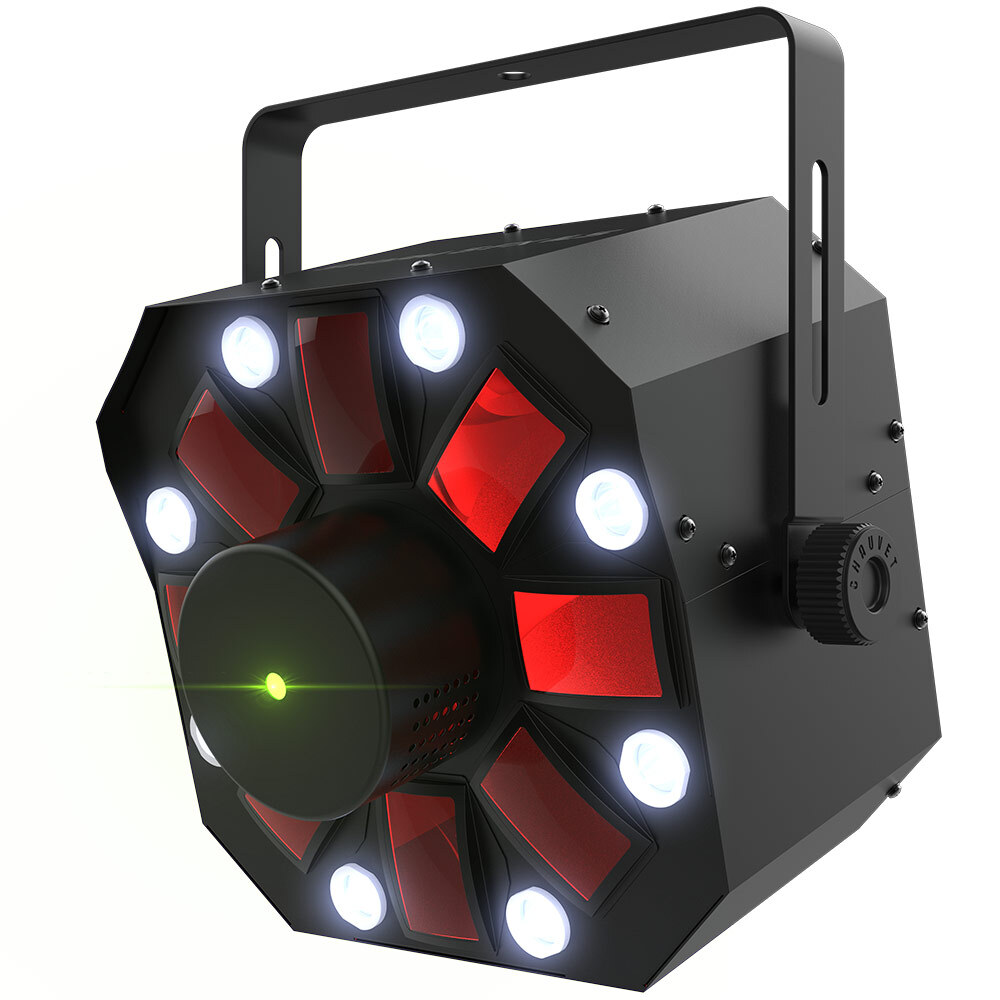

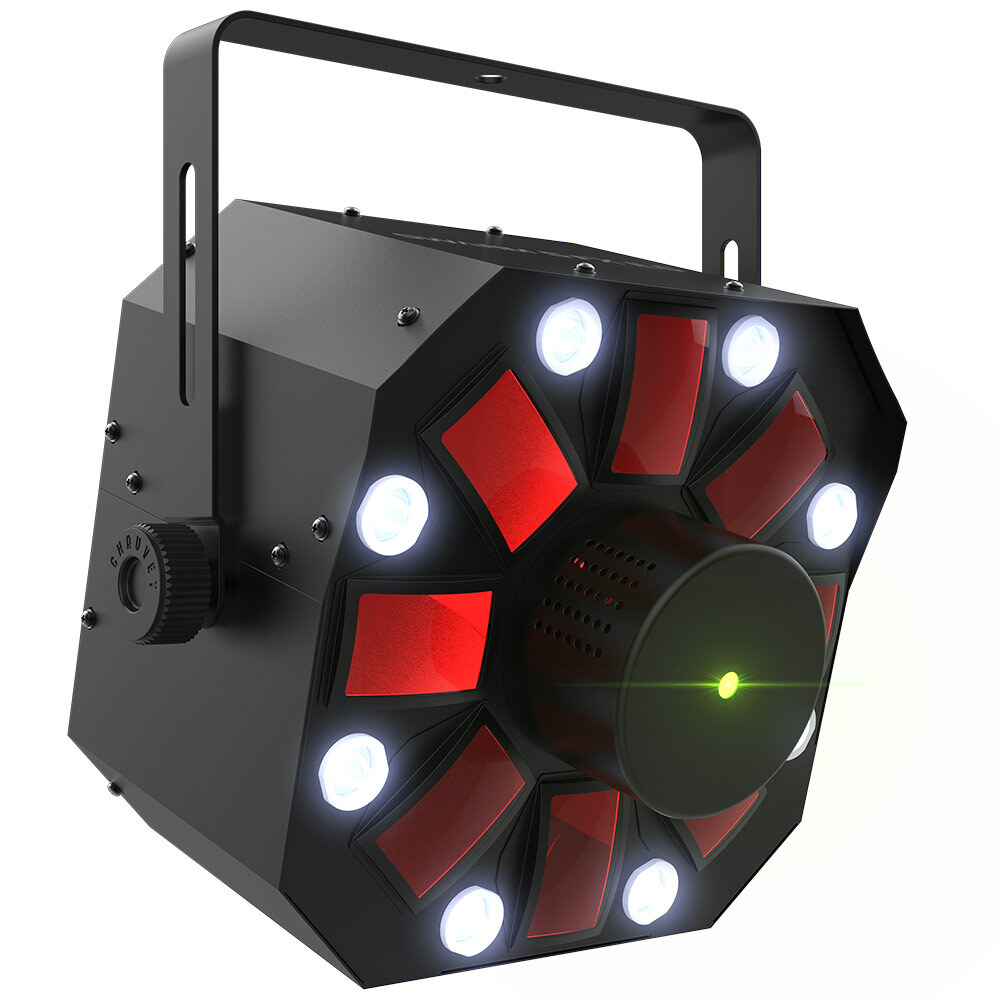

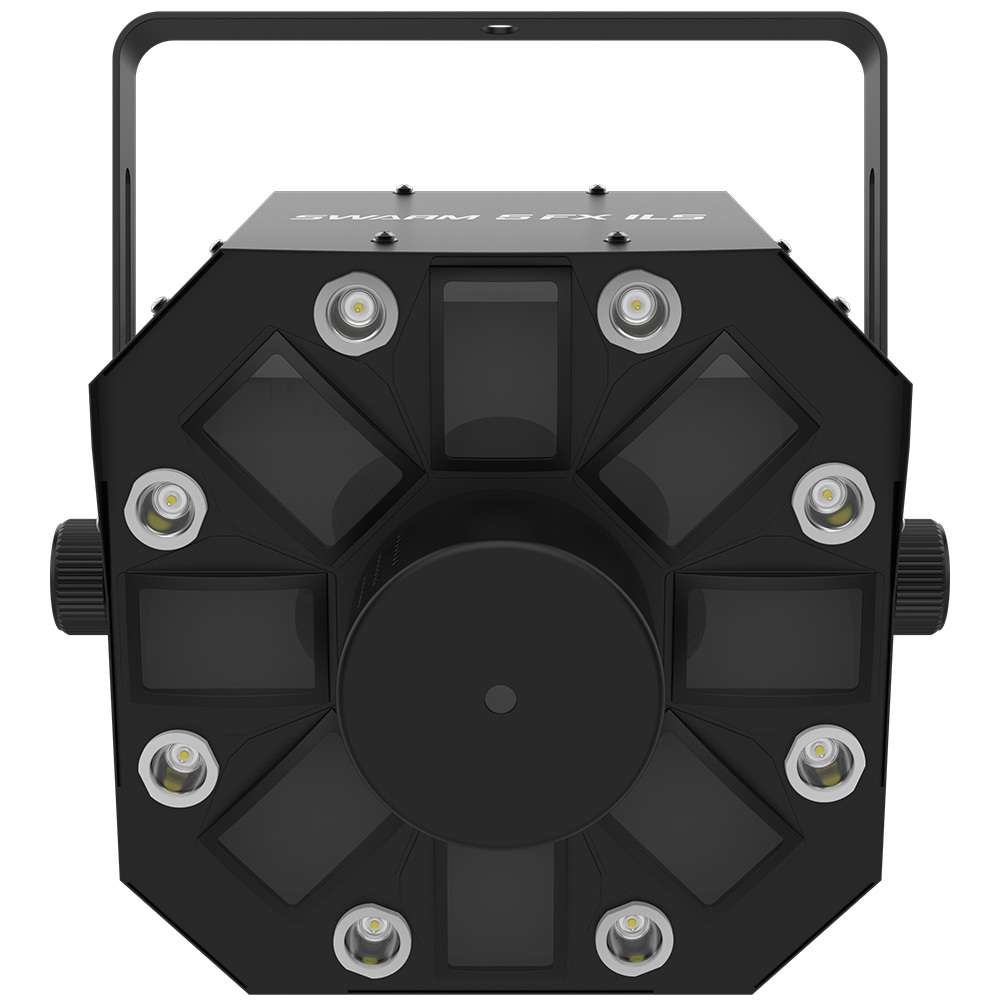

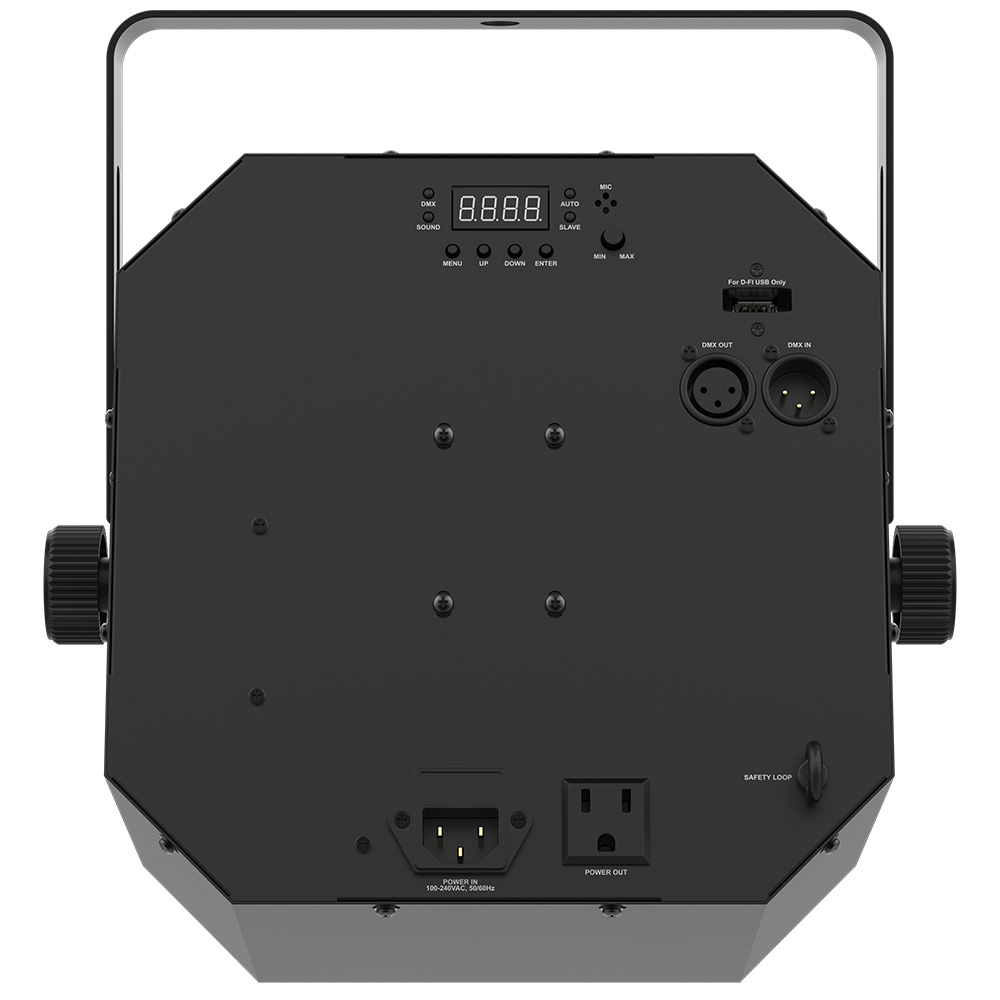

Chauvet DJ Swarm 5 FX ILS Multi-Effect Light Fixture

Your parties deserve the excitement of Swarm 5 FX ILS. This 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect and compatibility with the cutting edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Swarm 5 FX ILS is also D-Fi USB compatible for use with the wireless ILS connection, and wireless Master/Slave or DMX control. Flexibility is even greater with automated and sound-activated programs, or Master/Slave and DMX modes and separate color and program control.

FEATURES

• 3-in-1 LED light that includes an RGBAW rotating derby, red green laser, and white strobe effect

• D-Fi USB compatibility for wireless Master/Slave or DMX control

• Integrated Lighting System (ILS) compatible with wireless connection via D-Fi USB

• Laser projects thousands of red and green laser beams

• Operation allows for separate colour and program control

• Increase control options using automated and sound activated programs, or Master/Slave and DMX modes

• Save time running cables and extension cords by power linking multiple units

• Fits best inside the CHS-40 VIP gear bag

SPECIFICATIONS

DMX Channels: 9
DMX Connectors: 3-pin XLR
Light Source (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), 50,000 hours life expectancy
Light Source (Strobe): 8 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
Light Source (Laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
Strobe Rate: 0 to 20 Hz
Beam Angle (Strobe): 17°
Field Angle (Strobe): 35°
Coverage Angle (Laser): 100°
Coverage Angle (Swarm): 65°
Illuminance (Strobe): 823 lux @ 2 m
Power Linking: 26 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 62 W, 0.3 A @ 230 V, 50 Hz
Weight: 4.5 kg
Size: 248 x 298 x 310 mm

WHAT'S INCLUDED

• Swarm 5 FX ILS

• Power cord

• User Manual
