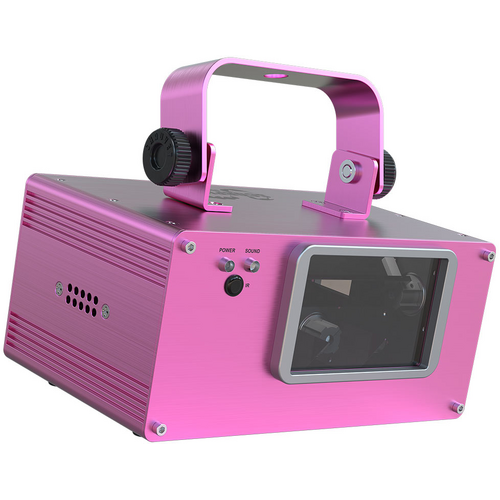

Chauvet DJ Scorpion Dual ILS RGB Laser

Let your lighting creativity run wild with Scorpion Dual RGB ILS, a Dual RGB FAT BEAM™ aerial effect laser that generates customized and ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling effects and scan speed adjustment. This laser features 32 built-in patterns, including the popular “Laser Sky” effect offers perfect color combinations by mixing red, green, and blue laser diodes. Its unique dual mirror output makes a great centerpiece or side accent in pairs. Scorpion Dual RGB ILS has ILS compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. The Scorpion Dual RGB ILS is also D-Fi USB compatible for use with the wireless ILS connection, and wireless Master/Slave or DMX control.. Scorpion Dual RGB ILS is fully FDA compliant, variance-free, and ready to use right out of the box. Easily operate Scorpion Dual RGB ILS in automatic, Master/Slave, manual or sound-activated mode. Wireless control is also possible using the optional IRC-6 remote.

FEATURES

• Dual RGB FAT BEAM™ aerial effect laser, perfect for events with fog or haze

• Integrated Lighting System (ILS) compatible with wireless connection via D-Fi USB

• Create perfect colour combinations by mixing red, green, and blue laser diodes

• Unique dual mirror output that makes a great centrepiece or side accent in pairs

• 32 built-in patterns, including the popular “Laser Sky” effect

• Wireless control using the optional IRC-6 remote

• Generate customized and ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling effects and scan speed adjustment

• Easily operate in automatic, Master/Slave, manual or sound-activated mode

• Fits best in the CHS-40 VIP gear bag

SPECIFICATIONS

DMX Channels: 10
DMX Connectors: 3-pin XLR
Pan and Tilt: 30°/30°
Light Source: 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
Strobe Rate: 0 to 27 Hz
Coverage Angle: 36°
Zoom Angle: 1° to 29°
Power Linking: 48 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 19 W, 0.2 A @ 230 V, 50 Hz
Bracket Mounting Hole: M12
Ambient Operating Temperature: 15 °C to 35 °C
Optional Controllers: IRC-6

WHAT'S INCLUDED

• Scorpion Dual RGB ILS

• Power cord

• Quick Reference Guide
