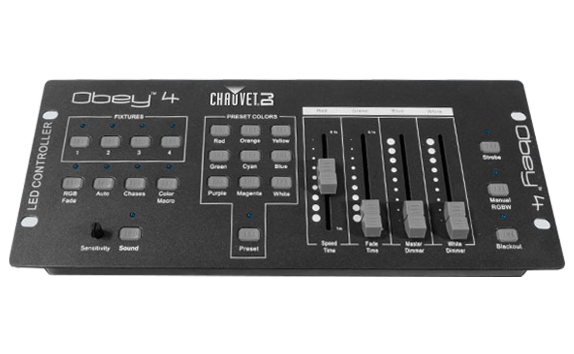

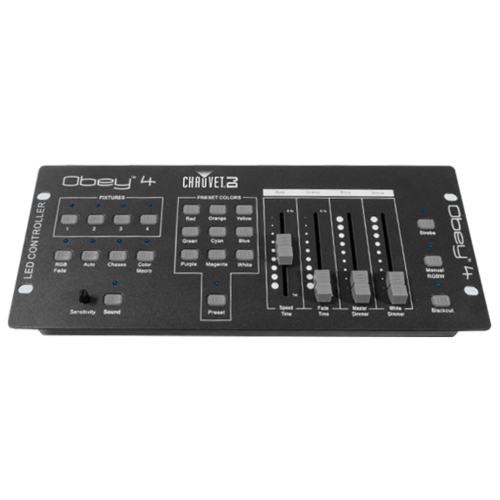

Chauvet DJ Obey 4 DMX Controller

It’s a compact DMX controller for LED wash lights with 3- or 4-channel modes—red, green, blue and white/amber—for easy color-mixing control. It has built-in automated, sound-activated or manual playback options and can control fixtures in four different zones—independently of each other. Its one-touch buttons of pre-mixed colors, built-in chases and strobe and dimmer controls make it perfect for a lighting novice or anyone looking for an easy way to control LED washes.

HIGHLIGHTS

• Compact DMX controller designed for LED fixtures with up to 4 channels

  • Channel 1: red

  • Channel 2: green

  • Channel 3: blue

  • Channel 4: white (or amber)

• Easily controls up to 4 separate fixtures

• Increase effects by simultaneously operating each fixture in different playback modes with variable fade times

• Increase flexibility with playback options that include manual RGBA/RGBW, automated and sound-activated mode

• Playback modes:

  • Preset: 9 built-in colors

  • Chases: manually trigger automated programs

  • Color macro: manually scroll through the color spectrum

  • RGB fade: automatically scroll through the color spectrum

  • RGB fade delay: automatically scroll through the color spectrum with a small delay to each fixture

  • Auto: randomly selects different colors for each fixture

• Increase control with adjustable audio sensitivity as well as strobe and blackout effects

SPECIFICATIONS

• DMX Channels: 16

• DMX Connectors: 3-pin XLR

• Strobe Rate: 0 to 33 Hz

• Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)

• Weight: 3 lb (1.4 kg)Size: 12.8 x 5.5 x 2.1 in (325 x 140 x 52 mm)

• Approvals: CE

WHAT'S INCLUDED

• External power supply

• Quick Reference Guide

• Warranty card
