Chauvet DJ GigBAR Move ILS LED Lighting System

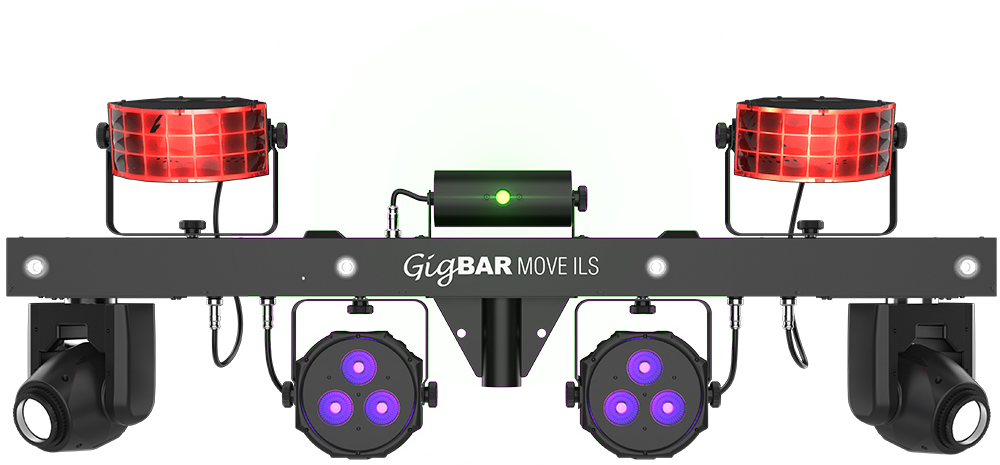

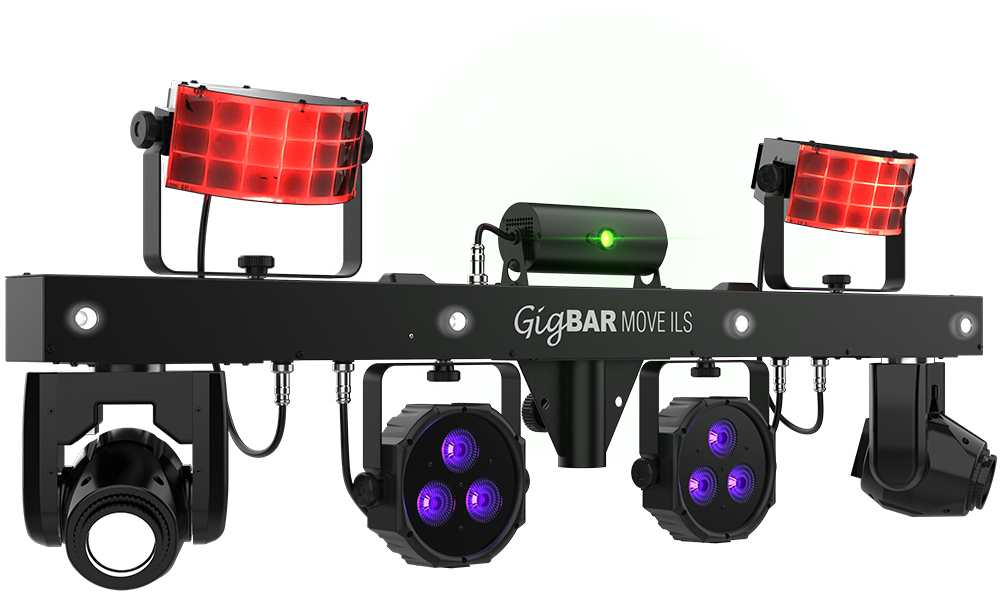

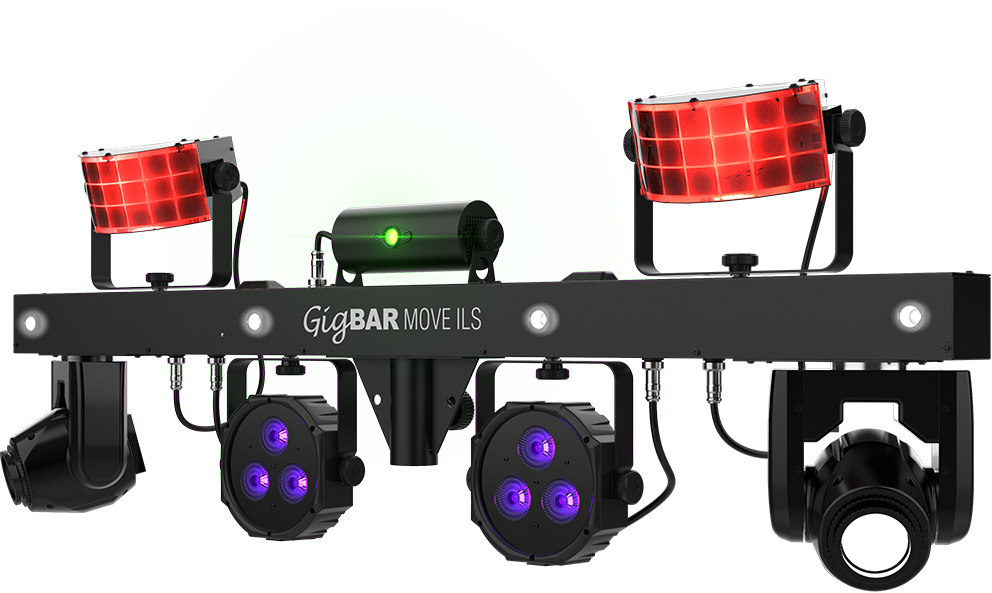

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar

• Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types

• Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver

• Use the included RF remote to trigger the built-in shows without needing line of sight

• Separate color and gobo wheels in moving heads allow for creative programming

• Totem Mode keeps the moving heads focused on the dance floor

• Easy navigation and access to all functions, directly from the full-color LCD display

• Safely mounts to truss or ceilings using the 3/8 in threaded inserts

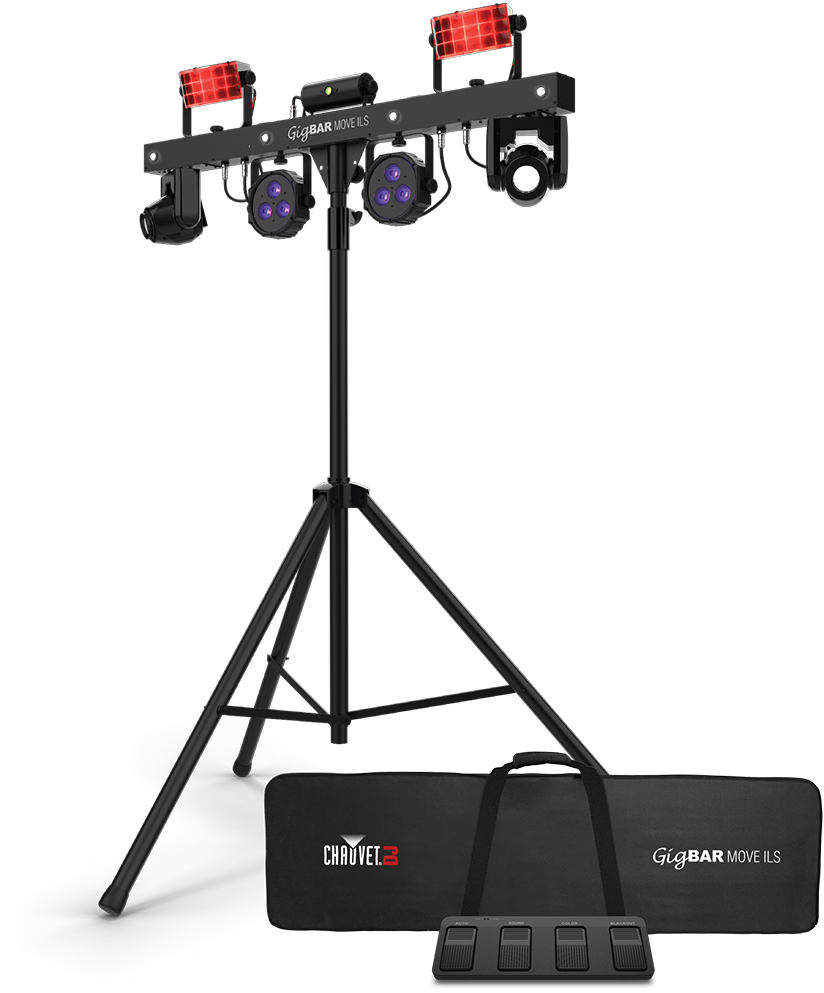

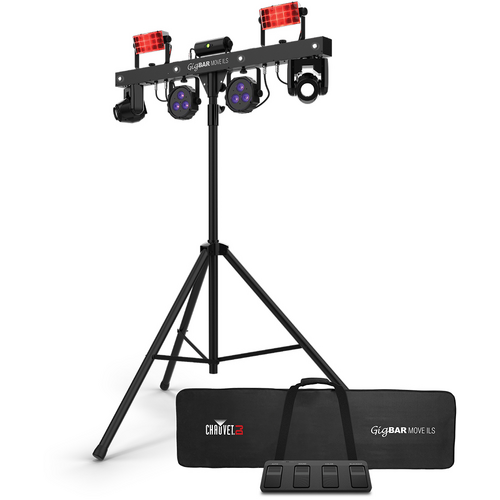

• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup

• Built-in UV LEDs illuminate florescent objects and make them pop

• Individual control of each effect ensures your show looks the way you need it to

• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

DMX Channels: 3, 27 or 46
DMX Connectors: 3- pin XLR
Pan and Tilt: 540°/180°
Colors: (moving head): 7 + white, continuous scroll at variable speeds
Gobos: (moving head): 7 + open, continuous scroll at variable speeds
Light Source:
Pars: 3 LEDs (quad-color RGB+UV) 3.5 W (1 A), 50,000 hours life expectancy
Strobe: 4 LEDs (white & UV) 5 W (1 A), 50,000 hours life expectancy
Derby: 6 LEDs (2 red, 2 green, 2 blue) 1 W (1 A), 50,000 hours life expectancy
Moving Head: 1 LED (cool white) 10 W (2.3 A), 50,000 hours life expectancy
Laser: 650nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
Strobe Rate: 0 to 20 Hz
Beam Angle:
Moving Head: 11°
Pars: 19°
Strobe: 8°
Field Angle:
Pars: 30°
Strobe: 18°
Coverage Angle:
Derby: 131°
Laser: 93°
Fits Tripod Size: 37.4 mm
Illuminance:
Pars: 1,205 lux @ 2 m (per par)
Moving Head: 1056 lux @ 2 m (per head)
Strobe: 86 lux @ 2 m (per LED)
Power Linking: 12 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 79 W, 0.6 A @ 230 V, 50 Hz
Weight: 10.7 kg
Size: 1100 x 144 x 449 mm
Approvals: CE, RoHS, UKCA, FDA, FCC
Stand Height: 1.5 to 2.5 m
Tripod leg width: 1.2 m
Footswitch Operating Frequency: 433 MHz
Foot Switch Max Unobstructed Distance: 30.5 m
Footswitch battery: 9 V alkaline
Included Controllers: RF remote, wireless footswitch

WHAT'S INCLUDED

• GigBAR Move ILS

• Power cord

• Carrying bag

• Tripod

• Footswitch

• RF Remote

• Quick Reference Guide

• Key and interlock (EU)
