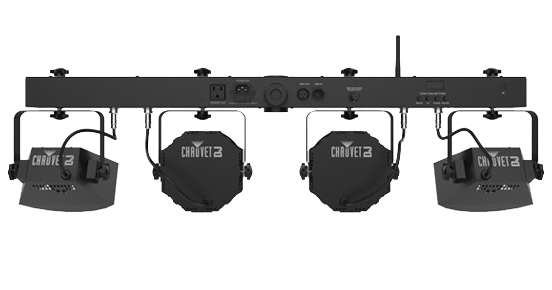

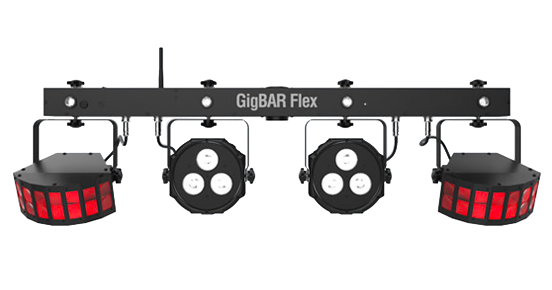

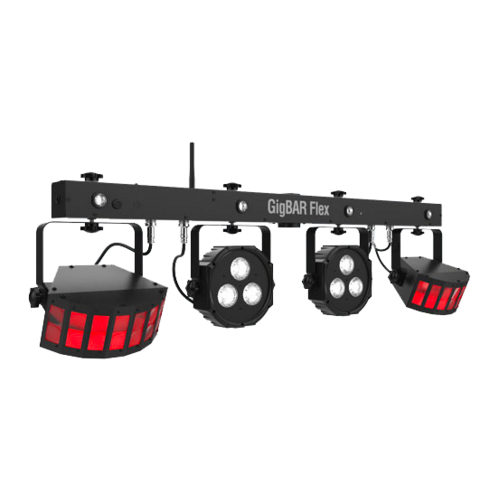

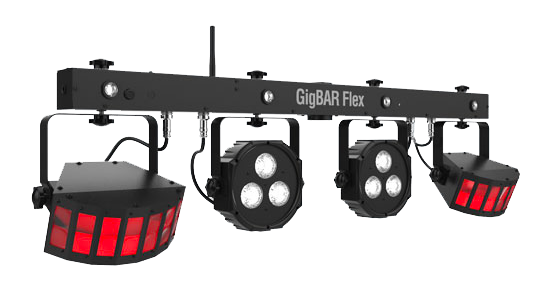

Chauvet DJ GigBAR Flex LED Lighting System

GigBAR Flex is an ultra-convenient 3-in-1 Pack-n-Go lighting system with a pair of LED Derbys, LED Quad-color pars (RGB + UV for increased color mixing and effects) and strobes. A pass-through mounting hole for flexible mounting options with various stage and speaker stands and adjustable leg brackets adds versatility.

HIGHLIGHTS

• 3-in-1 fixture includes a pair of LED Derby, LED pars and strobe effect for ultimate convenience

• Pass-through mounting hole for flexible mounting options with various stage and speaker stands

• Built-in UV (blacklight) for increased color mixing and effects

• Four individually adjustable heads provide wide room coverage and lighting versatility

• Wireless footswitch for convenient hands-free control

• Built-in automated and sound-activated programs make dynamic light shows easy

• Get in and get out quickly with the included wireless footswitch and FREE carry bag

• Master/slave multiple units under the control of a single IRC-6 or wireless foot switch

SPECIFICATIONS

• DMX Channels: 3, 8 or 20

• DMX Connectors: 3-pin XLR

• Light Source: (pars): 6 LEDs (quad-color RGB + UV) 3.5 W (1 A), 50,000 hours life expectancy

• (strobe): 4 LEDs (white & UV) 5 W (1.5 A), 50,000 hours life expectancy

• (derby): 6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A), 50,000 hours life expectancy

• Strobe Rate: 0 to 18 Hz

• Beam Angle: (pars): 13°

• (strobe): 8°

• Field Angle: (pars): 24°

• (strobe): 18°

• Coverage Angle: (derby): 114°

• Illuminance: (pars): 1,078 lux @ 2 m (per head)

• (strobe): 86 lux @ 2 m (per zone)

• Power Linking: 12 units @ 120 V; 22 units @ 230 V

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 45 W, 0.7 A @ 120 V, 60 Hz

• 46 W, 0.4 A @ 230 V, 50 Hz

• Weight: 11 lb (5 kg)

• Size: 37 x 4 x 15 in ( 949 x 110 x 388 mm)

• Approvals: CE

• Foot Switch Operating Frequency: 433 MHz

• Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)

• Footswitch battery: 12 V A 23

WHAT'S INCLUDED

• GigBAR Flex

• Power cord

• Carrying bag

• Wireless footswitch

• IRC-6
