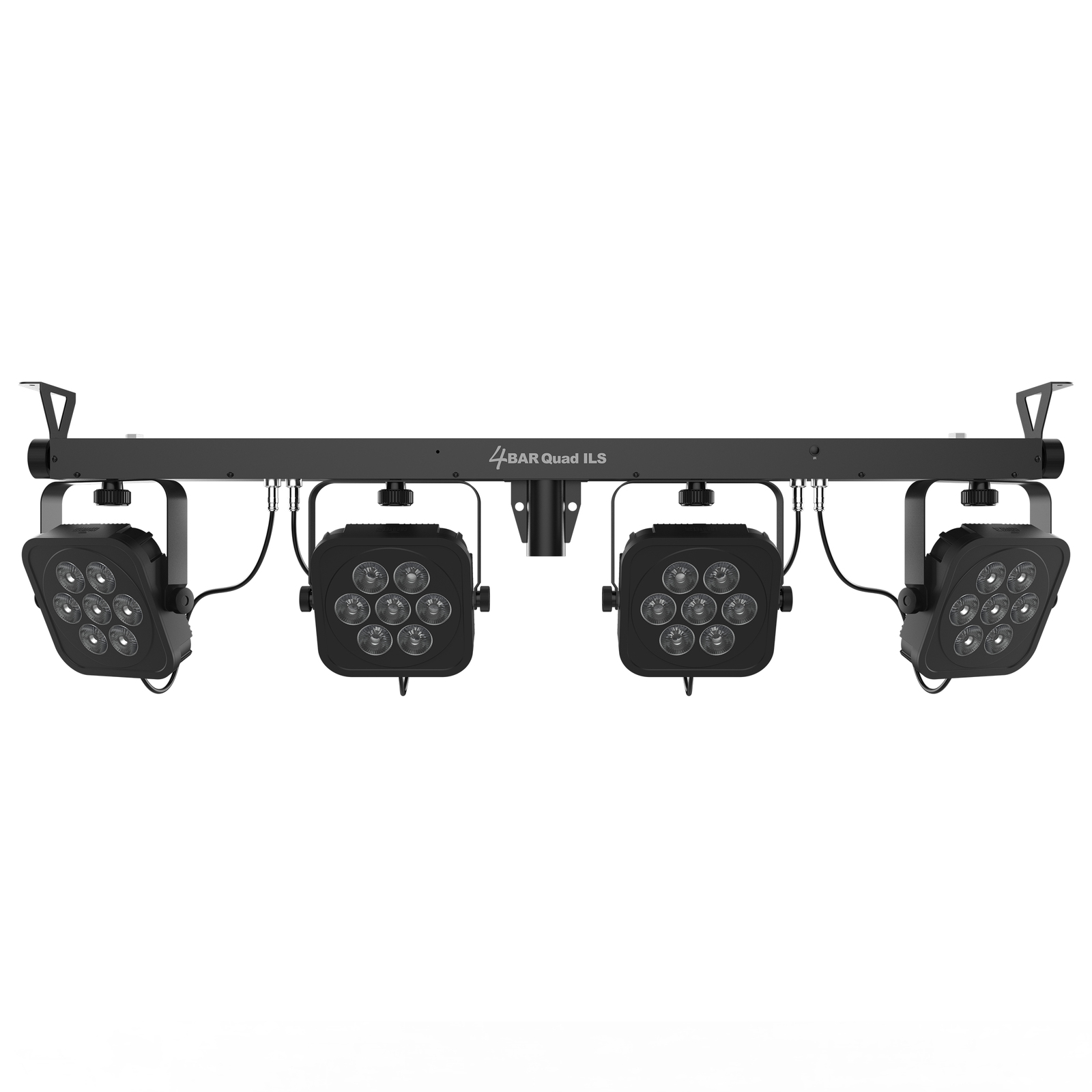

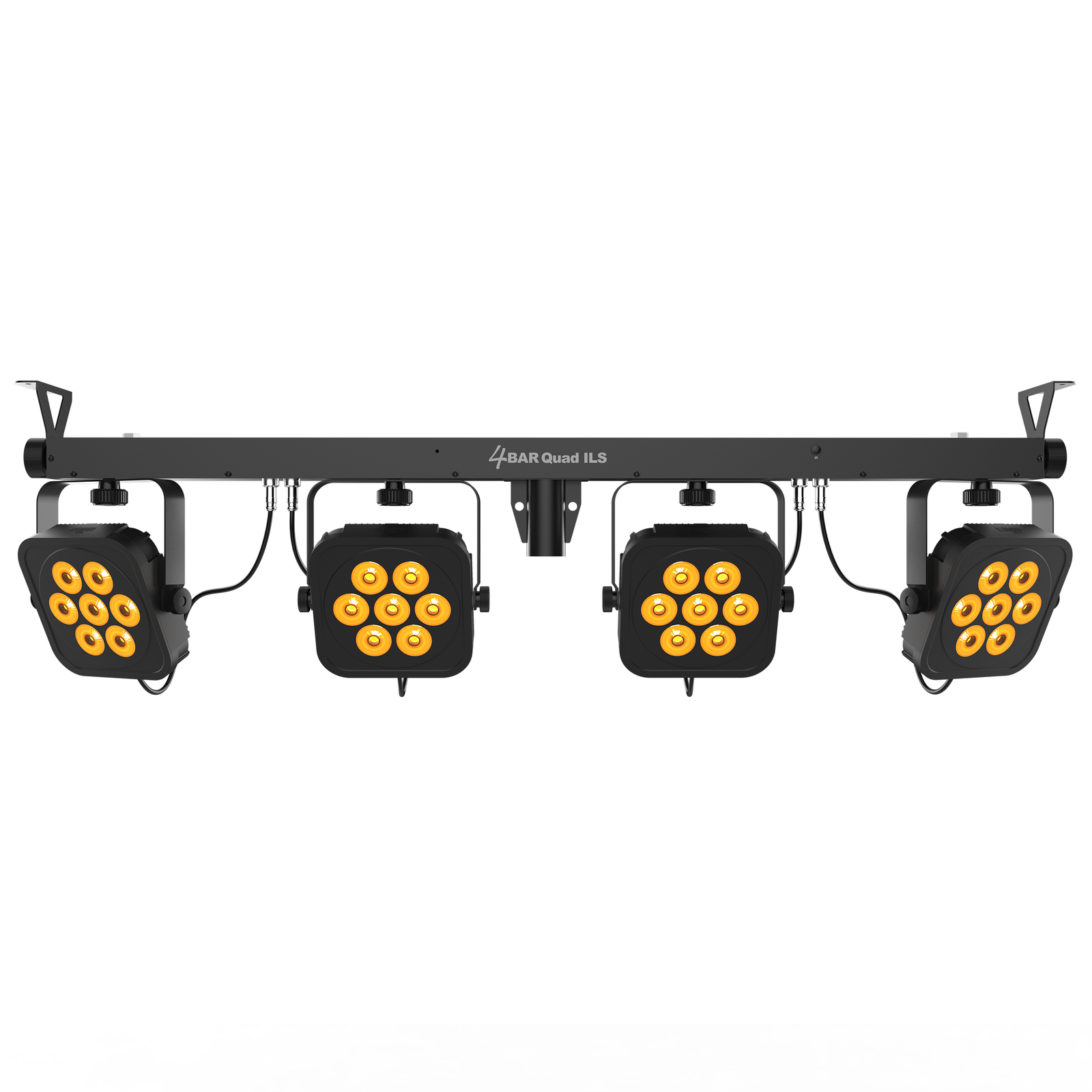

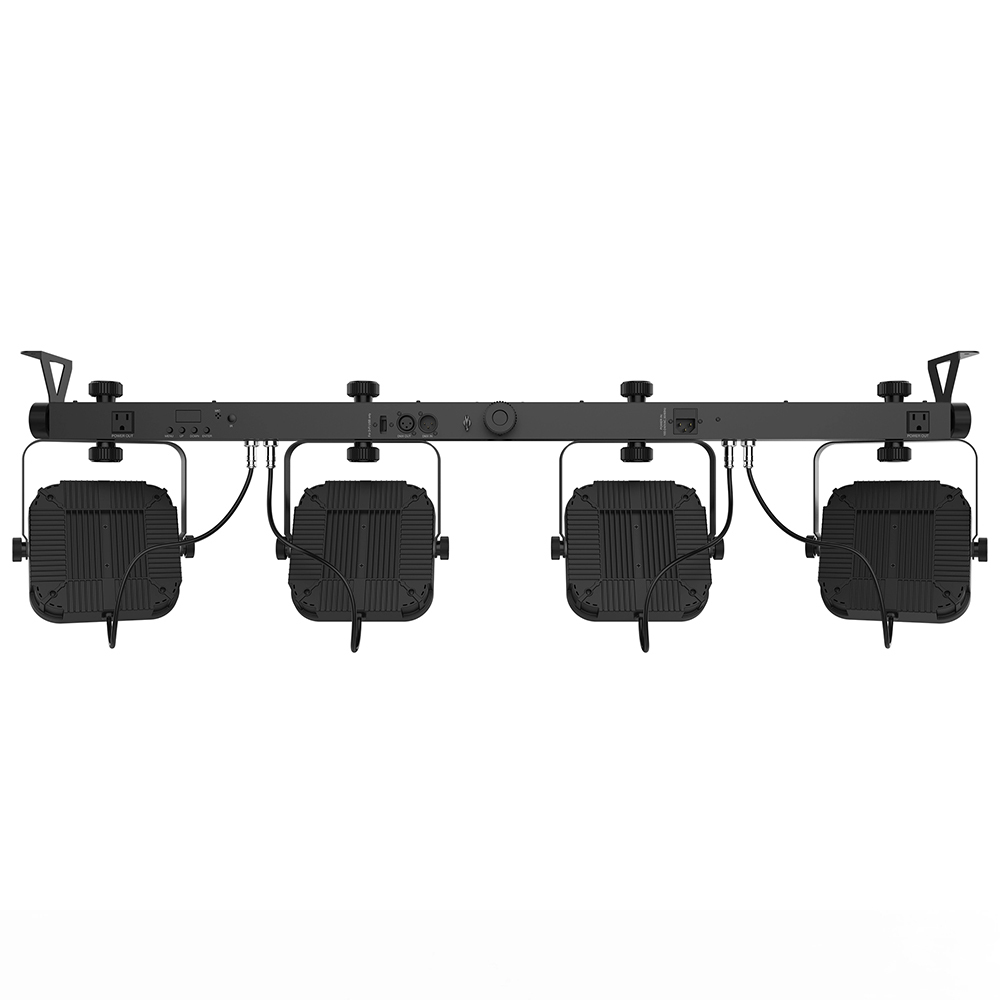

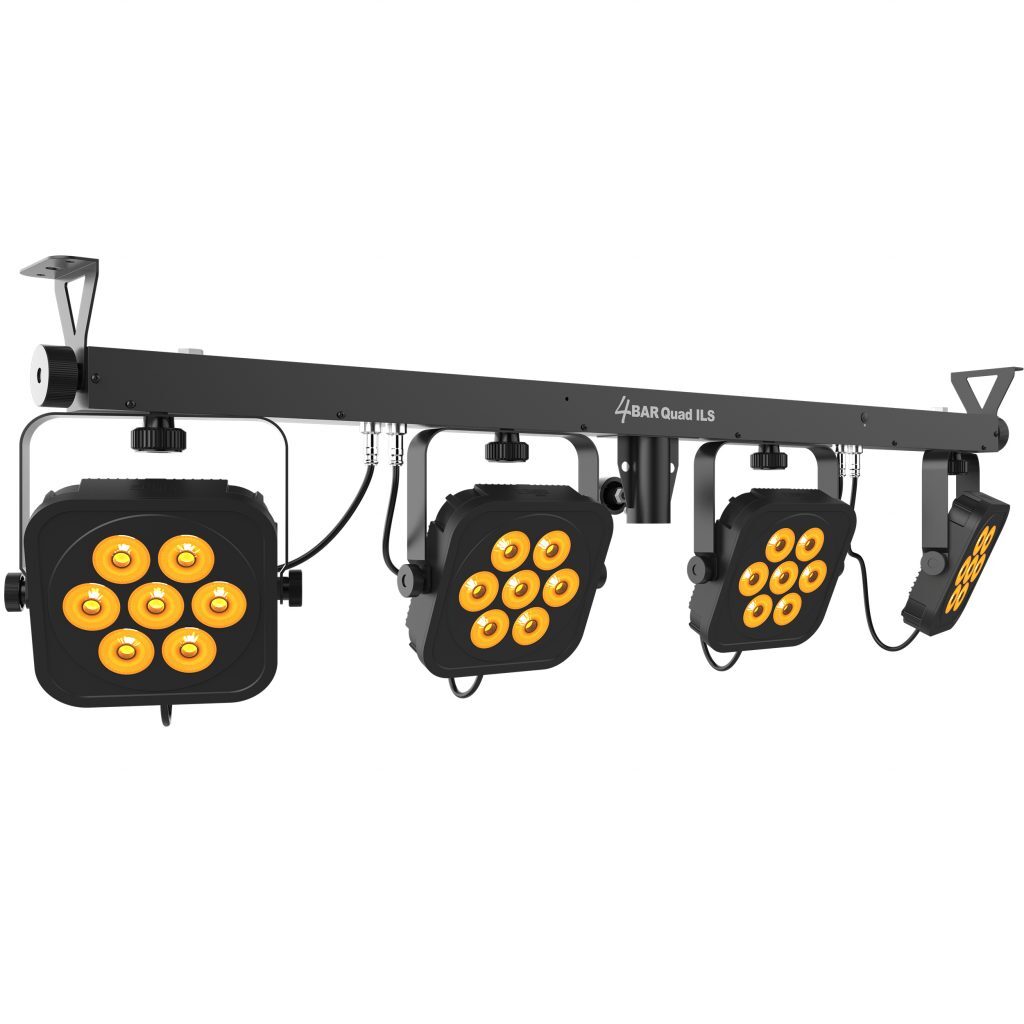

Chauvet DJ 4Bar Quad ILS LED Lighting System

The Chauvet DJ 4BARQUADILS is a complete wash lighting solution fitted with high-intensity quad-colour (RGBA) LEDs. In fact, it can be controlled wirelessly out of the box via the included footswitch or optional IRC-6 controller.

But for real convenient control, utilise the 4BARQUADILS’s compatibility with the Integrated Lighting System (ILS). Specifically, it makes creating coordinated light shows across an unlimited number of different fixture types easy and fast. Therefore, you will have more control, in a way thats easier than ever.

Above all, the 4BARQUADILS generates natural, warm colour temperatures with punchy ambers. Also, it can generate a broad spectrum of colours and achieve a great total area coverage.

Furthermore, the 4BAR Quad ILS is compatible with D-Fi USB for wireless Master/Slave or DMX programming. Also, included is a convenient tripod and carry bag are for effortless setup and quick tear-down. The 4BAR Quad ILS safely attaches to truss with built-in bolts, easily increasing mounting options.

FEATURES

• Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs

• ILS compatibility for use in the ILS ecosystem

• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

• Out of the box wireless control with included footswitch or optional IRC-6 controller

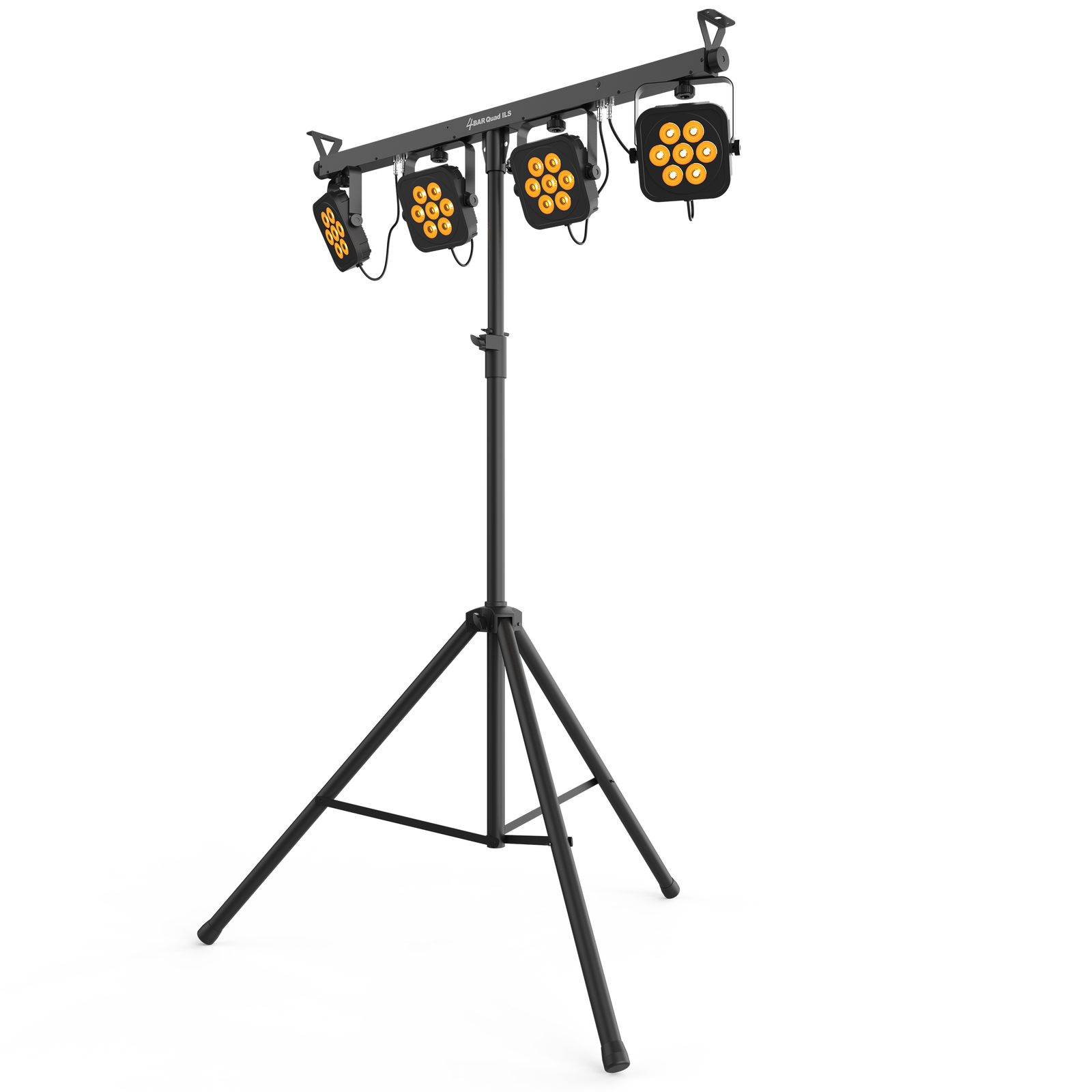

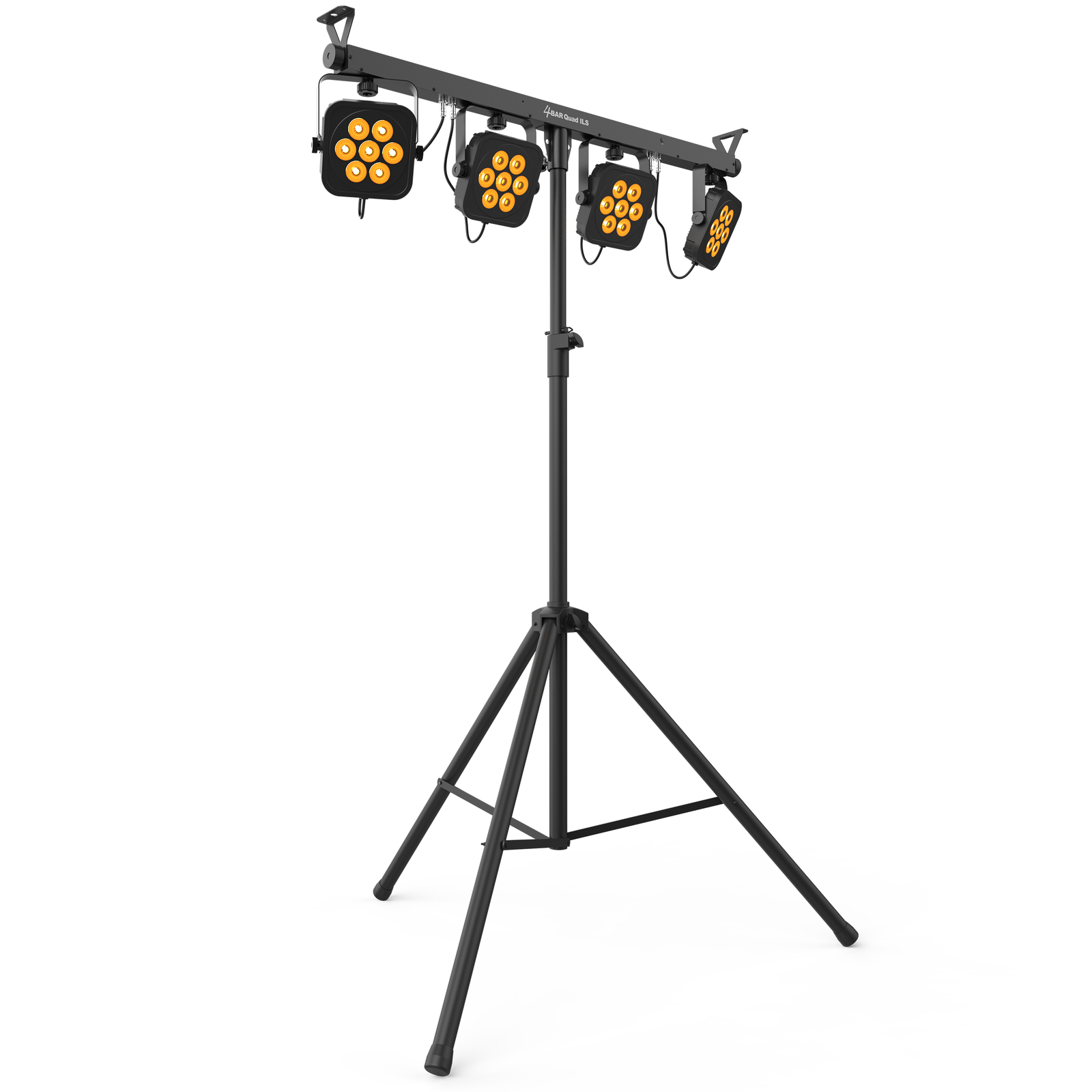

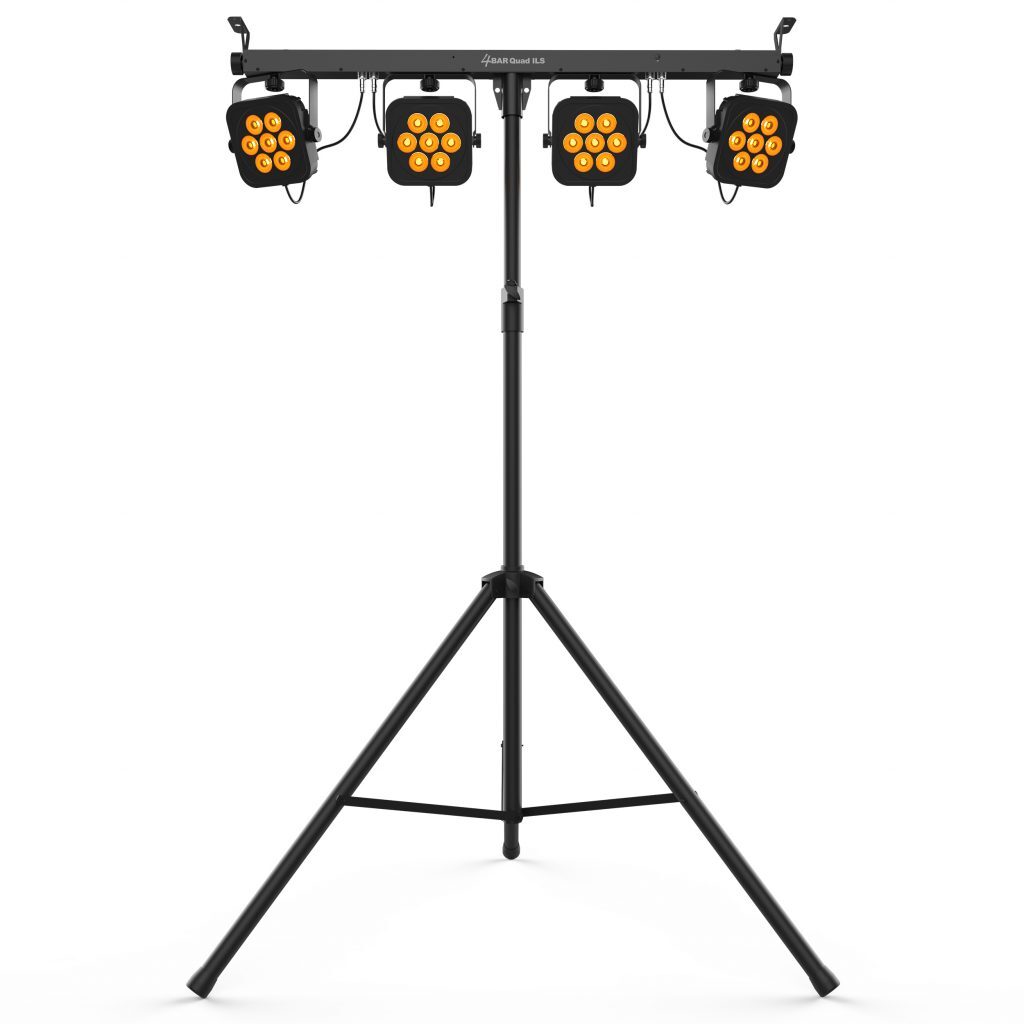

• Easily set up and tear down in minutes with the included tripod stand and carrying bags

• D-Fi™ USB compatibility for wireless Master/Slave or DMX control

• Achieve total room or stage coverage with 4 individually adjustable heads

• Increase mounting options by safely mounting to truss using built-in bolts

SPECIFICATIONS

DMX Channels: 4, 6 or 19
DMX Connectors: 3-pin XLR
Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Beam Angle: 14°
Field Angle: 23°
Illuminance: 2,353 lux @ 2 m (per pod)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 78 W, 0.6 A @ 230 V, 50 Hz
Weight: 5.5 kg
Size: 1186 x 50.8 x 305 mm
Approvals: CE, RoHS, UKCA
Operating Frequency (D-Fi): 2.412 to 2.484 GHz
Operating Frequency (foot switch): 433 MHz
Max Unobstructed Distance (foot switch): 30.5 m
Footswitch battery: 9 V
Stand Height: 2.2 m
Fits Tripod Sizes: 36.80 mm
Bracket Mounting Hole: M10 (1.5 mm pitch)
Weight (Controller): 0.6 kg
Size (Controller): 419 x 132 x 38 mm
Optional Controllers: IRC-6, D-Fi USB

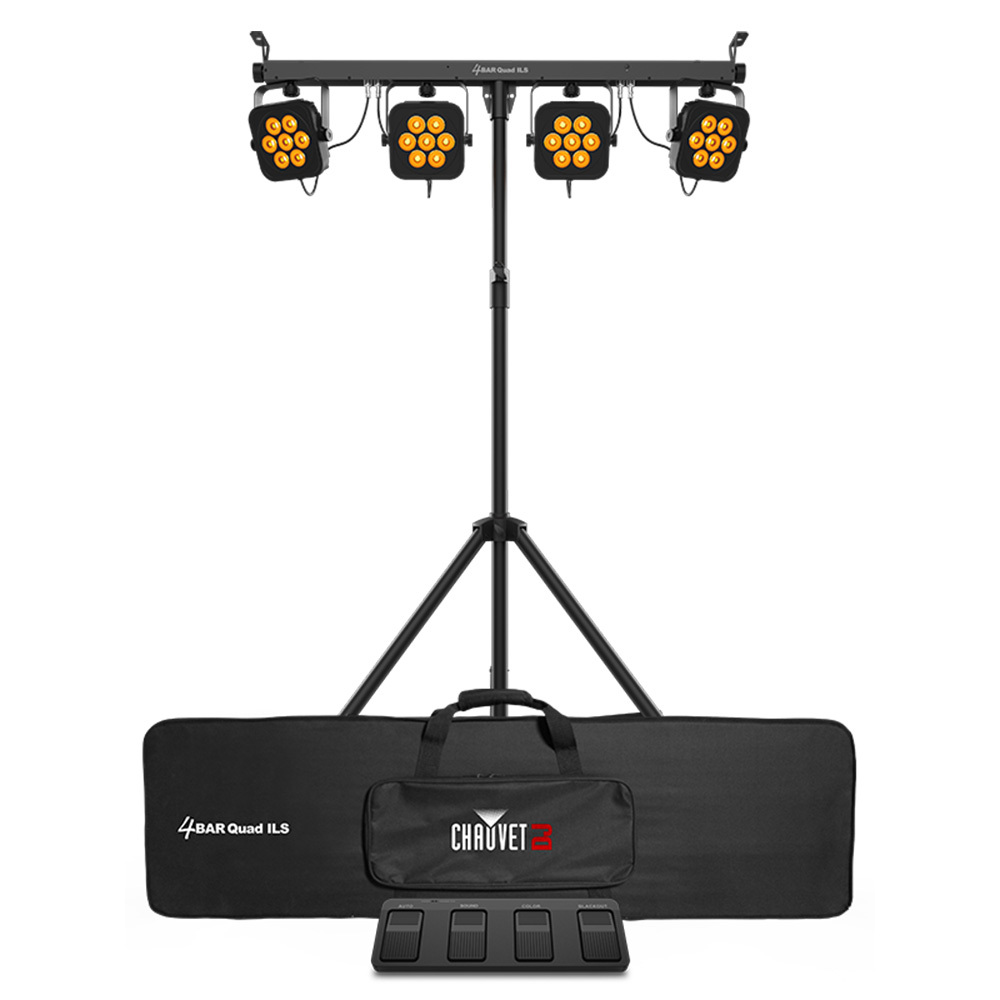

WHAT'S INCLUDED

• 4Bar Quad ILS

• Power cord

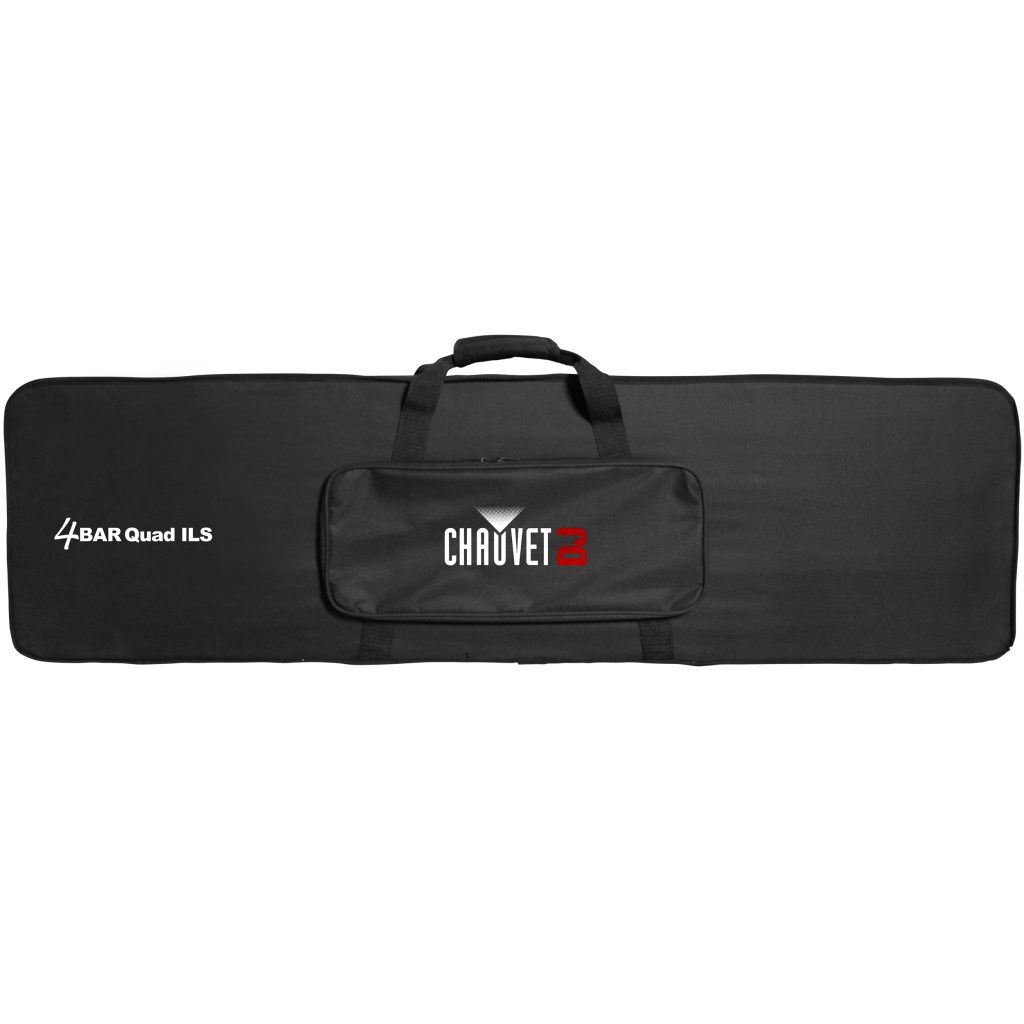

• Carrying bag

• Tripod

• Tripod Carry bag

• Wireless Footswitch

• Quick Reference Guide
