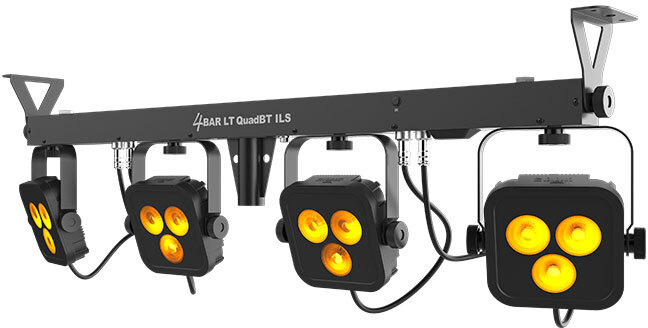

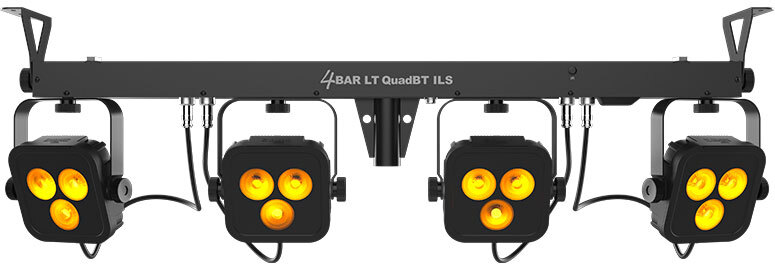

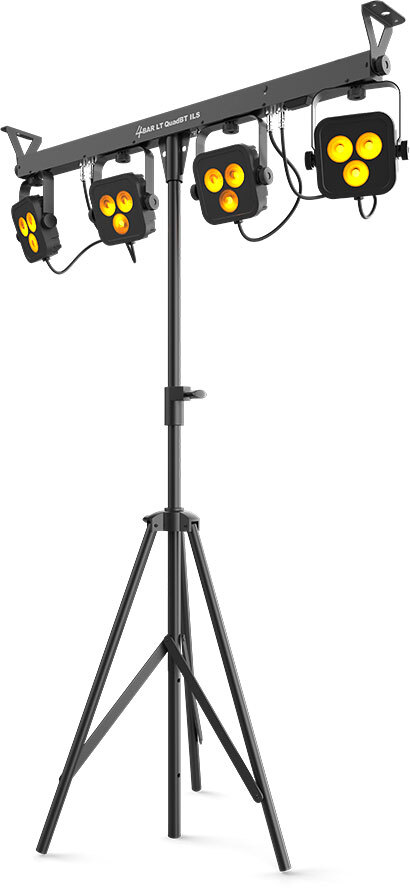

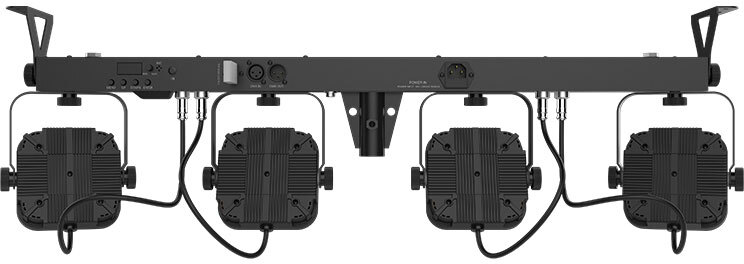

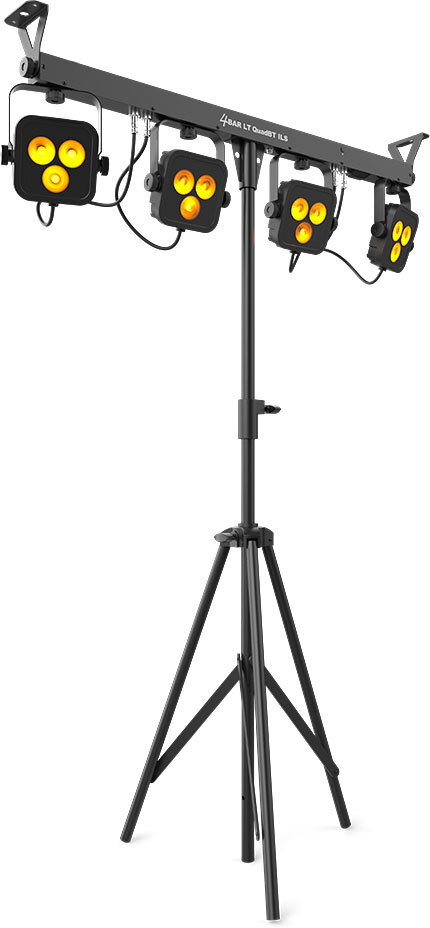

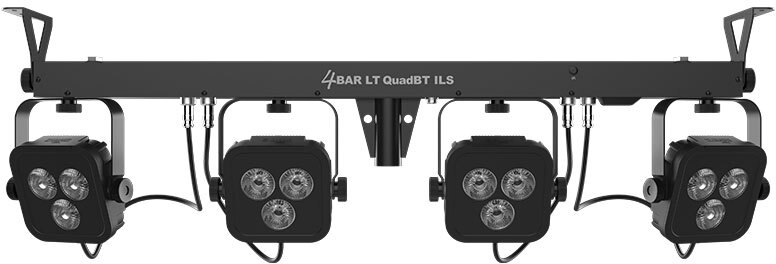

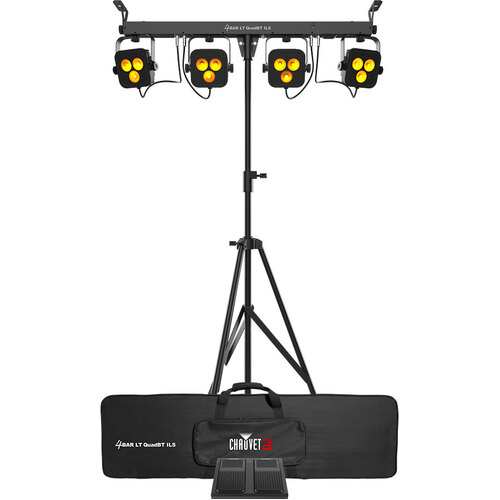

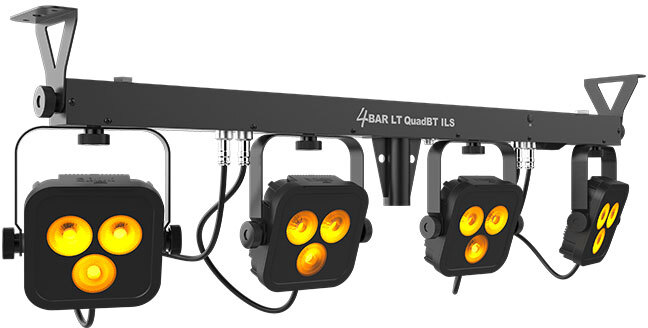

Chauvet DJ 4Bar LT QuadBT ILS LED Lighting System

The ILS ecosystem grows with the addition of the 4Bar LT QuadBT ILS, a complete, pack-n-go wash lighting solution with built-in Bluetooth® wireless technology. This quad-color (RGBA) fixture has 4 individually adjustable heads to achieve total room or stage coverage and the color-mixing power of amber LEDs. Easily set up and tear down in seconds with the included tripod, carry bags, and footswitch. 4Bar LT Quad BT ILS is compatible with D-Fi USB for wireless Lead/Follow or DMX programming. 4Bar LT QuadBT ILS safely attaches to truss with built-in bolts, easily increasing mounting options.

FEATURES

• Complete wash lighting solution with built-in Bluetooth® wireless technology

• Control directly from a smart phone or tablet without any additional hardware

• ILS compatibility for use in the ILS ecosystem

• D-Fi USB compatibility for wireless master/slave or DMX control

• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

• Easily set up and tear down in seconds with the included tripod, carry bags and footswitch

• Create large, coordinated light shows with other 4BAR fixtures in master/slave mode

• Achieve total room or stage coverage with 4 individually adjustable heads

• Out of the box wireless control with included footswitch or optional IRC-6 controller

• Sound-activated programs dance to the beat of the music

SPECIFICATIONS

DMX Channels: 4, 6 or 19
DMX Connectors: 3-pin XLR
Max Unobstructed Distance: 25.7 m
Light Source: 12 LEDs (quad-color RGBA) 4 W, (2 A), 50,000 hours life expectancy
Beam Angle: 12°
Field Angle: 21°
Operating Frequency: 2.4 GHz
Illuminance: 2,162 lux @ 2 m (per pod)
Power and Current: 44 W, 0.3 A @ 230 V, 50 Hz
Weight: 3.3 kg
Size: 918.1 x 95 x 274.3 mm
Approvals: CE, FCC, RoHS, UKCA
Stand Height: 127-211 cm
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Fits Tripod Sizes: 1 in (25.4 mm)
Optional Controllers: IRC-6, BTAir
Bluetooth Version: 4.2

WHAT'S INCLUDED

• 4Bar LT QuadBT ILS

• Power cord

• Carrying bag

• Tripod

• Footswitch

• L- bracket

• Quick Reference Guide
