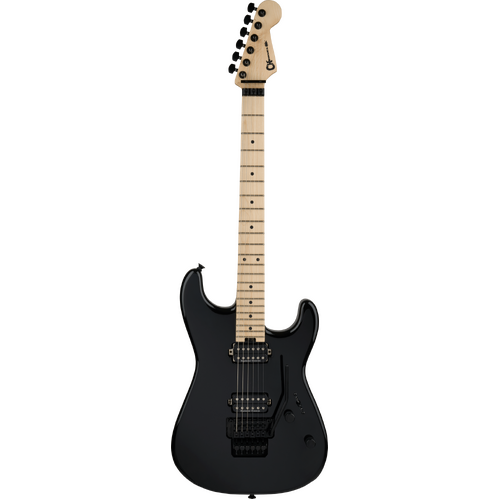

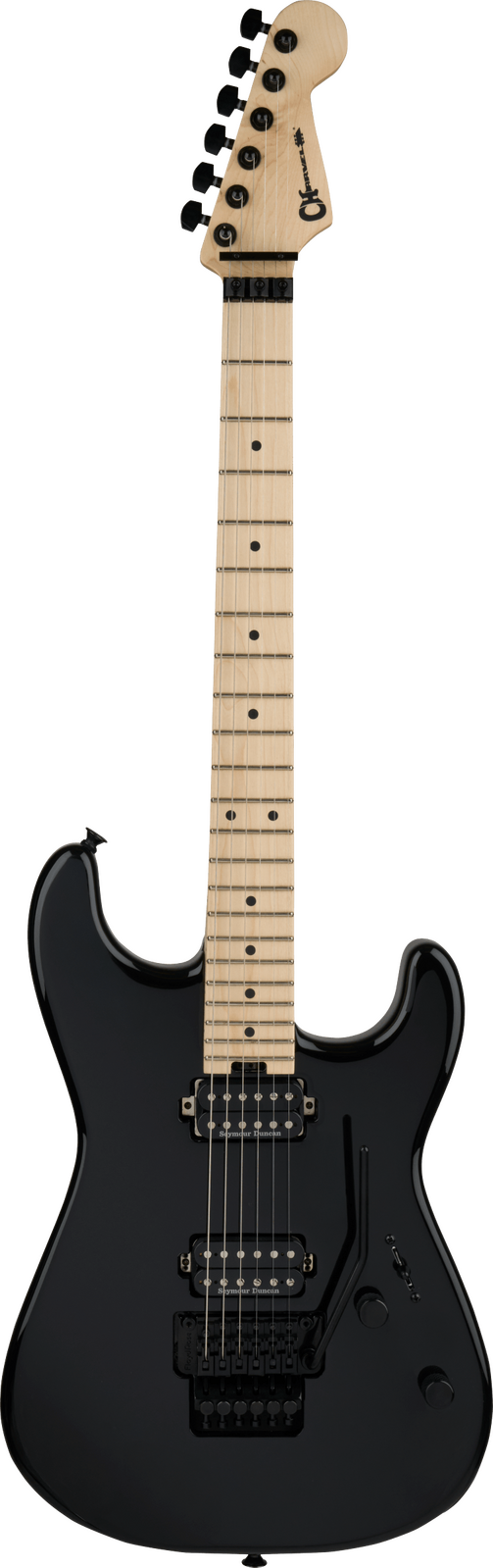

Charvel Pro-Mod San Dimas Style 1 HH FR MPL Gloss Black

Crafted from alder, the body is coupled with a bolt-on maple neck featuring a pair of graphite reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts, while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Perfect for faster tempos, the 12"-16" compound radius maple fingerboard hosts 22 jumbo frets and white dot inlays. For regularly touring musicians, a heel-mount truss rod adjust thumbwheel is a must, allowing for quick and convenient neck relief tweaks.

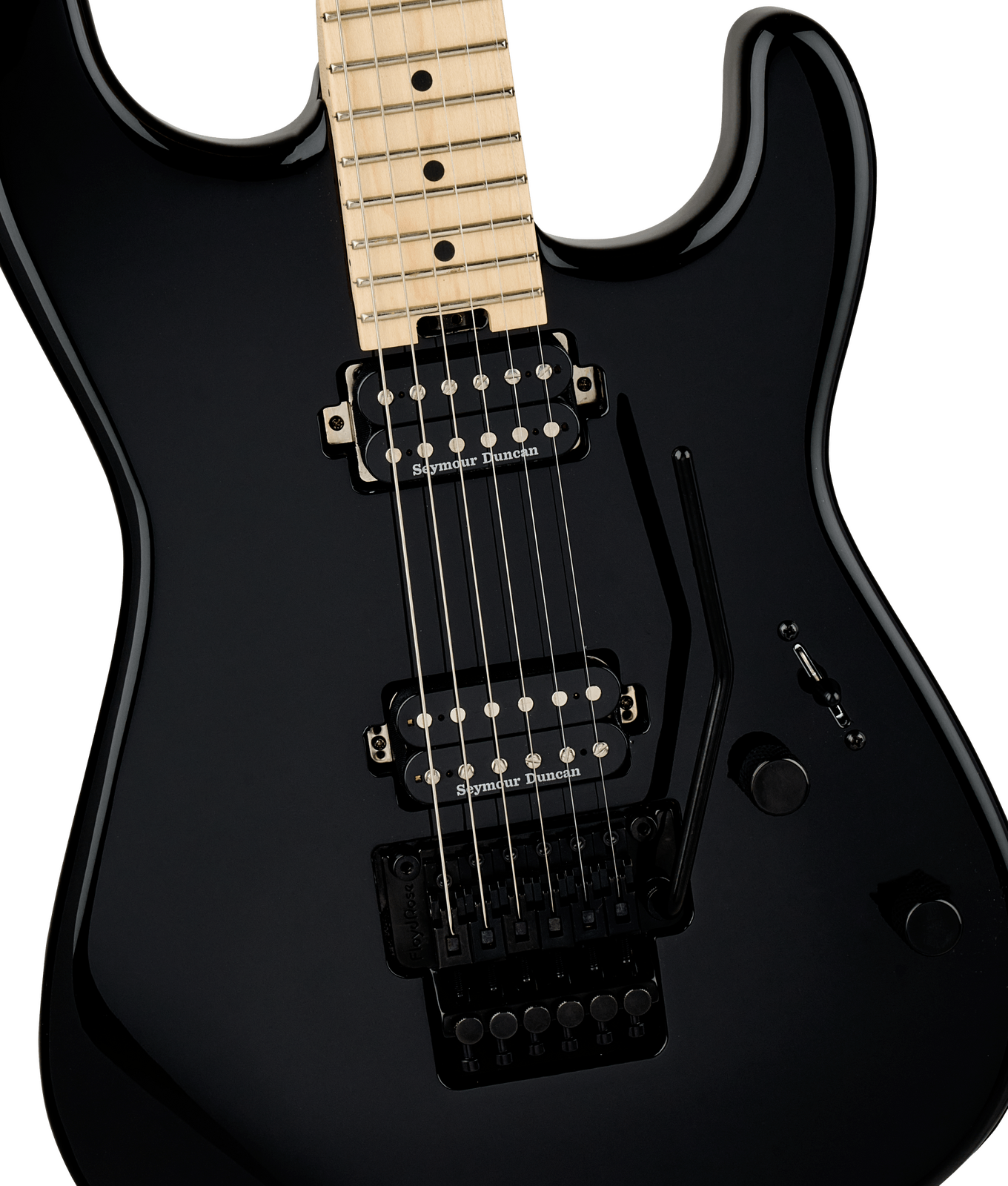

High-output Seymour Duncan® JB and Seymour Duncan '59™ humbucking pickups are directly mounted to the body, cranking out high octane rock 'n' roll tone with plenty of sweet overtones. The volume control conceals a push/pull coil split to have even more tonal variations on tap while the no-load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through. Dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning with the Floyd Rose® 1000 Series double-locking tremolo bridge system.

FEATURES

• Alder body

• Bolt-on maple neck with graphite reinforcement rods

• 12"-16" compound radius maple fingerboard

• 22 jumbo frets

• Heel-mount truss rod adjust thumbwheel

• Seymour Duncan® JB and Seymour Duncan '59™ humbucking pickups

• Volume control with push/pull coil split and no-load tone

• Recessed Floyd Rose® 1000 Series double-locking tremolo

SPECIFICATIONS

General
Series: Pro Mod
Orientation: Right-Hand
Color: Gloss Black
Country Of Origin: MX

Neck

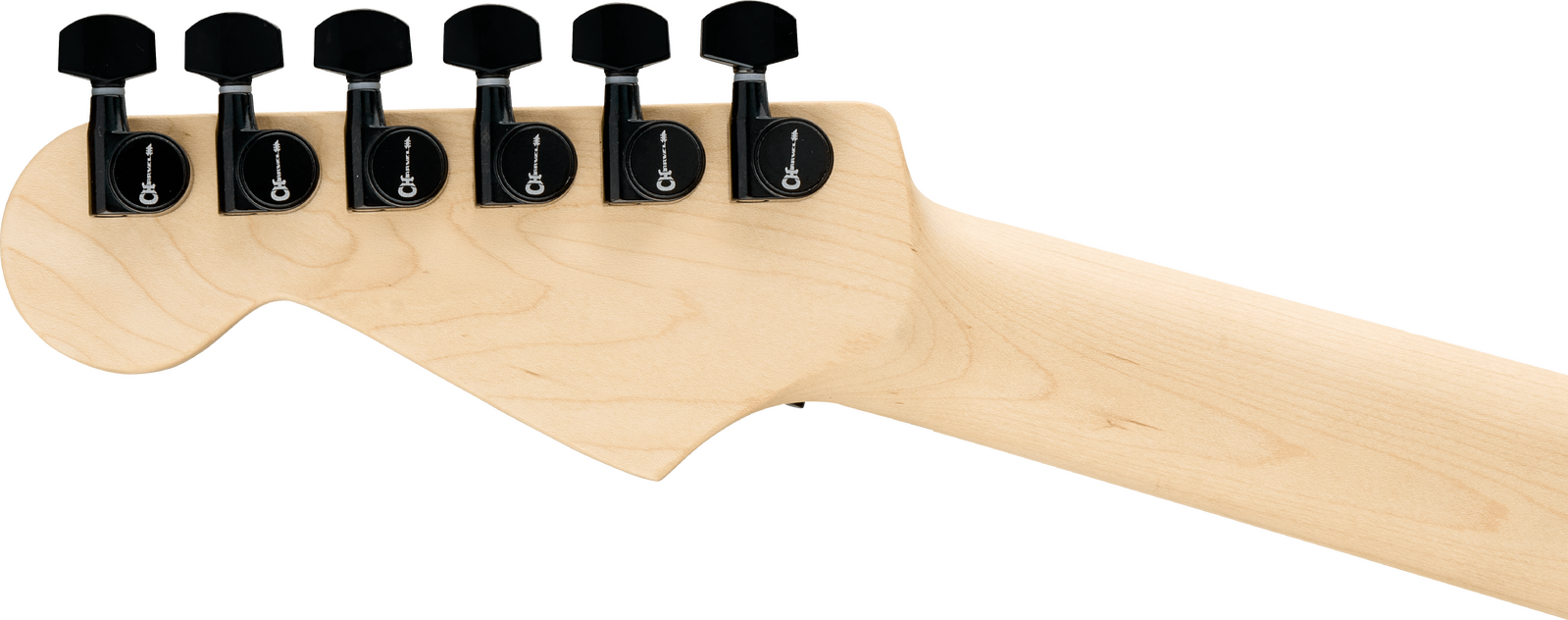

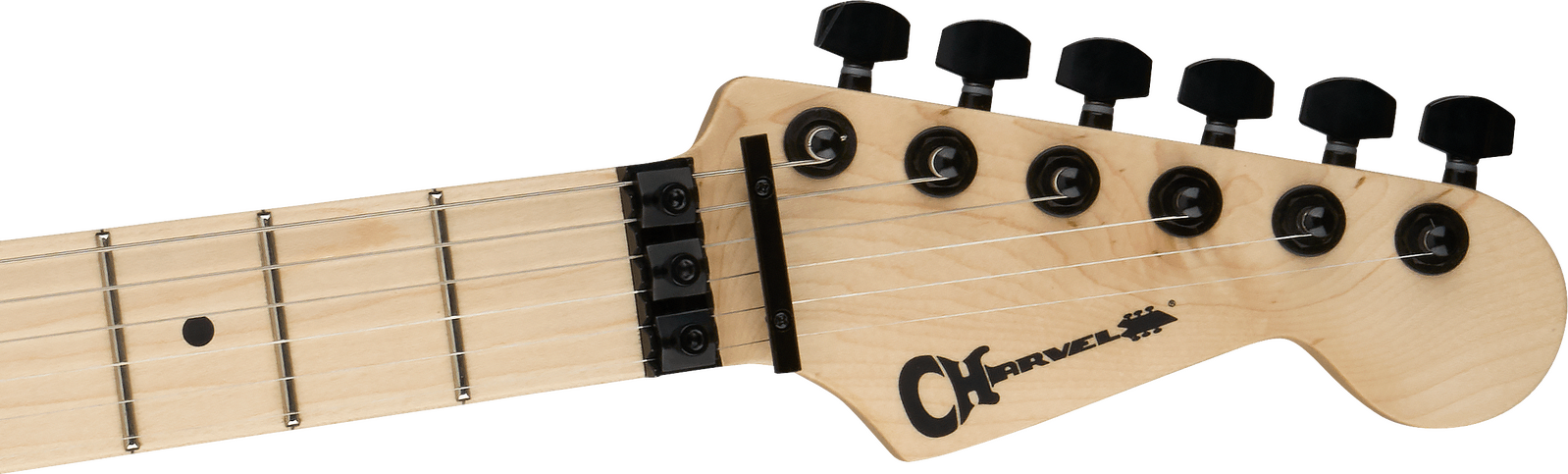

Headstock: Licensed Fender® Stratocaster®
Neck Material: Maple
Neck Finish: Hand-Rubbed Satin Urethane
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Maple
Position Inlays: Black Dot
Number of Frets: 22
Truss Rod: Dual-Action with Wheel
String Nut: Floyd Rose® 1000 Series Locking
Nut Width: 1.6875" (42.86 mm)
Nut Material: Floyd Rose® 1000 Series Locking

Body
Body: Alder
Body Finish: Gloss
Body Shape: San Dimas®
Body Material: Alder

Hardware
Bridge: Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
Pickguard: None
Pickup Covers: Black
Control Knobs: Knurled Flat-Top
Switch Tip: Barrel Style
Hardware Finish: Black
Tuning Machines: Charvel®-Branded Die-Cast
Strings: Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Floyd Rose® FRT O1000 Locking
Neck Plate: Charvel®
Strap Buttons: Standard

Electronics
Bridge Pickup: Seymour Duncan® JB™ TB-4
Neck Pickup: Seymour Duncan® '59™ SH-1N
Pickup Configuration: HH
Controls: Volume (Push/Pull Coil Split), No-Load Tone
Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil

Measurements
Dimensions: 4.50x15.20x42.20 IN
Shipping Weight: 10.70 LB
Fret Size: Jumbo
Scale Length: 25.5" (64.77 cm)
Shipping Length: 42.20 IN
Shipping Height: 4.50 IN
Shipping Width: 15.20 IN
