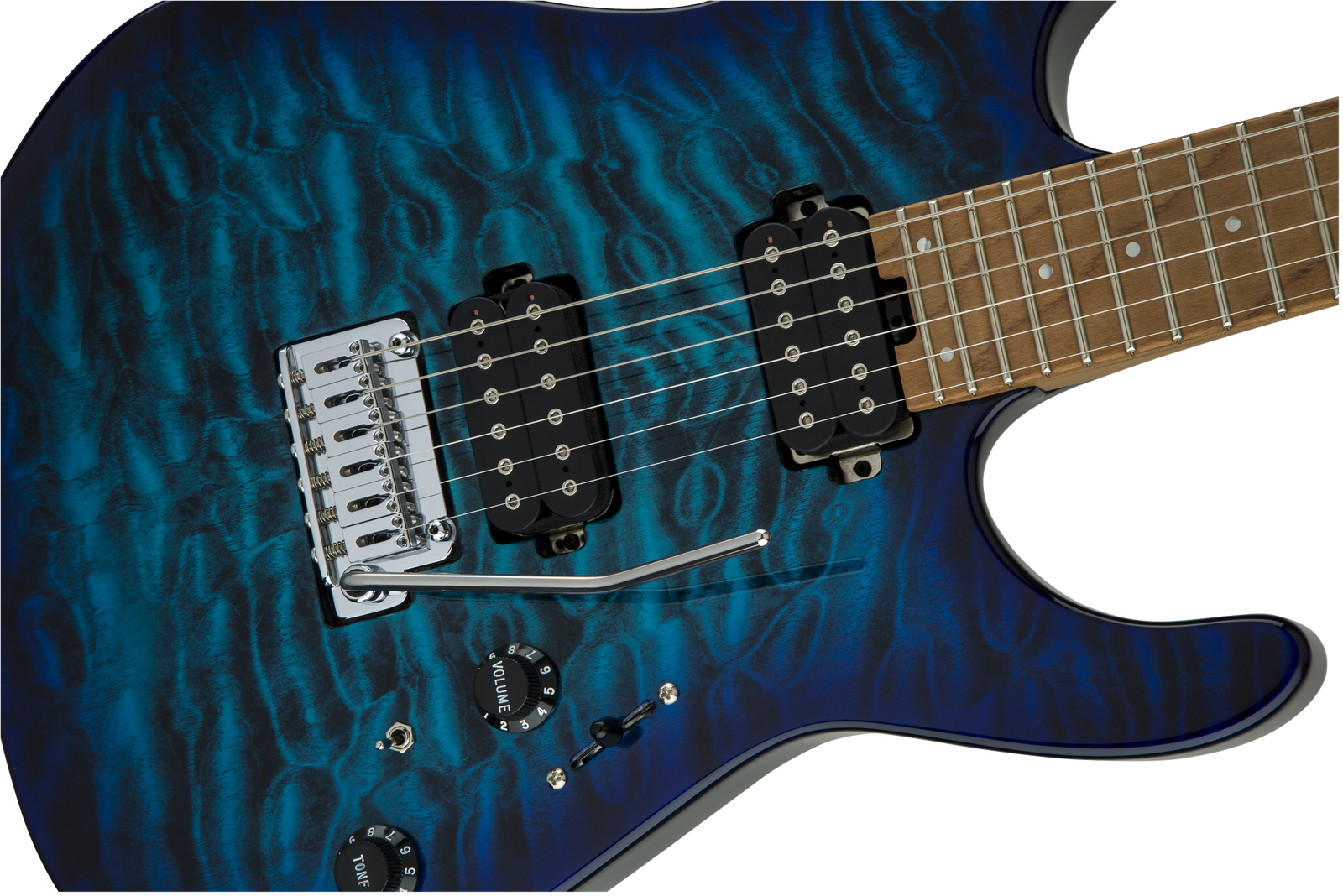

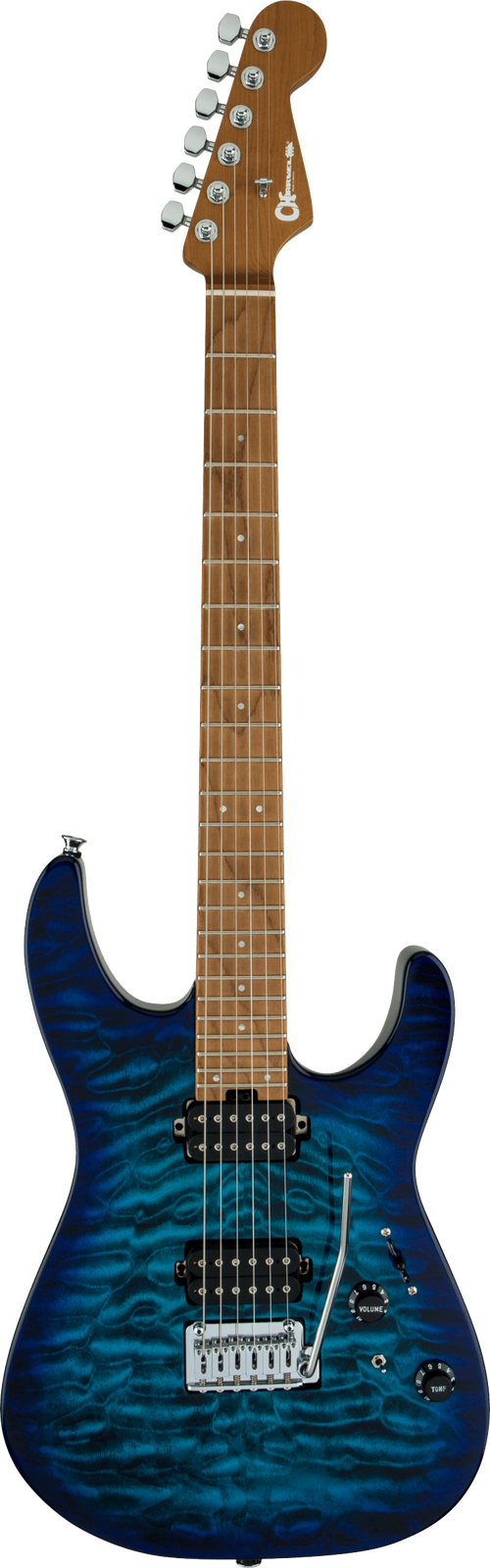

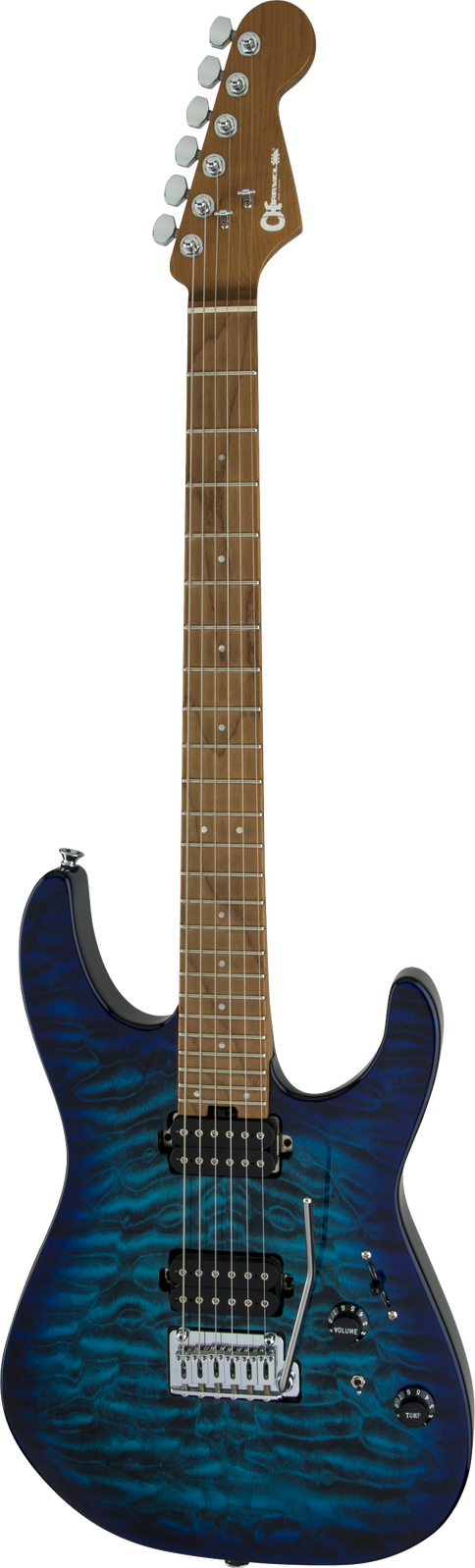

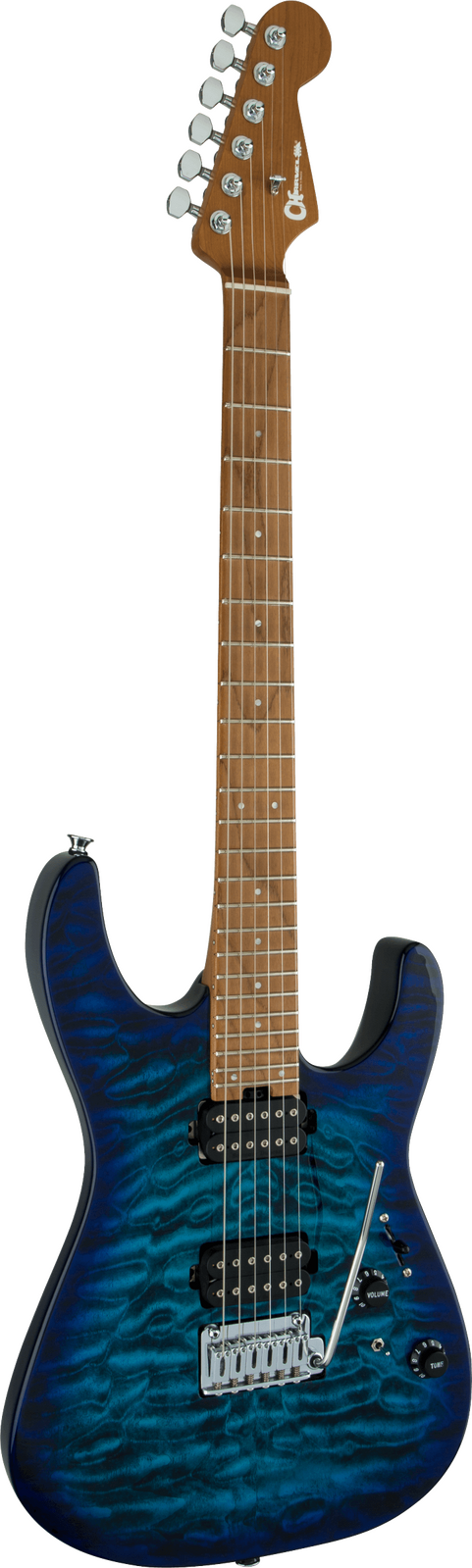

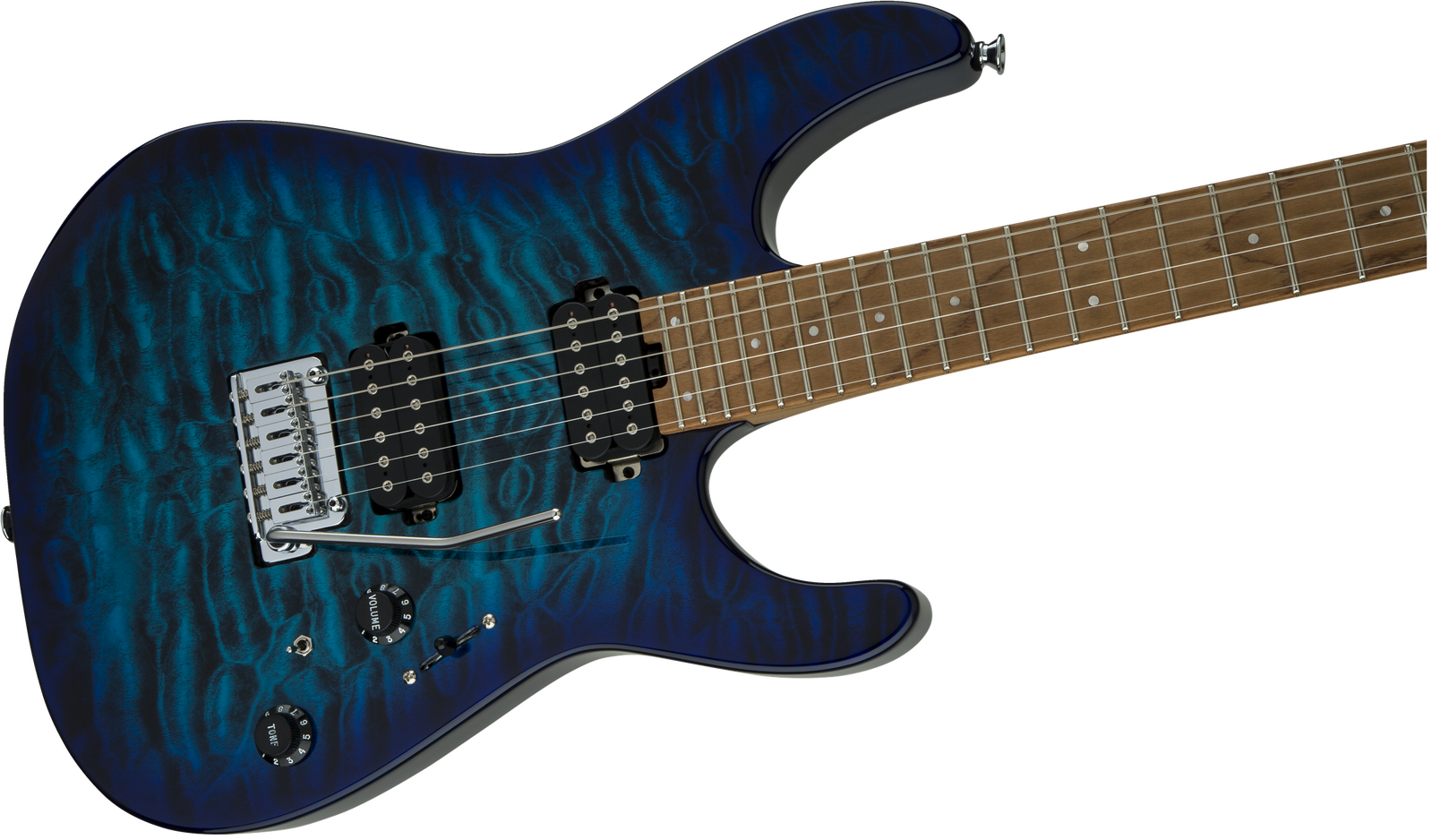

Charvel Pro-Mod DK24 HH 2PT CM QM Chlorine Burst

Charvel® turns modern high performance on its head with the new Pro-Mod DK24 HH 2PT CM QM, a brazen instrument for the progressive guitarist searching for an unparalleled spectrum of sound.

FEATURES

• 25.5" scale length

• Alder Dinky® body with quilt maple top

• Scalloped lower back bout for easy upper access to fingerboard

• Bolt-on caramelized maple neck with graphite reinforcement

• Sculpted shredder's cut heel

• 12"-16" compound radius caramelized maple fingerboard with 24 jumbo frets and pearloid dot inlays

• Graph Tech® TUSQ® XL nut

• Heel-mount truss rod adjustment wheel

• Direct mount Seymour Duncan® Custom Full Shred TB-10 bridge pickup and direct mount Seymour Duncan Alnico II Pro APH-1N neck pickup

• Five-way blade switch, Stratocaster®-style skirt knobs for no-load tone control and volume knob (with 500K EVH® Bourns™ low-friction potentiometer)

• Mini two-way toggle switch for parallel and series pickup combinations

• Gotoh® Custom 510 recessed tremolo bridge

• Charvel-branded die-cast locking tuners

SPECIFICATIONS

Neck

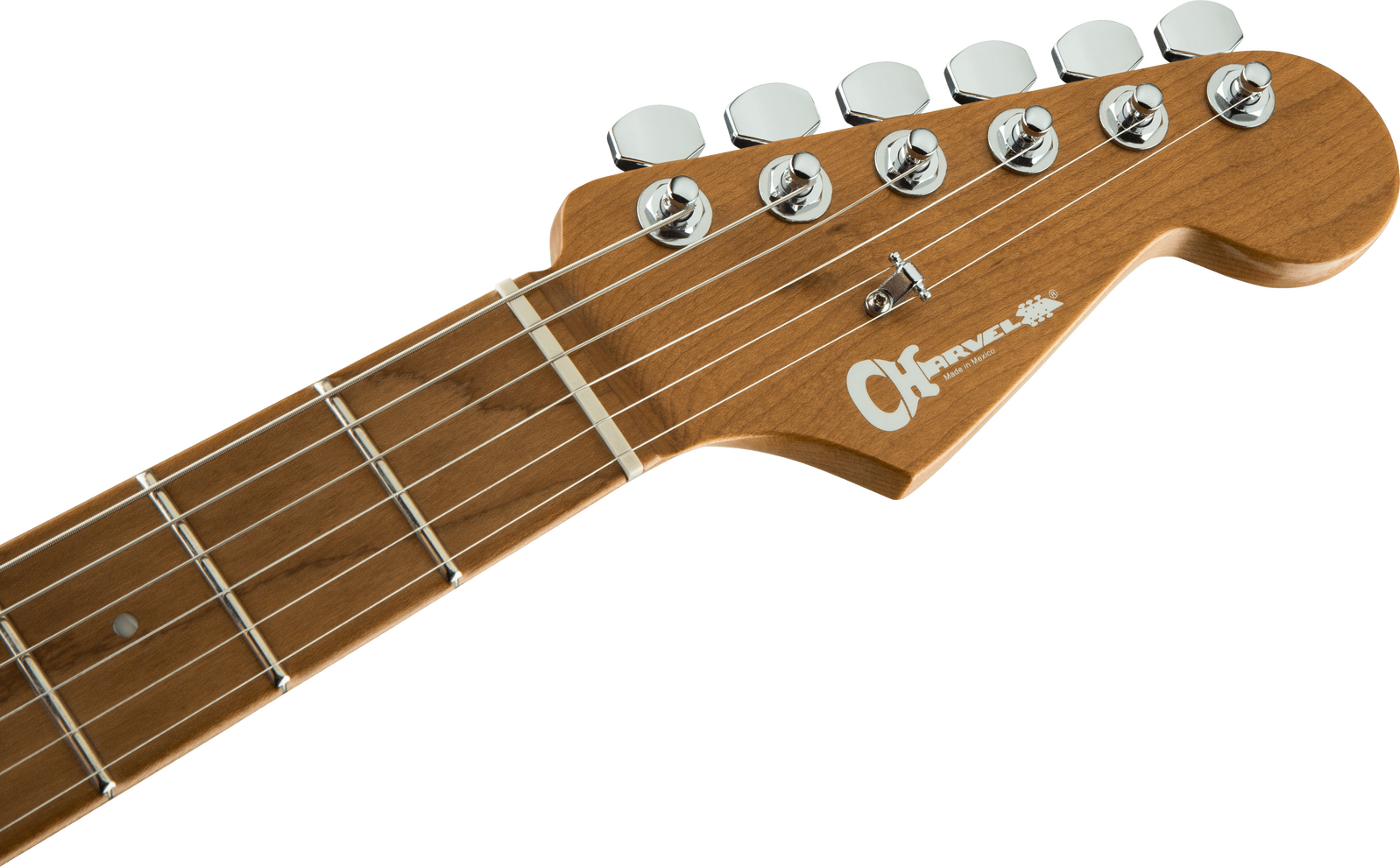

Headstock: Licensed Fender® Stratocaster®
Neck Material: Caramelized Maple
Neck Finish: Hand-Rubbed Urethane
Neck Shape: Speed Neck With Rolled Fingerboard Edges
Neck Construction: Bolt-on With Graphite Reinforcement
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm To 406.4 mm)
Fingerboard Material: Caramelized Maple
Position Inlays: 4mm Pearloid Dot
Number Of Frets: 24
Truss Rod: Dual-Action With Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Graph Tech Tusq XL
Nut Width: 1.6875" (42.86 mm)
Nut Material: Graph Tech Tusq XL

Body
Body: Alder
Body Finish: Gloss
Body Shape: Dinky®
Body Top: Quilt Maple
Body Style: Solid Body
Body Material: Alder

Hardware
Bridge: Gotoh® Custom 510 Tremolo
Pickguard: None
Pickup Covers: Flat Parchment
Control Knobs: Strat®-style Skirt
Switch Tip: Parchment
Hardware Finish: Chrome

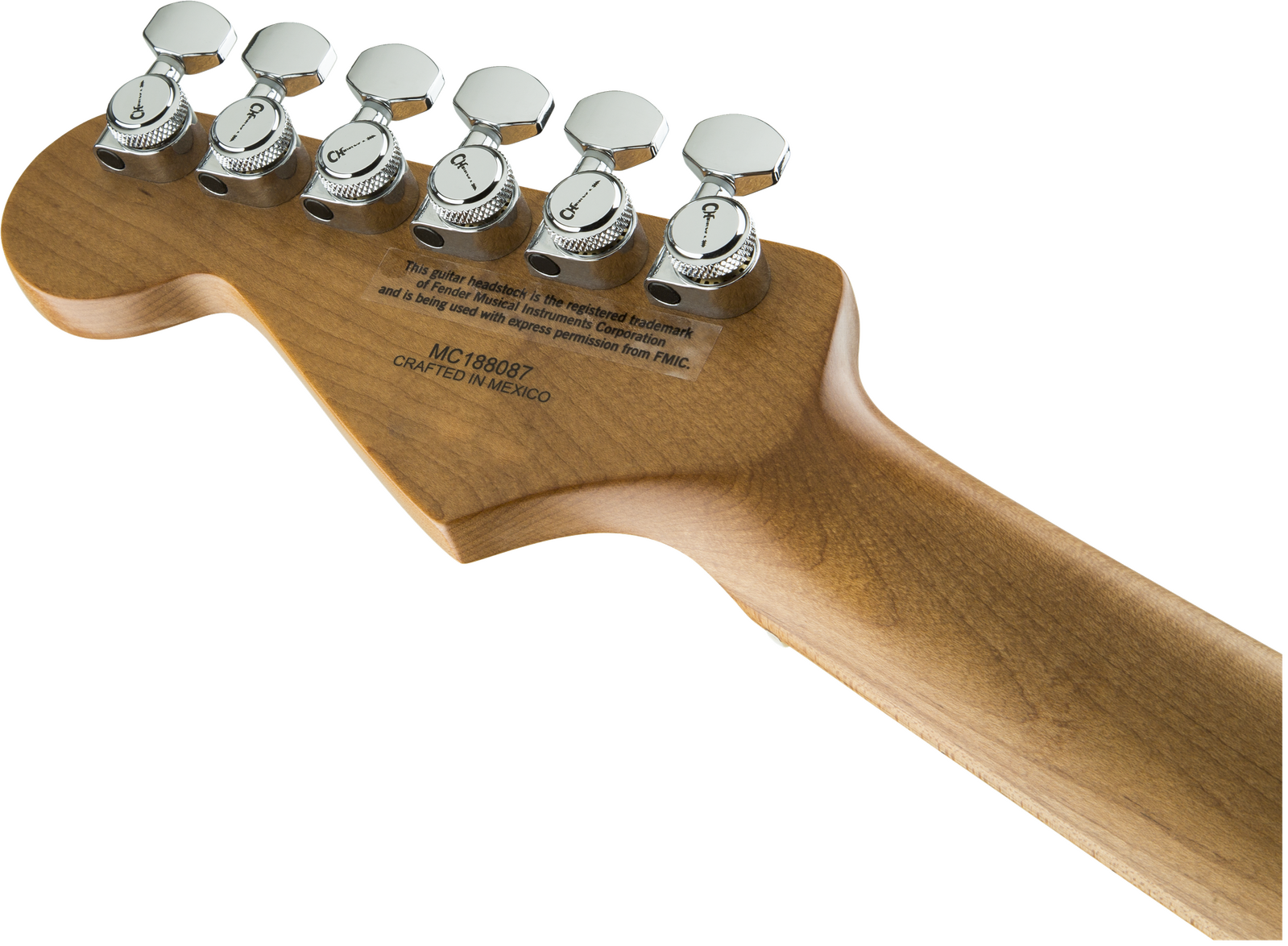

Tuning Machines: Charvel®-branded Die-cast Locking
Strings: Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Gotoh®
Neck Plate: None - 4-bolt Sculpted Heel
Strap Buttons: Standard

Electronics
Bridge Pickup: Seymour Duncan® Full Shred™ TB-10
Neck Pickup: Seymour Duncan® Alnico Ii Pro™ APH-1N
Pickup Configuration: HH
Controls: Volume (with 500k EVH® Bourns® Low Friction Potentiometer), No-load Tone
Switching: 5-Position Blade And 2-way Mini Toggle: (pos 1: Bridge Pickup, Pos 2: Both Outer Coils, Pos 3: Bridge And Neck Pickup, Pos 4: Both Inside Coils, Pos 5: Neck Pickup; 2-way Mini Toggle Down/all Series; 2-way Mini Toggle Up/All Parallel
Auxiliary Switching: 2-Position Mini Toggle Down/All Series, Up/All Parallel

Measurements
Dimensions: 4.50x15.20x42.00 in
Shipping Weight: 10.45 lb
Fret Size: Jumbo
Scale Length: 25.5" (64.77 cm)
Shipping Length: 42.00 in
Shipping Height: 4.50 in
Shipping Width: 15.20 in

Miscellaneous
Unique Features: Luminlay® Side Dots
