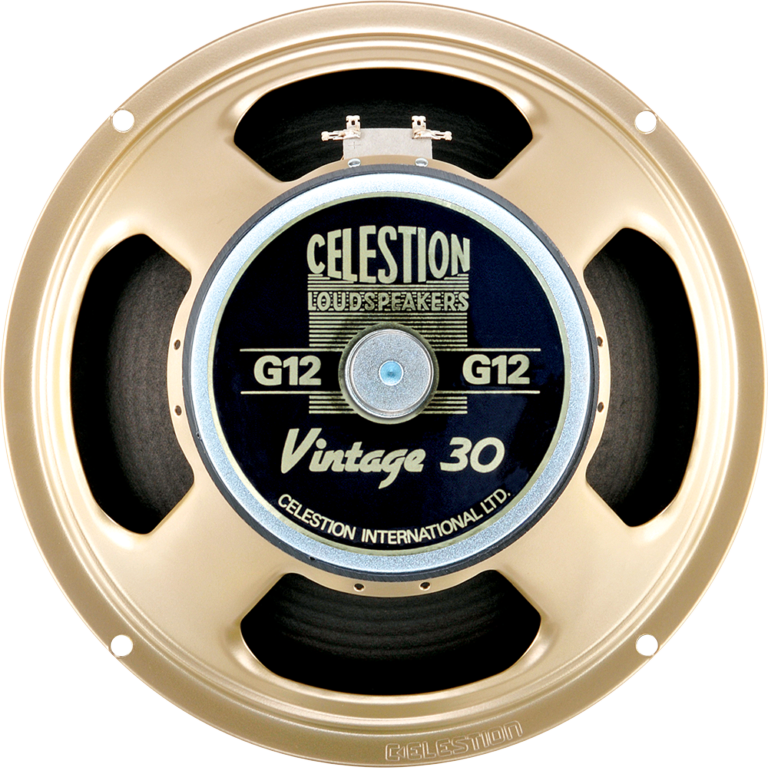

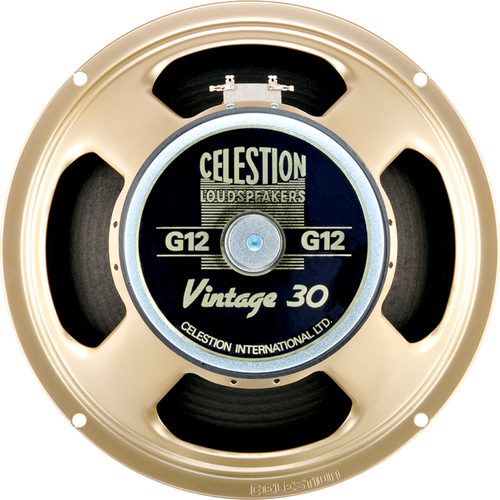

Celestion Vintage 30 12" 60W - 8Ω

Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly ‘hot-rodded’ amplifiers we set out to develop a modern guitar speaker capable of handling much more power and overdrive. To achieve this we coupled our ‘H’ magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials.

Our most revealing speaker the Vintage 30 features enormously detailed and complex overtones a warm low-end a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand- wired boutique amps or in quartets for a wonderfully intricate vintage 3D crunch the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash Steve Stevens and Peter Frampton.

SPECIFICATIONS

Nominal Diameter: 12in/305mm
Nominal Power Rating: 60W
Nominal Impedance: 8Ω or 16Ω
Sensitivity: 100dB
Frequency Range: 70-5000Hz
Resonance frequency Fs: 75Hz
DC resistance, Re: 7.3Ω or 12.9Ω
Voice coil diameter (mm): 44mm
Voice coil diameter (in): 1.75in
Chassis Type: Pressed steel
Magnet Type: Ceramic
Magnet Weight: 50oz/1.42kg
Voice coil material: Round copper

MOUNTING INFORMATION

Diameter: 12.2in/309mm
Magnet structure diameter: 6.1in/156mm
Mounting slot dimensions: Ø 0.31in/7.9mm
Mounting slot PCD: 11.7in/297mm
Number of mounting slots: 4
Overall Depth: 5.3in/135mm
Cut-out diameter: 11.1in/283mm
Unit Weight: 10.4lb/4.7kg
