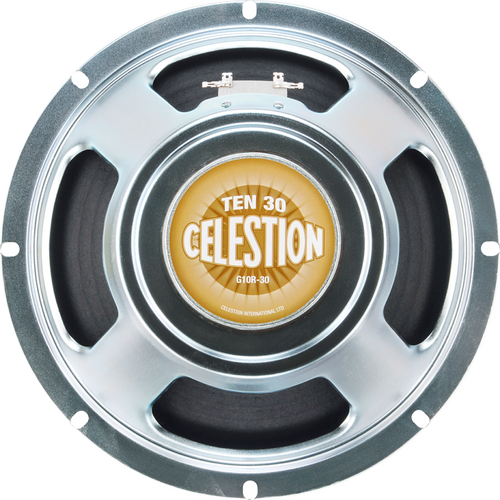

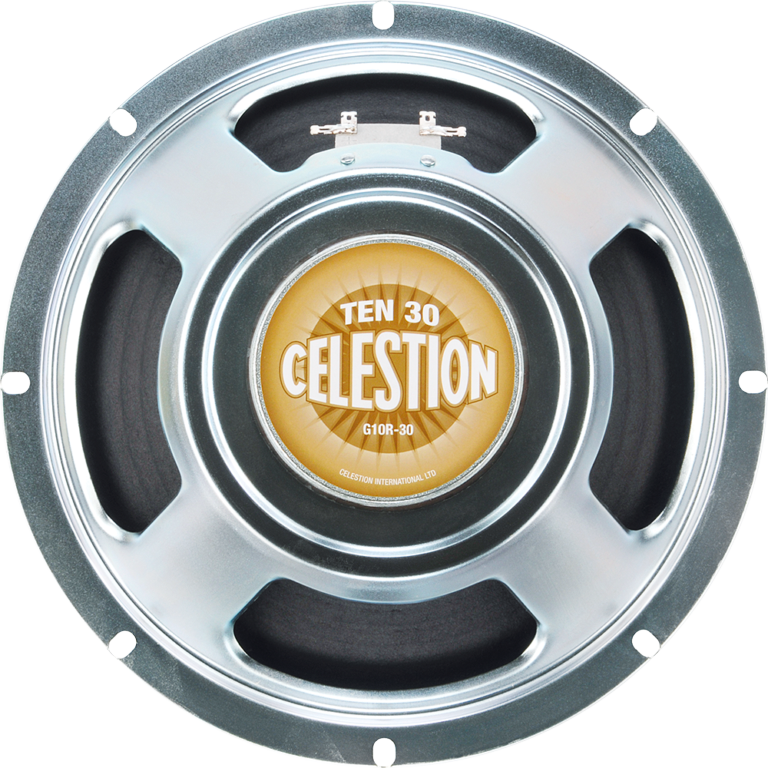

Celestion Ten 30 10" 30W - 8Ω
Model No. T5814
Rich and expressive the Ten 30 is a 10 inch guitar speaker that combines warm lows with a vocal mid-range and an articulate top end. The clean sound is open and revealing; push hard and you’re rewarded with full-blooded Celestion grind.
SPECIFICATIONS
Nominal Diameter: 10in/254mm
Nominal Power Rating: 30W
Rated Impedance: 8Ω or 16Ω
Sensitivity: 95dB
Frequency Range: 85-5000Hz
Resonance Frequency, Fs: 93.9Hz
DC Resistance, Re: 6Ω
Voice Coil Diameter: 31mm / 31mm
Chassis Type: Pressed steel
Magnet Type: Ceramic
Magnet Weight: 13oz
Voice Coil Material: Round copper
MOUNTING INFORMATION
Cut-out Diameter: 9.0in/229mm
Diameter: 10.1in,/256mm
Magnet Structure Diameter: 3.8in/96mm
Mounting Hole Dimensions: Ø 0.24 x 35in/ 6 x 9mm
Mounting Hole PCD: 9.6in/245mm
Number of Mounting Holes: 8
Overall Depth: 3.8/96mm
Unit Weight: 3.5lb/1.6kg
