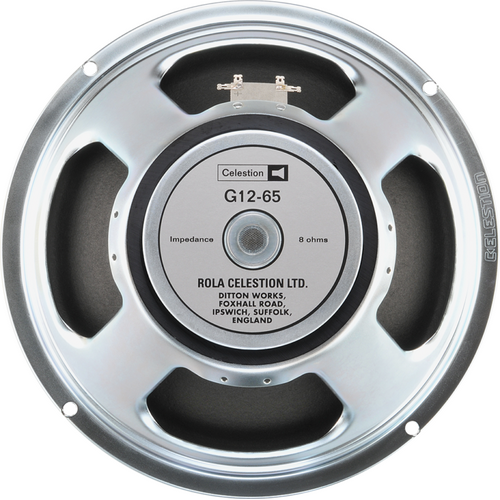

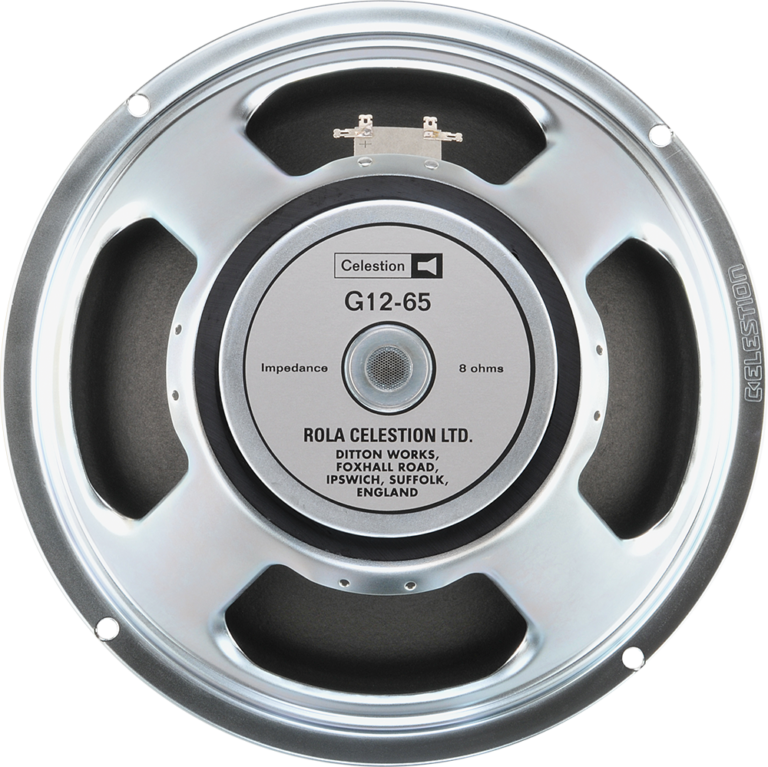

Celestion Heritage G12-65 12" 65W - 8Ω
Model No. T3053
Originally created in the late 70s using more modern materials and techniques for a higher power handling the G12-65 is widely regarded as one of the best guitar speakers ever produced for use in a 4×12 cabinet. With its fast attack and tightly controlled low end the G12-65 had become a firm favourite with hard rock players by the early 80s. The precisely tuned mid-range and crisp defined top-end contribute to an aggressive crunch sound that punches through the mix while the mid-range warmth and detail give weight and depth to single notes.
SPECIFICATIONS
Nominal Diameter: 12in/305mm
Nominal Power Rating: 65W
Nominal Impedance: 8Ω
Sensitivity: 97dB
Frequency Range: 80-5000Hz
Resonance frequency Fs: 85Hz
DC Resistance, Re: 6.9Ω
Voice coil diameter (mm): 44mm
Chassis Type: Pressed steel
Magnet Type: Ceramic
Voice coil material: Round copper
MOUNTING INFORMATION
Cut-out Diameter: 11.1in/283mm
Diameter: 12.2in/309mm
Magnet structure diameter: 5.7in/145mm
Mounting hole dimensions: Ø 0.31in/7.9mm
Mounting hole PCD: 11.7in/297mm
Number of mounting holes: 4
Chassis Depth (inc. gasket): 3.67in/94mm
Magnet Depth: 1.33in/34mm
Overall Depth: 5.0in/128mm
Unit Weight: 7.7lb/3.5kg
For more information, click here to visit the manufacturers website.
