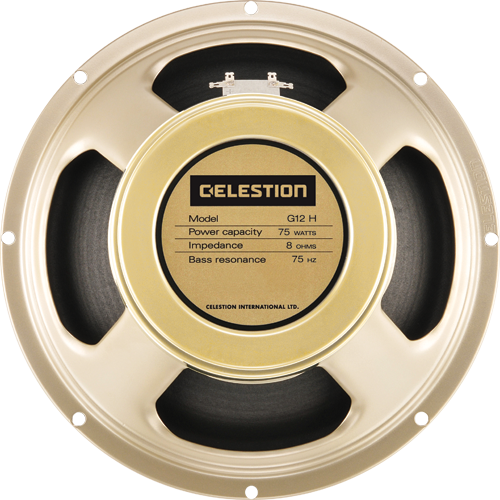

Celestion G12H-75 Creamback 12" 75W - 8Ω

Back in the late 60s the G12H was created by fixing an ‘H’ type (heavy) magnet to the body of a G12M guitar speaker. Result: a speaker with more power and a different tonal balance: firmer bass and a more pronounced top end. So we added an ‘H’ magnet to the G12M-65 Creamback to create a guitar speaker that delivers the sonic signature of a G12H combined with Creamback levels of power handling. The result is the G12H-75 Creamback. It delivers 75-watts of power handling with ease and has unmistakeable G12H tone with a tighter low end than the G12M-65 Creamback and a punchier more dynamic high end. The H magnet brings additional focus body and girth to the Creamback tone. It thickens single notes resulting in a highly articulate vocal character. These additional characteristics mean that the G12H-75 Creamback offers exceptional performance when used for lead guitar and sounds massive loaded into a 4×12 cab!

SPECIFICATIONS

Nominal Diameter: 12in/305mm
Nominal Power Rating: 75W
Nominal Impedance: 8Ω or 16Ω
Sensitivity: 100dB
Frequency Range: 70-5000Hz
Resonance frequency Fs: 75Hz
DC resistance, Re: 6.37Ω and 12.5Ω
Voice coil diameter (mm): 44mm
Voice coil diameter (in): 1.75in
Chassis Type: Pressed steel
Magnet Type: Ceramic
Magnet Weight: 50oz/1.42kg
Voice coil material: Round copper

MOUNTING INFORMATION

Diameter: 12.2in/309mm
Magnet structure diameter: 6.6in/168mm
Mounting slot dimensions: Ø 0.31in/7.9mm
Mounting slot PCD: 11.7in/297mm
Number of mounting slots: 8
Overall Depth: 5.4in/138mm
Cut-out diameter: 11.1in/283mm
Unit Weight: 10.4lb/4.7kg
